Heavy Duty Float Switch for Use with Sewage Suspended Solids and Viscous Liquids

$4699
  • Works with sump, septic, and potable water applications
  • Designed for filling and emptying operations
  • Nontoxic polypropylene construction ensures lasting use
  • View More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:
$4699

Product Overview

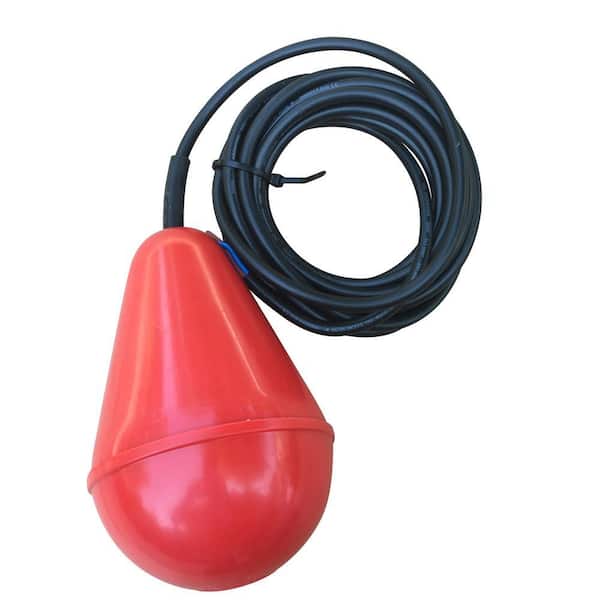

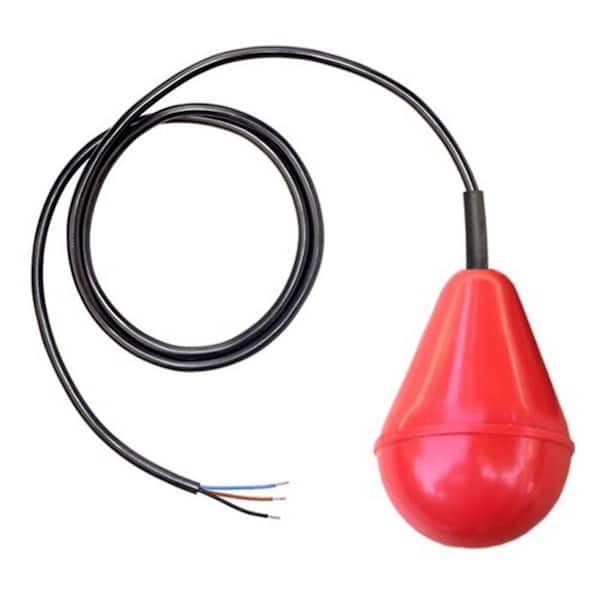

The SLUDGEBOSS is the float switch for extra nasty locations where there is sewage and suspended solids. This heavy duty dual purpose float switch has an integrated concrete counterweight ensuring its orientation even if held below floating materials. The switch SPDT and can be used for both emptying and filling operations. Directly Controls pumps up to 1/2 HP at 120-Volt or 220-Volt- Up to 12 Amp continuous or 13.3 Non continuous AC Amperage- 12 VDC motor loads up to 13.3 Amp, contact us for other DC Applications- Environmental friendly (Mercury Free)- suitable for use in septic, sump, and potable water applications- Built with a Honeywell Micro switch, rated for 1,000,000 operations- Cable is Coated with PVC/Thermoplastic jacket- Internally Contains a Stainless Steel Ball- Manufactured in Argentina- Five year warranty- Constructed with non-toxic polypropylene- Float dimensions are 7 in. long x 4.5 in. Dia (180 mm x 115 mm)- Rated for indoor or outdoor use: operating temperatures 32° to 140°F (0° to 60°C), okay to freeze- CE Marked, IP68 Rated, tested to IEC 60730-1 (08-2003) + IEC 60730-2-16 (08-2001)- Reinforced Double O Ring Cable Entry.
  • Internally counterweighted float switch (a secondary counterweight is not required)
  • SPDT with three wire lead connection points can close circuit when float is up or down
  • Flips in place in 6 in. - 8 in. of water movement, not a tethered float, no need to enter tank to install
  • 5-year field failure warranty
  • 5 m (16 ft.) of cable
  • Rated up to 250-Volt operations at up to 13 Amp or 1/2 HP

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
6 in
Product Height (in.)
8 in
Product Width (in.)
6 in

Details

Brand Compatibility
Works with Any Pump
Pack Size
1
Product Weight (lb.)
2 lb
Recommended Pump Types
Effluent Pumps,Sewage Pumps,Utility Pumps
Returnable
90-Day
Switch Type
Motion Activated Switch

Warranty / Certifications

Manufacturer Warranty
5 Years

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 3.7
    out of 3 reviews
  • 100% recommend this product
Filter by:
Showing 1-3 of 3 reviews
Did not work with what I wanted it to do....
Did not work with what I wanted it to do. It turns off and on without much change in degree. Not heavy duty wire.
by
  • Verified Purchase
THE FLOAT WAS EASY TO INSTALL IN SEPTIC TANK FROM...
THE FLOAT WAS EASY TO INSTALL IN SEPTIC TANK FROM ABOVE
by
  • Verified Purchase
Beefy.
I did not need to enter my septic system to install. Hangs in place and flips. Doesnt need a cable weight, which I like as my last one fell off.
by
    • Recommended
    Showing 1-3 of 3 reviews
