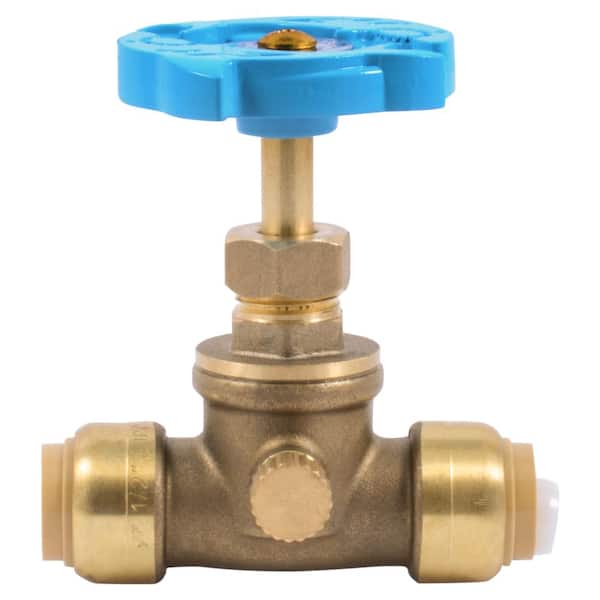

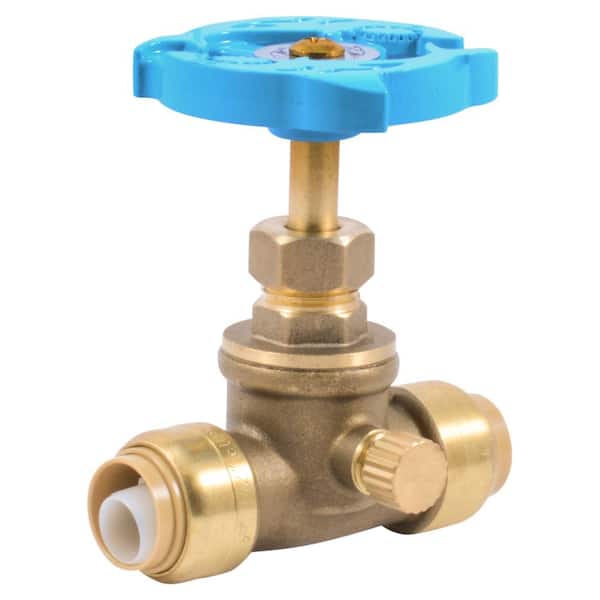

1/2 in. Push-to-Connect Brass Stop Valve with Drain

$13.45
  • Push to Connect system, quick and easy installation in seconds
  • Works on any combination of Copper, PE-RT, CPVC, PEX Pipe
  • Lead free DZR brass construction for durability and reliability
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

The 1/2 in. SharkBite Push-to-Connect Stop Valve with Drain is the easiest way to install a new or replacement valve. The valve is perfect for potable water and hydronic applications where a shut-off is needed. The Stop Valve is designed with an integrated drain vent, allowing for easy cold weather maintenance. Using SharkBite fittings is the easiest way to join copper, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite Fittings are certified for potable water supply and hydronic heating applications.

Highlights

  • Push-to-connect design makes for quick and easy install, requires no solder, glue, unions, or tools
  • Connects to copper, PEX, CPVC or PE-RT pipe
  • Lead free DZR brass construction for durability and reliability
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution
  • Corrosion resistant to improve longevity
  • Listed by IAPMO and design certified and listed to ASSE 1061/NSF 64
  • Meets all UPC, IPC, and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • Rated to 200-degrees F and 200 psi
  • 1/2 in. pipe insertion depth = 15/16 in.
  • Shop all SharkBite Fittings
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 301969313

Model # 24634LF

Store SKU # 1002586490

Specifications

Dimensions: H 3.2 in, W 1.62 in, D 1.62 in

Dimensions

Inlet Diameter (In.)

1/2

Inlet Size

1/2 In.

Outlet Diameter (In.)

3/8

Product Depth (in.)

1.62 in

Product Height (in.)

3.2 in

Product Length (in.)

2.9 in

Product Width (in.)

1.62 in

Valve Inlet Diameter (in.)

1/2

Details

Application

Potable Water

Color/Finish

Brass

Color/Finish Family

Stainless Steel

Compatible Pipe Material

Multi-Purpose

Compatible Product

Other

Connection

PTC

Features

Lead Free

Indoor/Outdoor

Indoor

Inlet Fitting End Type

Push to Connect

Material

Brass

Maximum Pressure (PSI)

200

Maximum Working Temperature (F)

200

Outlet Fitting End Type

Push to Connect

Pack Size

1

Product Weight (lb.)

0.47 lb

Returnable

90-Day

Stop Valve Type

Straight

Valve Configuration

Straight

Valve Connection

Push Connect

Valve Type

Supply Stop

Warranty / Certifications

Manufacturer Warranty

For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

Questions & Answers

15Questions
caret
Q:can this fitting be used vertically
by|Apr 3, 2024
1 Answer
Answer This Question

A:  Hi, The 1/2 in. Push-to-Connect Brass Stop Valve with Drain can be installed vertically or horizontally. If you have any more questions you can call tech support at 877-700-4242. Kind regards,

by|Apr 5, 2024
    caret
    Q:Is the vent constrained to one side of the valve? If it is, then I suppose they installed it backward on my sister's house, since water pressure remains on vent after turning off the valve.
    by|Dec 23, 2023
    1 Answer
    Answer This Question

    A:  Hi Larry, There is only one drain on the SharkBite 1/2 in. Push-to-Connect Brass Stop Valve with Drain. If the water continues to flow after turning off the valve then the drain is on the wrong side. If you have any more questions you can call tech support at 877-700-4242. Kind regards,

    by|Dec 26, 2023
      caret
      Q:Can the fitting be locked into place?
      by|Nov 13, 2023
      1 Answer
      Answer This Question

      A:  Hi Brandon, The SharkBite 1/2 in. Push-to-Connect Brass Stop Valve with Drain can not be locked into place. The valve will rotate around the pipe without compromising the water tight seal. If you have any more questions you can call tech support at 877-700-4242. Kind regards,

      by|Nov 14, 2023
        caret
        Q:Is shark bite valve have a full throat 1/2" gate ...as the 1/2 ball valve is 1/4 " like ball...lose to much pressure...
        by|Apr 11, 2023
        2 Answers
        Answer This Question

        A:  HI, The SharkBite 1/2 in. Push-to-Connect Brass Stop Valve with Drain is not a full port valve. Our SharkBite Ball Valve with Drain / Vent and Mounting Tab is a full port valve. I've attached a link to the valve. If you have any more questions you can call tech support at 877-700-4242. (https://www.sharkbite.com/us/en/brass-push-to-connect/valves/ball-valves/ball-valve-with-drain-vent-and-mounting-tab) (Kind regards,)

        by|Apr 12, 2023

          A:  I did not notice a pressure drop after installing this valve. This was installed into an existing line without a valve so I expected a pressure drop, but have not experienced any.

          by|Apr 12, 2023
            Showing 1-4 of 15

            Customer Reviews

            4.8 out of 5

            • 4.8 out of 290 reviews
            • 93% recommend this product
            Filter by:
            Showing 1-10 of 290 reviews
            Take a bIte
            Great product used these several times before. No problems or issues at all when installed correctly never had one failed yet. Easy to use don't have to worry about using soldering flux propane Would Recommend.
            by
            • Verified Purchase
            • Recommended
            First time using SharkBite the fittings sealed excellent no leaks. I Usually solder copper fittin...
            First time using SharkBite the fittings sealed excellent no leaks. I Usually solder copper fittings but I'll be using Sharkbite from now on. I little pricey but well made.
            by
            • Verified Purchase
            • Recommended
            Due to location of repair and my faded soldering ability I decided to try this out. This exceed...
            Due to location of repair and my faded soldering ability I decided to try this out. This exceeded my expectation and time required was less than 1 minute. Anyone can use this with minimal required knowledge of plumbing. Just pay attention to which side the drain needs to be facing.
            by
            • Verified Purchase
            • Recommended
            Once i swetted off old copper pipe, cleaned the ends of the pipes, it literally tokm me less than...
            Once i swetted off old copper pipe, cleaned the ends of the pipes, it literally tokm me less than a minute to aytach this. I only wish the handle was smaller or a shorter vertical handle. I use Shark bites for ALL my plumbing needs.
            by
            • Verified Purchase
            • Recommended
            Great product. Easy to use. I felt like an actual plumber.
            Great product. Easy to use. I felt like an actual plumber.
            by
            • Verified Purchase
            • Recommended
            I really like the convenience of Sharkbite fittings, and although they can be costly as compared ...
            I really like the convenience of Sharkbite fittings, and although they can be costly as compared to conventional solder-style or compression-style fittings, they are priceless in many circumstances. Unlike a soldered-connection, there is no need to be concerned about traces of water or moisture present in the tubing in order to install this fitting, just clean the pipe and insert the fitting. Provided the pipe is clean, I’ve experienced no leaking after installation. Installation is a snap. This product has a solid "feel" and a metal handle. This is the first time, I’ve used their stop valve product and because I made a mistake measuring the pipe during installation, I needed to remove the valve and re-install it. There are special removal tools used to grasp the outer collar of the fitting and push it inward to release the coupling from the copper tubing. I have two types of these tools (a small plastic collar and a spring-style hand tool designed specifically for this). I tried to uninstall the fitting but succeeded only in removing one side; removal of the other side was impossible. So what is one to do? You can’t apply heat as you would in a soldered connection to melt the solder. Cut the tubing and start again? – an expensive remedy. Perhaps I received a defective product? Unfortunately, as much as I like the Sharkbite brand, based on my experience I cannot recommend this item.
            by
            Response from SharkBite SupportJun 25, 2018
            We are sorry you have had an issue with our push to connect stop valve. We would like to get it back from you if possible for testing as well as send you a replacement fitting. Please contact Customer Service M-F, 8am-5pm at (877) 700-4242 and we can send you a prepaid label to ship the fitting back. SharkBiteCashAcme
            2 found this review helpful
            I have stated before, I like Sharkbite fittings. I still like Sharkbite fittings. They are the ea...
            I have stated before, I like Sharkbite fittings. I still like Sharkbite fittings. They are the easiest to use fittings I have ever had the need to use. I like the fact that you can install them in a wet pipe. You can install them with no heat, as in sweat fittings, so no fire hazzard is created. They do not come off easy but then do you want a fitting that comes off easy in your crawl space or attic? I would answer " no ". I wish the manufacturer would offer a belt buckle based on the design of the valve handle, see pictures, I would wear it. I have used these on rigid copper and cpvc pipe and they are good to go.
            by
            • Recommended
            2 found this review helpful
            by
            • Verified Purchase
            by
            • Verified Purchase
            Worked as expected. Tremendous time saver.
            by
            • Verified Purchase
