Internet #202270500

Model #U072LFA

Store SKU #286249

Store SO SKU #1000317684

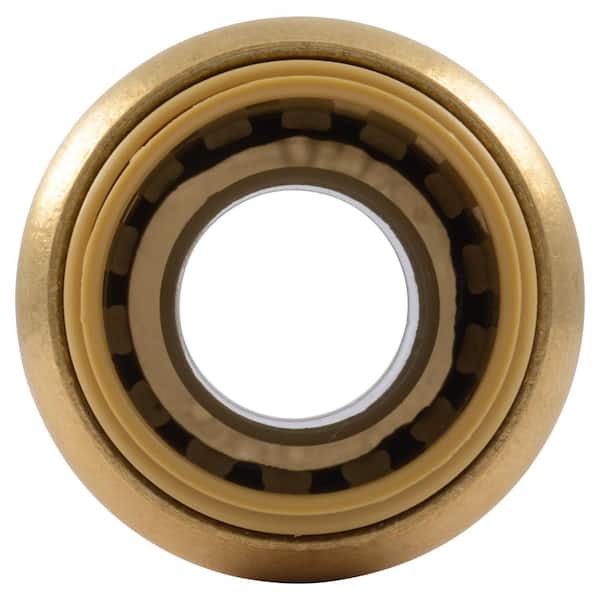

1/2 in. Push-to-Connect x FIP Brass Adapter Fitting

  • Works on any combination of Copper, CPVC, PE-RT, and PEX Pipe
  • Lead free and corrosion resistant for reliability and longevity
  • Push to Connect system, quick and easy installation in seconds
  • See More Details

Frequently Bought Together

+
+
Price:
$685

Product Overview

Installation requires no use of expensive tools, glues, solders, solvents, or crimping; all you need are pipe cutters.

No Tools Required

Installation requires no use of expensive tools, glues, solders, solvents, or crimping; all you need are pipe cutters.

SharkBite Fittings are compatible with more than 5 pipe types: PEX, Copper, CPVC, PE-RT and HDPE.

Versatility

SharkBite Fittings are compatible with more than 5 pipe types: PEX, Copper, CPVC, PE-RT and HDPE.

Installation is fast and simple within 3 seconds, allowing the job to get done in a snap.

Easy Fast Install

Installation is fast and simple within 3 seconds, allowing the job to get done in a snap. Allows fot the ability to work in tight spaces without having to make structural changes.

Man working with SB

Approved for Underground

Approved for burial applications (wrapping required when burying underground)

SharkBite Fittings are removable with disconnect clips or tongs, which will reduce the risk of installation errors

Error-Proof

SharkBite Fittings are removable with disconnect clips or tongs, which will reduce the risk of installation errors

Installation does not require a dry pipe and there is no need to wait for the pipe to drain, ProLock can be installed on a wet line.

Wet or Dry Applications

Installation does not require a dry pipe and there is no need to wait for the pipe to drain, ProLock can be installed on a wet line.

SharkBite owns the entire manufacturing process, from raw materials to finished product.

Quality you can trust

SharkBite owns the entire manufacturing process, from raw materials to finished product

Full range of fittings and accessories 1/4 in. - 2 in.; Large diameter fittings (1-1/4" - 2") required Stiffener when connection to PEX Pipe.

Versatile Fittings Collection

Full range of fittings and accessories 1/4 in. - 2 in.; Large diameter fittings (1-1/4" - 2") required Stiffener when connection to PEX Pipe

Listed by IAPMO and design certified.

Certified

Listed by IAPMO and design certified and listed to ASSE 1061, CSA B125.3, NSF 372, NSF/ANSI 61, ASTM E84, CAN/ULC S102.2, ASTM, E119, CAN/ULC S101,UL289

Rated to 200°F and 200 PSI

Working Temperature and Pressure

Rated to 200°F and 200 PSI

Made of durable DZR brass

Material

Made of durable DZR brass

Approved for behind-the-wall applications

Behind the Wall

Approved for behind-the-wall applications

25 Year System Warranty

Reliability

25 Year System Warranty

The 1/2 in. SharkBite Push-to-Connect x 1/2 in. Female Pipe Thread Adapter allows you to make a connection to 1/2 in. pipe using a push-fit connection and then gives you a 1/2 in. Female NPT Adapter on the opposite end. SharkBite fittings are the easiest way to join Copper, PE-RT, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite Fittings are certified for potable water supply and hydronic heating applications. Get SharkBite and get a grip on your next plumbing project.
  • Lead free DZR brass construction for durability and reliability
  • Use to connect to any combination of copper, PEX, CPVC, or PE-RT pipes
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions, or tools
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution as well as hydronic heating applications
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
  • Meets all UPC, IPC, and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • Rated to 200°F and 200 psi
  • 1/2 in. pipe insertion depth = 15/16 in.
  • Shop all SharkBite Fittings
  • Shop the SharkBite Polyethylene Pipe Collection
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Brass Fittings

1/2 in. Push-to-Connect Brass End Stop Fitting
current product
1/2 in. Push-to-Connect x FIP Brass Adapter Fitting
1/2 in. Push-to-Connect Brass Coupling Fitting1/2 in. Push-to-Connect Brass 90-Degree Elbow Fitting
BrandSharkBiteSharkBiteSharkBiteSharkBite
Name1/2 in. Push-to-Connect Brass End Stop Fitting1/2 in. Push-to-Connect x FIP Brass Adapter Fitting1/2 in. Push-to-Connect Brass Coupling Fitting1/2 in. Push-to-Connect Brass 90-Degree Elbow Fitting
Price
$671
$685
$713
$762
Ratings
(618)
(491)
(1529)
(1034)
Fitting 1 size1/2"1/2"1/2"1/2"
Fitting or Connector TypeCapAdapterCouplingElbow
ConnectivityPush FitPush FitPush FitPush Fit
FeaturesRemovableRemovableLead FreeRemovable
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
Pack Size1111
MaterialBrassBrassBrassBrass
Bend Degree 90 Degree
View ProductView ProductView ProductView Product

Specifications

Dimensions

Double Fitting Size
1/2" x 1/2"
Fitting 1 size
1/2"
Fitting 2 size
1/2"
Insertion Depth (In.)
.95
Product Length (in.)
1.086

Details

Application
Potable Water
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
PTC
Connection 2
FIP
Connectivity
Push Fit
Features
Removable
Fitting or Connector Type
Adapter
Fitting/ Connector Collection
Brass
Material
Brass
Maximum working pressure (psi)
200
Maximum Working Temperature (F)
200
Number in Package
1
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.12
Reducing Fitting
No
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

Questions & Answers

27Questions35Answers

Can I thread this to the cold water inlet of a gas water heater? Do the threaded parts require O ...

Asked by Mia February 8, 2021
5
Answers

Yes you could use it for a copper water line, but I would use a flexible water heater supply line.

Could these be used to connect to the top of a hot water heater?

Asked by Kyle January 27, 2021
5
Answers

Hello, The SharkBite 3/4 in. Push-to-Connect x FIP Brass Adapter Fitting could be used to connect to your water heater as long as the threads are (MIP) Male Iron Pipe. If you have any more questions you can contact tech support at 877-700-4242. Kind regards,

Can this be used for a wall drain??

Asked by warrens18974 December 8, 2020
1
Answer

Hello, SharkBite push-to-connect fittings have been approved for use in potable water applications but these fittings are not suitable for use in drainage applications. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

Will the female FIP fit a 1/2" NPSM thread. I already tried but it was very difficult to fully ti...

Asked by Jh September 8, 2020
3
Answers

I do not believe these are made for threaded pipe since threads would prevent seals from engaging. Forcing anything is a recipe for many leaks and worse. Use the right product.

mini-tank ES4, electric water heater, I used this connector but FIPT and FNPT are not listed for this heater

Asked by Maddie August 28, 2020
2
Answers

Even though it it's a straight thread, with a little finesse, it will thread on.

If I want to connect to a 3/4" garden hose bib and another end to 1/2" PEX, what would be the pro...

Asked by MT July 31, 2020
2
Answers

Yes , I brought this product from Cedar Park store, plumbing department suggested me to use this product, and it was perfect fit.Thanks to Home Depot store associates.

I am looking for a fitting that screws to a hose bib and connects a 1/2" PEX tube. Is this it? If...

Asked by MT July 30, 2020
5
Answers

Hello, We do not currently offer any fittings that will connect to garden hose thread. It will be necessary to find a FNPT (female national pipe tapered) to GHT (garden hose thread) adapter to transition thread types. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

Can this be used on straight thread Male connection

Asked by Stacy May 28, 2020
3
Answers

Yes

I see a few reviews saying that these failed after several years. Is there anyone who has used th...

Asked by BrianH March 11, 2020
5
Answers

Hello, SharkBite push-to-connect fittings feature a 25-year warranty when installed according to the installation instructions in the link below. These fittings are very reliable but care must be taken to make sure the pipe or tubing being used is in good condition. Any foreign material or deep scratches on the outside of the pipe/tubing could prevent the fitting's O-ring from making a watertight seal. It is also very important to make sure the pipe/tubing is inserted to the full insertion depth and that copper pipe is properly deburred to prevent damage to the fitting's O-ring. If you have additional questions please don't hesitate to reach out to our technical service department at 877-700-4242. https://www.sharkbite.com/sites/g/files/rgohfh321/files/2019-12/sharkbite-installation-guide-2019.pdf Best Regards,

Is the size specified ID or OD?

Asked by Mike December 5, 2019
4
Answers

Outside diameter

1/2 in. Push-to-Connect x FIP Brass Adapter Fitting - page 2

Customer Reviews

  • 4.8
    out of 498 reviews
  • 93% recommend this product
5star-icon433
4star-icon36
3star-icon10
2star-icon3
1star-icon16
Filter by:
Showing 1-10 of 498 reviews
great product
Had a sink leak and this product was very easy to install.
by crazystang70
Super easy to use and did away with the need to solder anything.
Super easy to use and did away with the need to solder anything.
by JK
I used this Shark Bite to connect a new pipe...
I used this Shark Bite to connect a new pipe and faucet I had to install. The Shark Bite made the connection of the new pipe to the old copper pipe easy. The Shark Bite screwed right on the new pipe and then it was just a little push of the old copper pipe into the Shark Bite and the whole job was finished. No messy soldering. No fire risk from using a torch. This was the first time I ever used a Shark Bite. The whole job only took about an hour from old pipe removal to finished new pipe installed. Thank you.
by PJ
I had bought a plastic off brand last year for my copper connection for my shower. When I replac...
I had bought a plastic off brand last year for my copper connection for my shower. When I replaced the shower it broke getting it off, this shark bite went on easy, no leaks and won't break. I love it.
by Duane
Make the job much easier ...
Make the job much easier
by ELLISON
These are the best for those who don't want To sweat joints !
These are the best for those who don't want To sweat joints !
by Bandit
Works really well for old pipe repair. ...
Works really well for old pipe repair.
by JIM
SharkBites are life savers!! I seriously should never take on any plumbing job... and yet on occa...
SharkBites are life savers!! I seriously should never take on any plumbing job... and yet on occasion I forget, and think it might be a good idea. Hahaha! Replacing a shower handle unit... involved working in a small hole in the wall behind my shower...what was I thinking?? There is no way I would have been able to finish this job without SharkBites!! The project would have involved knocking a huge hole in my living room wall to solder this together!! Instead, I cleaned the old copper piping, pushed the SharkBites in to place....and done!! Whew!! Perfect seal! No leaks! What a relief!! If I break down and try another plumbing project in the future, I am making sure I have SharkBites ready to help me complete my job with no leaks.
by AzVeggieMom
1 person found this helpful
Easy to use. Did not leak. Quick fix.
Easy to use. Did not leak. Quick fix.
by Plumbbob
This is the second sharkbite that fails. A handyman did the first install and I did the second. T...
This is the second sharkbite that fails. A handyman did the first install and I did the second. The rim cracked in 2 places. The pipes and faucets that you use it on have to be in plain view at all times. I would never trust it on pipes located behind a drywall. Initially I felt that sharkbite was the way to go because it can save $$ hundreds on plumber's bills as well as overall ease to connect any pipes, faucets, gadgets etc. That may still be the case, provided the part is quality made, and rim stays intact. With this item you can't just install and forget. It may flood your property. Lasted me 6 months and it did not meet my expectations for a quality product.
by NP
Response from SharkBite SupportApr 16, 2019
Hello, we are sorry to hear about your poor experience with the 1/2 in. SharkBite Female Pipe Thread Adapter and we understand your frustration. Our products are intended for long-term use and we stand behind our products 100%. Under the Uniform Plumbing Code, SharkBite fittings are approved for behind wall applications. Please contact our Customer Service Team at 1-877-700-4242 as we'd like to remedy the situation, and if possible, get the product back from you for further examination. SharkBiteCashAcme
2 people found this helpful
Showing 1-10 of 498 reviews
