- Most flexible piping system for hot and cold potable plumbing
- Highest rated chlorine resistance and 1-month UV resistance
- Compatible with PEX Expansion, Crimp and Push-to-Connect fittings
- View More Details
Product Details
About This Product

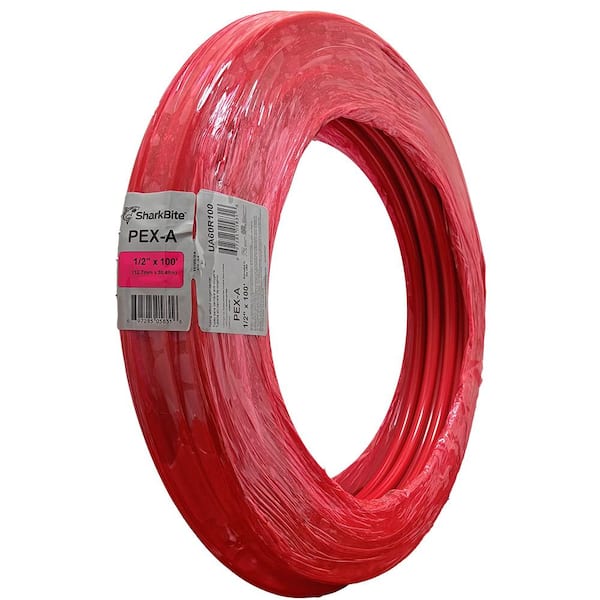

SharkBite PEX-A is a cross-linked polyethylene tubing designed for use in residential and commercial plumbing applications. PEX pipe is flexible and easy to work with, which reduces the number of fittings needed to complete a job, reducing cost and leak points. PEX is also extremely durable and corrosion/freeze resistant. SharkBite PEX-A is compatible PEX F-1960 expansion fittings, EvoPEX fittings, PEX F-1807/2159 crimp fittings or push-to-connect fittings.
Highlights
- Strong, flexible, corrosion/freeze-resistant pipe designed for hot or cold plumbing applications

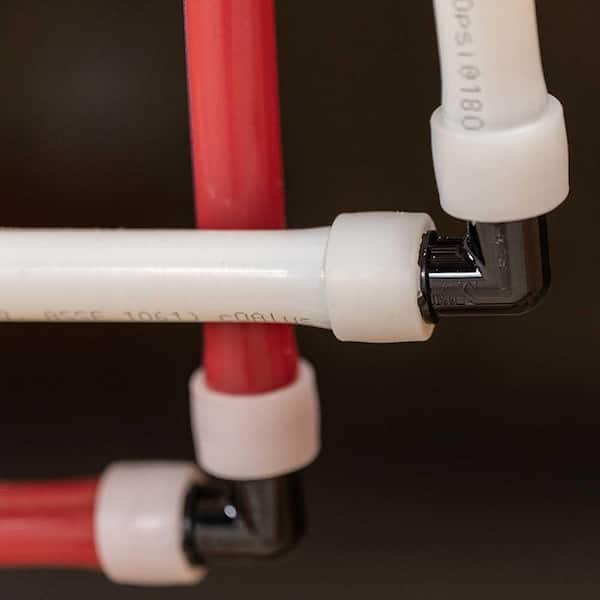

- Approved for use with PEX expansion (F1960), push-to-connect (ASSE 1061), plastic crimp (ASTM F2159) and brass crimp (ASTM F1807) fittings
- Highest rated chlorine resistance and 3-month UV resistance
- Minimum working temperature 33°F at 160 psi
- Maximum working temperature 200°F at 80 psi
- Maximum working pressure is 160 psi at 33°F - 70°F (see spec sheet for more detail)
- SharkBite PEX Pipe Features and Fitting Compatiblity
- Return Policy
Product Information
Additional Resources
Shop All SharkBiteSpecifications
Dimensions
Actual inside diameter (in.) | .475 | Actual outside diameter (in.) | .625 |
|---|---|---|---|
Nominal Inside Pipe Diameter (In.) | 1/2" | Pipe Wall Thickness (In.) | .07 |
Product Length (ft.) | 100 ft |
Details
Application | Potable Water | Color Family | Red |
|---|---|---|---|
Color/Finish | Red | Connectivity | Barb |
Material | Cross-Linked Polyethylene (PEX) | Maximum Flow Rate (gallons per minute) | 5.52 |
Maximum working pressure (psi) | 160 | Maximum Working Temperature (F) | 200 |
Minimum working temperature (F) | 33 | Pack Size | 1 |
PEX Type | A | Pipe Features | Corrosion Resistant, Flexible, Underground Rated |
Pipe or Fitting Product Type | Pipe & Tubing | Product Weight (lb.) | 5.45 lb |
Returnable | 90-Day |
Warranty / Certifications
Certifications and Listings | ANSI Certified, ASTM Compliant, NSF Certified | Manufacturer Warranty | Must be installed per installation instructions. |
|---|
Questions & Answers
Customer Reviews
4.7 out of 5
5
64
4
8
3
0
2
1
1
4
Compare Similar Items
Nominal Inside Pipe Diameter (In.) | |||
|---|---|---|---|
1/2" | 3/4" | 3/4" | 1/2" |
Product Length (ft.) | |||
100 ft | 100 ft | 100 ft | 300 ft |
PEX Type | |||
A | B | A | B |
Connectivity | |||
Barb | Barb | Barb | Barb |
Actual outside diameter (in.) | |||
.625 | 0.875 | .875 | 0.625 |
