Internet #202270525

Model #U374LFA

Store SKU #329209

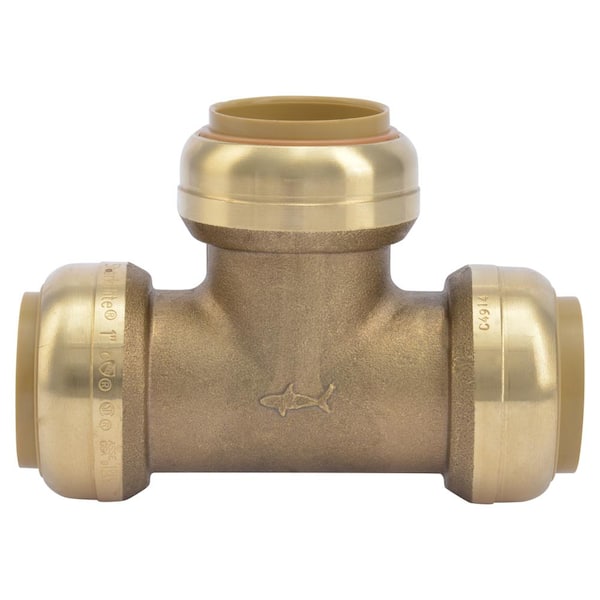

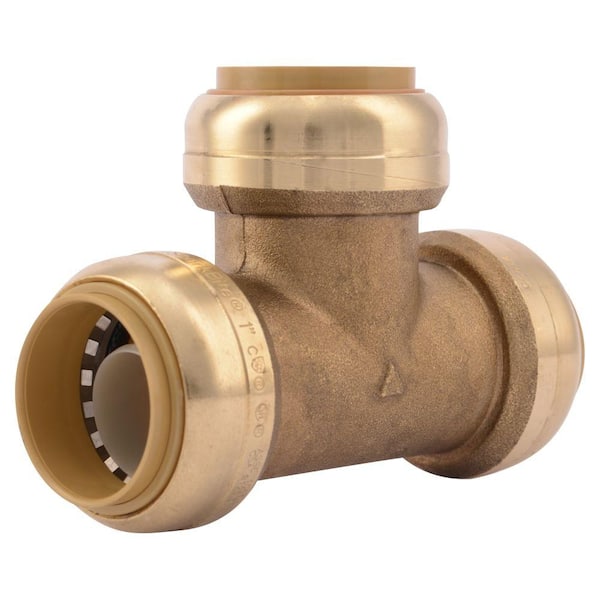

1 in. Push-to-Connect Brass Tee Fitting

  • Works on any combination of Copper, CPVC, PE-RT, and PEX Pipe
  • Lead free and corrosion resistant for reliability and longevity
  • Push to Connect system, quick and easy installation in seconds
  • See More Details
($18.32 /unit)
$18.32

Frequently Bought Together

+
+
Price:
$1832

Product Overview

Installation requires no use of expensive tools, glues, solders, solvents, or crimping; all you need are pipe cutters.

No Tools Required

Installation requires no use of expensive tools, glues, solders, solvents, or crimping; all you need are pipe cutters.

SharkBite Fittings are compatible with more than 5 pipe types: PEX, Copper, CPVC, PE-RT and HDPE.

Versatility

SharkBite Fittings are compatible with more than 5 pipe types: PEX, Copper, CPVC, PE-RT and HDPE.

Installation is fast and simple within 3 seconds, allowing the job to get done in a snap.

Easy Fast Install

Installation is fast and simple within 3 seconds, allowing the job to get done in a snap. Allows fot the ability to work in tight spaces without having to make structural changes.

Man working with SB

Approved for Underground

Approved for burial applications (wrapping required when burying underground)

SharkBite Fittings are removable with disconnect clips or tongs, which will reduce the risk of installation errors

Error-Proof

SharkBite Fittings are removable with disconnect clips or tongs, which will reduce the risk of installation errors

Installation does not require a dry pipe and there is no need to wait for the pipe to drain, ProLock can be installed on a wet line.

Wet or Dry Applications

Installation does not require a dry pipe and there is no need to wait for the pipe to drain, ProLock can be installed on a wet line.

SharkBite owns the entire manufacturing process, from raw materials to finished product.

Quality you can trust

SharkBite owns the entire manufacturing process, from raw materials to finished product

Full range of fittings and accessories 1/4 in. - 2 in.; Large diameter fittings (1-1/4" - 2") required Stiffener when connection to PEX Pipe.

Versatile Fittings Collection

Full range of fittings and accessories 1/4 in. - 2 in.; Large diameter fittings (1-1/4" - 2") required Stiffener when connection to PEX Pipe

Listed by IAPMO and design certified.

Certified

Listed by IAPMO and design certified and listed to ASSE 1061, CSA B125.3, NSF 372, NSF/ANSI 61, ASTM E84, CAN/ULC S102.2, ASTM, E119, CAN/ULC S101,UL289

Rated to 200°F and 200 PSI

Working Temperature and Pressure

Rated to 200°F and 200 PSI

Made of durable DZR brass

Material

Made of durable DZR brass

Approved for behind-the-wall applications

Behind the Wall

Approved for behind-the-wall applications

25 Year System Warranty

Reliability

25 Year System Warranty

The 1 in. SharkBite Push-to-Connect Tee is the easiest way to join copper, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite Fittings are certified for potable water supply and hydronic heating applications. Get SharkBite and get a grip on your next plumbing project.
  • California residents
  • Lead free DZR brass construction for durability and reliability
  • Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions or tools
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution as well as hydronic heating applications
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
  • Meets all UPC, IPC, and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • Rated to 200F and 200 psi
  • Connects copper, CTS CPVC, and PEX tubing in any combination
  • 1 in. Pipe Insertion Depth = 1-5/16 in.
  • Shop all SharkBite Fittings
  • Shop the SharkBite Polyethylene Pipe Collection

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Brass Fittings

3/4 in. x 3/4 in. x 1/2 in. Push-to-Connect Brass Reducing Tee Fitting
current product
1 in. Push-to-Connect Brass Tee Fitting
3/4 in. Push-to-Connect Brass Slip Tee Fitting1 in. IPS x 1 in. IPS x 1 in. CTS Brass Push-To-Connect Slip Tee
BrandSharkBiteSharkBiteSharkBiteTectite
Name3/4 in. x 3/4 in. x 1/2 in. Push-to-Connect Brass Reducing Tee Fitting1 in. Push-to-Connect Brass Tee Fitting3/4 in. Push-to-Connect Brass Slip Tee Fitting1 in. IPS x 1 in. IPS x 1 in. CTS Brass Push-To-Connect Slip Tee
Price
$1200
$1832
$1938
$3172
Ratings
(194)
(497)
(83)
(2)
Fitting 1 size1/2"1"3/4"1"
Fitting or Connector TypeTeeTeeTeeTee
ConnectivityPush FitPush FitPush FitPush Fit
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
FeaturesRemovableRemovableRemovableAdjustable,Corrosion Resistant,Lead Free,Removable
Pack Size1111
MaterialBrassBrassBrassBrass
View ProductView ProductView ProductView Product

Specifications

Dimensions

Fitting 1 size
1"
Fitting 2 size
1"
Fitting 3 size
1"
Triple Fitting Size
1" x 1" x 1"

Details

Application
Potable Water
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
PTC
Connection 2
PTC
Connection 3
PTC
Connectivity
Push Fit
Features
Removable
Fitting or Connector Type
Tee
Fitting/ Connector Collection
Brass
Material
Brass
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.6
Reducing Fitting
No
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

Questions & Answers

29Questions28Answers

Do these work for polybutylene to pex?

Asked by Edison October 10, 2020
3
Answers

Hello, No, we do not offer any tees that are suitable for use with polybutylene tubing at this time. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

Can this be used with polyethylene irrigation pipe?

Asked by Kre July 1, 2020
1
Answer

Hello, There are a number if different types of polyethylene tubing with different dimension ratios, outside diameters etc. SharkBite part # U362LFA is suitable for use with the below types of polyethylene tubing. It is important to make sure your tubing complies with the below mentioned ASTM or CSA standards. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. PEX (ASTM F876, CSA B137.5) PE-RT (ASTM F 2769) CTS (copper tube size) HDPE (SDR-9 ASTM D2737) Best Regards,

Will this fitting work with silicone tubing?

Asked by LT May 21, 2020
3
Answers

No, it will not

Can I use this to connect to PVC on one side of the Tee?

Asked by Ed May 14, 2020
4
Answers

Yes; the fitting will accommodate pvc, pex and copper.

Hello.. so l can get lateral movement on only one of the 3 cpr pipes, this due to rigid insulatio...

Asked by jibbityjoe May 11, 2020
2
Answers

You will need lateral movement on at least two pipes to install this. If you cant move then back a half inch or so you will have issues

Can I use this fitting to run a PEX line from a Polybutylene (PB) line?

Asked by ConnectorProblems May 7, 2020
2
Answers

Hello, SharkBite part # U370LFA is not suitable for use with polybutylene tubing. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

can i use this to connect 1 1/2 pvc to 1 1/2 copper which has small OD for shower drain?

Asked by Wade May 5, 2020
1
Answer

Hello, Unfortunately, we do not offer any fittings that are suitable for use with 1-1/2" PVC pipe. We also do not recommend the use of this fittings for drainage applications as chemicals in the water could negatively effect the fitting's O-ring. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

I live in New England with below freezing temperature in winter. I want to add a blowout port to ...

Asked by Sim February 13, 2020
4
Answers

Yes, but the pipe and fitting must be drained during freezing temperatures.

Will this work for my mobile home gray pip

Asked by buster November 7, 2019
3
Answers

Hello, SharkBite model # U362LFA is not suitable for use with polybutylene tubing. It will be necessary to first transition from the polybutylene tubing to one of the below approved types of pipe/tubing by using our polybutylene conversion coupling (Home Depot SKU # 759043). If you have additional questions regarding the use of this product please feel free to contact our technical support department at 877-700-4242. PEX (ASTM F876, CSA B137.5) Copper (ASTM B 88) CPVC (ASTM D 2846, CSA B137.6) PE-RT (ASTM F 2769) HDPE (SDR-9 ASTM D2737) Best Regards,

During extended sub freezing temperatures I have had an issue with pipes freezing in one of our b...

Asked by RJ July 21, 2019
5
Answers

Should work perfectly
