Internet #206353595

Model # UIP4020A

Store SKU #1001563232

Store SO SKU #1001501326

0697285018754

SharkBite

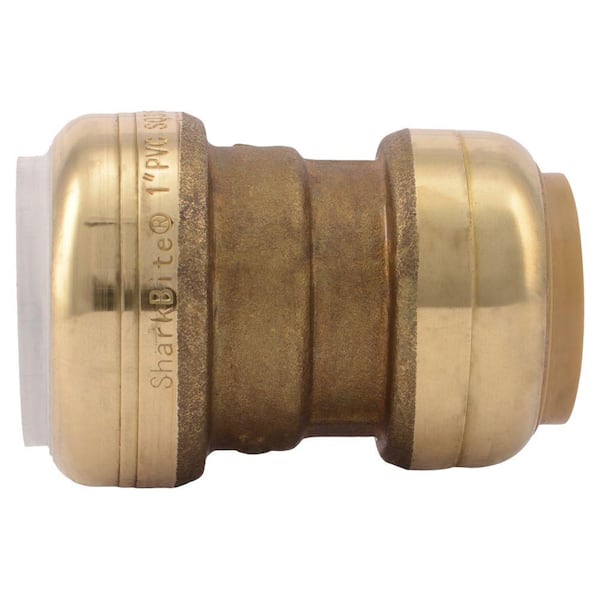

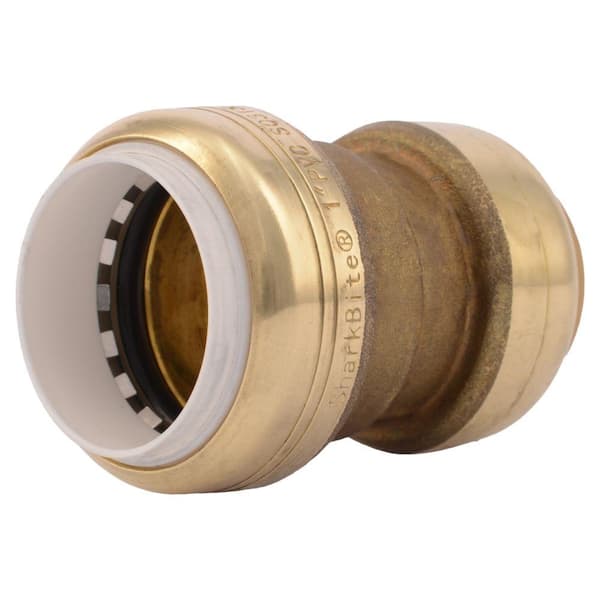

1 in. Push-to-Connect PVC IPS x CTS Brass Conversion Coupling Fitting

  • Push to Connect system, easiest way to transition out of PVC Pipe
  • Lead free and corrosion resistant for reliability and longevity
  • Works on any combination of Copper, CPVC, PE-RT, and PEX Pipe
$ 18 97
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+
+

Product Overview

  • Push to Connect system, easiest way to transition out of PVC Pipe
  • Lead free and corrosion resistant for reliability and longevity
  • Works on any combination of Copper, CPVC, PE-RT, and PEX Pipe
The SharkBite 1 in. Push-to-Connect PVC (Iron Pipe Size) x 1 in. CTS (Copper Tube Size) is the easiest way to transition from IPS PVC Pipe into CTS Copper, PEX, CPVC or PE-RT in any combination with no soldering, clamps, unions, or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. The White Collar side fits Sch. 40, 80, 120 PVC and also can be used on IPS CPVC Sch. 40 and Sch. 80 pipes. The Mustard collar side fits CTS Copper, PEX, CPVC or PE-RT pipe. Disassembly is just as fast using the SharkBite disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces.
  • Lead free DZR brass construction for durability and reliability
  • Use to transition from iron pipe size to copper tube size
  • White collar fits Sch. 40, 80, and 120 PVC pipe and Sch. 40 and Sch. 80 CVPC
  • Tan collar fits copper tubing, and CTS CPVC and PEX
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions or tools
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and designed certified and listed to NSF/ANSI 61, NSF/ANSI 14, and NSF/ANSI 372
  • Meets all UPC, IPC, and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • 1 in. Pipe Insertion Depth = 1-5/16 in.
  • California residents see Prop 65 WARNINGS

Product Overview

  • Push to Connect system, easiest way to transition out of PVC Pipe
  • Lead free and corrosion resistant for reliability and longevity
  • Works on any combination of Copper, CPVC, PE-RT, and PEX Pipe
Model #: UIP4020A
Sku #: 1001563232
Internet #: 206353595

The SharkBite 1 in. Push-to-Connect PVC (Iron Pipe Size) x 1 in. CTS (Copper Tube Size) is the easiest way to transition from IPS PVC Pipe into CTS Copper, PEX, CPVC or PE-RT in any combination with no soldering, clamps, unions, or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. The White Collar side fits Sch. 40, 80, 120 PVC and also can be used on IPS CPVC Sch. 40 and Sch. 80 pipes. The Mustard collar side fits CTS Copper, PEX, CPVC or PE-RT pipe. Disassembly is just as fast using the SharkBite disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces.

  • Lead free DZR brass construction for durability and reliability
  • Use to transition from iron pipe size to copper tube size
  • White collar fits Sch. 40, 80, and 120 PVC pipe and Sch. 40 and Sch. 80 CVPC
  • Tan collar fits copper tubing, and CTS CPVC and PEX
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions or tools
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and designed certified and listed to NSF/ANSI 61, NSF/ANSI 14, and NSF/ANSI 372
  • Meets all UPC, IPC, and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • 1 in. Pipe Insertion Depth = 1-5/16 in.
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
  • Push to Connect system, easiest way to transition out of PVC Pipe
  • Lead free and corrosion resistant for reliability and longevity
  • Works on any combination of Copper, CPVC, PE-RT, and PEX Pipe
The SharkBite 1 in. Push-to-Connect PVC (Iron Pipe Size) x 1 in. CTS (Copper Tube Size) is the easiest way to transition from IPS PVC Pipe into CTS Copper, PEX, CPVC or PE-RT in any combination with no soldering, clamps, unions, or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. The White Collar side fits Sch. 40, 80, 120 PVC and also can be used on IPS CPVC Sch. 40 and Sch. 80 pipes. The Mustard collar side fits CTS Copper, PEX, CPVC or PE-RT pipe. Disassembly is just as fast using the SharkBite disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces.
  • Lead free DZR brass construction for durability and reliability
  • Use to transition from iron pipe size to copper tube size
  • White collar fits Sch. 40, 80, and 120 PVC pipe and Sch. 40 and Sch. 80 CVPC
  • Tan collar fits copper tubing, and CTS CPVC and PEX
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions or tools
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and designed certified and listed to NSF/ANSI 61, NSF/ANSI 14, and NSF/ANSI 372
  • Meets all UPC, IPC, and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • 1 in. Pipe Insertion Depth = 1-5/16 in.
  • California residents see Prop 65 WARNINGS

Product Overview

  • Push to Connect system, easiest way to transition out of PVC Pipe
  • Lead free and corrosion resistant for reliability and longevity
  • Works on any combination of Copper, CPVC, PE-RT, and PEX Pipe
Model #: UIP4020A
Sku #: 1001563232
Internet #: 206353595

The SharkBite 1 in. Push-to-Connect PVC (Iron Pipe Size) x 1 in. CTS (Copper Tube Size) is the easiest way to transition from IPS PVC Pipe into CTS Copper, PEX, CPVC or PE-RT in any combination with no soldering, clamps, unions, or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. The White Collar side fits Sch. 40, 80, 120 PVC and also can be used on IPS CPVC Sch. 40 and Sch. 80 pipes. The Mustard collar side fits CTS Copper, PEX, CPVC or PE-RT pipe. Disassembly is just as fast using the SharkBite disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces.

  • Lead free DZR brass construction for durability and reliability
  • Use to transition from iron pipe size to copper tube size
  • White collar fits Sch. 40, 80, and 120 PVC pipe and Sch. 40 and Sch. 80 CVPC
  • Tan collar fits copper tubing, and CTS CPVC and PEX
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions or tools
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and designed certified and listed to NSF/ANSI 61, NSF/ANSI 14, and NSF/ANSI 372
  • Meets all UPC, IPC, and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • 1 in. Pipe Insertion Depth = 1-5/16 in.
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand SharkBite SharkBite SharkBite SharkBite
Name 3/4 in. Push-to-Connect PVC IPS x CTS Brass Conversion Coupling Fitting 1 in. Push-to-Connect Brass Coupling Fitting 1 in. Push-to-Connect PVC IPS x CTS Brass Conversion Coupling Fitting 1 in. Push-to-Connect PVC IPS x 1 in. MIP Brass Adapter Fitting
Price
$11.24
$13.96
$18.97
$20.10
Ratings (74) (899) (74) (47)
View Product View Product View Product View Product

Specifications

Dimensions

Double Fitting Size
1" x 1"
Fitting 1 size
1"
Fitting 2 size
1"
Insertion Depth (In.)
1.32
Product Length (in.)
2.68

Details

Application
Potable Water
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
PTC
Connection 2
PTC
Connectivity
Push Fit
Features
Removable
Fitting or Connector Type
Coupling
Fitting/ Connector Collection
Brass
Material
Brass
Maximum Working Temperature (F)
200
Maximum working pressure (psi)
200
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.374786lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

Specifications

Dimensions

Double Fitting Size
1" x 1"
Fitting 1 size
1"
Fitting 2 size
1"
Insertion Depth (In.)
1.32
Product Length (in.)
2.68

Details

Application
Potable Water
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
PTC
Connection 2
PTC
Connectivity
Push Fit
Features
Removable
Fitting or Connector Type
Coupling
Fitting/ Connector Collection
Brass
Material
Brass
Maximum Working Temperature (F)
200
Maximum working pressure (psi)
200
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.374786lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

Questions & Answers

Will this work 3/4 schedule 40 pvc to 3/4 pex or is it just cpvc ?

Asked by: Robert
Yes, this is the transition coupling to go from PVC to PEX, copper or CPVC. If you have further questions, please contact Customer Service M-F, 8am-5pm at (877) 700-4242.
Answered by: RWC Support
Date published: 2019-03-05

can this product be used to connect two 1" PVC pipes?

can this product be used to connect two 1" PVC pipes?
Asked by: quaraong
No. There are SharkBite fittings that do that but this one is to connect PVC and copper tubing (CTS)
Answered by: Georgia
Date published: 2018-12-29

can I use this fitting in the ground

Asked by: john
Yes, SharkBite recommends that they be wrapped in silicone tape. Home Depot carries the Nashau brand (see https://www.homedepot.com/p/Nashua-Tape-1-in-x-3-33-yd-Stretch-and-Seal-Self-Fusing-Silicone-Tape-in-Black-1208952/100206050)
Answered by: Randall
Date published: 2018-03-02

Can these connectors be used behind walls

Asked by: dv
They are certified to be used behind walls without access panels.
Answered by: Gator
Date published: 2017-12-06
