Internet #202270497

Model #U060LFA

Store SKU #279205

Store SO SKU #1000317650

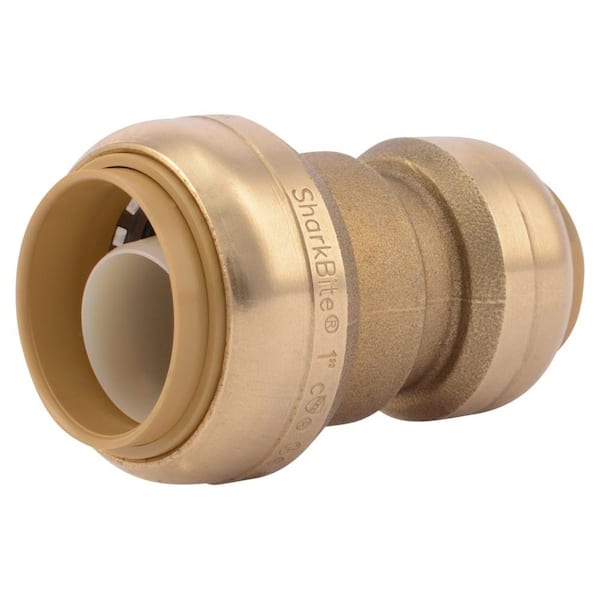

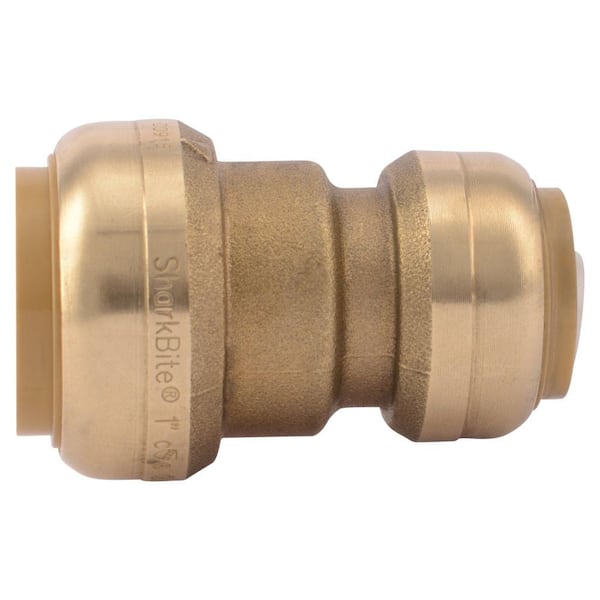

1 in. x 3/4 in. Push-to-Connect Brass Reducing Coupling Fitting

  • Works on any combination of Copper, CPVC, PE-RT, and PEX Pipe
  • Lead free and corrosion resistant for reliability and longevity
  • Push to Connect system, quick and easy installation in seconds
  • See More Details
($13.94 /unit)
$13.94

Frequently Bought Together

+
+
Price:
$1394

Product Overview

Installation requires no use of expensive tools, glues, solders, solvents, or crimping; all you need are pipe cutters.

No Tools Required

Installation requires no use of expensive tools, glues, solders, solvents, or crimping; all you need are pipe cutters.

SharkBite Fittings are compatible with more than 5 pipe types: PEX, Copper, CPVC, PE-RT and HDPE.

Versatility

SharkBite Fittings are compatible with more than 5 pipe types: PEX, Copper, CPVC, PE-RT and HDPE.

Installation is fast and simple within 3 seconds, allowing the job to get done in a snap.

Easy Fast Install

Installation is fast and simple within 3 seconds, allowing the job to get done in a snap. Allows fot the ability to work in tight spaces without having to make structural changes.

Man working with SB

Approved for Underground

Approved for burial applications (wrapping required when burying underground)

SharkBite Fittings are removable with disconnect clips or tongs, which will reduce the risk of installation errors

Error-Proof

SharkBite Fittings are removable with disconnect clips or tongs, which will reduce the risk of installation errors

Installation does not require a dry pipe and there is no need to wait for the pipe to drain, ProLock can be installed on a wet line.

Wet or Dry Applications

Installation does not require a dry pipe and there is no need to wait for the pipe to drain, ProLock can be installed on a wet line.

SharkBite owns the entire manufacturing process, from raw materials to finished product.

Quality you can trust

SharkBite owns the entire manufacturing process, from raw materials to finished product

Full range of fittings and accessories 1/4 in. - 2 in.; Large diameter fittings (1-1/4" - 2") required Stiffener when connection to PEX Pipe.

Versatile Fittings Collection

Full range of fittings and accessories 1/4 in. - 2 in.; Large diameter fittings (1-1/4" - 2") required Stiffener when connection to PEX Pipe

Listed by IAPMO and design certified.

Certified

Listed by IAPMO and design certified and listed to ASSE 1061, CSA B125.3, NSF 372, NSF/ANSI 61, ASTM E84, CAN/ULC S102.2, ASTM, E119, CAN/ULC S101,UL289

Rated to 200°F and 200 PSI

Working Temperature and Pressure

Rated to 200°F and 200 PSI

Made of durable DZR brass

Material

Made of durable DZR brass

Approved for behind-the-wall applications

Behind the Wall

Approved for behind-the-wall applications

25 Year System Warranty

Reliability

25 Year System Warranty

The 1 in. x 3/4 in. SharkBite Push-to-Connect Reducer Coupling allows you to make a connection from 1 in. Pipe and reduce down to a 3/4 in. Pipe. SharkBite fittings are the easiest way to join copper, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. SharkBite Fittings are certified for potable water supply and hydronic heating applications. Get SharkBite and get a grip on your next plumbing project.
  • California residents
  • Lead free DZR brass construction for durability and reliability
  • Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
  • Innovative push-to-connect design makes for quick and easy installation
  • Push-to-connect fittings require no solder, glue, unions, or tools
  • Fitting can be rotated on pipe after installation making it easier to work in tight spaces
  • Designed for potable water distribution as well as hydronic heating applications
  • Corrosion resistant to improve longevity
  • Certified as a manufactured joint and for underground and behind-the-wall applications without access panels
  • Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
  • Meets all UPC, IPC and cUPC requirements
  • Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
  • Rated to 200°F and 200 psi
  • 3/4 in. pipe insertion depth = 1-1/8 in. and 1 in. pipe insertion depth = 1-5/16 in.
  • Shop all SharkBite Fittings
  • Shop the SharkBite Polyethylene Pipe Collection

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Brass Fittings

1/2 in. Push-to-Connect x MIP Brass 90-Degree Elbow Fitting
current product
1 in. x 3/4 in. Push-to-Connect Brass Reducing Coupling Fitting
1 in. x 3/4 in. Brass Push-to-Connect Reducing Coupling1 in. Push-to-Connect Brass 90-Degree Elbow Fitting
BrandSharkBiteSharkBiteSharkBiteSharkBite
Name1/2 in. Push-to-Connect x MIP Brass 90-Degree Elbow Fitting1 in. x 3/4 in. Push-to-Connect Brass Reducing Coupling Fitting1 in. x 3/4 in. Brass Push-to-Connect Reducing Coupling1 in. Push-to-Connect Brass 90-Degree Elbow Fitting
Price
$734
$1394
$1467
$1565
Ratings
(78)
(177)
(0)
(928)
Fitting 1 size1/2"1"1"1"
Fitting or Connector TypeElbowCouplingCouplingElbow
ConnectivityPush FitPush FitPush FitPush Fit
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
FeaturesRemovableRemovableRemovableRemovable
Pack Size1111
MaterialBrassBrassBrassBrass
View ProductView ProductView ProductView Product

Specifications

Dimensions

Double Fitting Size
1" x 3/4"
Fitting 1 size
1"
Fitting 2 size
3/4"
Product Length (in.)
1.06

Details

Application
Potable Water
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
PTC
Connection 2
PTC
Connectivity
Push Fit
Features
Removable
Fitting or Connector Type
Coupling
Fitting/ Connector Collection
Brass
Material
Brass
Maximum working pressure (psi)
200
Maximum Working Temperature (F)
200
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.08
Reducing Fitting
Yes
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

Questions & Answers

19Questions27Answers

Will this work with PVC Sch 80 pipe?

Asked by Tadda August 10, 2020
1
Answer

Hello, Unfortunately, SharkBite part # UXL013528 is not suitable for use with PVC pipe. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

what is the overall length

Asked by johnny July 4, 2020
1
Answer

Hello, SharkBite reducing coupling part # U058LF has an overall length of 2.2". If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

Will this work to connect 1-1/2 in. CPVC pipe to 1-1/4 Chrome plated brass S-Trap Pipe?

Asked by Jesse June 28, 2020
1
Answer

Hello, SharkBite part # UXL014135 is suitable for use with 1-1/2" CTS (copper tube size) CPVC but unfortunately we do not offer any fittings that are suitable for use with chrome plated brass pipe. These fittings are intended for use in potable water applications and using them in any other application could cause components such as O-rings to fail. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

can this be used to increase water flow by turning it around? ex. 1/2 inlet to 3/4 outlet pressure?

Asked by Dondre April 18, 2020
2
Answers

Hello, SharkBite reducing couplings will allow you to increase pipe size but will not necessarily increase outlet pressure or water flow. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

I have pex 1/2 and 3/4 pvc pipe what do i need to put it together

Asked by tommy April 10, 2020
1
Answer

Hello, We do not offer a fitting suitable for connecting 1/2" PEX to 3/4" PVC at this time. It will be necessary to use SharkBite part # U058LFA (SKU # 284848) to switch from 1/2" PEX to 3/4" PEX. Once you have switched to 3/4" PEX you can use SharkBite part # UIP4016A (SKU # 1001563712) to transition to 3/4" PVC. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. Best Regards,

1/2 in. Accepts 1/2 in. Outside Diameter pipe? And 3/8 in. Accepts 3/8 in. outside diameter pipe? Thank you

Asked by JARED January 2, 2019
3
Answers

SharkBite push to connect fittings are built to be used on copper tube size pipe (CTS), such as PEX, copper and CPVC. If you have further questions, please contact Customer Service M-F, 8am-5pm at (877) 700-4242.

Can the water flow in either direction? If not, are both directions (1/2 to 3/4 and 3/4 to 1/2) available for purchase?

Asked by Steve October 15, 2018
6
Answers

Water can flow in either direction. When using copper pipe, I take out the plastic sleeve inside for better flow.

Will the side that attaches to the copper feed pipe work if that pipe has ridges on it? Also how ...

Asked by Chuck January 24, 2018
5
Answers

No the outside diameter of the pipe must be fairly smooth to work.

Will this 1/4 inch end accept and successfully connect to COPPER TUBING/

Asked by Bubba January 2, 2018
4
Answers

Yes

Does it matter which direction this is oriented? In other words, it says it's a reducing valve, b...

Asked by Melissa December 7, 2017
3
Answers

NO. It's called a reducer because most plumbing is run from larger to smaller pipe. If you go smaller to larger it will still work. You won't get better flow unless you are replacing a long run of small pipe that is reducing flow rates.
