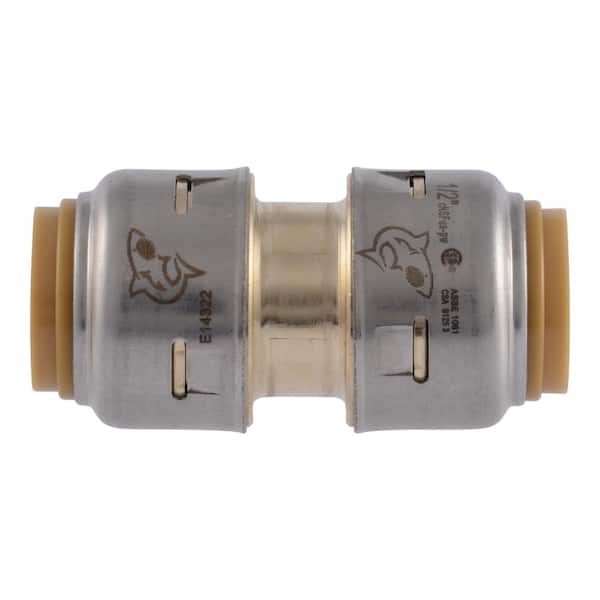

Max 1/2 in. Brass Push-to-Connect Coupling Fitting

$13.86
  • Fastest way to connect PEX, copper, CPVC, or PE-RT pipe
  • Half the insertion force with double the burst pressure
  • Can be installed on wet lines and pressure tested immediately
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

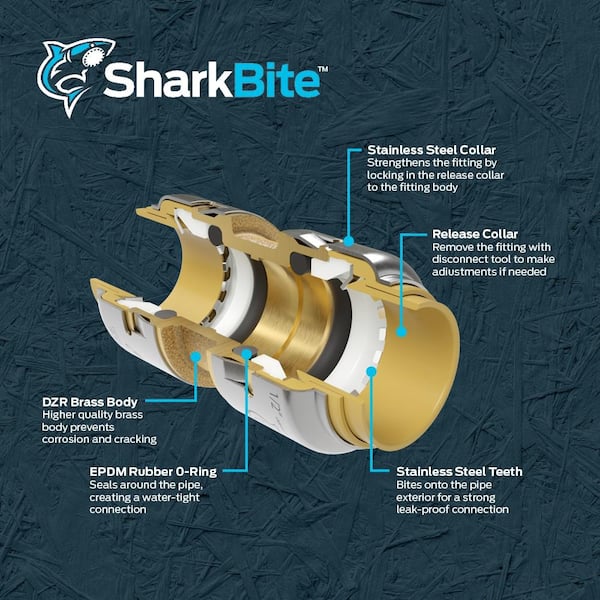

SharkBite Max push-to-connect fittings are the fastest way to connect PEX, copper, CPVC, PE-RT or HDPE pipe. A newly designed stainless steel collet retainer delivers additional strength and durability and provides a 250 psi pressure rating. SharkBite Max fittings don't require a PEX tube liner and a re-engineered body allows you to insert the pipe using less force and greater ease. No soldering, clamps, unions, glue, or special tools required. After inserting the pipe, stainless steel teeth bite down and grip the pipe tightly while a specially formulated O-ring compresses around the pipe to create a watertight seal. The fitting can be rotated after installation for quick adjustments, and removing the fitting is just as fast with a disconnect tool, allowing fittings and valves to be changed or reused.

Highlights

  • Requires no special tools to install on hot or cold-water lines
  • Can be installed on wet or dry lines pressure tested immediately
  • Rotatable after installation and removable
  • PEX tube liner not required

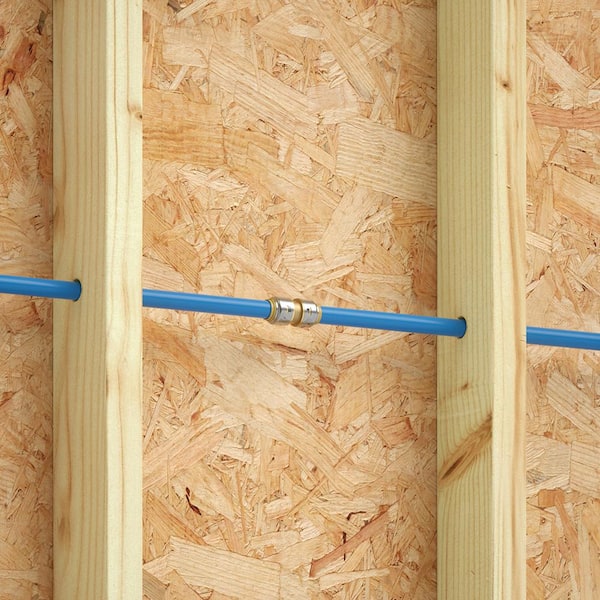

  • Approved for underground and behind-the-wall applications with no access panels wrapping required when burying underground
  • Low-lead DZR corrosion-resistant brass body
  • Rated to 200°F and 250 psi
  • Code approved, IAPMO Listed for details, see specification
  • 25-year warranty when used with PEX, copper, CPVC and PE-RT pipe, see warranty
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 323667924

Model # UR008A

Store SKU # 283602

Specifications

Dimensions

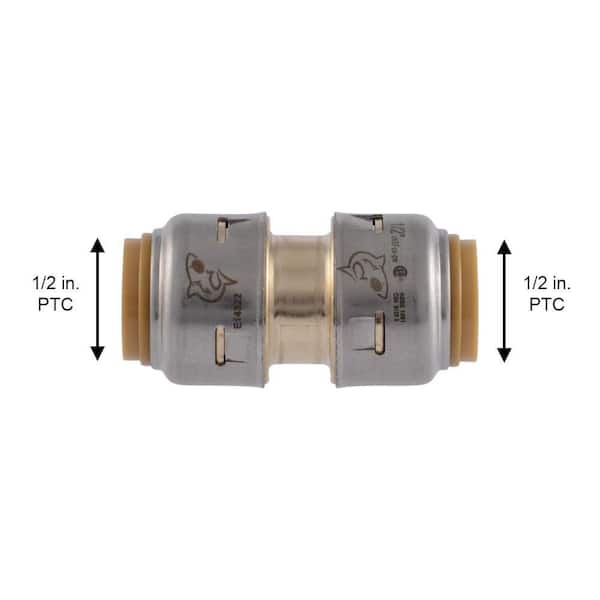

Double Fitting Size

1/2" x 1/2"

Fitting 1 size

1/2"

Fitting 2 size

1/2"

Fitting Size Dimensions

1/2" x 1/2"

Product Length (in.)

2.1 in

Single Fitting Size

1/2"

Details

Application

Potable Water

Color Family

Brass

Color/Finish

Brass

Compatible Pipe Material

Multi-Purpose

Connection 1

PTC

Connection 2

PTC

Connectivity

Push Fit

Features

Lead Free, Removable

Fitting or Connector Type

Coupling

Fitting/ Connector Collection

Brass

Material

Brass

Maximum working pressure (psi)

250

Maximum Working Temperature (F)

200

Pack Size

1

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

0.1 lb

Reducing Fitting

No

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

Must be installed per installation instructions.

Questions & Answers

77Questions
caret
Q:Can this be used on PEX-A?
by|Feb 27, 2024
1 Answer
Answer This Question

A:  Hi, The SharkBite Max 1/2 in. Push-to-Connect Brass Coupling can be used on PEX-A pipe. You will need to verify that the PEX-A pipe has been tested to the (ASTM F876) standard. This standard is for push-to-connect fittings. You will find this information printed on the PEX pipe if the PEX pipe has been approved for push-to-connect fittings. If you have any more questions you can call tech support at 877-700-4242. Kind regards,

by|Feb 28, 2024
    caret
    Q:Do I use a 1/2 inch shark bite coupling for a 1/2 inch pipe?
    by|Feb 6, 2024
    1 Answer
    Answer This Question

    A:  Hi Adam, Thank you for contacting SharkBite. When working with 1/2" copper pipe, PEX pipe or CPVC pipe you will use the SharkBite Max 1/2 in. Brass Push-to-Connect Coupling. If you have any more questions you can call tech support at 877-700-4242. Kind regards,

    by|Feb 7, 2024
      caret
      Q:Do the O-rings come lubed in the shark bites when you buy them from Home Depot
      by|Jan 29, 2024
      1 Answer
      Answer This Question

      A:  Hi John, Thank you for contacting SharkBite. The O-rings come lubed with silicone grease when you purchase the product. If you would like to add more silicone grease you can. Please make sure the product is 100% silicone grease. If you have any more questions you can call tech support at 877-700-4242. Kind regards,

      by|Jan 31, 2024
        caret
        Q:I need to cut 4” to 8” of line to remove a leaking unneeded shutoff valve. The stock size splice pipe length is six inches so would like to use the full length. So what length of existing pipe do I remove to splice the 6” pipe with a fitting on each end?
        by|Jan 19, 2024
        1 Answer
        Answer This Question

        A:  Hi Sammy, Thank you for contacting SharkBite. We have some more questions about your application. If you are still in need of assistance you can call tech support at 877-700-4242. Kind regards,

        by|Jan 19, 2024
          Showing 1-4 of 77

          Customer Reviews

          4.8 out of 5

          • 4.8 out of 2,140 reviews
          • 94% recommend this product
          Filter by:
          Showing 1-10 of 2,140 reviews
          SharkBite pipe connectors are a God send and a must for modern DIYers. My individual shut off valves leaked which meant no soldering the copper pipes without shutting off the whole house -- others don't like that. So I had to switch to SharkBite and then when my OLD connecting copper tee joint broke (was bad from the beginning), I had to replace everything with SharkBite. An impossible, in the celling, soldering operation turned into a very simple operation. Note, the included picture is looking up into the ceiling above the shower ;-)
          by
          • Verified Purchase
          Works
          Old 1/2" compression fitting has been a leak issue for quite a while. Cut a new piece of pipe, cleaned and connected to the old feed line, and snapped in nicely with no leaks. This is my 3rd Sharkbite coupling; the other two were 1" copper, and after a few years, no issues at all.
          by
            • Recommended
            Very easy to install. Specially for tight places where tradicional solder type is hard to work. No special tools required.
            by
            • Verified Purchase
            I used this for my toilet
            I I got this free sample that included a big bag and a connector. I used this product to connect my toilet to the Bode
            by
              So easy to use.
              So easy to use! Sorry to the plumbers out there!
              by
              • Verified Purchase
              1 found this review helpful
              Great for quick fix
              This is the first time I used SharkBite for an emergency repair and I am very happy I did. Toilet tank lid fell on the shutoff valve which cracked the elbow inside the wall. I had to use a coupling to extend the ½ PVC through 2X4 into an Elbow and a Shutoff. SharkBite had it all and made the entire repair easy and quick. This is great for DIYers.
              by
              Response from RWC SupportApr 25, 2023
              Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 1-877-700-4242! SharkBiteCashAcme
                • Recommended
                2 found this review helpful
                Works with both copper and Pex. Product support saved the...
                Works with both copper and Pex. Product support saved the day by suggesting I use Pex pipe to close a gap that didn’t align well.
                by
                • Verified Purchase
                Shark bite
                Easy to connect! Make sure both sides of pipe are clean before connecting.
                by
                • Verified Purchase
                • Recommended
                The part that saved Christmas.
                There is a reason why sharkbites are so popular That pinhole leak in the ceiling on Christmas Eve is mo game.. No there wasn't room for a torch. Zip zip click and no more leak. Yeah!
                by
                • Verified Purchase
                • Recommended
                Run Away!
                The orange C clamp to remove these things only works if you have two unattached pipes in your hands. Otherwise you need an ape to remove an existing pipe and the force just caused me to bang into my other pipes and break them. Of course shark bite company does not have a place for a customer reviews. This has happened more than a couple of times to me.
                by
                Response from RWC SupportNov 11, 2022
                Hello, Mark. We apologize for the inconvenience you are experiencing
                with the SharkBite 1/2 in. Push-to-Connect Brass Coupling. We would be happy to work with you to ensure you are 100% satisfied with any SharkBite product, and we understand your frustration with the outcome. We encourage you
                to contact our Customer Service Team at 1-877-700-4242 so we
                can learn more about your installation and help troubleshoot. SharkBiteCashAcme
                  Showing 1-10 of 2,140 reviews
