- Fastest way to connect PEX, copper, CPVC, or PE-RT pipe
- Half the insertion force with double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- View More Details
Product Details
About This Product
SharkBite Max push-to-connect fittings allow you make pipe connections with half the insertion effort while withstanding double the burst pressure. Featuring a newly designed stainless-steel retainer, SharkBite Max delivers additional strength and durability while providing a 400 PSI pressure rating. The re-engineered body allows you to insert the pipe using less effort and doesn't require a PEX tube liner. No soldering, clamps, unions, glue, or special tools are required for installation. They are the fastest way to connect PEX, copper, CPVC, PE-RT and HDPE pipe. The fitting can be rotated after installation for quick adjustments, and removing the fitting is just as fast with a disconnect tool, allowing fittings and valves to be changed or reused. (SharkBite push-to-connect fittings are the fastest when compared to other conventual plumbing methods. All other comparisons relate to first generation SharkBite push-to-connect products.).
Highlights
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- No special tools, crimping, soldering or glue required
- Can be rotated after installation
- No PEX tube liner required
- Approved for behind-the-wall applications with no access panels
- Approved for underground applications (wrap required for burial)
- Rated to 200°F and 400 PSI
- Third-party listed, compliant with applicable US and Canadian plumbing codes
- 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT
- 5-year warranty when properly installed with HDPE SDR-9
- Patented technology
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 1.575 in, W 1.949 in, D 2.244 in
Dimensions
Double Fitting Size | 1/2" x 1/2" | Fitting 1 size | 1/2" |
|---|---|---|---|
Fitting 2 size | 1/2" | Fitting Size Dimensions | 1/2" x 1/2" |
Product Depth (in.) | 2.244 in | Product Height (in.) | 1.575 in |
Product Width (in.) | 1.949 in | Single Fitting Size | 1/2" |
Details
Application | Potable Water | Bend Degree | 90 Degree |
|---|---|---|---|
Color Family | Brass | Color/Finish | Brass |
Compatible Pipe Material | Multi-Purpose | Connection 1 | Push Fit |
Connection 2 | Push Fit | Connectivity | Push Fit |
Features | Removable | Fitting or Connector Type | Push Fit |
Fitting/ Connector Collection | Brass | Material | Brass |
Maximum working pressure (psi) | 400 | Maximum Working Temperature (F) | 200 |
Pack Size | 1 | Pipe or Fitting Product Type | Fittings & Connectors |
Product Weight (lb.) | 0.185 lb | Reducing Fitting | No |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | Must be installed per installation instructions. |
|---|
Questions & Answers
Typical questions asked about products:
- Is the product durable?
- Is the product easy to use?
- What are the dimensions of the product?
Customer Reviews
4.9 out of 5
Compare Similar Items
Fitting 1 size | |||
|---|---|---|---|
1/2" | 1/2" | 3/4" | 3/4" |
Fitting or Connector Type | |||
Push Fit | Push Fit | Push Fit | Push Fit |
Connectivity | |||
Push Fit | Push Fit | Push Fit | Push Fit |
Application | |||
Potable Water | Potable Water | Potable Water | Potable Water |
Features | |||
Removable | Removable | Removable | Removable |
Related Searches
Related Products

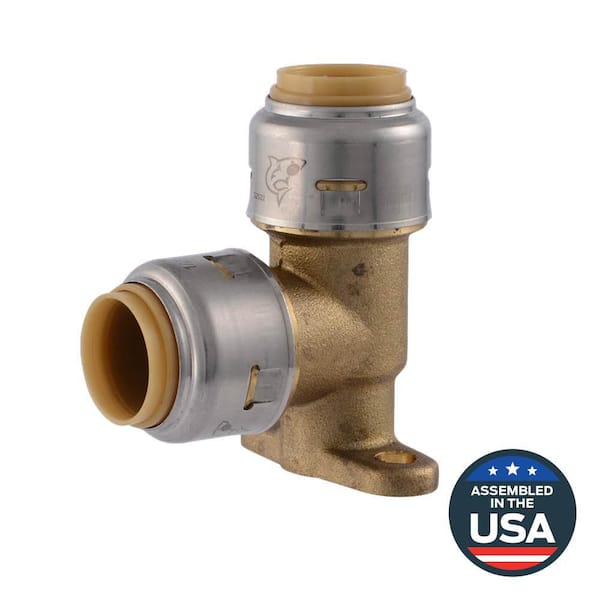

Max 1/2 in. Push-to-Connect x FIP Brass 90-Degree Drop Ear Elbow Fitting
