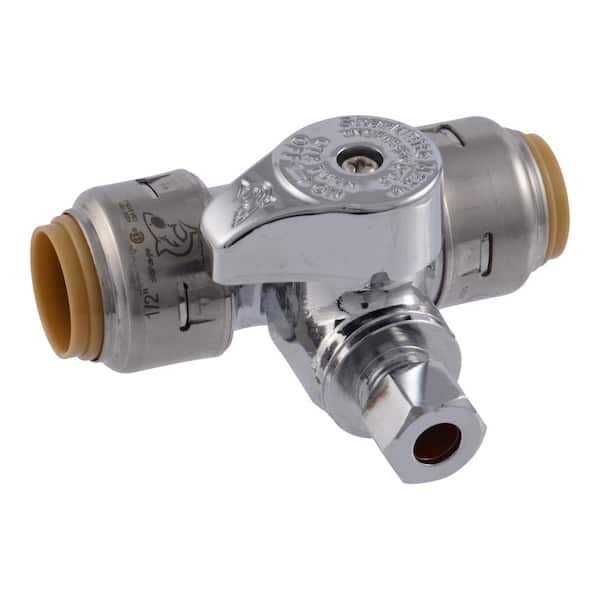

SharkBite Max push-to-connect stop valves are the fastest and easiest way to connect to PEX, copper, CPVC or PE-RT stub-outs, which control and shut off water flow to fixtures or appliances. This newly designed fitting features a stainless-steel collet retainer which delivers additional strength and durability. SharkBite Max fittings and valves don't require a PEX tube liner and a re-engineered body allows you to insert the pipe using less force and greater ease. The single lever quarter turn handle allows for quick control over water flow, especially in tight spaces. No soldering, clamps, unions, glue or special tools required. After inserting the pipe, stainless steel teeth bite down and grip the pipe tightly while a specially formulated O-ring compresses around the pipe to create a watertight seal. The valve can be rotated after installation for quick adjustments and removing the valve is just as fast with a disconnect tool, allowing them to be changed or reused. (SharkBite push-to-connect fittings are the fastest when compared to other conventual plumbing methods. All other comparisons relate to first generation SharkBite push-to-connect products.
Inlet Diameter (In.) | 1/2 |
|---|---|
Outlet Diameter (In.) | 1/4 |
Product Length (in.) | 2.874 in |
Application | Potable Water |
|---|---|
Color/Finish | Silver |
Compatible Pipe Material | Multi-Purpose |
Compatible Product | Faucet, Toilet |
Connection | PTC x Comp |
Features | Removable |
Indoor/Outdoor | Indoor |
Material | Brass |
Maximum Pressure (PSI) | 125 PSI |
Maximum Working Temperature (F) | 160 |
Pack Size | 1 |
Returnable | 90-Day |
Valve Configuration | Straight |
Manufacturer Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
|---|
Yes, When the handle is parallel with the 1/2" pipe, it is off. When it pointed towards the 1/4" pipe, the valve is open/on.
Model UR24983A is designed for 1/2" copper tubing with a 5/8" OD.
Hello Fred, Thank you for contacting Tech Support. This product is designed for adding supply lines to fixtures and appliances such as dishwashers, humidifiers and ice makers( 1/4 in. Compression) If you have further questions, please call us at 1-877-700-4242. Thank you
Yes, the SharkBite UR24983A features a 1/4-inch OD compression outlet that is compatible with 1/4-inch PEX tubing.
Hi John, The Max 1/2 in. Push-to-Connect x 1/2 in. Push-to-Connect x 1/4 in. Compression Chrome-Plated Brass Service Stop Tee can be used with your Aprilaire Humidifier. You will need to verify the size of the connector on your humidifier to verify it's compatible with the Tee Stop. If you have any questions or if we can be of assistance, please call tech support at 1-877-700-4242. Kind regards,
Hi Doug, Thank you for contacting SharkBite. The Max 1/2 in. Push-to-Connect x 1/2 in. Push-to-Connect x 1/4 in. Compression Chrome-Plated Brass Service Stop Tee will screw on to a 1/4" compression thread ice maker water line. If you have any more questions you can call tech support at 877-700-4242. Kind regards,
Hi Michael, Thank you for contacting SharkBite. When installing the Max 1/2 in. Push-to-Connect x 1/2 in. Push-to-Connect x 1/4 in. Compression Chrome-Plated Brass Service Stop Tee you will need to remove .90" or 7/8". I've attached a link to the Tee Stop spec sheet. You will subtract the insertion depth (1" on each side) from the length (2.9") of the Tee Stop and that is how much pipe you would need to remove. If you have any more questions you can call tech support at 877-700-4242. (https://www.sharkbite.com/sites/default/files/files/sharkbite-max-service-stop-spec-sheet-2023.pdf) Kind regards,
Hi Edward, Thank you for contacting SharkBite. If you a e still in need of installation assistance please call tech support at 877-700-4242. Kind regards,
