Internet #206632213

Model #QSH2125

Store SO SKU #516939

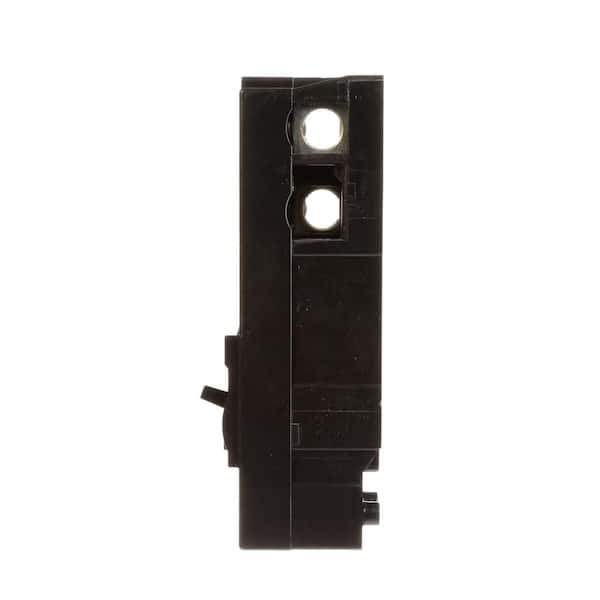

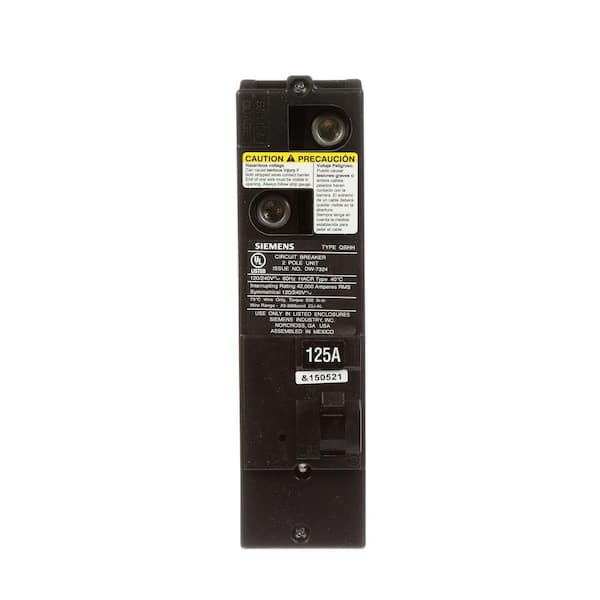

125 Amp Double-Pole 42kA Type QS Multi-Family Main Breaker

(1)
Questions & Answers (2)
  • Fits in Siemens PowerMod and Uni-PAK Residential Meter Stacks
  • 22 kA Interrupting Rating
  • Accepts #3-300kcmil Cu-Al Wire
  • See More Details

Frequently Bought Together

+
Price:

Product Overview

PowerMod's core offering of residential Meter Stacks, type WMM, offers the widest product offering and flexibility in the industry. Each meter stack houses the QuickSystem features to maximize productivity and minimize labor costs. To further simplify installation, our 225 Amp meter stacks feature the QS breaker. The QS breaker adds to the Siemens exclusive feature set in our Power Mod product line.
  • Double pole 125 Amp type QS circuit breaker
  • An exclusive side wired design saves wiring space and eliminates difficult “S bends”
  • No need for costly filler plates - QS 125 Amp breaker takes the same space as standard 125 Amp QPs
  • 1 right hand bend wiring - saves time and wire
  • Provides 100K AIC flexibility from 100 up to 225 Amps
  • 42K AIC series rating
  • For use in Siemens WMM and PAK multifamily metering lines
  • UL listed
  • Designed for residential/commercial applications
  • Learn More About Circuit Breakers Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
8.66
Product Height (in.)
2.75
Product Width (in.)
5.90

Details

Breaker Type
Main Breakers
Electrical Product Type
Breaker
Interruption Type
Standard Trip
Maximum Amperage (amps)
125
Mounting Type
Plug-On
Number of Poles
2
Pack Size
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
2.20
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
Lifetime

Questions & Answers

2Questions2Answers

What size wire gauge does this take? It says that Accepts #3-300kcmil Cu-Al Wire, however I am h...

Asked by Gil February 15, 2019
1
Answer

Wire range is #3AWG-300kcmil Cu-Al Wire (one conductor only). 1/0 aluminum is acceptable.

If I have a 70 Amp main breaker can it be replaced with a 100 Amp breaker?

Asked by John March 16, 2016
1
Answer

Hi john, This would depend on the panel that you have as well as the load on the circuit that the breaker would be protecting. In this case I would have to recommend that you consult a professional electrician or reach out to one of the associates at your local Home Depot.

Customer Reviews

  • 5
    out of 1 reviews
  • 100% recommend this product
Filter by:
Showing 1-1 of 1 reviews
CAN I INSTALL 4 - 200 AMP QS MAIN BREAKERS INTO A UNI-PAK 4-GANG 400 AMP MULTI-FAMILY METERING BO...
CAN I INSTALL 4 - 200 AMP QS MAIN BREAKERS INTO A UNI-PAK 4-GANG 400 AMP MULTI-FAMILY METERING BOX INSTEAD OF FOUR 100 AMP AND/OR THREE 150 AMP AMP AND 1 - 100 AMP AND/OR 4- 100 AMP BREAKERS.
