- Designed to facilitate hassle-free installation
- Precision-engineered for superior functionality
- UL-listed for safe and smooth use
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

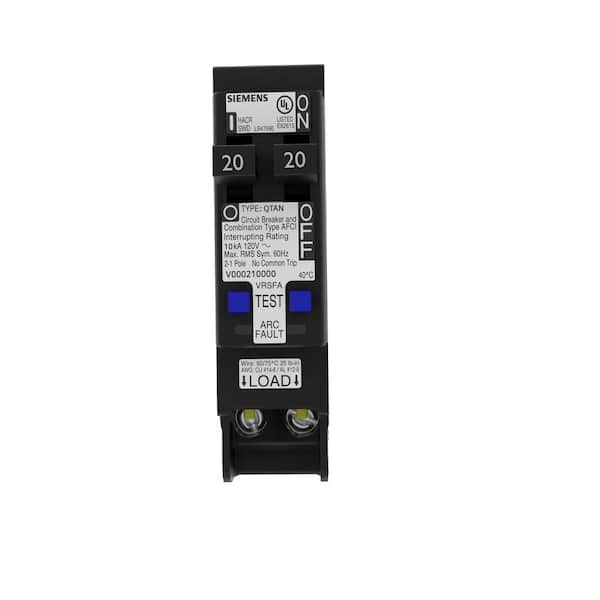

Siemens introduces new Tandem Combination Type Arc Fault Circuit Interrupters (CAFCI), expanding the capabilities of the CAFCI, designed to allow 1 breaker to feed 2 circuits - saving on both space in the load center and installation time, while keeping safety and compliance top of mind. Siemens Tandem AFCI breakers are the perfect solution to wiring made easier, allowing for smaller load center needs due to the combined position use. Trusted lug wire indicator flags are installed to show when load wires are correctly inserted into the lugs. Siemens CAFCI breakers are ideal for new construction and renovations, available in either Plug-On Neutral or Pigtail versions. Siemens Tandem AFCI breakers are National Electrical Code (NEC) 210.12 compliant.
Highlights
- Load Lug(s) only, providing quick and easy installations
- Insta-wire connectors
- Smaller load center needs, minimizing the need for sub-feeding panels
- Featured installed indicator flags disappear when the load wires are inserted correctly
- 120-Volt
- 10,000 AIC
- UL Listed
- HACR and SWD rated
- Detects all 3 possible types of arc faults: line-to-ground, line-to-neutral and series arcs
- Pigtail style breakers can be used to meet extension and modification needs in Murray and legacy Siemens load centers
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions
Product Depth (in.) | 1.3 in |
|---|---|
Product Width (in.) | 6.0 in |
Details
AIC Rating | 10 |
|---|---|
Amperage (A) | 20 A |
Breaker Type | Tandem |
Connection Type | Neutral |
Interruption Type | AFCI |
Mounting Type | Plug-On |
Number of Poles | Single |
Number of Spaces | 0 |
Pack Size | 1 |
Product Weight (lb.) | 0.55 lb |
Returnable | 90-Day |
Series Type | Not Specified |
Trip Unit | Electronic |
Voltage (V) | 120 V |
Warranty / Certifications
Certifications and Listings | UL Listed |
|---|---|
Manufacturer Warranty | Standard |
Questions & Answers
Does the afci qtan tandem fits a qp panel or do i need the qta panel
We would need to know what panel you have before advising. You may send an email with this information to productselection.us@siemens.com for them to advise.
What is the difference between Q2020AFCN and Q2020AFCNP? Why the different SKU?
The only difference is the Q2020AFCNP (P) ending means it comes in special retail packaging and the Q2020AFCN comes in standard packaging
What is the difference between the Q2020AFC and the Q2020AFCNP?
Q2020AFC is the QTA tandem AFCI combo breaker, Q2020AFCNP is the plug on neutral tandem AFCI combo breaker. Plug on neutral breakers can only be used in panels that are listed on the wiring diagram that they can accept plug on neutral breakers. The Siemens load center will list which breakers are compatible with the specific load center. Always refer to wiring diagram of said load center.
Will these breakers fit into the new SN4060B1200 panels?
Yes as that is what they were designed for. SN and PN panels have plug-in-neutral bars that this breaker requires.
Will this breaker work with my Siemens G3040L1200CU panel?
If your panel lists breaker types QAF and QAF2 or QAF2N then yes you can use QTAN type breakers.
Will this breaker work in my Siemens S2424L1125 panel?
No the Q2020AFCN is for our Plug On Neutral Load Center line only you would need the Q2020AFC type with pigtail https://s3.amazonaws.com/dcc-data-extract/new-delta/asset/Compas/daily/Compas/Specification%20Sheet/SIE_SS_TandemCAFCI.pdf
Will this fit Eaton type br panel?
Siemens breakers are not listed for use in other manufacturers equipment. You would need to contact Eaton to determine if they have approved this Siemens breaker for use in their equipment.
What is the difference between Q2020AFCNP and Q2020AFCN?
They are the exact same except for the Q2020AFCNP ending in "P" has special retail packaging for our retail accounts.
Viewing 1-8 of 10
Customer Reviews
3.7 out of 5
5
2
4
0
3
0
2
0
1
1
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for homeowners looking for dual-circuit protection, this breaker saves space and installation time. A great choice for new construction and renovations needing reliable arc fault protection. | Ideal for wet and damp locations , this GFCI circuit breaker provides Class A ground fault protection and resists false tripping . A must-have for anyone looking to enhance electrical safety in their home .. | Great for homeowners looking for arc fault protection, making homes safer and preventing electrical fires. | Great for homeowners looking for smart home integration, making home energy management easier and more efficient. |
Maximum Amperage | |||
20 A | 30 A | 15 A | 20 A |
Number of Poles | |||
Single | Double | 2 | Single |
Trip Curve | |||
Interrupting Rating | |||
10, 000 AIC | 10, 000 AIR | 10, 000 AIC | 10kA |
Voltage Rating | |||
120 V | 120/240 V | 120/240V | 125 V |
Related Products
20 Amp AFCI/GFCI Dual Function Circuit Breaker
The Dual Function Circuit Breaker combines Class A 5mA GFCI and Combination Type AFCI, protecting against both Arc Faults and Ground Faults. This, along with the new Self-Test feature, makes it the first in class in electrical safety for homeowners. The 2014 National Electrical Code (NEC) requires both Arc Fault and Ground Fault protection on kitchen and laundry circuits. Before the release of Dual Function Circuit Breakers, the only option to comply with this code was to pair an AFCI circuit breaker with a GFCI receptacle. The Dual Function Circuit breaker combines these 2 devices into once solution that provides both cost savings and less hassle in installation and maintenance. This is a win solution for everyone. Testing GFCI's and AFCI's on a monthly basis is a good idea that is sometimes forgotten. Underwriters Laboratories (UL) suggests that AFCI/GFCI devices be tested every 30 days after installation to ensure they are properly working. Now the new Self-Test feature enables the Dual Function Circuit Breaker to automatically and continuously test itself to ensure that it is working properly. If it is detected that the device has been compromised, the device trips itself. This effortless system guarantees that only the best protection is given to your home at all times.
Type QAF 20 Amp Double-Pole Combination AFCI Circuit Breaker
The Siemens 20 Amp 2 in. Double-Pole Combination AFCI Circuit Breaker is intended to mitigate the effects of arcing faults by de-energizing the circuit when an arc-fault is detected. The breaker is designed to protect against line-to-ground arcs, line-to-neutral arcs and series arcs to help protect your home from an electrical fire. AFCI's detect arcing faults (an unintentional arcing condition in a circuit) that standard circuit breakers are unable to detect. The device is intended to mitigate the effects of arcing faults by functioning to de-energize the circuit when an arc-fault is detected.
QPFBN 25 Amp 2-Pole GFCI Plug-On Neutral Circuit Breaker
Siemens GFCI circuit breakers are UL Listed and cUL Certified to provide Class A GFCI protection. Current imbalances of 4-6 mA or more between load conductors will cause the ground fault sensor to trip the circuit breaker. These circuit breakers offer Self-Test and Lockout features as required by UL 943, enabling the GFCI to automatically and continuously test itself to ensure that it is working properly. If it is detected that the device has been compromised, the device trips itself signaling to the homeowner it must be replaced to help guarantee the best protection. 10, 000 AIR rated breaker and designed for use with 120-Volt/240-Volt AC systems.
15 Amp Double-Pole Type QAF Combination AFCI Circuit Breaker RBPU
The Siemens 15-Amp 2-Pole Combination AFCI Circuit Breaker reduces wiring costs and installation time by enabling contractors to use multi-wire branch circuits, commonly known as "shared neutrals". When using single pole CAFCIs, a dedicated neutral is required for each circuit. This breaker allows electricians to share neutrals between the two circuits fed by the breaker. CAFCI Breakers are designed to protect against line-to-ground arcs, line-to-neutral arcs and series arcs to help protect your home from an electrical fire. The breaker is intended to mitigate the effects of arcing faults by de-energizing the circuit when an arc-fault is detected.
