Model # W0406ML1225CU

Internet #202276309

Store SKU #271525

Store SO SKU #516939

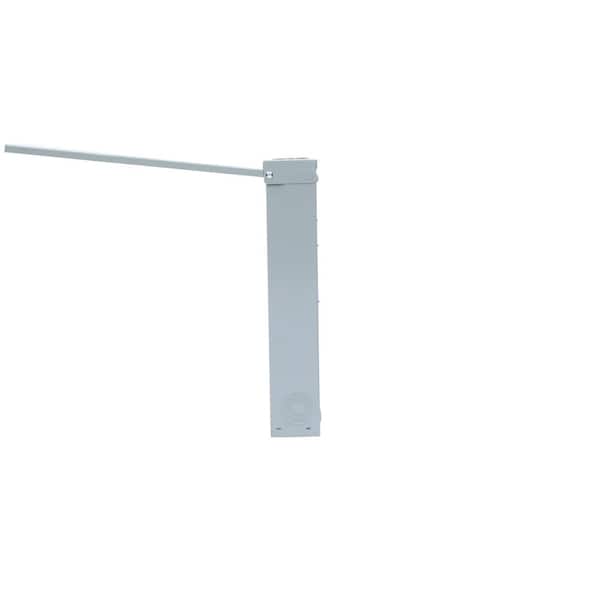

Siemens 225 Amp 4-Space 6-Circuit Main Lug Outdoor Load Center
0783643304765

Siemens

225 Amp 4-Space 6-Circuit Main Lug Outdoor Load Center

  • Will Not accommodate 2Pole GFCI / Shunt Trip Breakers
  • One piece Copper Bus designed for use with circuit breakers only
  • Uses HS type hubs only
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Will Not accommodate 2Pole GFCI / Shunt Trip Breakers
  • One piece Copper Bus designed for use with circuit breakers only
  • Uses HS type hubs only
Provides power while protecting circuits with this 225 Amp 6-Space 4-Circuit Load Center. This Type 3R enclosure is designed for outdoor applications and is constructed with an Copper bus bar. For ensuring safety and performance, the load center is ANSI certified and meets, or exceeds, UL standards.
  • Copper bus bar
  • Type 3R, single-phase, 3-wire and 120/240-Volt
  • Accepts copper or aluminum wiring
  • Meets or exceeds UL standards and is ANSI certified
  • Uses Siemens type HS hubs

Product Overview

  • Will Not accommodate 2Pole GFCI / Shunt Trip Breakers
  • One piece Copper Bus designed for use with circuit breakers only
  • Uses HS type hubs only
Model #: W0406ML1225CU
Sku #: 271525
Internet #: 202276309

Provides power while protecting circuits with this 225 Amp 6-Space 4-Circuit Load Center. This Type 3R enclosure is designed for outdoor applications and is constructed with an Copper bus bar. For ensuring safety and performance, the load center is ANSI certified and meets, or exceeds, UL standards.

  • Copper bus bar
  • Type 3R, single-phase, 3-wire and 120/240-Volt
  • Accepts copper or aluminum wiring
  • Meets or exceeds UL standards and is ANSI certified
  • Uses Siemens type HS hubs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$49.97 /each
$95.79 /each
$104.00 /each
null /null
Name EQ 125 Amp 8-Space 16-Circuit Main Lug Outdoor Load Center PL Series 200 Amp 12-Space 24-Circuit Main Lug Outdoor Load Center PL Series 200 Amp 20-Space 40-Circuit Main Lug Outdoor Load Center 225 Amp 4-Space 6-Circuit Main Lug Outdoor Load Center
Brand Siemens Siemens Siemens Siemens
Ratings (2) (1) (0) (2)
Indoor/Outdoor Outdoor Outdoor Outdoor Outdoor
Number of Phases 1 1 1 1
Mounting type Plug In Plug In Plug In Plug In
Maximum Amperage (amps) 125 200 200 225
Number of Spaces 8 12 20 4
View Product View Product View Product View Product

Specifications

Dimensions

Load center depth (in.)
23.80
Load center height (in.)
6.0
Load center width (in.)
15.8

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Main Lug
Maximum Amperage (amps)
225
Mounting type
Plug In
Number of Phases
1
Number of Spaces
4
Product Weight (lb.)
19.25lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 YEAR

Specifications

Dimensions

Load center depth (in.)
23.80
Load center height (in.)
6.0
Load center width (in.)
15.8

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Main Lug
Maximum Amperage (amps)
225
Mounting type
Plug In
Number of Phases
1
Number of Spaces
4
Product Weight (lb.)
19.25lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 YEAR

Questions & Answers

We need 12 spacing, six circuit for 2pole 35A breakers, does Siemens offer any Breaker panels for outdoor application?

We need 6 circuit, 12 spacing for 2pole 35A breakers, does Siemens offer any Breaker panels for outdoor Solar application? Main breaker is optional.
Asked by: Raki
Sorry, I was referring to 12 circuits, 6 spacing 225A, single phase Outdoor load center.
Answered by: Raki
Date published: 2016-04-19

The architect is asking for a 225 amp fused disconnect is that different than a disconnect that uses a breaker? Or can a fuse be used instead

Asked by: pieraduck
Hi pieraduck, A fused disconnect uses a fuse as the overcurrent protection device. A non-fused disconnect would be protected by a circuit breaker upstream at the panel. Either can be used but it depends on the application. I would recommend consulting a professional electrician to have a look at your install and be sure you are meeting all code requirements.
Answered by: BrandAnswers
Date published: 2015-10-06

Need a disconnect at meter because panel is 30 ft from meter. Will this work?

The electric used to be supplied from the back of the house but now comes from the front. The panel was installed in the back of the house. Since the wire from the meter to the panel is over 6 feet, I need a 200 amp main disconnect at the meter. Will this work?
Asked by: Justme
Hi Justme, This load center would work as a main disconnect for you, but you would have to buy the main breaker separately. The main you would need is a Q2200B which can be found here: http://www.homedepot.com/p/Siemens-200-Amp-Type-QPP-Main-Breaker-Q2200B/100144183
Answered by: BrandAnswers
Date published: 2015-09-20

Using as main pannel from power meter to split from 200 meter to two 100amp subpannels

I need to know the circuit breakers I need buy for this outdoor enclosure (which will be my main pannel) which will be taking power from a 200 amp power meter The 200 amp main circuit breaker to buy The two 100 amp main breakers that will be used to power the two separate sub-panels Thanks for your help.
Asked by: electric
Hello electric, The main breaker that you would use in this panel is a Q2200B which you can find here: http://www.homedepot.com/p/Siemens-200-Amp-Type-QPP-Main-Breaker-Q2200B/100144183 This panel accepts Siemens type QP circuit breakers so you would need a Q2100P to use as the 100 Amp 2 pole circuit breakers.
Answered by: BrandAnswers
Date published: 2015-09-20
  • y_2017, m_11, d_24, h_5CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_8
  • loc_, sid_202276309, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 100ms
  • QUESTIONS, PRODUCT

Customer Reviews

225 Amp 4-Space 6-Circuit Main Lug Outdoor Load Center is rated 4.5 out of 5 by 2.
Rated 5 out of 5 by from 200 Amp Disconnect is cost effective way to feed subpanel and avoid voltage drop. This panel has lugs big enough for 250 KCMIL wire, so you can use large aluminum to avoid voltage drop. The price of this panel plus a 100A breaker is the lowest cost way to feed a subpanel at the end of a long run of wire made of aluminum. Other subpanel sizes could be 150A or 60A or 200A by choosing a different breaker as disconnect switch that separate buildings often require by code. The price of this way is 40% compared to main disconnect switches without fuses.
Date published: 2012-07-10
Rated 4 out of 5 by from 200 amp disconnect Product does what it's supposed to do. Would recommend buying the 200 amp breaker for 65 if using as disconnect
Date published: 2014-08-19
