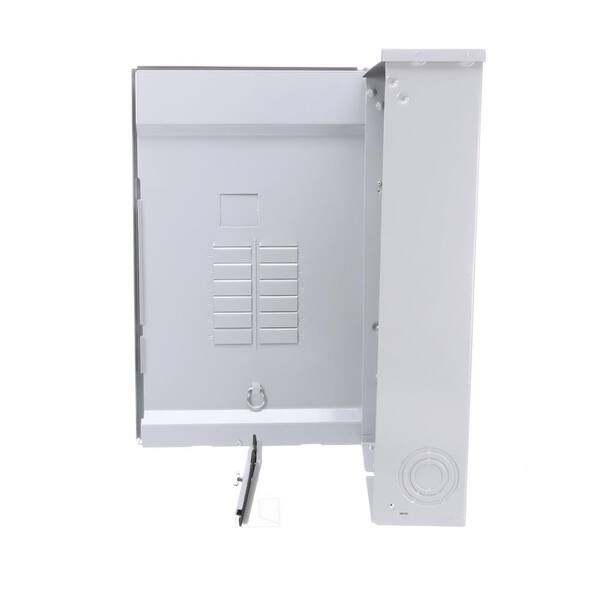

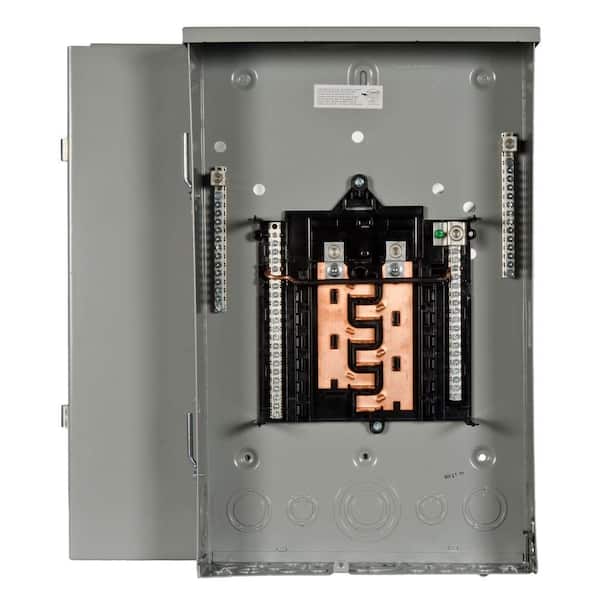

PL Series 200 Amp 12-Space 24-Circuit Main Lug Outdoor Load Center

  • Perfect for use as a subpanel downstream of the main disconnect
  • Reduced installation time with Siemens Insta-Wire Neutral/Grounds
  • Can be converted to a Main Breaker panel
  • See More Details

Frequently Bought Together

+
+
Price:
$11231

Product Overview

Siemens introduces PL Series Load Centers - a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PL Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PL load centers feature the patented insta-wire neutral/ground system, convertibility, copper bussing, and mounting tabs on the trim - these features were specifically engineered to decrease installation time and increase flexibility.
  • Single phase 200 Amp main lug load center with 12 spaces/24 circuits
  • Features Siemens patented insta-wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
  • Copper bus
  • All devices are provided with 2 factory installed ground bars
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • All PL series devices convertible from main lug to main breaker and vice versa
  • Mounting tabs on the trim hold the load center in place freeing up both hands to drive the trim screws
  • A rigid, sturdy base pan provides the ruggedness required for the harshest applications
  • NEMA type 3R: enclosure is intended for outdoor use primarily to provide a˚ of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing
  • PL Series Single Phase load centers are being phased out, and replaced by the new PN Series Plug-On Neutral load centers, PW1224L1200CU equivalent is the new PNW1224L1200C
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Individual Subpanels

200 Amp 30-Space 40-Circuit Main Lug Load Center
current product
PL Series 200 Amp 12-Space 24-Circuit Main Lug Outdoor Load Center
SN Series 200 Amp 30-Space 48-Circuit Main Lug Plug-On Neutral Load Center IndoorPowerMark Gold 125 Amp 12-Space 12-Circuit 3-Phase Outdoor Main Lug Circuit Breaker Panel
BrandMurraySiemensSiemensGE
Name200 Amp 30-Space 40-Circuit Main Lug Load CenterPL Series 200 Amp 12-Space 24-Circuit Main Lug Outdoor Load CenterSN Series 200 Amp 30-Space 48-Circuit Main Lug Plug-On Neutral Load Center IndoorPowerMark Gold 125 Amp 12-Space 12-Circuit 3-Phase Outdoor Main Lug Circuit Breaker Panel
Price
$11082
$11231
$12246
$12664
Ratings
(30)
(4)
(6)
(8)
Maximum Amperage (amps)200200200125
Indoor/OutdoorIndoorOutdoorIndoorOutdoor
Number of Spaces30123012
Mounting TypeBolt OnBolt OnPlug-On NeutralPlug-On
Load Center TypeMain LugMain LugMain LugMain Lug
Number of Circuits40244812
Load center width (in.)15.81615.7513.563
Load center height (in.)6.05.754.695.375
View ProductView ProductView ProductView Product

Specifications

Dimensions

Load center depth (in.)
24.63
Load center height (in.)
5.75
Load center width (in.)
16

Details

Electrical Product Type
Main Lug/ Main Lug Kit
Indoor/Outdoor
Outdoor
Load Center Mounting Type
Surface
Load Center Type
Main Lug
Maximum Amperage (amps)
200
Mounting Type
Bolt On
Number of Circuits
24
Number of Spaces
12
Phase Type
1 Phase
Product Weight (lb.)
24
Returnable
180-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
Lifetime

Questions & Answers

10Questions11Answers

What is required to convert this from main lug to main breaker?

Asked by GW January 24, 2020
0
Answers

why wont this app let me place an order ?

Asked by randy May 22, 2018
1
Answer

Please contact your local Home Depot for SKU availability.

how do i get one of these units? pick up? delivery? Help me purchase this load center ASAP!!

Asked by randy May 22, 2018
1
Answer

SKU availability at a store is at the discretion of Home Depot. Please contact your local store.

Can this box be used for 100 amp service?

Asked by Sam May 4, 2018
1
Answer

PW3040L1200CU can be converted for 100A service entrance by installing a back fed 100A main with hold down kit in positions 1&3. You also lose use of spaces 2&4 because of the hold down kit. A better choice would PW3040B1100CU which comes with a 100A main breaker installed. To download the cut sheet for this item go to link below and click on "Downloads" and enter PW3040B1100CU in the search box. https://w3.usa.siemens.com/powerdistribution/us/en/speedfax-product-catalog/Pages/speedfax-product-catalog.aspx

Can this be flush mounted next to the main panel outside?

Asked by MM December 31, 2017
1
Answer

PW2040L1200CU cannot be fully flush mounted as the hinged door will not operate. The outdoor panels at best can only be mounted semi-flush. To download the cut sheet for this item go to link below and click on "Downloads" and enter PW2040L1200CU in the search box. http://w3.usa.siemens.com/powerdistribution/us/en/Pages/low-medium-voltage.aspx

can you have a disconnect with this box

Asked by romo November 22, 2017
2
Answers

Yes, you can have a 200 amp disconnect at the meter and feed this main lug loadcenter inside the house with a 4-wire feeder. You must add a ground bar kit to the panel and isolate the neutral from the grounded panel box.

door is shown does it have a breaker cover also

Asked by sholo May 1, 2017
2
Answers

Sholo, If you mean door in door? then yes it has the cover for the breakers. Thanks,

What part number to convert it to a main breaker and is it available in any of the Memphis area hd

Asked by Mark January 8, 2016
1
Answer

Hi Mark, To convert this panel to a main breaker load center you would need to install a MBK125A which you can find here: http://www.homedepot.com/p/Siemens-125-Amp-Main-Breaker-Conversion-Kit-MBK125A/202276325?keyword=MBK125A

Is this panel 120/240 volts ?

Asked by caddyben November 4, 2015
1
Answer

Hi caddyben, Yes, this panel is 120/240 volts.

Can I mount two 100 amp breakers in this panel to serve as mains for two separate (remote) distribution panels?

Asked by number1 February 12, 2015
1
Answer

Hello, The Siemens part number for a 2 pole 100 Amp breaker is a Q2100P. You should be able to pick one up at your local Home Depot. I would recommend contacting a professional electrician to confirm that your application would be compliant to the NEC code.
