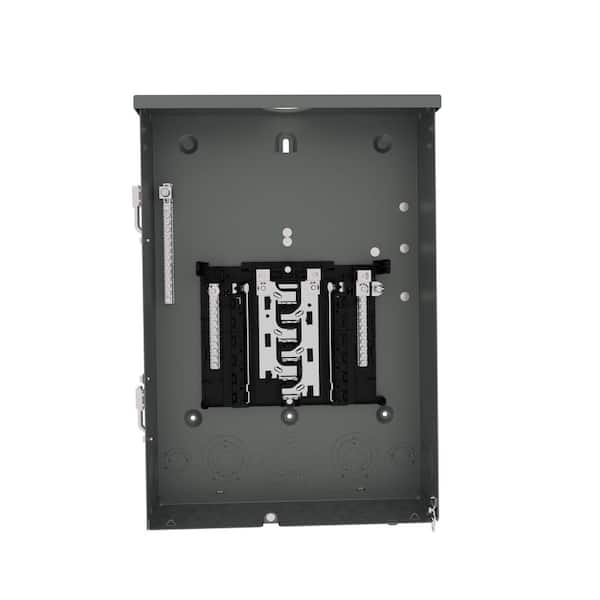

SN Series 125 Amp 12-Space 24-Circuit Outdoor Main Lug Plug-On Neutral Load Center

$10498
Apply Now
Pay $79.98 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Simple - quicker breaker installation, wiring made easier
  • Spacious - Over 4 in. of wire bending space
  • Secure - sturdy hook-rail and reliable connection
Store
0 in stock
Text to Me
caret

Product Details

Siemens SN Series Load Center is the smart choice when value and quick installation are of highest priority. The SN Series load centers include labor saving features such as the ability to accept Plug-on neutral breakers, patented Insta-wire and mounting trim tabs. These exclusive features make the SN Series load center the best load center for the value minded contractor.
  • Features Siemens plug-on neutral, for simple quick installation, that is spacious with over 4 in. of wire bending space, and a secure reliable installation method
  • SN series plug-on neutral load center includes 1 factory installed ground bars
  • Single phase load center
  • Aluminum bus
  • NEMA type 3R enclosure
  • Grey trim
  • Interrupt rating: 100000 AIC
  • UL Listed
  • Return Policy

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.
caret

Specifications

caret

Questions & Answers

9Questions
caret
Q:How can I use the standby pwr interlock kit with this panel for a generator application? Asking since this panel doesn't have a main breaker.
by|Dec 15, 2022
1 Answer
Answer This Question

A:  By back-feeding a main breaker which also requires a hold down kit see wiring diagram for interlock kit and back-feeding options https://s3.amazonaws.com/dcc-data-extract/new-delta/asset/Compas/daily/Compas/Wiring%20Diagram/SIE_WD_LC_SNW2040L1200.pdf

by|Dec 16, 2022
    caret
    Q:I am wanting to upgrade my Outdoor panel and want to reuse my existing breakers. Can the breakers that are in my Siemens 125 Amp W1224L1125CU work in this SNW1224L1200? Thanks in advance.
    by|May 17, 2022
    1 Answer
    Answer This Question

    A:  Yes both units take the QP, QT, QPF, QAF branch breakers see breaker types listed in wiring diagram https://s3.amazonaws.com/dcc-data-extract/new-delta/asset/Compas/daily/Compas/Wiring%20Diagram/SIE_WD_LC_SNW1224L1200.pdf

    by|May 18, 2022
      caret
      Q:Can breaker q2125p or q2125 be used on this panel?
      by|Jan 26, 2022
      1 Answer
      Answer This Question

      A:  Yes, the QP frame breakers (Q2125) can be used in this panel. Refer to included link for the wiring diagram that lists acceptable breaker types. https://s3.amazonaws.com/dcc-data-extract/new-delta/asset/Compas/daily/Compas/Wiring%20Diagram/SIE_WD_LC_SNW1224L1200.pdf

      by|Jan 26, 2022
        caret
        Q:This Model # is not correct I believe... it should be Model #PNW1224L1200.
        by|Jan 26, 2022
        1 Answer
        Answer This Question

        A:  Model # is correct, we offer a SNW1224L1200 & PNW1224L1200C.

        by|Jan 26, 2022
          Showing 1-4 of 9
          caret

          Customer Reviews

          4.2 out of 5
          (7)
          • 4.2
            out of 7 reviews
          • 0%recommend this product
          Filter by:
          Showing 1-7 of 7 reviews
          by
          • Verified Purchase
          by
          • Verified Purchase
          by
          • Verified Purchase
          Rating provided by a verified purchaser...
          Rating provided by a verified purchaser
          by
            Rating provided by a verified purchaser...
            Rating provided by a verified purchaser
            by
            • Verified Purchase
            Not thrilled with this Siemens electric subpanel. I do not...
            Not thrilled with this Siemens electric subpanel. I do not like how the door opens it flops down. It is going to be difficult for me to finish the wall around it. Lastly, I did not like the fact that the knock out holes were only on the bottom and one on the bottom right side.
            by
            Response from SIEMENS Product ExpertNov 23, 2020
            I apologize for the issue that you had with your Siemens Subpanel. We take great pride in the quality of our products. We would like to understand your specific situation and address any issues you may have. Please feel free to reach out to Siemens Technical Support at 1-800-333-7421. We would like to help troubleshoot the issue you are having or provide a replacement unit if necessary. SIEMENS
            • Verified Purchase
            The panel came as expected and was easy to install....
            The panel came as expected and was easy to install.
            by
            • Verified Purchase
            Showing 1-7 of 7 reviews

            Frequently Bought Together

            +
            +
            Price:
            $10498

            Compare Similar Individual Subpanels

            current product
            SN Series 125 Amp 12-Space 24-Circuit Outdoor Main Lug Plug-On Neutral Load Center
            SN Series 150 Amp 24-Space 48-Circuit Indoor Main Lug Plug-On Neutral Load CenterSN Series 200 Amp 20-Space 40-Circuit Indoor Main Lug Plug-On Neutral Load CenterPN Series 125 Amp 24-Space 48-Circuit Main Lug Plug-On Neutral Load Center Indoor with Copper Bus
            BrandSiemensSiemensSiemensSiemens
            NameSN Series 125 Amp 12-Space 24-Circuit Outdoor Main Lug Plug-On Neutral Load CenterSN Series 150 Amp 24-Space 48-Circuit Indoor Main Lug Plug-On Neutral Load CenterSN Series 200 Amp 20-Space 40-Circuit Indoor Main Lug Plug-On Neutral Load CenterPN Series 125 Amp 24-Space 48-Circuit Main Lug Plug-On Neutral Load Center Indoor with Copper Bus
            Price
            $10498
            $11012
            $12131
            $13736
            Ratings
            (7)
            (33)
            (33)
            (33)
            Maximum Amperage (amps)125150200125
            Indoor/OutdoorOutdoorIndoorIndoorIndoor
            Number of Spaces12242024
            Mounting TypePlug-On NeutralPlug-On NeutralPlug-On NeutralPlug-On Neutral
            Load Center TypeMain LugMain LugMain LugMain Lug
            Number of Circuits24484048
            Load center width (in.)15.2515.7515.7515.94
            Load center height (in.)54.694.695.62
