SSTB 5/8 in. x 17-5/8 in. Hot-Dip Galvanized Anchor Bolt

  • Suitable for monolithic and two-pour concrete applications
  • Anchor bolt for Simpson Strong-Tie holdowns and shearwalls
  • Hot-dip galvanization offers extra corrosion resistance
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Suitable for monolithic and two-pour concrete applications
  • Anchor bolt for Simpson Strong-Tie holdowns and shearwalls
  • Hot-dip galvanization offers extra corrosion resistance
The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015 and 2018 IBC® and IRC®.
  • Identification on the bolt head showing embedment angle and model
  • Offset angle reduces side bursting, and provides more concrete cover
  • Rolled thread for higher tensile capacity

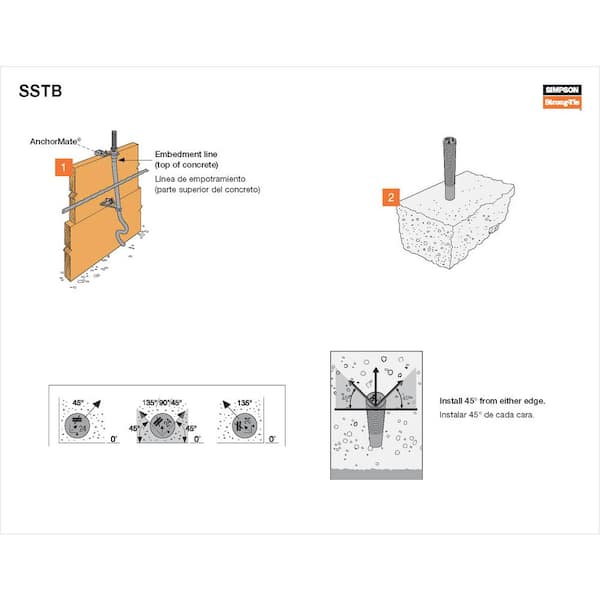

  • Stamped embedment line aids installation
  • SSTB is suitable for monolithic and two-pour concrete applications
  • Diameter: 5/8 in.
  • Length: 17-5/8 in.
  • Material: ASTM F-1554, Grade 36
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
  • Nuts and washers for holdown attachment are not supplied with the SSTB, on HDG SSTB anchors, chase the threads to use standard nuts or couplers

Product Overview

  • Suitable for monolithic and two-pour concrete applications
  • Anchor bolt for Simpson Strong-Tie holdowns and shearwalls
  • Hot-dip galvanization offers extra corrosion resistance
Model #: SSTB16HDG-R
Sku #: 669401
Internet #: 100375174

The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015 and 2018 IBC® and IRC®.

  • Identification on the bolt head showing embedment angle and model
  • Offset angle reduces side bursting, and provides more concrete cover
  • Rolled thread for higher tensile capacity
  • Stamped embedment line aids installation
  • SSTB is suitable for monolithic and two-pour concrete applications
  • Diameter: 5/8 in.
  • Length: 17-5/8 in.
  • Material: ASTM F-1554, Grade 36
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
  • Nuts and washers for holdown attachment are not supplied with the SSTB, on HDG SSTB anchors, chase the threads to use standard nuts or couplers

Key Features

Product Overview
Key Features
  • Suitable for monolithic and two-pour concrete applications
  • Anchor bolt for Simpson Strong-Tie holdowns and shearwalls
  • Hot-dip galvanization offers extra corrosion resistance
The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015 and 2018 IBC® and IRC®.
  • Identification on the bolt head showing embedment angle and model
  • Offset angle reduces side bursting, and provides more concrete cover
  • Rolled thread for higher tensile capacity
  • Stamped embedment line aids installation
  • SSTB is suitable for monolithic and two-pour concrete applications
  • Diameter: 5/8 in.
  • Length: 17-5/8 in.
  • Material: ASTM F-1554, Grade 36
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
  • Nuts and washers for holdown attachment are not supplied with the SSTB, on HDG SSTB anchors, chase the threads to use standard nuts or couplers

Product Overview

  • Suitable for monolithic and two-pour concrete applications
  • Anchor bolt for Simpson Strong-Tie holdowns and shearwalls
  • Hot-dip galvanization offers extra corrosion resistance
Model #: SSTB16HDG-R
Sku #: 669401
Internet #: 100375174

The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015 and 2018 IBC® and IRC®.

  • Identification on the bolt head showing embedment angle and model
  • Offset angle reduces side bursting, and provides more concrete cover
  • Rolled thread for higher tensile capacity
  • Stamped embedment line aids installation
  • SSTB is suitable for monolithic and two-pour concrete applications
  • Diameter: 5/8 in.
  • Length: 17-5/8 in.
  • Material: ASTM F-1554, Grade 36
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
  • Nuts and washers for holdown attachment are not supplied with the SSTB, on HDG SSTB anchors, chase the threads to use standard nuts or couplers

Specifications

Dimensions

Anchor Diameter (in.)
5/8"
Anchor Length (in.)
17.625
Fastener Length (in.)
17.625
Required Drill Hole Size (in.)
0

Details

Color Family
Steel
Fastener Head Style
No Head
Fastener Plating
Hot Galvanized
Fastener Type
Anchor Bolts
Fastener/Connector Material
Steel
Features
No Additional Features
Finish
Hot-Dip Galvanized
Finish Family
Galvanized
Included
No Additional Items Included
Interior/Exterior
Interior/Exterior
Measurement Standard
SAE
Package Quantity
1
Product Weight (lb.)
1.33lb

Warranty / Certifications

Manufacturer Warranty
Yes

Specifications

Dimensions

Anchor Diameter (in.)
5/8"
Anchor Length (in.)
17.625
Fastener Length (in.)
17.625
Required Drill Hole Size (in.)
0

Details

Color Family
Steel
Fastener Head Style
No Head
Fastener Plating
Hot Galvanized
Fastener Type
Anchor Bolts
Fastener/Connector Material
Steel
Features
No Additional Features
Finish
Hot-Dip Galvanized
Finish Family
Galvanized
Included
No Additional Items Included
Interior/Exterior
Interior/Exterior
Measurement Standard
SAE
Package Quantity
1
Product Weight (lb.)
1.33lb

Warranty / Certifications

Manufacturer Warranty
Yes

Questions & Answers

  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 25ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Customer Reviews

Simpson Strong-Tie SSTB 5/8 in. x 17-5/8 in. Hot-Dip Galvanized Anchor Bolt is rated 3.0 out of 5 by 2.
Rated 5 out of 5 by from Top quality Well designed hardware for building reinforcement. The "Gold Standard" in seismic hardware. The previous review has nothing to do with the quality of the Simpson hold down bolt and everything to do with the inexperience and lack of trade knowledge of the "reviewer". HDG bolts REQUIRE HDG nuts and bearing plates. The size difference is meant to discourage those unfamiliar with seismic work from taking cheapo short-cuts. Been using Simpson hardware for years and the simple reason they have no real competition is they do such a fabulous job that those of us in the trades are extremely loyal to them and have no interest in using anything else. If your contractor or handyman is complaining about the cost or quality of CODE REQUIRED SImpson hardware, that is, in my opinion, a red flag warning that they may not be the best choice for your project.
Date published: 2014-01-15
Rated 1 out of 5 by from cannot fit normal CNMW5/8 nut Don't buy. SImpson CNW5/8 nut or non-galvanized nut cannot fit in galvanized rod. Stupid world with stupid design, the outer diameter of all 5/8 anchor bolt should be compatible. I know galvanized nut can fit yet hard to find, I simply forgot the thing and used one of them due to length, now have trouble If HD doesn't carry suitable nut, it shall not sell such product.
Date published: 2012-09-03
