Internet #300591993

Model #STB2-50414P1

Store SKU #1002237066

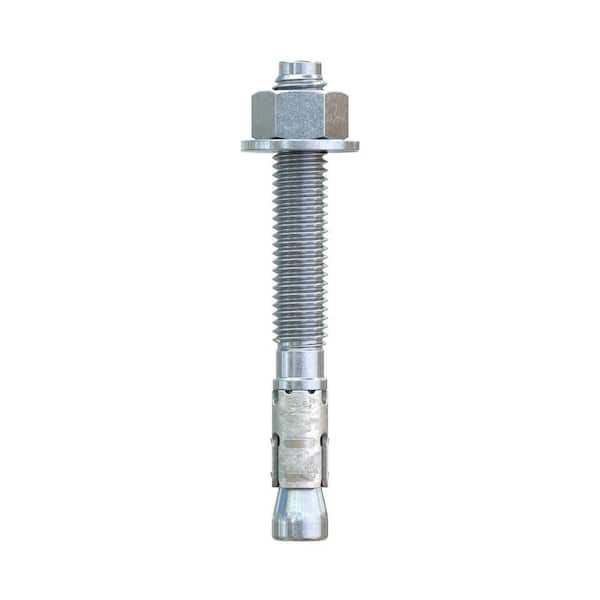

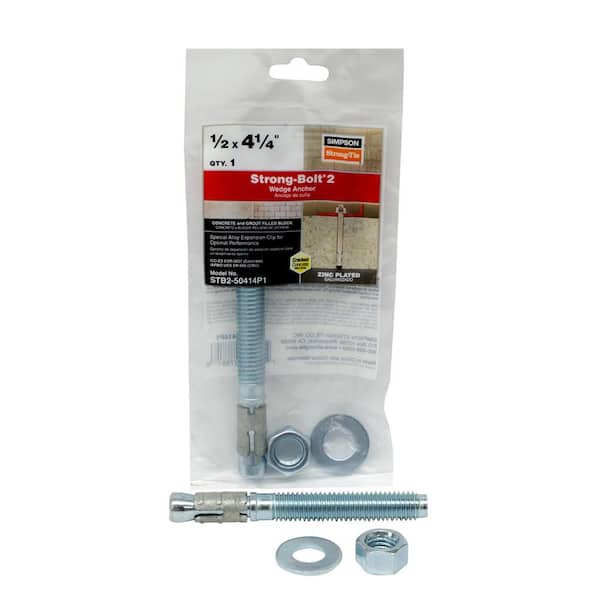

Strong-Bolt 1/2 in. x 4-1/4 in. Zinc-Plated Wedge Anchor

  • Versatile solution for anchoring a variety of projects
  • Qualified for use in seismic zones
  • Ideal for concrete and grout-filled block
  • See More Details

Frequently Bought Together

+
+
Price:
$285

Product Overview

Titen HD Mudsill Install

The Professional’s Choice for Anchoring

Titen HD® heavy-duty screw anchors install 5x faster than typical wedge anchors

Titen 2 Install

Fastening for Concrete and Masonry

Titen® 2 concrete and masonry screws are ideal for commercial and residential applications

Strong-Bolt 2 Install

Indoor or Outdoor Anchoring Solutions

Strong-Bolt® 2 wedge anchor provides heavy-duty structural anchoring in both indoor and outdoor applications

Titen HD Install

Removable Anchors Offer Installation Flexibility

Titen HD heavy-duty screw anchors are ideal for projects where anchors may need to be removed

Titen 2 Install

Sheetrock Installation Tips and Tricks

Use Titen 2 concrete and masonry screws to attach furring strips for sheetrock installation

Overhead anchor install

Overhead Anchoring Made Easy

Titen HD rod hangers and DIA drop-ins are ideal for installing mechanical, electrical or plumbing overhead

Strong-Bolt® 2 Installed

Concrete Anchoring Tips and Tricks

Code-listed for seismic and cracked-concrete applications

Titen HD Screw Anchor

Screw Anchor

Can be installed closer to concrete edge than wedge anchors

Titen 2 Screw

Concrete/Masonry Screws

Patented thread design for faster installation

THD rod hanger

Overhead Rod Hanger

No secondary setting needed to install overhead anchor

DIA drop-in anchor

Drop-In Anchor

Flush-mount anchoring into concrete

STB2 wedge anchor

Wedge Anchor

Strong-Bolt 2 wedge anchor tested for performance in concrete or grout-filled block

SL sleeve anchor

Sleeve Anchor

Ideal for anchoring into softer materials, such as brick

From complex infrastructure projects to do-it-yourself ventures, Simpson Strong-Tie offers a wide variety of anchoring products to meet virtually any need. Our mechanical anchors are designed to install easily and securely into a variety of base materials, including concrete and brick to hollow and grouted CMU. They offer optimal performance even in the most demanding structural applications. The Strong‑Bolt 2 is a wedge-type expansion anchor designed for optimal performance in cracked and uncracked concrete as well as uncracked masonry.
  • Tri-segmented clip: Each segment adjusts independently, increasing follow-up expansion should the hole increase in size as a result of a crack
  • Dual embossments on each clip segment: Enables clip to undercut into the concrete thereby increasing follow-up expansion should a crack occur
  • Standard (ANSI) fractional anchor: Fits most fixtures and installs with common drill bit sizes and tools
  • Suitable for horizontal, vertical and overhead applications
  • Made from zinc-plated carbon steel
  • Shop all Simpson Strong-Tie here.
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Masonry & Concrete Anchors

Strong-Bolt 1/2 in. x 3-3/4 in. Zinc-Plated Wedge Anchor
current product
Strong-Bolt 1/2 in. x 4-1/4 in. Zinc-Plated Wedge Anchor
Strong-Bolt 1/2 in. x 5-1/2 in. Zinc-Plated Wedge AnchorStrong-Bolt 5/8 in. x 5 in. Zinc-Plated Wedge Anchor
BrandSimpson Strong-TieSimpson Strong-TieSimpson Strong-TieSimpson Strong-Tie
NameStrong-Bolt 1/2 in. x 3-3/4 in. Zinc-Plated Wedge AnchorStrong-Bolt 1/2 in. x 4-1/4 in. Zinc-Plated Wedge AnchorStrong-Bolt 1/2 in. x 5-1/2 in. Zinc-Plated Wedge AnchorStrong-Bolt 5/8 in. x 5 in. Zinc-Plated Wedge Anchor
Price
$250
$285
$365
$425
Ratings
(48)
(47)
(52)
(31)
Fastener Length (in.)3.754.255.55
Fastener Head StyleNo HeadNo HeadNo HeadNo Head
Fastener/Connector MaterialSteelSteelSteelSteel
Package Quantity1111
Maximum Weight Capacity (lb.)0.000.000.000.00
Finish FamilyZincZincZincZinc
Anchor Diameter (in.)1/2"1/2"1/2"5/8"
Fastener TypeWedge AnchorsWedge AnchorsWedge AnchorsWedge Anchors
View ProductView ProductView ProductView Product

Specifications

Dimensions

Anchor Diameter (in.)
1/2"
Anchor Length (in.)
4.25
Fastener Length (in.)
4.25
Required Drill Hole Size (in.)
0.5

Details

Color Family
Steel
Fastener Head Style
No Head
Fastener Plating
Other
Fastener Type
Wedge Anchors
Fastener/Connector Material
Steel
Features
No Additional Features
Finish
Zinc-Plated Carbon Steel
Finish Family
Zinc
Included
No Additional Items Included
Interior/Exterior
Interior
Maximum Weight Capacity (lb.)
0.00
Measurement Standard
SAE
Package Quantity
1
Product Weight (lb.)
0.1675 lb
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Limited Warranty

Questions & Answers

6Questions11Answers

How much force from wind can this bolt handle. What is the strength of the connection it makes?

Asked by AM123 October 21, 2020
1
Answer

There are different factors to be considered with the allowable loads for anchors (i.e. concrete strength, anchor spacing, edge distance, etc.). Please contact the Engineering Support Department at your regional Simpson Strong-Tie branch for assistance - 800/999-5099. Thank you!

What the min. insertion depth?

Asked by kegs May 5, 2020
1
Answer

It depends on the application. Please contact our Engineering Support Department with further information and they can assist with your inquiry - 800/999-5099. Thank you!

will this rust outside in the rain?

Asked by ph0ngluu April 4, 2020
1
Answer

Not right away, it’s zinc plated. Not sure if they make it in stainless steel.

What size socket does the nut require?

Asked by NickName March 30, 2020
1
Answer

The wrench size for the 1/2" STB2 anchors is 3/4". Thank you!

For this and all the bolts listed on this pages, Home Depot/ the manufacturer have the following:...

Asked by MoreCoffee January 15, 2020
2
Answers

Once these anchors have been properly installed, You cannot pull them out. You Must cut them to remove the material you have fastened.

Can these be set directly into concrete while it's being poured?

Asked by diyguy July 15, 2019
5
Answers

Can these be set directly into concrete while it's being poured?
