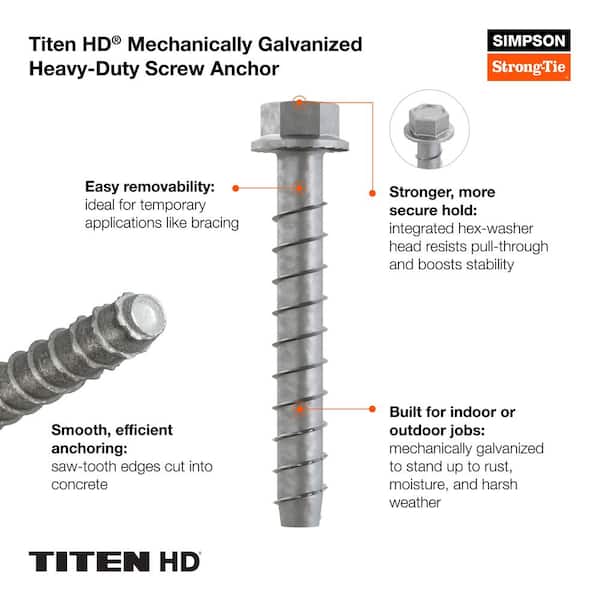

Titen HD 1/2 in. x 6 in. Mechanically Galvanized Heavy-Duty Screw Anchor

  • The Professional's Choice
  • Can install closer to the edge of concrete than expansion anchors
  • Approved for use in seismic areas
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Titen HD Mudsill Install

The Professional’s Choice for Anchoring

Titen HD® heavy-duty screw anchors install 5x faster than typical wedge anchors

Titen 2 Install

Fastening for Concrete and Masonry

Titen® 2 concrete and masonry screws are ideal for commercial and residential applications

Strong-Bolt 2 Install

Indoor or Outdoor Anchoring Solutions

Strong-Bolt® 2 wedge anchor provides heavy-duty structural anchoring in both indoor and outdoor applications

Titen HD Install

Removable Anchors Offer Installation Flexibility

Titen HD heavy-duty screw anchors are ideal for projects where anchors may need to be removed

Titen 2 Install

Sheetrock Installation Tips and Tricks

Use Titen 2 concrete and masonry screws to attach furring strips for sheetrock installation

Overhead anchor install

Overhead Anchoring Made Easy

Titen HD rod hangers and DIA drop-ins are ideal for installing mechanical, electrical or plumbing overhead

Strong-Bolt® 2 Installed

Concrete Anchoring Tips and Tricks

Code-listed for seismic and cracked-concrete applications

Titen HD Screw Anchor

Screw Anchor

Can be installed closer to concrete edge than wedge anchors

Titen 2 Screw

Concrete/Masonry Screws

Patented thread design for faster installation

THD rod hanger

Overhead Rod Hanger

No secondary setting needed to install overhead anchor

DIA drop-in anchor

Drop-In Anchor

Flush-mount anchoring into concrete

STB2 wedge anchor

Wedge Anchor

Strong-Bolt 2 wedge anchor tested for performance in concrete or grout-filled block

SL sleeve anchor

Sleeve Anchor

Ideal for anchoring into softer materials, such as brick

The Titen HD is a patented, high-strength, easy-to-install screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. Designed and tested in dry, interior, non-corrosive environments or temporary outdoor applications, the Titen HD demonstrates industry-leading performance even in seismic conditions.
  • Qualified for static and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
  • No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
  • Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors
  • Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
  • Mechanical Galvanized - intended for some pressure-treated wood sill plate applications; not for use in other corrosive or outdoor environments
  • Removable — ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved
  • Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
  • Shop all Simpson Strong-Tie here.
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Masonry & Concrete Anchors

Sleeve-All 1/2 in. x 4 in. Hex Head Zinc-Plated Sleeve AnchorTiten HD 1/2 in. x 6 in. Zinc-Plated Heavy-Duty Screw AnchorTiten HD 1/2 in. x 5 in. Zinc-Plated Heavy-Duty Screw Anchor
current product
Titen HD 1/2 in. x 6 in. Mechanically Galvanized Heavy-Duty Screw Anchor
BrandSimpson Strong-TieSimpson Strong-TieSimpson Strong-TieSimpson Strong-Tie
NameSleeve-All 1/2 in. x 4 in. Hex Head Zinc-Plated Sleeve AnchorTiten HD 1/2 in. x 6 in. Zinc-Plated Heavy-Duty Screw AnchorTiten HD 1/2 in. x 5 in. Zinc-Plated Heavy-Duty Screw AnchorTiten HD 1/2 in. x 6 in. Mechanically Galvanized Heavy-Duty Screw Anchor
Price
Ratings
(8)
(25)
(9)
(19)
Fastener Length (in.)4656
Fastener Head StyleHexHexHexHex
Fastener/Connector MaterialSteelSteelSteelSteel
Package Quantity1111
Maximum Weight Capacity (lb.)0.000.000.000
Finish FamilySpecialty FinishesZincZincSpecialty Finishes
Anchor Diameter (in.)1/2"1/2"1/2"1/2"
Fastener TypeSleeve AnchorsConcrete ScrewsConcrete ScrewsConcrete Screws
View ProductView ProductView ProductView Product
Titen HD Mudsill Install

The Professional’s Choice for Anchoring

Titen HD® heavy-duty screw anchors install 5x faster than typical wedge anchors

Titen 2 Install

Fastening for Concrete and Masonry

Titen® 2 concrete and masonry screws are ideal for commercial and residential applications

Strong-Bolt 2 Install

Indoor or Outdoor Anchoring Solutions

Strong-Bolt® 2 wedge anchor provides heavy-duty structural anchoring in both indoor and outdoor applications

Titen HD Install

Removable Anchors Offer Installation Flexibility

Titen HD heavy-duty screw anchors are ideal for projects where anchors may need to be removed

Titen 2 Install

Sheetrock Installation Tips and Tricks

Use Titen 2 concrete and masonry screws to attach furring strips for sheetrock installation

Overhead anchor install

Overhead Anchoring Made Easy

Titen HD rod hangers and DIA drop-ins are ideal for installing mechanical, electrical or plumbing overhead

Strong-Bolt® 2 Installed

Concrete Anchoring Tips and Tricks

Code-listed for seismic and cracked-concrete applications

Titen HD Screw Anchor

Screw Anchor

Can be installed closer to concrete edge than wedge anchors

Titen 2 Screw

Concrete/Masonry Screws

Patented thread design for faster installation

THD rod hanger

Overhead Rod Hanger

No secondary setting needed to install overhead anchor

DIA drop-in anchor

Drop-In Anchor

Flush-mount anchoring into concrete

STB2 wedge anchor

Wedge Anchor

Strong-Bolt 2 wedge anchor tested for performance in concrete or grout-filled block

SL sleeve anchor

Sleeve Anchor

Ideal for anchoring into softer materials, such as brick

Specifications

Dimensions

Anchor Diameter (in.)
1/2"
Anchor Length (in.)
6
Fastener Length (in.)
6
Required Drill Hole Size (in.)
0.625

Details

Color Family
Steel
Fastener Head Style
Hex
Fastener Plating
Galvanized
Fastener Type
Concrete Screws
Fastener/Connector Material
Steel
Fastening Base Material
Brick,Cinder Block,Concrete
Features
No Additional Features
Finish
Mechanically Galvanized
Finish Family
Specialty Finishes
Included
No Additional Items Included
Interior/Exterior
Exterior,Interior
Maximum Weight Capacity (lb.)
0
Measurement Standard
SAE
Package Quantity
1
Product Weight (lb.)
0.4096 lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Limited Warranty

Questions & Answers

7Questions10Answers

use for outdoor post base?

Asked by newdeckguy October 4, 2020
1
Answer

The Titen HD is designed and tested for dry, interior, non-corrosive environments or temporary outdoor applications. For corrosive environments, the Stainless-Steel Titen HD would be recommended. Thank you!

Can these be used with pressure treated?

Asked by Jtr August 26, 2020
1
Answer

The mechanically galvanized Titen HD is designed and tested for use in dry, interior, non-corrosive environments or temporary outdoor applications. The stainless-steel Titen HD is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present. Thank you!

On the Simpson Strong-Tie website (Under "finish" on the detailed information for this galvanized...

Asked by Willard June 10, 2020
2
Answers

You should be fine using them to install the ledger board to your foundation. Just be sure to place them in a staggered pattern and no closer than 2" within the top and bottom edges of the ledger board. If you have additional concerns about the galvanized coating give Simpson Strong Tie a call and talk with them. They are usually happy to assist.

Is there an installation torque spec on these? The same size Tapcons, for example, call for 70 ...

Asked by OcassionalContractor April 22, 2020
1
Answer

There is no installation torque for the Titen HD; it is considered installed when the head of the anchor is tight against fixture. Thank you!

Can this anchor be use in asphalt and if so do I need grout?

Asked by Alvin October 11, 2018
1
Answer

This screw will not work in asphalt. Mike

With a 1/2" anchor, what size of bit should be used?

Asked by me August 30, 2018
3
Answers

I think the Specifications table needs to be updated. The vendor site says that the drill bit should be 1/2” but any holes in a plate or fixture should be 5/8”. That’s so the threads will pass through the plate but bite into the concrete.

Why does this screw cost $85.00?

Asked by Clutch January 22, 2016
1
Answer

Thank you for your recent inquiry with The Home Depot, Clutch. This screw anchor comes 20 to a box. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot.

Customer Reviews

  • 4.6
    out of 19 reviews
  • 100% recommend this product
Filter by:
Showing 1-10 of 19 reviews
This screw was crap. It cracked when I screwed it...
This screw was crap. It cracked when I screwed it in. Buyer beware.
by Papi
Response from SimpsonStrong-TieApr 26, 2021
Hello, We are sorry you had this experience with our Titen HD screws. Thank you for your feedback as it helps us improve. Please reach out to our Consumer Services team at 1-800-999-5099 between 8am and 5pm. We would like to find out what happened and to see how we can help.
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by BENNY
worked as expected. right item for my application. thanks home...
worked as expected. right item for my application. thanks home depot
by WILLIAM
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by Huffs
Way better than wedge anchors and faster....
Way better than wedge anchors and faster.
by Dan
Easy to use and remove if necessary. Worked great for replacing/retrofitting my deck post base an...
Easy to use and remove if necessary. Worked great for replacing/retrofitting my deck post base anchors. Much better option than wedge anchors in my opinion.
by TomH
I used these bolts to anchor the pressure treated sill...
I used these bolts to anchor the pressure treated sill plates to the concrete foundation of my addition. They were easy to install and aided in the proper placement relative to the code related spacing for foundation anchor bolts.I would gladly use them again.
by RaymondV
These are great. Very strong and easy to secure...
These are great. Very strong and easy to secure into cement with a socket.
by HomeDepotCustomer
Excellent anchor. Used it to secure the sill plate to the concrete slab on an interior wall. Fast...
Excellent anchor. Used it to secure the sill plate to the concrete slab on an interior wall. Fast to install and very strong.
by DP
After hammer drilling the holes in there concrete, these heavy...
After hammer drilling the holes in there concrete, these heavy duty screw anchors worked perfectly.
by RON
