Titen HD 1/4 in. x 1-7/8 in. Zinc-Plated Heavy-Duty Screw Anchor

  • The Professional's Choice
  • Can install closer to the edge of concrete than expansion anchors
  • Approved for use in seismic areas
  • See More Details

Product Overview

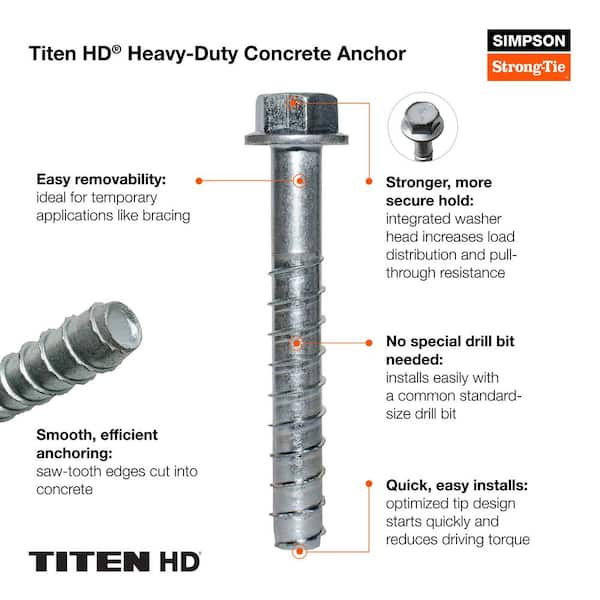

The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
  • Qualified for static and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
  • Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors
  • Hex-washer head requires no separate washer and provides a clean installed appearance
  • Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
  • Zinc-plated carbon steel anchor can be used for temporary exterior applications
  • Size: 1/4 in. x 1-7/8-in
  • Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
  • Shop all Simpson Strong-Tie here.
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Anchor Diameter (in.)
1/4"
Anchor Length (in.)
1.875
Fastener Length (in.)
1.875
Required Drill Hole Size (in.)
0.25

Details

Color Family
Steel
Fastener Head Style
Hex
Fastener Plating
Zinc
Fastener Type
Concrete Screws
Fastener/Connector Material
Steel
Fastening Base Material
Brick,Cinder Block,Concrete
Features
No Additional Features
Finish
Zinc
Finish Family
Zinc
Included
No Additional Items Included
Interior/Exterior
Interior
Maximum Weight Capacity (lb.)
0.00
Measurement Standard
SAE
Package Quantity
1
Product Weight (lb.)
0.02 lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Limited Warranty

Questions & Answers

3Questions4Answers

How much weight will it hold overhead, and what is the shear weight

Asked by Bill December 7, 2020
1
Answer

Hello! It is difficult to answer this question in general terms. Resistance of Titen HD screws anchors needs to be determined for specific conditions such as concrete strength, location of the anchor in relation to the edges and other anchors, cracked/uncracked condition of concrete. This is usually determined by a qualified designer. We do publish values for our concrete anchors, including THD screws, in our Canadian literature. Copy and paste the following link to your browser: https://embed.widencdn.net/pdf/plus/ssttoolbox/p5c5vljodp/TEBC-A-2018.pdf?u=cjmyin Hope you find it useful.

What brand drill bit works best with this screw?

Asked by Tallman October 5, 2019
1
Answer

No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits. We do not have a recommendation for a specific brand. Thank you!

Do you have to pre drill the entire length of the screw?

Asked by Pea October 26, 2018
2
Answers

Bore the holes 1 inch deeper to avoid bolt binding.

Customer Reviews

  • 4.4
    out of 22 reviews
  • 75% recommend this product
Filter by:
Showing 1-10 of 22 reviews
I used the anchor for going into cinder block and concrete both. I like the fact a standard 1/4 c...
I used the anchor for going into cinder block and concrete both. I like the fact a standard 1/4 concrete bit works perfectly with this product. (Unlike TapCon) The holding power was great as when the bolt was being driven in produced crush on the redwood boards being attached. Easy and fast installation, just be sure to bore the holes an inch deeper than the bolt size and clear the dust out of the hole using the drill. By a long shot, this is the best concrete fastener I've ever used, and effective without the use of epoxy.
by Ojai
one strong anchore!
Love these, used hilti version, before these. The best anchore you can buy at home depot. Love how they can be pulled out and put back in to concrete. Stronger than tapcons.
by makeitright
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Easiest concrete anchoring bolts i have used....
Easiest concrete anchoring bolts i have used.
by HomeDepotCustomer
It does the job that it is supposed to. Much...
It does the job that it is supposed to. Much stronger than the blue lighter duty ones.
by Paul
well made good quality no problems turning into concrete to...
well made good quality no problems turning into concrete to hold a large sunshade in place
by HomeDepotCustomer
JUST DRILL THE WHOLE AND SCREW IN THE FASTENER, BETTER...
JUST DRILL THE WHOLE AND SCREW IN THE FASTENER, BETTER THAN TAP IN FASTENERS WHEN YOU DONT CARE ABOUT EXPOSED HEAD SIZE
by HomeDepotCustomer
These bolts worked great on concrete blocks....
These bolts worked great on concrete blocks.
by hs
It worked like it should. ...
It worked like it should.
by Greg
Great!...
Great!
by HomeDepotCustomer
Showing 1-10 of 22 reviews
