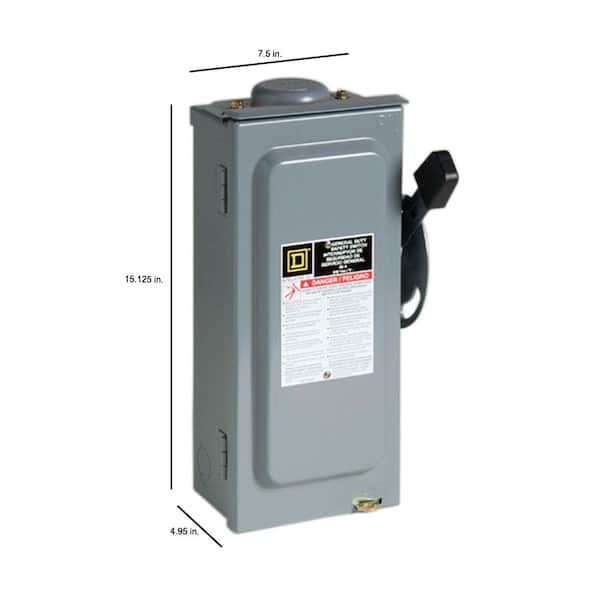

60 Amp 240-Volt 2-Pole Fused Outdoor General Duty Safety Switch

(10)Questions & Answers (3)
$16524
Apply Now
Pay $140.24 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Square D safety switch for residential & commercial environments
  • Designed for reliability, safety and easy installation
  • Neutral Bar included, NEMA 3R enclosure, UL listed
  • View More Details
Store
0 in stock
caret

Product Details

The Square D by Schneider Electric 60 Amp 240-Volt 2-Pole General Duty Safety Switch is designed for residential and commercial applications where durability and economy are prime considerations. Typical loads are lighting, air conditioning and appliances. The switch is UL listed, File E2875, and meet or exceed the NEMA Standard KS1. For more than 100 years the Square D brand safety switch has been the unchallenged leader in the market. We've continued our tradition of innovation, developing new features that provide an unsurpassed level of performance, reliability, safety and ease of installation. This tradition has resulted in the Square D brand being preferred two to one over our closest competitor.
  • Learn about general NEC 2020 updates. Contact your local building inspector for adoptions and details.
  • This Safety Switch is compatible with Square D transformers, panelboards, load centers, lighting, contactors, I-Line and residential QO or Homeline circuit breakers, NQ & NF panels
  • This safety switch is compatible with H, K, or R Fuse Type
  • 3-wire design with 2 blades and fuse holders and 1 neutral
  • 120/240-Volt AC
  • 60 Amp Rating Maximum
  • NEMA type 3R metallic enclosure for indoor or outdoor use
  • The lugs on this device will accept (1) #14 - 3 AWG copper or (1) #12 - 3 AWG aluminum conductors per phase.
  • Return Policy
  • California residents
caret

Specifications

caret

Questions & Answers

3Questions
caret
Q:What type of fuses does this switch utilize?
by|Jan 6, 2019
1 Answer
Answer This Question

A:  These switches accept Class H or K fuses as standard. For design Series E1, E2 or E3, options include Class R fuses (field install Class R Fuse Kit DRK30). With Class H or K fuses installed, the switch is UL listed for use on systems with up to 10,000 RMS Symmetrical Amperes available fault current. With Class R fuses (and DRK30 fuse kit installed) the switch is UL listed for use on systems with up to 100,000 RMS Symmetrical Amperes available fault current. NOTE: DO NOT USE RENEWABLE LINK FUSES IN SQUARE D SAFETY SWITCHES. The use of renewable link fuses may adversely affect user safety, impair reliability and will void the warranty. Regards, Customer Care

by|Jan 8, 2019
    caret
    Q:WHAT IS THE SIZE
    by|Nov 1, 2018
    2 Answers
    Answer This Question

    A:  Dear Value Home Depot the question is not clear. Dimensions for the D221NRB are as follows: 9.63 Height, 7.25 Width, 3.75 Depth. Regards, Customer Care

    by|Nov 2, 2018

      A:  This item measures 3.75" x 9.63" x 7.25".

      by|Nov 2, 2018
        caret
        Q:Is this disconnect service rated (suitable for use as a service disconnect)?
        by|Oct 26, 2018
        2 Answers
        Answer This Question

        A:  Yes, it is rated and labeled for use as Service Entrance Device. Regards, Customer Care

        by|Oct 29, 2018

          A:  Yes. It would be required for a line-side Tap

          by|Oct 26, 2018
            Showing 1-3 of 3
            caret

            Customer Reviews

            4.1 out of 5
            (10)
            • 4.1
              out of 10 reviews
            • 50%recommend this product
            Filter by:
            Showing 1-10 of 10 reviews
            Mar 24, 2022
            Great Square D products. I have been using their products...
            Great Square D products. I have been using their products for 40 years.
            by
            • Verified Purchase
            Oct 30, 2021
            Straightforward Made in U.S.A.!...
            Straightforward Made in U.S.A.!
            by
              Oct 12, 2021
              Replacement for a cheap 60 amp AC disconnect that was...
              Replacement for a cheap 60 amp AC disconnect that was overheating. Used 70 amp fuses.
              by
                Mar 18, 2021
                Rating provided by a verified purchaser...
                Rating provided by a verified purchaser
                by
                • Verified Purchase
                Jan 31, 2021
                Rating provided by a verified purchaser...
                Rating provided by a verified purchaser
                by
                • Verified Purchase
                Dec 24, 2020
                Rating provided by a verified purchaser...
                Rating provided by a verified purchaser
                by
                Response from SchneiderProductExpertDec 28, 2020
                Hello HomeDepotCustomer.
                We apologize for any inconvenience you might have experienced. We encourage you to contact our Product Support at 888-778-2733, option 2 to further assist you on this matter.

                Warm regards, Schneider Electric Customer Care
                • Verified Purchase
                Aug 4, 2020
                by
                • Verified Purchase
                May 20, 2020
                5 Star Review
                Rating provided by a verified purchaser
                by
                • Verified Purchase
                Oct 8, 2019
                complete and on time
                complete and on time
                by
                • Verified Purchase
                • Recommended
                May 16, 2017
                THERE WAS A BROKEN WELD AT THE COVER HINGE. i RETURNED IT. WHAT HAPPENED TO QUALITY CONTROL?
                THERE WAS A BROKEN WELD AT THE COVER HINGE. i RETURNED IT. WHAT HAPPENED TO QUALITY CONTROL?
                by
                Response from SchneiderCustomerCareJun 7, 2017
                Thank you for returning the safety switch to your Home Depot. We do have a corrective action plan in place to determine the root cause of the issue to keep it from occurring again in the future. We are sorry for the inconvenience and appreciate your business.
                Best Regards,
                Schneider Electric Customer Care Center SquareD
                • Verified Purchase
                1 found this review helpful
                Showing 1-10 of 10 reviews

                Frequently Bought Together

                +
                +
                Price:
                $16524

                • Compare Similar Safety Switches

                current product

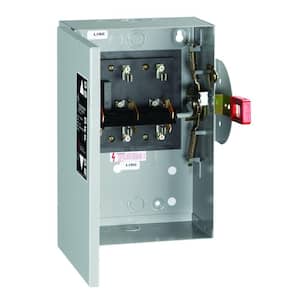

                60 Amp 240-Volt 2-Pole Fused Outdoor General Duty Safety Switch                		Heavy Duty 30 Amp 240-Volt 3-Pole Outdoor Fusible Safety Switch with NeutralHeavy Duty 60 Amp 240-Volt 2-Pole Outdoor Fusible Safety Switch with Neutral30 Amp 240-Volt Non-Fused Indoor General-Duty Double-Throw Safety Switch
