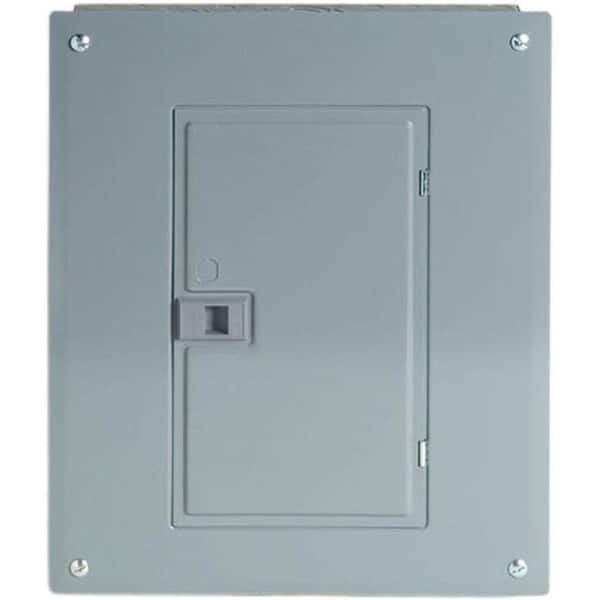

Homeline 125 Amp 12-Space 12-Circuit Indoor Main Lugs Load Center with Cover

(1)
Questions & Answers (2)
  • For residential or commercial power distribution
  • Compatible with Square D Homeline Standard circuit breakers
  • Cover and aluminum bus bar included
  • See More Details

Product Overview

Shop for circuit breakers compatible with this breaker box. Image of generic circuit breakers.
The Square D Homeline 125 Amp 12-Space 12-Circuit Indoor Convertible Main Lugs Load Center is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
  • Includes a combination flush/surface cover and is convertible to main breaker load center with a QOM1 main breaker (sold separately)
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase
  • Rated 120/240 VAC and 65,000 AIR short circuit current rating
  • Automatic flush adjusting cover requires less time to complete the job
  • Designed with straight-in mains to save expensive cable and time
  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA
  • Learn More About Electrical Panels Here in our Buying Guide.
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Individual Subpanels

current product
Homeline 125 Amp 12-Space 12-Circuit Indoor Main Lugs Load Center with Cover
125 Amp 12-Space 12-Circuit Main Lug Plug-on Neutral Load center IndoorPN Series 125 Amp 12-Space 12-Circuit Main Lug Plug-On Neutral Load center Indoor with Copper BusQO 125 Amp 12-Space 24-Circuit Indoor Main Lug Plug-On Neutral Load Center with Cover
BrandSquare DSiemensSiemensSquare D
NameHomeline 125 Amp 12-Space 12-Circuit Indoor Main Lugs Load Center with Cover125 Amp 12-Space 12-Circuit Main Lug Plug-on Neutral Load center IndoorPN Series 125 Amp 12-Space 12-Circuit Main Lug Plug-On Neutral Load center Indoor with Copper BusQO 125 Amp 12-Space 24-Circuit Indoor Main Lug Plug-On Neutral Load Center with Cover
Price
Ratings
(1)
(0)
(14)
(11)
Maximum Amperage (amps)125125125125
Indoor/OutdoorIndoorIndoorIndoorIndoor
Number of Spaces12121212
Mounting TypePlug InPlug-On NeutralPlug-On NeutralPlug-On Neutral
Number of Phases1
Number of Circuits12121224
Load center width (in.)14.2514.2514.2514.25
Load Center TypeMain LugMain LugMain LugMain Lug
Load center height (in.)17.92181817.92
View ProductView ProductView ProductView Product

Specifications

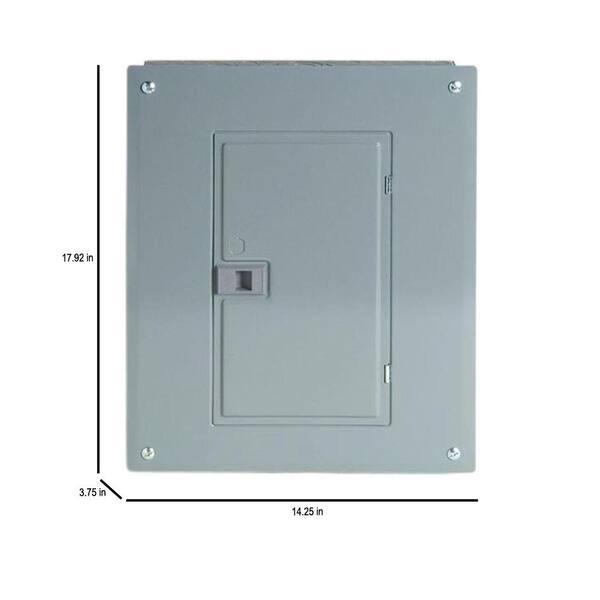

Dimensions

Load center depth (in.)
3.75
Load center height (in.)
17.92
Load center width (in.)
14.25

Details

Electrical Product Type
Main Lug/ Main Lug Kit
Indoor/Outdoor
Indoor
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Maximum Amperage (amps)
125
Mounting Type
Plug In
NEMA Configuration
NEMA 1
NEMA Configuration Receptacle
No Receptacle
Number of Circuits
12
Number of Phases
1
Number of Spaces
12
Phase Type
1 Phase
Product Weight (lb.)
17.82
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.

Questions & Answers

2Questions2Answers

If I want to install a back fed breaker to use as a main breaker can a tie down kit be installed ...

Asked by AJ May 26, 2021
1
Answer

Hello AJ, You can use a manual transfer kit if you want to back fed a main breaker, Regards, Schneider Electric Customer Care

what are the dimensions of the cover

Asked by Ironman October 9, 2015
1
Answer

The Series of the specific load center cover will determine its size. For current Series load center HOM12L125C, cover screw holes are 13.5'' apart horizontally, 17.18'' apart vertically, center to center.
