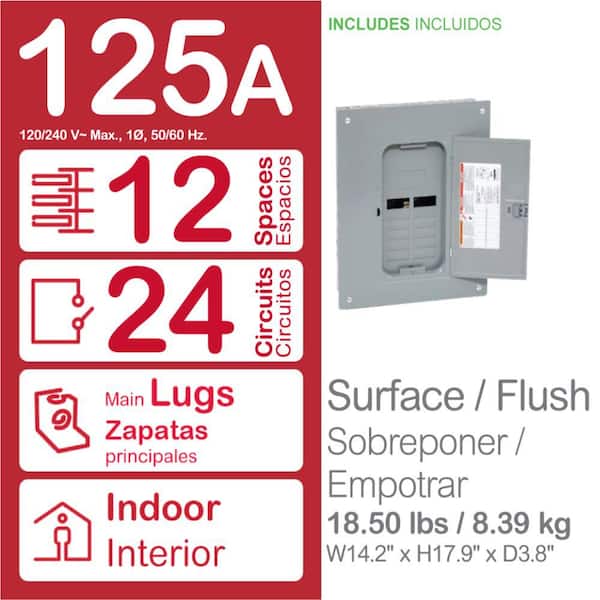

Homeline 125Amp 12-Space 24-Circuit Indoor Main Lug plug on neutral Electrical Panel w/Cover,Ground Bar HOM1224L125PGCVP

$73.57
Apply Now
Pay $48.57 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Less wiring, clean gutter, fast installation with plug-on neutral
  • Compatible with any Square D homeline circuit breaker only
  • homeline breakers, flush/surface cover, and ground bar included
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

Install Plug-on Neutral Breakers to connect directly to the neutral bar without the pigtail.

Square D Homeline Plug-on Neutral Breaker Boxes

Install Plug-on Neutral Breakers to connect directly to the neutral bar without the pigtail to save time.

Square D Homeline Main Lug breaker Boxes can be converted to Main Breaker breaker boxes or the other way around.

Square D Breaker Boxes with Convertible Mains

Square D Homeline Main Lug breaker Boxes can be converted to Main Breaker breaker boxes or the other way around.

Square D Homeline Breaker Boxes are compatible with all Homeline Circuit Breakers

Square D Homeline Breaker Boxes are compatible with all Homeline Circuit Breakers

Compatible with Homeline 1 in. thermal magnetic, pig-tail style, and Plug-on Neutral advanced function breakers.

Save installation time and protect your home’s electrical system with Plug-on Neutral technology in our SPDs and Homeline breaker panels

Homeline Breaker Boxes compatible with Plug-on Neutral surge protective devices

Save installation time and protect your home’s electrical system with Plug-on Neutral technology in our SPDs and Homeline breaker panels. SPDs sold separately.

Compatible with the Wiser Energy Smart Home Monitor to learn about real-time home energy usage.

Install Smart Energy Management Device Wiser Energy

Compatible with the Wiser Energy Smart Home Monitor to learn about real-time home energy usage. Wiser Monitor sold separately.

Copper dipped Aluminum bus bars that are tin plated to prevent corrosion with backed-out terminal screws.

Fully distributed aluminum neutral bars

Copper dipped Aluminum bus bars that are tin plated to prevent corrosion with backed-out terminal screws.

Gray combination cover for flush or surface mount installation included with load center. Replacement covers available.

Square D Homeline Breaker Box Cover options

Gray combination cover for flush or surface mount installation included with load center. Replacement covers sold separately.

Square D Homeline Breaker Boxes have fully distributed split neutral bar that accept Plug-On Neutral breakers

Save wire and time with Plug-On Neutral Breaker Boxes

Square D Homeline Breaker Boxes have fully distributed split neutral bar that accept Plug-On Neutral breakers.

Time and labor saving installation with less wire

Faster installation with Plug-on Neutral

Time and labor saving installation with less wire.

No pigtails in Plug-on Neutral circuit breakers

Frees up gutter space in your breaker box

No pigtails in Plug-on Neutral circuit breakers.

Homeline accessories maximize installation flexibility to meet your electrical code needs. Contact your local utility for specific code needs.

Square D offers complete line of Homeline accessories. Sold Separately

Homeline accessories maximizes application and installation flexibility to meet your electrical code needs. Please contact your local utility for details specific to your code.

Square D offers coverage under normal care and proper usage in residential installation. Please refer to full warranty document for details.

10 year warranty

Square D offers coverage under normal care and proper usage in residential installation. Please refer to full warranty document for details.

Square D provides dedicated support anytime, anywhere.

24/7 product support

Square D provides dedicated support anytime, anywhere.

About This Product

The Square D Homeline Value Pack is a 125 Amp 12-Space 24-Circuit Indoor Convertible Main Lugs Load Center with cover for Plug-on Neutral breakers includes a selection of breakers and a ground bar. It is UL listed for residential and commercial power distribution. This load center includes (2) 20 Amp single-pole breakers, built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Square D Homeline breaker boxes are engineered for fast installation and wire savings.

Highlights

  • Installation Guide
  • Square D Homeline 125 Amp 12-Space 24-Circuit Indoor Main Lug Plug-On Neutral Load Center with Cover, Ground Bar - Value Pack
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space accepts full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds
  • Includes a PK15GTAL ground bar, (2) HOM120 Homeline 20 Amp single-pole circuit breakers and a combination flush/surface cover
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase, for indoor installation
  • Rated 120/240 VAC and 65,000 AIR short circuit current rating
  • Automatic flush adjusting cover requires less time to complete the job
  • Designed with straight-in mains to save expensive cable and time
  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 1-equipment ground bars are factory-included for field mounting in 3 locations (left, right and end) letting you pick the easiest spot to wire
  • Learn More About Electrical Panels Here in our Buying Guide.
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 204836334

Model # HOM1224L125PGCVP

Store SKU # 1000039963

Store SO SKU #1000111979

Specifications

Dimensions: H 17.92 in, W 14.25 in, D 3.75 in

Dimensions

Product Depth (in.)

3.75 in

Product Height (in.)

17.92 in

Product Width (in.)

14.25 in

Details

Breaker Box Type

Subpanel

Connection Type

Neutral

Included

Circuit Breaker, Cover

Indoor/Outdoor

Indoor

Maximum Amperage (A)

125 A

Mounting Type

Flush, Surface

NEMA Configuration

NEMA 1

Number of Circuits

24

Number of Pieces

3

Number of Spaces

12

Product Weight (lb.)

18.41 lb

Returnable

90-Day

Series Type

Homeline

Voltage (V)

120/240 V

Warranty / Certifications

Certifications and Listings

UL Listed

Manufacturer Warranty

Lifetime

Questions & Answers

76Questions
caret
Q:Please provide main breaker model number for this panel please. I'm guessing QOM2125VH for 125A, or QOM2100VH for 100A. Please confirm. Thank you
by|May 13, 2024
1 Answer
Answer This Question

A:  Hi anson578, HOM1224L125PGCVP uses a QOM1 frame Main. Square D uses QOM2 and QOM1 Main breaker frames. The part numbers you are listing are QOM2 frames. Use a QOM125VH instead for the Main breaker on your panel. Warm regards. Schneider Electric Customer Care

by|May 15, 2024
    caret
    Q:Does it replace an old sylvania ? Not worried about height just width. Is the old sylvania 14.25 ?
    by|Apr 16, 2024
    1 Answer
    Answer This Question

    A:  Hi, In order to help you we need to know more information about your application with this product. You can contact us anytime using our chat live https://www.se.com/us/en/work/support/customer-care/contact-schneider-electric.jsp where an agent will be able to give you further assistance on this matter. Warm regards. Schneider Electric Customer Care

    by|Apr 19, 2024
      caret
      Q:What are the dimensions of the base part of the panel - i.e. the part that gets inserted into the wall? (Apparently the overall dimensions are given)
      by|Jan 28, 2024
      1 Answer
      Answer This Question

      A:  OK - answering my question. The dimensions given are those of the box itself, 17.92f in H x 14.25 in. W x 3.75 in. D. The cover, HOMC12UC, has dimensions 19.12 in, H x 15.44 in W (485.65 mm x 392.18 mm) Now I know :)

      by|Jun 24, 2024
        2 found this answer helpful
        caret
        Q:Can this load center be installed upside down?
        by|Dec 9, 2023
        1 Answer
        Answer This Question

        A:  Hello BEPatt, Yes, the HOM1224L125PGCVP load center can be bottom fed by rotating the complete load center and cover. This will NOT cause the labeling to be "upside down", it will just start the circuit counting at the bottom of the cover where the Mains is located, but it will read appropriately. Regards, Schneider Electric Customer Care

        by|Feb 17, 2024
          1 found this answer helpful
          Showing 1-4 of 76

          Customer Reviews

          4.7 out of 5

          • 4.7 out of 132 reviews
          • 86% recommend this product
          Filter by:
          Showing 1-10 of 132 reviews
          Manufacturing defect?
          Bought this panel in June 2021 to use as a sub panel. I think the one I purchased had a manufacturing defect (see photo). The bus bar only had 4 toes on the bus bar. I expected 6 toes which would allow all 12 spaces to be used. I realized after the fact that the box was taped closed so someone probably returned it. Went to a different store to purchase the same exact value package since Home Depot didn't have any in stock. I opened the box to check before purchasing and the bus bar had 6 slots which allows all 12 slots to be used. Home Depot accepted the return no problem so that was a plus. I would recommend checking the contents before purchasing if possible.
          by
          Response from SchneiderProductExpertJun 28, 2021
          Hello,

          We apologize for any inconvenience you might have encountered with our products. Let me assure you that our products are continually being improved based on user feedback, and we really appreciate it.

          Good to hear that you received a replacement.


          We would like to encourage you to contact our Product Support using our chat live https://www.se.com/us/en/work/support/customer-care/contact-schneider-electric.jsp where an agent will be able to give you further assistance on this matter.

          Warm regards.

          Schneider Electric Customer Care
            • Recommended
            1 found this review helpful
            Easy to install and comes with 2 20amp breakers to get your wiring started. I would have given ...
            Easy to install and comes with 2 20amp breakers to get your wiring started. I would have given it 5 stars if the breaker insert was separate from the door.
            by
            • DIY
            • Verified Purchase
            • Recommended
            4 found this review helpful
            I didn't know about a 6 breaker rule until I had this installed. Had to go back and by a $57 main...
            I didn't know about a 6 breaker rule until I had this installed. Had to go back and by a $57 main disconnect. I should have returned this and got the $68 panel with the main included when I unpacked it. The packaging was not clear about a main or not.
            by
            Response from SchneiderCustomerCareOct 1, 2018
            We apologize for whatever inconvenience you may have encountered with the HOM1224L125PGCVP. Upon checking, the end carton label states that the panel indicated is a Main Lug Only panel. Unfortunately, without more information on your specific application or circumstance, I cannot determine if the 6 disconnect rule applies to it or if your application requires a Main Breaker or a Main Lug only panel. We would like to encourage you to contact our Product Support at (888) 778-2733 option 2 to further discuss this matter. Again, we apologize for the inconvenience this has caused.

            Warm regards,
            Schneider Electric Customer Care SquareD
            • Verified Purchase
            6 found this review helpful
            Easy to install. Would recommend to everyon
            Easy to install. Would recommend to everyon
            by
            • Verified Purchase
            • Recommended
            This is nice little box. I am using it as a subpanel due to needing additional breakers in a work...
            This is nice little box. I am using it as a subpanel due to needing additional breakers in a workshop. I have uploaded a pic of this panel during install. I have it wired to test a variable switch out of picture. But the 6/3 feed line is black and above hanging not yet installed. That's going to a 40 AMP breaker at the main panel.
            by
            • Verified Purchase
            • Recommended
            5 found this review helpful
            Great panel, good price
            As advertised - 12 panels. Came with separate grounding bar that you can mount at multiple locations. I have no complaints.
            by
