Homeline 125 Amp 16-Space 24-Circuit Outdoor Ring-Type Overhead/Underground Surface Mount Main Breaker CSED

$159.08
Apply Now
Pay $134.08 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Compatible with Square D Homeline circuit breakers only
  • 4-jaw meter socket and aluminum bus bar included
  • Contact your local utility company to ensure requirements are met
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

Shop for compatible circuit breakers.

About This Product

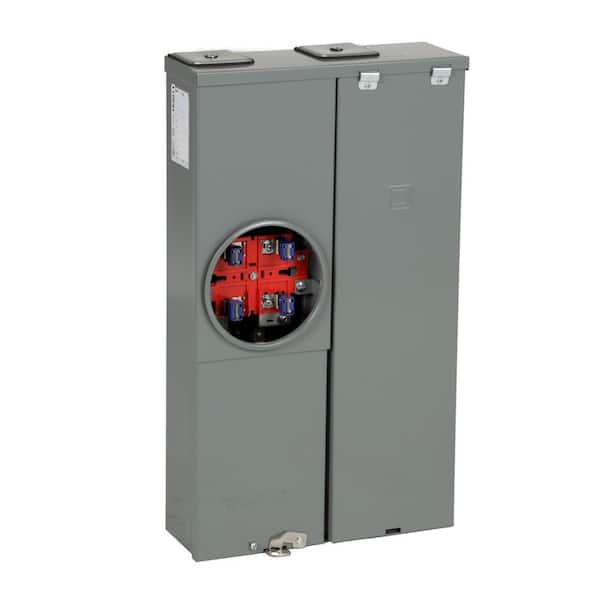

The Square D 125 Amp 16-Space 24-Circuit Outdoor Combination meter Socket and Main Breaker Load Center is suitable for use as a combination service entrance device (CSED). This unit is ANSI certified and UL listed with a maximum 10,000 AIR. The combination service entrance device features a Ring-type meter cover with a single-phase, 4-jaw meter socket. It is suitable for overhead or underground service applications. Meets EUSERC Specifications. Surface mount. This CSED is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline CSEDs are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline CSEDs are engineered for fast installation and wire savings.

Highlights

Product Information

Internet # 100164224

Model # SC1624M125S

Store SKU # 508422

Store SO SKU #1000291735

Additional Resources

Shop All Square D

Specifications

Dimensions

Load center depth (in.)

4.8

Load center height (in.)

25.12

Load center width (in.)

14.77

Details

Electrical Product Type

Load Center

Indoor/Outdoor

Outdoor

Load Center Mounting Type

Surface

Load Center Type

Combination

Maximum Amperage (A)

125

Meter Socket Type

Ring

Mounting Type

Plug-On

NEMA Configuration

NEMA 3R

NEMA Configuration Receptacle

No Receptacle

Number of Circuits

24

Number of Gangs

1

Number of Spaces

16

Phase Type

1 Phase

Product Weight (lb.)

31 lb

Returnable

90-Day

Voltage (V)

120/240

Warranty / Certifications

Certifications and Listings

ANSI Certified, UL Listed

Manufacturer Warranty

Square D/Schneider Electric warrants its single-phase load centers and combination service entrance devices to be free from defects in material and workmanship, under normal care and proper usage in a residential installation, for a period of 10 years from the date of installation, when used with Square D/Schneider Electric circuit breakers.

Questions & Answers

261Questions
caret
Q:I thought this took a type a hub but it doesn’t line up for the underground hub area. Is there a different hub that is wider? I have a 2 1/2” conduit coming up to it.
by|Apr 26, 2024
1 Answer
Answer This Question

A:  Hi Chris, There is a maximum 2.75" type-A hub on the lower left for underground entrance. In order to help you we need to know more information about your experience with this product. You can contact us anytime using our chat live https://www.se.com/us/en/work/support/customer-care/contact-schneider-electric.jsp where an agent will be able to give you further assistance on this matter. Warm regards. Schneider Electric Customer Care

by|May 8, 2024
    caret
    Q:How do I wire to my house
    by|Apr 10, 2024
    1 Answer
    Answer This Question

    A:  John, In order to help you we need to know more information about your application with this product. You can contact us anytime using our chat live https://www.se.com/us/en/work/support/customer-care/contact-schneider-electric.jsp where an agent will be able to give you further assistance on this matter. Warm regards. Schneider Electric Customer Care

    by|Apr 12, 2024
      caret
      Q:What interlock kit is used on this panel
      by|Mar 27, 2024
      1 Answer
      Answer This Question

      A:  Joseph, The part number is QCGK3. Warm regards. Schneider Electric Customer Care

      by|Mar 29, 2024
        caret
        Q:Dose this panel come w ith the 100 amp breaker?
        by|Mar 12, 2024
        1 Answer
        Answer This Question

        A:  Tinna, The device comes with a HOM2100 factory installed. Warm regards. Schneider Electric Customer Care

        by|Mar 15, 2024
          Showing 1-4 of 261

          Customer Reviews

          4.5 out of 5

          • 4.5 out of 246 reviews
          • 89% recommend this product
          Filter by:
          Showing 1-10 of 246 reviews
          Great product
          Great product. Plenty of space to work with. Breaker components are easily available. Approved with the power company.
          by
            • Recommended
            Awesome
            These are great for Ameren approved in Illinois. Heavy but very nice
            by
              • Recommended
              Easy installation. I’m going to install another 200 amp panel...
              Easy installation. I’m going to install another 200 amp panel and going to install the same one.
              by
              • Verified Purchase
              Excellent unit for an expansion project or a solar installation. My intention was to use the unit...
              Excellent unit for an expansion project or a solar installation. My intention was to use the unit for a solar power installation on our new build garage / shop project. By the unit having a built in opening for a meter it would allow me to install a readily available analog meter for comparison purposes with the digital meters monitoring power usage on the solar equipment. It also gave me the ability to totally isolate the solar power or isolate individual circuits. Very handy indeed! The unit itself is built to Square D's high standards. I can pretty much install it and forget about it as it will surely outlive me barring any natural catastrophe. Circuit breakers are inexpensive and can be found most anywhere.
              by
              • Recommended
              Dual use - Combination Service Entrance Device (CSED) or Main Lug Load Center Model # RC12L200C Internet #100164237 Store SKU #204272 Square D Homeline 200 Amp 12-Space 12-Circuit Outdoor Ringless Overhead/Underground Main Lug CSED This is truly a heavy duty load center, it weighs 34.5 pounds. The steel walls can take a lot of abuse. Outdoor Combination Meter Socket and Main Lug Load Center (A main lug type load center does not have a main circuit breaker ) and is suitable for use as a Combination Service Entrance Device (CSED). This CSED is Rain Proof and has two lock out points, one for the breakers and one for the main Lugs. There is a removable cap if you want to run your service in from the top and knockouts on the bottom if you want to run it out the bottom. IMPORTANT FACTS: - For use with Homeline breakers only - ANSI certified and UL listed with a maximum 10,000 AIR. - Meets EUSERC Specifications - NEMA type 3R enclosure for outdoor use - Ringless meter cover with a single-phase, 4-jaw meter socket - Accommodates plug-on secondary surge arrestor and features a plug-in design for easy installation
              by
              • Recommended
              2 man heavy and meet all codes
              2 man heavy and meet all codes
              by
              • Verified Purchase
              • Recommended
              I chose this panel because i had a well to hook up to it and plan on adding a RV plug to it outsi...
              I chose this panel because i had a well to hook up to it and plan on adding a RV plug to it outside. It has the channel to the top so it made it easy to run the conduit out the top into the soffit of the porch. The pass thru was easy to use and the large wires had ample room to hook up easy.
              by
              • Verified Purchase
              • Recommended
              1 found this review helpful
              Great for outdoor add on items
              This meter disconnect is great to install plus it has the main 200A breaker with space for future outdoor circuits. If you need pool or hot tub even outdoor lighting it's all right at the enclosure.
              by
              • Verified Purchase
              • Recommended
              4 found this review helpful
              • Verified Purchase
              This a great 200 amp house power box. I use these on all new construction homes that I do. Plenty of room for circuits
              by
              • Verified Purchase
              Showing 1-10 of 246 reviews
