Model # RC816F150SL

Internet #202889760

Square D Homeline 150 Amp 8-Space 16-Circuit Outdoor Ringless-Lever Bypass Overhead/Underground Main Breaker CSED
0785901631842

Square D

Homeline 150 Amp 8-Space 16-Circuit Outdoor Ringless-Lever Bypass Overhead/Underground Main Breaker CSED

  • CSEDs optimal for residential or commercial power distribution
  • Compatible with Square D Homeline circuit breakers only
  • 4-jaw meter socket and aluminum bus bar included
$24600 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • CSEDs optimal for residential or commercial power distribution
  • Compatible with Square D Homeline circuit breakers only
  • 4-jaw meter socket and aluminum bus bar included

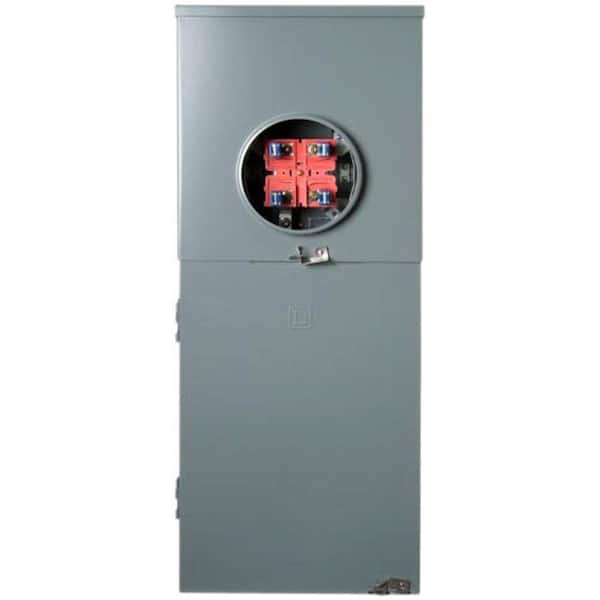

The Square D 150 Amp 8-Space 16-Circuit Outdoor Combination meter Socket and Main Breaker Load Center is suitable for use as a combination service entrance device (CSED). This unit is ANSI certified and UL listed with a maximum 10,000 AIR. The combination service entrance device features a Ringless meter cover with a single-phase, 4-jaw meter socket. It is suitable for overhead or underground service applications. Meets EUSERC Specifications. Surface mount. This CSED is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline CSEDs are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline CSEDs are engineered for fast installation and wire savings.
  • Homeline 150 Amp 8-space 16-circuit Ringless Surface mount Main Breaker CSED
  • Suitable for use as service entrance equipment
  • Accommodates plug-on secondary surge arrestor and features a plug-in design for easy installation
  • Ringless design with lever bypass
  • For use with Homeline breakers only
  • NEMA type 3R enclosure for outdoor use
  • 4-jaw meter socket included in design
  • Designed with straight-In mains to save expensive cable and time
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • UL Listed and ANSI Certified
  • Click here for more information on Electronic Recycling Programs

Product Overview

  • CSEDs optimal for residential or commercial power distribution
  • Compatible with Square D Homeline circuit breakers only
  • 4-jaw meter socket and aluminum bus bar included
Model #: RC816F150SL
Internet #: 202889760

The Square D 150 Amp 8-Space 16-Circuit Outdoor Combination meter Socket and Main Breaker Load Center is suitable for use as a combination service entrance device (CSED). This unit is ANSI certified and UL listed with a maximum 10,000 AIR. The combination service entrance device features a Ringless meter cover with a single-phase, 4-jaw meter socket. It is suitable for overhead or underground service applications. Meets EUSERC Specifications. Surface mount. This CSED is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline CSEDs are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline CSEDs are engineered for fast installation and wire savings.

  • Homeline 150 Amp 8-space 16-circuit Ringless Surface mount Main Breaker CSED
  • Suitable for use as service entrance equipment
  • Accommodates plug-on secondary surge arrestor and features a plug-in design for easy installation
  • Ringless design with lever bypass
  • For use with Homeline breakers only
  • NEMA type 3R enclosure for outdoor use
  • 4-jaw meter socket included in design
  • Designed with straight-In mains to save expensive cable and time
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • UL Listed and ANSI Certified
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$124.00 /each
$246.00 /each
$264.25 /each
$269.00 /each
Name Homeline 200 Amp 8-Space 16-Circuit Outdoor Ring-Type Overhead/Underground Surface Mount Main Breaker CSED Homeline 150 Amp 8-Space 16-Circuit Outdoor Ringless-Lever Bypass Overhead/Underground Main Breaker CSED 150 Amp 20-Space 40-Circuit 5-Jaw OH/UG Lever Bypass Ringless Meter Combo Homeline 200 Amp 30-Space 40-Circuit Outdoor Lever-Bypass Overhead/Underground Main Breaker CSED
Brand Square D Square D Siemens Square D
Ratings (17) (0) (0) (2)
Mounting type Plug In Plug In Plug In Plug In
Maximum Amperage (amps) 200 150 150 200
Number of Spaces 8 8 20 30
Voltage (volts) 120/240 120/240 120/240 120/240
View Product View Product View Product View Product

Specifications

Dimensions

Load center depth (in.)
5.41
Load center height (in.)
48.62
Load center width (in.)
18.35

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Combination
Maximum Amperage (amps)
150
Mounting type
Plug In
Number of Phases
1
Number of Spaces
8
Product Weight (lb.)
77lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed,ANSI Certified
Manufacturer Warranty
Square D/Schneider Electric warrants its single-phase load centers and combination service entrance devices to be free from defects in material and workmanship, under normal care and proper usage in a residential installation, for a period of 10 years from the date of installation, when used with Square D/Schneider Electric circuit breakers.

Specifications

Dimensions

Load center depth (in.)
5.41
Load center height (in.)
48.62
Load center width (in.)
18.35

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Combination
Maximum Amperage (amps)
150
Mounting type
Plug In
Number of Phases
1
Number of Spaces
8
Product Weight (lb.)
77lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed,ANSI Certified
Manufacturer Warranty
Square D/Schneider Electric warrants its single-phase load centers and combination service entrance devices to be free from defects in material and workmanship, under normal care and proper usage in a residential installation, for a period of 10 years from the date of installation, when used with Square D/Schneider Electric circuit breakers.

Questions & Answers

What is a lever bypass

Asked by: Dan
Hello Dan, Lever Bypass is available for use with ringless style single or three phase metering equipment and is supplied with a swing arm or "Lever" extending form the right side of the meter socket. Once the ringless meter socket cover is removed, this dual function Lever may be manually rotated upward to engage bypass rotor blades into line and load bypass jaws allowing current to flow through the meter socket with the meter in or out of the meter socket. The second feature this Lever provides is a jaw release function. By rotating the Lever up as far as possible the spring loaded meter socket jaws are spread open for ease of meter installation or removal. This temporary bypass feature allows the utility to perform meter MAINTENANCE without interruption of service to the downstream occupant. Regards, Customer Care Center
Answered by: BrandAnswers
Date published: 2017-07-19
