Internet #100121151

Model # HOMT1515230CP

Store SKU #565458

0047569072215

Square D

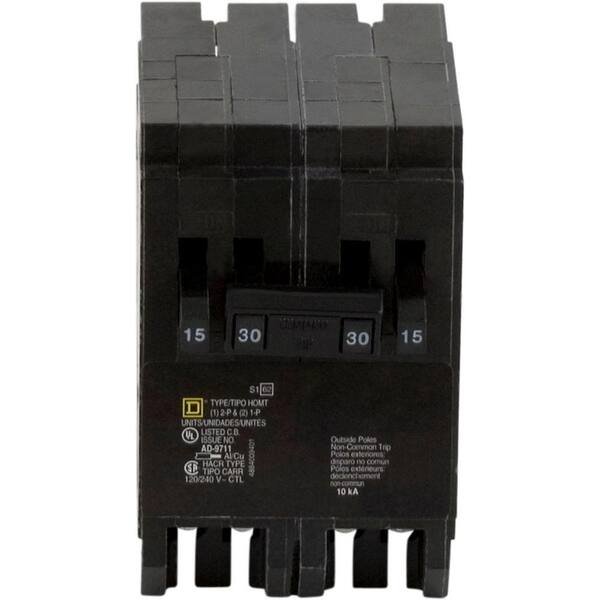

Homeline 2-15 Amp Single-Pole 1-30 Amp 2-Pole Quad Tandem Circuit Breaker

  • Designed to protect against overloads and short-circuits
  • Quad design allows 2-1P and 1-2P circuits in two spaces
  • Compatible with Homeline electrical panel and CSEDs with 2 spaces
$ 21 33
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview


Compatible with Square D Homeline Products

Engineered for value, Square D's Homeline series offers a range of affordable and durable power distribution products.

Square D Homeline tandem breakers use standard thermal-magnetic breaker technology


Overall Electrical System Protection

Thermal-Magnetic circuit breakers provide overload and short-circuit protection for the entire circuit, including the home run.

Square D Homeline breakers are 1 in. wide


1 in. Pole Spacing

Our Homeline circuit breakers are designed
to be 1 in. per pole space.

Find your amperage: Homeline tandem breakers range from 15 to 50 amps


Amperage Range from
15-50 Amps

Homeline tandem circuit breakers are available
from 15-50 Amps to fit your electrical needs.


More Circuits per Space with Tandem Breakers

Single-pole tandem breakers consist of two
single-pole breakers in one space, and quad tandem breakers consist of two single-pole breakers and one 2-pole breaker or two 2-pole breakers in two spaces.

Complete the project: use with Square D circuit breaker accessories


Use with Homeline Circuit Breaker Accessories

Handle ties are available for use with Homeline tandem breakers.

  • Designed to protect against overloads and short-circuits
  • Quad design allows 2-1P and 1-2P circuits in two spaces
  • Compatible with Homeline electrical panel and CSEDs with 2 spaces
The Square D by Schneider Electric Homeline Quad-Pole Tandem Circuit Breaker consists of (2) single-pole, 15 Amp and (1) double-pole, 30 Amp breakers. Requiring only 2 pole spaces, it is used for overload and short-circuit protection of your electrical system. This breaker is compatible with Homeline load centers and CSED devices.  The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.

Product Overview

  • Designed to protect against overloads and short-circuits
  • Quad design allows 2-1P and 1-2P circuits in two spaces
  • Compatible with Homeline electrical panel and CSEDs with 2 spaces
Model #: HOMT1515230CP
Sku #: 565458
Internet #: 100121151

The Square D by Schneider Electric Homeline Quad-Pole Tandem Circuit Breaker consists of (2) single-pole, 15 Amp and (1) double-pole, 30 Amp breakers. Requiring only 2 pole spaces, it is used for overload and short-circuit protection of your electrical system. This breaker is compatible with Homeline load centers and CSED devices.  The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.

Compare Similar

Compare Similar Products
Brand Square D Square D Square D Eaton
Name Homeline (2) 15 Amp Single-Pole (1) 40 Amp 2-Pole Quad Tandem Circuit Breaker Homeline (2) 15 Amp Single-Pole (1) 50 Amp 2-Pole Quad Tandem Circuit Breaker Homeline 2-15 Amp Single-Pole 1-30 Amp 2-Pole Quad Tandem Circuit Breaker BR 1-20 Amp 2 Pole and 1-30 Amp 2 Pole BQ (Independent Trip) Quad Circuit Breaker
Price
$17.43
$20.25
$21.33
$23.68
Ratings (25) (25) (25) (13)
Product Width (in.) 2 2 2 1.97
Maximum Amperage (amps) 40 50 30 30
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
2.98
Product Height (in.)
3.24
Product Width (in.)
2

Details

Breaker Type
Tandem
Electrical Product Type
Breaker
Interruption Type
Standard Trip
Maximum Amperage (amps)
30
Mounting type
Plug In
Number of Poles
2
Power Distribution Features
No Additional Features
Product Weight (lb.)
0.85lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed.

Specifications

Dimensions

Product Depth (in.)
2.98
Product Height (in.)
3.24
Product Width (in.)
2

Details

Breaker Type
Tandem
Electrical Product Type
Breaker
Interruption Type
Standard Trip
Maximum Amperage (amps)
30
Mounting type
Plug In
Number of Poles
2
Power Distribution Features
No Additional Features
Product Weight (lb.)
0.85lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed.

Questions & Answers

I'm looking to add two 15 amp circuits and a 30 amp dryer.And my panel has two slots left that would fit this breaker.

Is this breaker used for this application?
Asked by: Bill
This is the one you need.
Answered by: Guy
Date published: 2019-03-27

30 amp 220 runs hot water heater, can I run over the stove (on 15 amp line) microwave at the same...

30 amp 220 runs hot water heater, can I run over the stove (on 15 amp line) microwave at the same time?
Asked by: Macneil82
If your microwave needs a 120 VAC 15 amp line, then this breaker will work. The two 15 amp breakers are independent. They don't even know the 30 amp section is there. The 30 amp are linked so they form a 220 VAC 30 amp circuit for a dryer or water heater. Note: You must have a Homeline panel for this to fit.
Answered by: Guy
Date published: 2019-03-27

Will this work in a homeline 30 space 40 circuit panel?

Will this work in a homeline 30 space 40 circuit panel?
Asked by: Hammerrman6505
Yes, your panel will hold up to 10 of these tandem breakers.
Answered by: CommunityAnswer
Date published: 2018-11-17

Can I use this breaker in a Siemens Indoor load center?

G1624ML1125 Series F Type 1 Enclosure
Asked by: Frank
I don't know. Without a professional electrician, your best bet is to remove a breaker from your panel and take it to the store and compare. Look really carefully from all angles. The half width size only fits in certain locations in my panel.
Answered by: bb
Date published: 2019-01-30
  • y_2019, m_6, d_17, h_21CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_9
  • loc_, sid_100121151, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 29ms
  • QUESTIONS, PRODUCT

Customer Reviews

Homeline 2-15 Amp Single-Pole 1-30 Amp 2-Pole Quad Tandem Circuit Breaker is rated 4.4 out of 5 by 25.
Rated 5 out of 5 by from Great breaker. Just what I needed. Nice way to get a double pole breaker for a clothes dryer in... Great breaker. Just what I needed. Nice way to get a double pole breaker for a clothes dryer in very little load center space.
Date published: 2019-03-27
Rated 5 out of 5 by from It's a circuit breaker. It either works or it doesn't. It works.I needed this to allow a 240V out... It's a circuit breaker. It either works or it doesn't. It works.I needed this to allow a 240V outlet for our Nissan Leaf since I had no empty slots in my panel.
Date published: 2019-01-30
Rated 5 out of 5 by from Expected the number of breakers in our panel with tandem breakers. Expected the number of breakers in our panel with tandem breakers.
Date published: 2019-02-12
Rated 5 out of 5 by from Exactly what I wanted in a reasonable delivery time. ... Exactly what I wanted in a reasonable delivery time.
Date published: 2019-02-26
Rated 5 out of 5 by from Saves a lot of space in a small panel. Saves a lot of space in a small panel.
Date published: 2019-02-12
Rated 5 out of 5 by from Great product, met expectations. Great product, met expectations.
Date published: 2019-01-16
Rated 4 out of 5 by from Works just fine... Works just fine
Date published: 2019-02-19
Rated 5 out of 5 by from good value... good value
Date published: 2019-01-15
