Less wiring, clean gutter, fast installation with Plug-On Neutral
Compatible with any Square D Homeline circuit breaker
Homeline breakers, outdoor cover, and aluminum bus bar included
Product Details
Square D Homeline Plug-on Neutral Breaker Boxes
Install Plug-on Neutral Breakers to connect directly to the neutral bar without the pigtail to save time.
Square D Breaker Boxes with Convertible Mains
Square D Homeline Main Lug breaker Boxes can be converted to Main Breaker breaker boxes or the other way around.
Square D Homeline Breaker Boxes are compatible with all Homeline Circuit Breakers
Compatible with Homeline 1 in. thermal magnetic, pig-tail style, and Plug-on Neutral advanced function breakers.
Homeline Breaker Boxes compatible with Plug-on Neutral surge protective devices
Save installation time and protect your home’s electrical system with Plug-on Neutral technology in our SPDs and Homeline breaker panels. SPDs sold separately.
Install Smart Energy Management Device Wiser Energy
Compatible with the Wiser Energy Smart Home Monitor to learn about real-time home energy usage. Wiser Monitor sold separately.
Fully distributed aluminum neutral bars
Copper dipped Aluminum bus bars that are tin plated to prevent corrosion with backed-out terminal screws.
Protection from the rain
NEMA Type 3R enclosures and covers feature rain-tight bolted (B) hubs (sold separately) for fast and convenient top feed conduit connection outdoors.

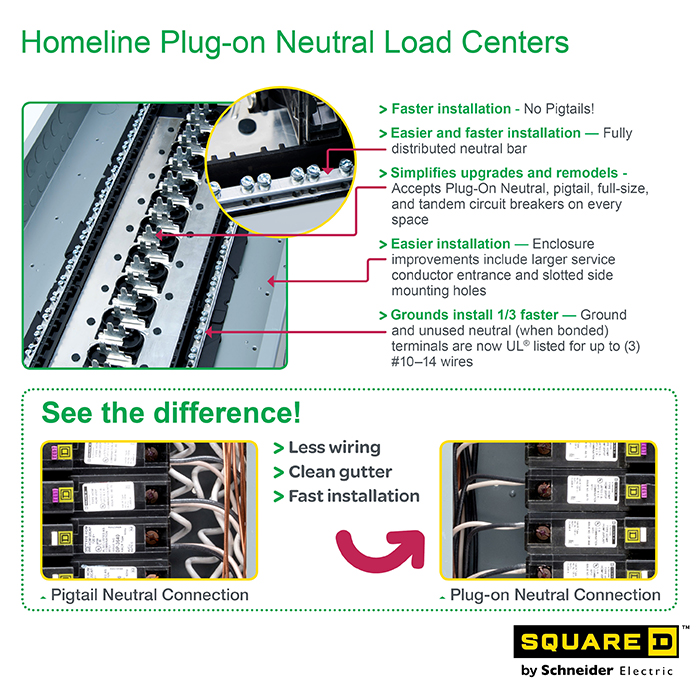

Save wire and time with Plug-On Neutral Breaker Boxes
Square D Homeline Breaker Boxes have fully distributed split neutral bar that accept Plug-On Neutral breakers.
Faster installation with Plug-on Neutral
Time and labor saving installation with less wire.
Frees up gutter space in your breaker box
No pigtails in Plug-on Neutral circuit breakers.
Square D offers complete line of Homeline accessories. Sold Separately
Homeline accessories maximizes application and installation flexibility to meet your electrical code needs. Please contact your local utility for details specific to your code.
10 year warranty
Square D offers coverage under normal care and proper usage in residential installation. Please refer to full warranty document for details.
24/7 product support
Square D provides dedicated support anytime, anywhere.
The Square D Homeline Value Pack 200 Amp 30-Space 60-Circuit Outdoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes a selection of breakers and is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Square D Homeline breaker boxes are engineered for fast installation and wire savings.
Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
Single phase, for outdoor installation
Rated 120/240 VAC and 22,000 AIR short circuit current rating
Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
Designed with straight-in mains to save expensive cable and time
Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
Thermoplastic interior assembly is among the most rugged in the industry
Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.
Specifications
Questions & Answers
56Questions
Q:Does Box have lugs at the top and Bottom for big wire and going out bottom into mobile home
by|Oct 21, 2022
1 Answer
Answer This Question
A:Â Hello,
No, the HOM3060M200PRBVP does not have the feed thru lugs feature, to feed a sub panel of the HOM3060M200PRBVP you must add a subfeed lug kit or a branch breaker with the amperage you need.
HOML2225: requires four spaces (1 AWG–300 kcmil Al/Cu). Use only on a 1Ø panel rated at 150A or more
Regards, Schneider Electric Customer Care
by|Oct 21, 2022
Q:Can you install a semiflush kit to this panel?
by|Oct 8, 2022
2 Answers
Answer This Question
A:Â Hello Edgar,
No, NEMA 3R load centers (covers) are surface mount only and Square D does not offer a Flush or Semi-Flush mount cover.
NOTE: Consider Combination Service Entrance Devices for this application. Check local utility company for approval BEFORE purchasing or installing any metering devices.
Regards, Schneider Electric Customer Care
by|Oct 11, 2022
A:Â Edgar,
Unfortunately no, NEMA 3R load centers (covers) are surface mount only and Square D does not offer a Flush or Semi-Flush mount cover.
NOTE: Consider Combination Service Entrance Devices for this application. Check local utility company for approval BEFORE purchasing or installing any metering devices.
Regards, Schneider Electric Customer Care
by|Oct 11, 2022
Q:Can siemens breakers be used in this panel?
by|Aug 31, 2022
2 Answers
Answer This Question
A:Â Hello Tony,
No. UL listings may be voided and the Warranty as well. Each manufacturer has it's own UL listings for their specific products based on their specific product line and their specific combination of products. This is true for Square D as well.
Regards, Schneider Electric Customer Care
by|Sep 1, 2022
A:  I don’t recommend to use Siemens breakers for Home line panelÂ
by|Sep 6, 2022
Q:Can I hook up an underground utility connection from the main into this box or is it over head connection only
by|Jul 25, 2022
1 Answer
Answer This Question
A:Â Hello Jerry,
Yes, it can be underground (bottom) fed by entering through the bottom end wall of the load center with the incoming conductors and routing the conductors up the side of the interior, through the gutter area to loop them around into the Main Lugs or Main Breaker lugs.
Please note that this load center cannot be rotated, neither the interior or the complete load center.
To know more information about your application with this product. You can contact us anytime using our chat live https://www.se.com/us/en/work/support/customer-care/contact-schneider-electric.jsp where an agent will be able to give you further assistance on this matter.
Warm regards. Schneider Electric Customer Care
by|Jul 26, 2022
Showing 1-4 of 56
Customer Reviews
4.7 out of 5
(103)
4.7
out of 103 reviews
100%recommend this product
584
413
30
23
13
Filter by:
Showing 1-10 of 103 reviews
Nov 24, 2021
This is well made box. Very suitable for the outdoors....
This is well made box. Very suitable for the outdoors. The price was great at only around $200, it is a real value. Could handle a few more knockouts, but you could say that about any brand.
by
Aug 28, 2018
Perfect number of spaces for my application. Not sure why it doesn’t come with a ground bar alre...
Perfect number of spaces for my application. Not sure why it doesn’t come with a ground bar already installed and I don’t understand why they don’t sell it in the store. But shipping was quick.
by
Verified Purchase
Recommended
Aug 7, 2018
Excellent
Excellent
by
Verified Purchase
Recommended
May 31, 2017
Very good outdoor panel. Plenty of room to add circuits if needed. Wished it was carried at my lo...
Very good outdoor panel. Plenty of room to add circuits if needed. Wished it was carried at my local home depot.
by
Verified Purchase
Recommended
Jan 25, 2023
speedy arrival, excellent condition. and met my electrical needs....
speedy arrival, excellent condition. and met my electrical needs.
by
Verified Purchase
Jan 18, 2023
by
Verified Purchase
Jan 4, 2023
Square D has always been a quality product ....
Square D has always been a quality product . Thank you for keeping it in stock
