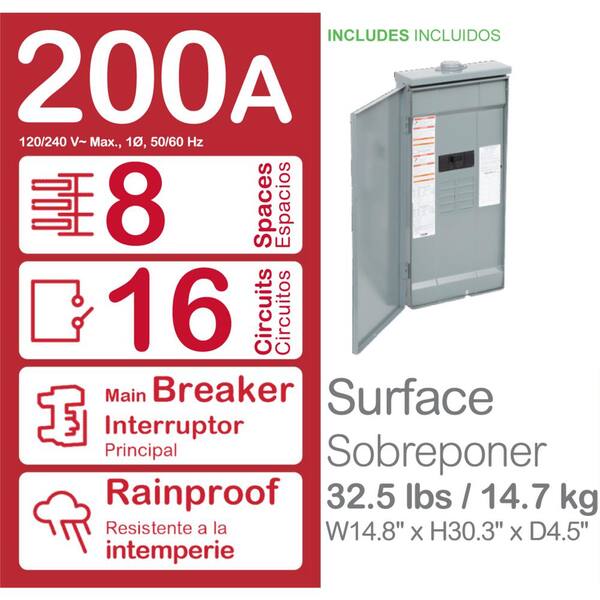

Homeline 200 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lug

  • Less wiring, clean gutter, fast installation with Plug-On Neutral
  • Compatible with any Square D Homeline circuit breaker
  • Feed-thru lugs, rainproof cover, and aluminum bus bar included
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Install Plug-on Neutral Breakers to connect directly to the neutral bar without the pigtail.

Square D Homeline Plug-on Neutral Breaker Boxes

Install Plug-on Neutral Breakers to connect directly to the neutral bar without the pigtail to save time.

Square D Homeline Main Lug breaker Boxes can be converted to Main Breaker breaker boxes or the other way around.

Square D Breaker Boxes with Convertible Mains

Square D Homeline Main Lug breaker Boxes can be converted to Main Breaker breaker boxes or the other way around.

Square D Homeline Breaker Boxes are compatible with all Homeline Circuit Breakers

Square D Homeline Breaker Boxes are compatible with all Homeline Circuit Breakers

Compatible with Homeline 1 in. thermal magnetic, pig-tail style, and Plug-on Neutral advanced function breakers.

Save installation time and protect your home’s electrical system with Plug-on Neutral technology in our SPDs and Homeline breaker panels

Homeline Breaker Boxes compatible with Plug-on Neutral surge protective devices

Save installation time and protect your home’s electrical system with Plug-on Neutral technology in our SPDs and Homeline breaker panels. SPDs sold separately.

Compatible with the Wiser Energy Smart Home Monitor to learn about real-time home energy usage.

Install Smart Energy Management Device Wiser Energy

Compatible with the Wiser Energy Smart Home Monitor to learn about real-time home energy usage. Wiser Monitor sold separately.

Copper dipped Aluminum bus bars that are tin plated to prevent corrosion with backed-out terminal screws.

Fully distributed aluminum neutral bars

Copper dipped Aluminum bus bars that are tin plated to prevent corrosion with backed-out terminal screws.

NEMA Type 3R enclosures feature rain-tight bolted (B) hubs (sold separately) for fast and convenient top feed conduit connection outdoors.

Protection from the rain

NEMA Type 3R enclosures and covers feature rain-tight bolted (B) hubs (sold separately) for fast and convenient top feed conduit connection outdoors.

Square D Homeline Breaker Boxes have fully distributed split neutral bar that accept Plug-On Neutral breakers

Save wire and time with Plug-On Neutral Breaker Boxes

Square D Homeline Breaker Boxes have fully distributed split neutral bar that accept Plug-On Neutral breakers.

Time and labor saving installation with less wire

Faster installation with Plug-on Neutral

Time and labor saving installation with less wire.

No pigtails in Plug-on Neutral circuit breakers

Frees up gutter space in your breaker box

No pigtails in Plug-on Neutral circuit breakers.

Homeline accessories maximize installation flexibility to meet your electrical code needs. Contact your local utility for specific code needs.

Square D offers complete line of Homeline accessories. Sold Separately

Homeline accessories maximizes application and installation flexibility to meet your electrical code needs. Please contact your local utility for details specific to your code.

Square D offers coverage under normal care and proper usage in residential installation. Please refer to full warranty document for details.

10 year warranty

Square D offers coverage under normal care and proper usage in residential installation. Please refer to full warranty document for details.

Square D provides dedicated support anytime, anywhere.

24/7 product support

Square D provides dedicated support anytime, anywhere.

The Square D Homeline 200 Amp 8-Space 16-Circuit Outdoor Convertible Main Breaker Load Center for Plug-on Neutral breakers has feed-thru lugs and is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Square D Homeline breaker boxes are engineered for fast installation and wire savings.
  • Learn about general NEC 2020 updates. Contact your local building inspector for adoptions and details.
  • Square D Homeline 200 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lug
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space accepts full-size, tandem or quad Square D Homeline breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds
  • Includes feed-thru lugs and a rainproof outdoor cover
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase, for outdoor installation
  • Rated 120/240 VAC and 22,000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Designed with straight-in mains to save expensive cable and time
  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Learn More About Electrical Panels Here in our Buying Guide.



  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Main Breaker Boxes

current product
Homeline 200 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lug
PowerMark Gold 200 Amp Double Pole Main Breaker Outdoor Circuit Breaker EnclosurePN Series 200 Amp 40-Space 40-Circuit Main Breaker Plug-On Neutral Load Center Indoor with Copper BusQO 200 Amp 42-Space 52-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover
BrandSquare DGESiemensSquare D
NameHomeline 200 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru LugPowerMark Gold 200 Amp Double Pole Main Breaker Outdoor Circuit Breaker EnclosurePN Series 200 Amp 40-Space 40-Circuit Main Breaker Plug-On Neutral Load Center Indoor with Copper BusQO 200 Amp 42-Space 52-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover
Price
Ratings
(55)
(16)
(36)
(127)
Number of Spaces824042
Indoor/OutdoorOutdoorOutdoorIndoorIndoor
Number of Circuits1614052
Load Center TypeMain BreakerMain BreakerMain BreakerMain Breaker
Load center width (in.)14.757.581614.25
Electrical Product TypeLoad CenterLoad CenterLoad CenterLoad Center
Load center height (in.)29.8626.3138.3837.98
Mounting TypePlug-On NeutralBolt OnPlug-On NeutralPlug-On Neutral
Maximum Amperage (amps)200200200200
View ProductView ProductView ProductView Product

Specifications

Dimensions

Load center depth (in.)
4.52
Load center height (in.)
29.86
Load center width (in.)
14.75

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Mounting Type
Surface
Load Center Type
Main Breaker
Maximum Amperage (amps)
200
Mounting Type
Plug-On Neutral
NEMA Configuration
NEMA 3R
NEMA Configuration Receptacle
No Receptacle
Number of Circuits
16
Number of Spaces
8
Phase Type
1 Phase
Product Weight (lb.)
33.32
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.

Questions & Answers

31Questions24Answers

Is there enough room in this panel to bring the feed in from the bottom (4/0) and hook up to the ...

Asked by Tony March 23, 2021
3
Answers

My 4/0 feed was from underground and I had no problem wiring it in, and I'm not an electrician, I am a general contractor wiring my own home.

Will the lugs on top and bottom take 1/0 wire?

Asked by surge December 29, 2020
3
Answers

Hello, Yes. You can use 1/0 wires for the lugs on top and bottom of the HOM816M200PFTRB. Regards, Schneider Electric Customer Care.

This panel already has a 200 amp brealer in it?

Asked by Susan November 20, 2020
3
Answers

Hello, Yes. The HOM816M200PFTRB has a main breaker factory installed. Regards, Schneider Electric Customer Care.

What's all included with it?

Asked by Desiree September 1, 2020
2
Answers

Just the 200 amp main breaker.

what series is this load center?

Asked by bigj August 24, 2020
2
Answers

S4

Will this panel accept a 3" conduit?

Asked by Mbarlow July 21, 2020
2
Answers

No, it will accept a 2" conduit.

Is this panel compliant with 2020 NEC emergency disconnect requirement being that it has a main breaker?

Asked by Sparky April 14, 2020
2
Answers

Hello Sparky, Yes, the HOM816M200PFTRB is compliant with 2020 NEC emergency disconnect requirement. It includes the Emergency Disconnect label. Regards.

Is there plenty of room inside the box to feed 2/0 copper through the side to feed power?

Asked by Cdbro March 23, 2020
2
Answers

Hello, Yes, you can feed it from the side. There is knockout that can be opened up to 2''. Inside, there is enough wire bending space for your wire. Regards.

What is the largest size breaker the panel buss will accommodate?

Asked by David November 14, 2019
2
Answers

Hello David, The largest size breaker that you can use in the HOM816M200PFTRB is the 200A breaker: HOM2200BB. It requires 4 spaces. Regards.

What size are the 2 bolts in the top that hold down the Hub? Im using a 2" hub to connect to my m...

Asked by awill420 June 25, 2019
3
Answers

The panel comes with the screws that are for your hub that holds on the blank cover..there not bolts.Your hub usually comes with screws also.
