Homeline 200 Amp 8-Space 16-Circuit Outdoor Ringless Overhead/Underground Main Breaker CSED
- Compatible with Square D Homeline circuit breakers only
- 4-jaw meter socket included, flange kit sold separately
- Contact your local utility company to ensure requirements are met
- See More Details
Frequently Bought Together
Price:
$15347
Product Overview
The Square D 200 Amp 8-Space 16-Circuit Outdoor Combination meter Socket and Main Breaker Load Center is suitable for use as a combination service entrance device (CSED). This unit is ANSI certified and UL listed with a maximum 10,000 AIR. The combination service entrance device features a Ringless meter cover with a single-phase, 4-jaw meter socket. It is suitable for overhead or underground service applications. Meets EUSERC Specifications. Surface mount or convertible to semi-flush with appropriate flange kit. This CSED is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline CSEDs are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline CSEDs are engineered for fast installation and wire savings.
- California residents
- Learn about general NEC 2020 updates. Contact your local building inspector for adoptions and details.
- Homeline 200 Amp 8-space 16-circuit ringless surface mount or convertible to semi-flush main breaker CSED
- Suitable for use as service entrance equipment
- Accommodates plug-on secondary surge arrestor and features a plug-in design for easy installation
- Ringless design with no bypass
- For use with Homeline breakers only
- NEMA type 3R enclosure for outdoor use
- 4-jaw meter socket included in design
- Designed with straight-in mains to save expensive cable and time
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- UL Listed and ANSI certified
- Learn More About Electrical Panels Here in our Buying Guide.
- Click here for more information on Electronic Recycling Programs
Info & Guides
Product Overview
- Compatible with Square D Homeline circuit breakers only
- 4-jaw meter socket included, flange kit sold separately
- Contact your local utility company to ensure requirements are met
Compare Similar Meter Main Combos
|  |  |  | |
| Brand | Square D | Square D | Square D | Square D |
| Name | Homeline 200 Amp 8-Space 16-Circuit Outdoor Ringless Overhead/Underground Main Breaker CSED | Homeline 200 Amp 30-Space 42-Circuit Outdoor Ring-Type Semi-Flush Mount Solar-Ready Main Breaker Plug-On Neutral CSED | Homeline 200 Amp 42-Space 42-Circuit Outdoor Ring-Type Surface Mount Solar-Ready Main Breaker Plug-On Neutral CSED | Homeline 200 Amp 30-Space 42-Circuit Outdoor Ring-Type Surface Mount Solar-Ready Main Breaker Plug-On Neutral CSED |
| Price | $15347 | $16533 | $17700 | $17999 |
| Ratings | (56) | (47) | (41) | (41) |
| Number of Spaces | 8 | 30 | 42 | 30 |
| Meter Socket Type | Ringless-No Bypass | Ring | Ring | Ring |
| Maximum Amperage (amps) | 200 | 200 | 200 | 200 |
| Load Center Type | Combination | Combination | Combination | Combination |
| Number of Circuits | 16 | 42 | 42 | 42 |
| Indoor/Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Load center width (in.) | 14.37 | 14.85 | 21.5 | 21.5 |
| Electrical Product Type | Load Center | Load Center | Load Center and Breaker Kit | Load Center |
| Mounting Type | Plug-On | Plug-On Neutral | Plug-On Neutral | Plug-On Neutral |
| View Product | View Product | View Product | View Product |
Compare Similar Meter Main Combos
| | | | |
| Brand | Square D | Square D | Square D | Square D |
| Name | Homeline 200 Amp 8-Space 16-Circuit Outdoor Ringless Overhead/Underground Main Breaker CSED | Homeline 200 Amp 30-Space 42-Circuit Outdoor Ring-Type Semi-Flush Mount Solar-Ready Main Breaker Plug-On Neutral CSED | Homeline 200 Amp 42-Space 42-Circuit Outdoor Ring-Type Surface Mount Solar-Ready Main Breaker Plug-On Neutral CSED | Homeline 200 Amp 30-Space 42-Circuit Outdoor Ring-Type Surface Mount Solar-Ready Main Breaker Plug-On Neutral CSED |
| Price | $15347 | $16533 | $17700 | $17999 |
| Ratings | (56) | (47) | (41) | (41) |
| Number of Spaces | ||||
| Meter Socket Type | ||||
| Maximum Amperage (amps) | ||||
| Load Center Type | ||||
| Number of Circuits | ||||
| Indoor/Outdoor | ||||
| Load center width (in.) | ||||
| Electrical Product Type | ||||
| Mounting Type | ||||
| View Product | View Product | View Product | View Product |
Specifications

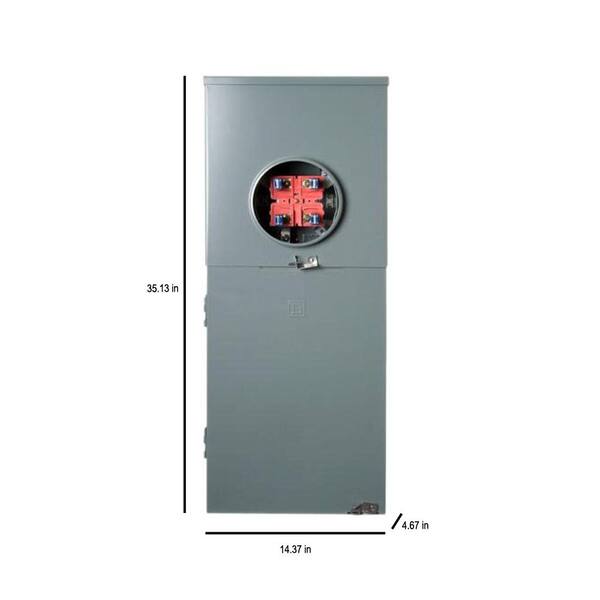

Dimensions
Load center depth (in.)
4.67
Load center height (in.)
35.13
Load center width (in.)
14.37
Details
Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Mounting Type
Surface
Load Center Type
Combination
Maximum Amperage (amps)
200
Meter Socket Type
Ringless-No Bypass
Mounting Type
Plug-On
Number of Circuits
16
Number of Gangs
1
Number of Spaces
8
Phase Type
1 Phase
Product Weight (lb.)
42.7
Returnable
180-Day
Voltage (volts)
120/240
Warranty / Certifications
Certifications and Listings
ANSI Certified,UL Listed
Manufacturer Warranty
Square D/Schneider Electric warrants its single-phase load centers and combination service entrance devices to be free from defects in material and workmanship, under normal care and proper usage in a residential installation, for a period of 10 years from the date of installation, when used with Square D/Schneider Electric circuit breakers.
Questions & Answers
61Questions39Answers
How to mount to power pole? Standard brackets have two holes at 3 1/4" centers; but this panel h...
Asked by Duane February 10, 20187
AnswersHello Duane, First, you would really need to determine your own way of mounting the device to a POLE, we do not provide that information and you cannot obtain any brackets from us, so you would need to provide your own mounting hardware/components. What we can tell you is there are 2 holes in the top meter socket area of the box and there are 3 holes under the load center interior of the enclosure. Regards, Customer Care Center
Is it possible to put a double pole breaker in this panel?
Asked by Jacob September 10, 20185
AnswersAbsolutely, using square D breakers listed for use in this panel.
Does it come with 200amp main breaker?
Asked by Handy September 2, 20185
AnswersYes it does. It is a main panel.
Feed through lugs?
Asked by Ray July 30, 20184
AnswersI have used 2 of these in the past. This is my choice main that I now go with every time. I am unsure what you mean by "feed through" lugs. Yes there are lugs in both the meter and panel. Simply strip the 4-O wire add alum-ox and back the lug out until you can feed the wire through. You can remove the lugs completely and slider as well If needed so you don't have to feed it through. Hope that helps with you decision making.
Generator interlock kit? Part #
Asked by Joeelectrician September 24, 20183
AnswersThe part number you have asked about is RC816F200C.
Can this panel be mounted semi flush
Asked by Karen October 3, 20173
AnswersHello Karen, The RC816F200C is surface mount only. Regards, Customer Care Center
Are feed through lugs included
Asked by Mike March 9, 20163
Answersyes
Does this meter base come with a weather head
Asked by Jay December 19, 20163
Answersno
Does this come with the main disconnect in it?
Asked by kent July 30, 20193
AnswersIt does. With 200 amp lugs on bottom feed thru
Can this be used outside to feed a 200 amp panel inside a manufactured home?
Asked by homeowner1989 November 3, 20143
Answersyes
Customer Reviews
Overall Ratings
Clear instructions. Solid build quality. Exact what I needed and...
June 9, 2020
Clear instructions. Solid build quality. Exact what I needed and saved time as it was one whole assembly!
Well built, quick & easy Installation
May 16, 2018
Well built, quick & easy Installation
What can I say? It's a combo panel. 8 spaces,...
January 9, 2021
What can I say? It's a combo panel. 8 spaces, passthrough, 200a main breaker. Using it in a residential install. Gives me plenty of space to pump 100a into the house and 200a to the garage with room for solar in the future and an rv plug.
Rating provided by a verified purchaser...
December 25, 2020
Rating provided by a verified purchaser
December 23, 2020
Rating provided by a verified purchaser...
December 14, 2020
Rating provided by a verified purchaser
Exactly what I was looking for
October 11, 2020
Exactly what I was looking for
Rating provided by a verified purchaser...
October 8, 2020
Rating provided by a verified purchaser
High quality. Would definitely recommend....
September 2, 2020
High quality. Would definitely recommend.
Exactly as expected works well...
July 14, 2020
Exactly as expected works well
