Homeline 70 Amp 2-Space 4-Circuit Outdoor Main Lug Load Center(HOM24L70RBCP)

$36.55
Apply Now
Pay $11.55 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • For residential or commercial power distribution
  • Compatible with Square D Homeline Standard circuit breakers
  • Rainproof outdoor cover and aluminum bus bar included
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

The Square D Homeline 70 Amp 2-Space 4-Circuit Outdoor Main Lugs Load Center is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Square D Homeline breaker boxes are engineered for fast installation and wire savings.

Highlights

  • Installation Guide
  • Square D Homeline 70 Amp 2-Space 4-Circuit Outdoor Main Lug Load Center
  • Includes a rainproof outdoor cover, and is for use as a main lug load center in fixed applications
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Knockouts located on all sides of breaker box to ease wire installation
  • Single phase, for outdoor installation
  • Rated 120/240 VAC and 10,000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Learn More About Electrical Panels Here in our Buying Guide.
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 100194428

Model # HOM24L70RBCP

Store SKU # 565547

Store SO SKU #1000112061

Specifications

Dimensions: H 9.38 in, W 4.88 in, D 4 in

Dimensions

Load center depth (in.)

4

Load center height (in.)

9.38

Load center width (in.)

4.88

Product Depth (in.)

4 in

Product Height (in.)

9.38 in

Product Width (in.)

4.88 in

Details

Breaker Box Type

Subpanel

Connection Type

Non-Neutral

Electrical Product Type

Main Lug/ Main Lug Kit

Indoor/Outdoor

Outdoor

Load Center Mounting Type

Surface

Load Center Type

Main Lug

Maximum Amperage (A)

70 A

Mounting Type

Surface

NEMA Configuration

NEMA 3R

NEMA Configuration Receptacle

No Receptacle

Number of Circuits

4

Number of Spaces

2

Phase Type

1 Phase

Product Weight (lb.)

5.05 lb

Returnable

90-Day

Series Type

Homeline

Voltage (V)

120/240 V

Warranty / Certifications

Certifications and Listings

UL Listed

Manufacturer Warranty

Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.

Questions & Answers

103Questions
caret
Q:Will this box accept a standard 20 amp breaker, 15 amp tandem breaker, and a 15 amp GFCI breaker?
by|May 23, 2024
1 Answer
Answer This Question

A:  Hello Craig, The HOM612L100RBCP can accept a tandem breaker in any slot. You can also install a GFI breaker like HOM115GFI (1 pole) or HOM215GFI (2 pole). You might see breakers with the CP suffix, but they are identical to those without it. Warm regards. Schneider Electric Customer Care

by|May 25, 2024
    1 found this answer helpful
    caret
    Q:Will this accept 2/0 conductor?
    by|Apr 24, 2024
    1 Answer
    Answer This Question

    A:  No, it does not accept a 2/0 conductor, the terminal wire range for the HOM612L100RBCP is #8-1. Regards, Schneider Electric Customer Care

    by|May 12, 2024
      1 found this answer helpful
      caret
      Q:Can this panned be used to run a spa tub and a 3 head mini split ?
      by|Mar 20, 2024
      1 Answer
      Answer This Question

      A:  James, In order to help you we need to know more information about your application with this product. You can contact us anytime using our chat live https://www.se.com/us/en/work/support/customer-care/contact-schneider-electric.jsp where an agent will be able to give you further assistance on this matter. Warm regards. Schneider Electric Customer Care

      by|Mar 23, 2024
        caret
        Q:Will this enclose fit a GFEP (ground fault equipment protection) breaker to feed an 110v outlet for outdoor gutter heater cabling? The picture is just an example of the breaker type as its similar but used in different application to a gfci breaker
        by|Jan 24, 2024
        1 Answer
        Answer This Question

        A:  Hi, HOM215GFI, HOM220GFI and HOM230GFI breakers can be used in the HOM24L70F, S, or RB load centers due to adequate wire bending space for a maximum #10 AWG wire. This will restrict the HOM-GFI breaker to a maximum of 30 amperes. You can contact us anytime using our chat live https://www.se.com/us/en/work/support/customer-care/contact-schneider-electric.jsp where an agent will be able to give you further assistance on this matter. Warm regards. Schneider Electric Customer Care

        by|Jan 24, 2024
          Showing 1-4 of 103

          Customer Reviews

          4.7 out of 5

          • 4.7 out of 280 reviews
          • 98% recommend this product
          Filter by:
          Showing 1-10 of 280 reviews
          Works as advertised and the price is right. Make sure you buy the correct breakers as many look a...
          Works as advertised and the price is right. Make sure you buy the correct breakers as many look alike. This one works with HOM series breakers (made by Homeline). I had an old CH series that looked the same and had the same current/voltage ratings but wouldn't quite fit into the lugs because of a notch in the lug insertion slot. Beware that this is for a 2ph line and has a Null strip. No ground strip. Also opening in front of the box (in the picture) doubles in width by breaking the tab for larger two bank (1in. each) breakers. I bought a HOM quad 2ph 30A which gives me 2x 110v/20A and one 2 pole 220v/30A lines for deck/jacuzzi use. This is the breaker product code: HOMT2020230CP/100210545. Type it in Home Depot search box and it comes up.
          by
          • Verified Purchase
          • Recommended
          5 found this review helpful
          I used this box as a subpanel to expand my outdoor electrical feeds. I was able to add a 30 amp c...
          I used this box as a subpanel to expand my outdoor electrical feeds. I was able to add a 30 amp circuit for our RV. Knockouts on bottom & sides worked perfectly. There was adequate room for routing 6 gauge wire inside.
          by
          • Verified Purchase
          • Recommended
          5 found this review helpful
          Professional look and easy to install. Convenient solution for small single-phase distribution pa...
          Professional look and easy to install. Convenient solution for small single-phase distribution panel. It comes with neutral and ground bars so the only missing part is the hub that have to match the conduit size. If the conduit is coming from the bottom you are good to go. In general, good quality and excellent price.
          by
          • Verified Purchase
          • Recommended
          3 found this review helpful
          Loved it and very easy to install and easy to find breakers for.
          I installed this as a sub panel and it was pretty easy to install nothing complicated even though i am not an electrician.
          by
          • DIY
          • Verified Purchase
          • Recommended
          4 found this review helpful
          It works great - However, it needs to come with a PK4GTA Ground Bar Kit. You have to purchase it separately if used as a Sub-Panel (which would be the primary reason for purchase!).
          by
          • Verified Purchase
          Load center is pretty good. It is a small switch so putting wire larger than #6 is a challenge.
          by
          • Verified Purchase
          I purchased this sub-panel as a homeowner DIY with better than average electrical experience. This new replacement Square D 100 amp panel was an easy install and has been in service now for about 6 weeks with no trouble or service issues. As an exterior panel, make sure to order the required and install the 7PKT bus for running circuit grounds. Recommend Only use Square D breakers. GFCI highly suggested.
          by
          • Verified Purchase
          This is exactly what I had needed, I had a client with an existing panel that was rusted beyond repair ( we are in a salt air environment). And I needed to replace the panel in kind so that the renters were not inconvenienced.
          by
          • Verified Purchase
          • Verified Purchase
          Easy to install but very small, stick with 100A minimum just for space of your wire and hands to work in. Ground bar sold separately
          by
          • Verified Purchase
          Showing 1-10 of 280 reviews

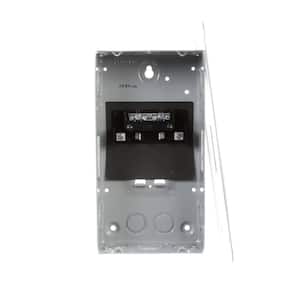

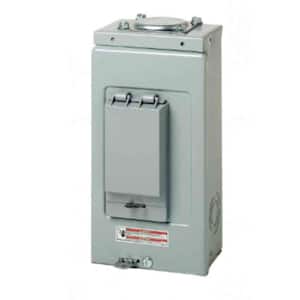

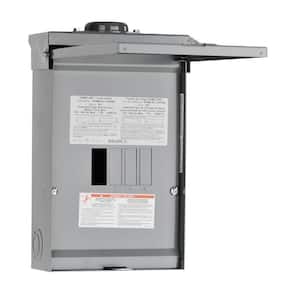

          Compare Similar Items
