Internet #100184676

Model # QO612L100FCP

Store SKU #577324

0047569805080

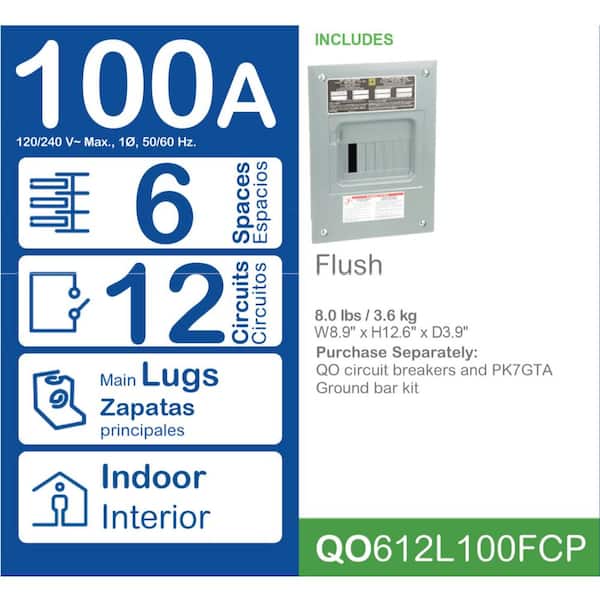

QO 100 Amp 6-Space 12-Circuit Indoor Main Lug Load Center

  • QO Interiors and components provide time-tested reliability
  • Compatible with Square D QO standard circuit breakers
  • Includes indoor flush mount cover and aluminum bus bar
$ 29 09
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+
+

Product Overview

  • QO Interiors and components provide time-tested reliability
  • Compatible with Square D QO standard circuit breakers
  • Includes indoor flush mount cover and aluminum bus bar
The Square D QO 100 Amp 6-Space 12-Circuit Fixed Main Lugs Flush Mount Indoor Load Center is UL listed for residential, commercial and industrial power distribution. This load center is built with a rugged themoplastic interior and an aluminum bus bar plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.
  • Includes a flush mount indoor cover without door
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 10,000 AIR short circuit current rating
  • Thermoplastic interior is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Learn More About Electrical Panels Here in our Buying Guide.
  • California residents see Prop 65 WARNINGS

Product Overview

  • QO Interiors and components provide time-tested reliability
  • Compatible with Square D QO standard circuit breakers
  • Includes indoor flush mount cover and aluminum bus bar
Model #: QO612L100FCP
Sku #: 577324
Internet #: 100184676

The Square D QO 100 Amp 6-Space 12-Circuit Fixed Main Lugs Flush Mount Indoor Load Center is UL listed for residential, commercial and industrial power distribution. This load center is built with a rugged themoplastic interior and an aluminum bus bar plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.

  • Includes a flush mount indoor cover without door
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 10,000 AIR short circuit current rating
  • Thermoplastic interior is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Learn More About Electrical Panels Here in our Buying Guide.
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Square D Square D Square D Square D
Name Homeline 100 Amp 6-Space 12-Circuit Indoor Flush Mount Main Lug Load Center with Cover No Door QO 100 Amp 6-Space 12-Circuit Indoor Main Lug Load Center QO 100 Amp 6-Space 12-Circuit Indoor Main Lug Load Center with Surface Mount Cover QO 100 Amp 6-Space 12-Circuit Outdoor Main Lug Load Center with Cover
Price
$18.98
$29.09
$35.55
$38.27
Ratings (47) (1) (6) (24)
Indoor/Outdoor Indoor Indoor Indoor Outdoor
Number of Phases 1 1 1 1
Mounting type Plug In Plug In Plug In Plug In
Maximum Amperage (amps) 100 100 100 100
Number of Spaces 6 6 6 6
View Product View Product View Product View Product

Specifications

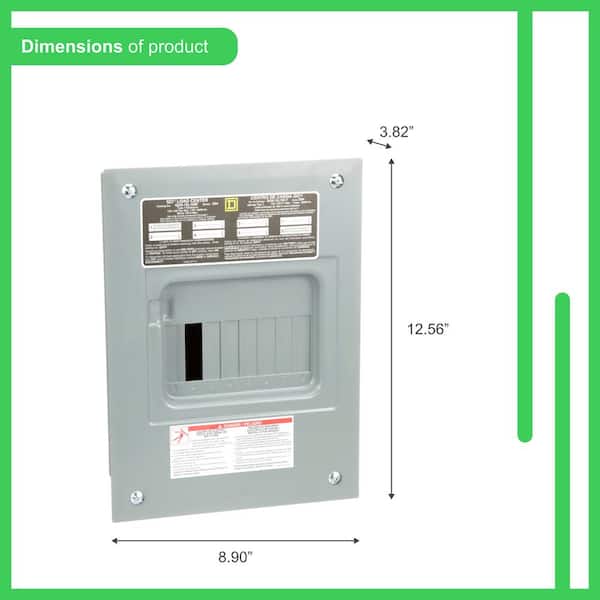

Dimensions

Load center depth (in.)
3.8
Load center height (in.)
12.57
Load center width (in.)
8.88

Details

Electrical Product Type
Main Lug/ Main Lug Kit
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Maximum Amperage (amps)
100
Mounting type
Plug In
Number of Phases
1
Number of Spaces
6
Product Weight (lb.)
8.06lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.

Specifications

Dimensions

Load center depth (in.)
3.8
Load center height (in.)
12.57
Load center width (in.)
8.88

Details

Electrical Product Type
Main Lug/ Main Lug Kit
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Maximum Amperage (amps)
100
Mounting type
Plug In
Number of Phases
1
Number of Spaces
6
Product Weight (lb.)
8.06lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.

Questions & Answers

Your ad says "secondary surge arrestor" sold separately. Why can't I find it on your website? T...

Your ad says "secondary surge arrestor" sold separately. Why can't I find it on your website? The SKU number for the arrestor should have been listed on this QO 70 web page.
Asked by: Boz
The application is not clear this main lug center offer 2 spaces 4 circuits. The SDSB1175 will be the only breaker in this load center. We offer HEPD80 as externally mounted device. Please feel free to call in and disucss your application. 888-778-2733. Regards, Customer Care
Answered by: SchneiderCustomerCare
Date published: 2018-09-05

Will this panel accept a QO230CP circuit breaker

Will this panel accept a QO230CP circuit breaker
Asked by: John
Yes this QO Main lug panel will accept a QO230 circuit breaker. Regards, Customer Care
Answered by: SchneiderCustomerCare
Date published: 2017-09-19

Will this panel accommodate a QO 220GFICP circuit breaker

Will this panel accommodate a QO 220GFICP circuit breaker
Asked by: Bob
Yes, QO24L70FCP load center will accept QO220GFICP, 20A 2-pole ground fault interrupt branch circuit breaker. Regards, Schneider Electric Customer Care
Answered by: SchneiderCustomerCare
Date published: 2016-12-21

Can i buy a surface or flush cover

QO 100 Amp 8-Space 16-Circuit Indoor Flush Mount Main Lug Load Center/cover only
Asked by: Sparky
Replacement surface cover: 4055309002. Replacement flush cover: 4055309101.
Answered by: SchneiderCustomerCare
Date published: 2016-03-03
