Model # QO816L100RBCP

Internet #100185592

Store SKU #741914

Square D QO 100 Amp 8-Space 16-Circuit Outdoor Main Lug Load Center with Cover
0047569804779

Square D

QO 100 Amp 8-Space 16-Circuit Outdoor Main Lug Load Center with Cover

  • QO Interiors and Components provide time-tested reliability
  • Compatible with Square D QO standard circuit breakers
  • Aluminum bus bar included
$6297 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • QO Interiors and Components provide time-tested reliability
  • Compatible with Square D QO standard circuit breakers
  • Aluminum bus bar included
The Square D QO 100 Amp 8-Space 16-Circuit Fixed Main Lugs Outdoor Load Center is UL listed for residential, commercial and industrial power distribution. This load center is built with a rugged thermoplastic interior and an aluminum bus bar plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.
  • Includes an outdoor cover
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 10,000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Thermoplastic interior is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Learn More About Electrical Panels Here in our Buying Guide.

Product Overview

  • QO Interiors and Components provide time-tested reliability
  • Compatible with Square D QO standard circuit breakers
  • Aluminum bus bar included
Model #: QO816L100RBCP
Sku #: 741914
Internet #: 100185592

The Square D QO 100 Amp 8-Space 16-Circuit Fixed Main Lugs Outdoor Load Center is UL listed for residential, commercial and industrial power distribution. This load center is built with a rugged thermoplastic interior and an aluminum bus bar plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.

  • Includes an outdoor cover
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 10,000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Thermoplastic interior is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$51.98 /each
$62.97 /each
$93.00 /each
$98.02 /each
Name QO 100 Amp 8-Space 16-Circuit Indoor Flush Mount Main Lug Load Center with Cover, Door QO 100 Amp 8-Space 16-Circuit Outdoor Main Lug Load Center with Cover QO 125 Amp 12-Space 24-Circuit Outdoor Main Lug Load Center with Ground Bar QO 125 Amp 24-Space 24-Circuit Indoor Main Lug Plug-On Neutral Load Center with Cover, Ground Bar, Surge SPD
Brand Square D Square D Square D Square D
Ratings (2) (1) (1) (1)
Indoor/Outdoor Indoor Outdoor Outdoor Indoor
Number of Phases 1 1 1 1
Mounting type Plug In Plug In Plug In Plug In
Maximum Amperage (amps) 100 100 125 125
Number of Spaces 8 8 12 24
View Product View Product View Product View Product

Specifications

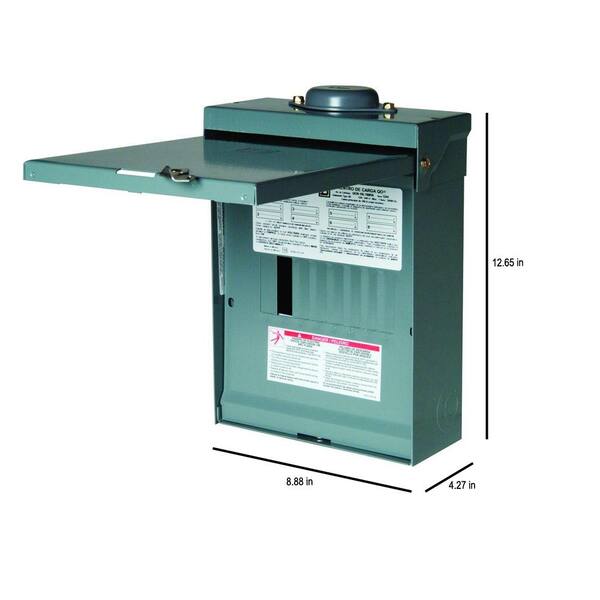

Dimensions

Load center depth (in.)
4.27
Load center height (in.)
12.65
Load center width (in.)
8.88

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Main Lug
Maximum Amperage (amps)
100
Mounting type
Plug In
Number of Phases
1
Number of Spaces
8
Product Weight (lb.)
9.93lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.

Specifications

Dimensions

Load center depth (in.)
4.27
Load center height (in.)
12.65
Load center width (in.)
8.88

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Main Lug
Maximum Amperage (amps)
100
Mounting type
Plug In
Number of Phases
1
Number of Spaces
8
Product Weight (lb.)
9.93lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.

Questions & Answers

What sizes of wire will the neutral bar accept on the load side (not main neutral input)

You didn't fully answer my first question.
Asked by: nbartel
#14-#4 copper or #12-#4 aluminum.
Answered by: BrandAnswers
Date published: 2016-07-08

What Size Lead Wires and Load Neutral Wires Will it Handle

Just need to know if this thing will handle 2-AWG lead and up to 4-AWG neutral on load side.
Asked by: nbartel
Main wire size: #8-#1 AWG Al/Cu.
Answered by: BrandAnswers
Date published: 2017-08-15
  • y_2017, m_11, d_16, h_22CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_2
  • loc_, sid_100185592, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 197ms
  • QUESTIONS, PRODUCT

Customer Reviews

QO 100 Amp 8-Space 16-Circuit Outdoor Main Lug Load Center with Cover is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Worked fine, easy to install Direct replacement for unit that had rusted away due to salt air. Pleased with Home Depot online ordering and timely delivery.
Date published: 2016-05-17
