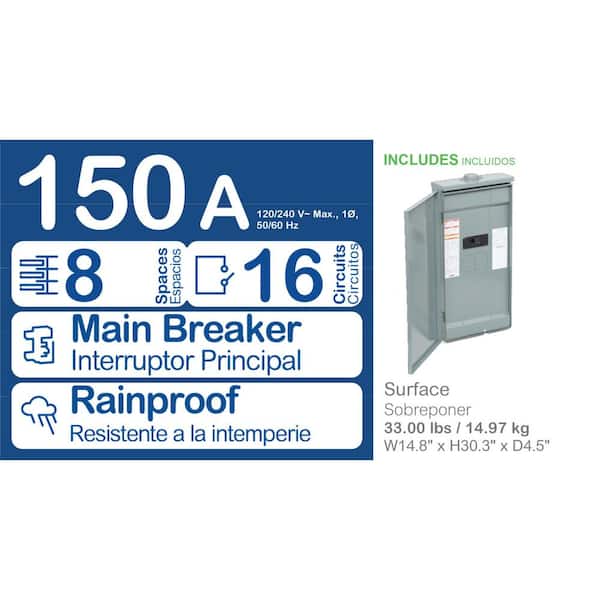

Square D QO 150 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lug
0785901868170

Square D

QO 150 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lug

  • QO Interiors and Components provide time-tested reliability
  • Compatible with Square D QO standard circuit breakers
  • Includes outdoor cover and main breaker with feed-thru lug
$15948 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • QO Interiors and Components provide time-tested reliability
  • Compatible with Square D QO standard circuit breakers
  • Includes outdoor cover and main breaker with feed-thru lug
The Square D QO 150 Amp 8-Space 16-Circuit Convertible Main Breaker Outdoor Load Center with Feed-Thru Lugs is UL listed for residential, commercial and industrial power distribution. This load center is built with a shielded, copper bus bar that is plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.
  • Includes an outdoor cover and factory-installed QOM2150VH main breaker with feed-thru lug
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 10,000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Designed with straight-in mains to save expensive cable and time
  • Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA
  • Learn More About Electrical Panels Here in our Buying Guide.

Product Overview

  • QO Interiors and Components provide time-tested reliability
  • Compatible with Square D QO standard circuit breakers
  • Includes outdoor cover and main breaker with feed-thru lug
Model #: QO1816M150FTRB
Sku #: 767247
Internet #: 100166796

The Square D QO 150 Amp 8-Space 16-Circuit Convertible Main Breaker Outdoor Load Center with Feed-Thru Lugs is UL listed for residential, commercial and industrial power distribution. This load center is built with a shielded, copper bus bar that is plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.

  • Includes an outdoor cover and factory-installed QOM2150VH main breaker with feed-thru lug
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 10,000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Designed with straight-in mains to save expensive cable and time
  • Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$159.48 /each
$189.05 /each
$194.00 /each
$225.00 /each
Name QO 150 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lug QO 200 Amp 30-Space 30-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Surge SPD Homeline 150 Amp 30-Space 60-Circuit Outdoor Main Breaker Plug-On Neutral Load Center QO 150 Amp 42-Space 42-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover
Brand Square D Square D Square D Square D
Ratings (0) (0) (1) (1)
View Product View Product View Product View Product

Specifications

Dimensions

Load center depth (in.)
4.52
Load center height (in.)
29.86
Load center width (in.)
14.75

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
150
Mounting type
Plug In
Number of Phases
1
Number of Spaces
8
Product Weight (lb.)
33.19lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.

Specifications

Dimensions

Load center depth (in.)
4.52
Load center height (in.)
29.86
Load center width (in.)
14.75

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
150
Mounting type
Plug In
Number of Phases
1
Number of Spaces
8
Product Weight (lb.)
33.19lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.

Questions & Answers

Can this be used in cold weather? e.g. Western Pennsylvania.

Asked by: Charlie
Per NEMA Standards Publication PB-1, "Panelboards", the normal ambient operating temperature range is -5 degrees C/+23 degrees F to +40 degrees C/#104 degrees F.
Answered by: BrandAnswers
Date published: 2016-07-21

Does this box come with a 150 amp breaker ?

Asked by: Dan
QOM2150VH is the 2-pole 150A main breaker included with QO1816M150FTRB.
Answered by: BrandAnswers
Date published: 2015-12-17
