- Made with true RMS to provide better accuracy
- Designed with built-in NCV detector
- Has LPF and µA current measurement
- View More Details
Free & Easy Returns In Store
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
The TRIPLETT MM520 is a 6000 count high performance digital multi-meter with True RMS readings to provide better accuracy when measuring non-sinusoidal or noisy waveforms. It offers a large variety of measurement features including AC/DC voltage, AC/DC Current, AC/DC µA Current, Resistance, Temperature, Frequency, Capacitance, Continuity and Diode Test. Additional features include Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives, a built-in NCV Detector, data hold, relative mode and 60 Amp clamp adapter input can be used with virtually any clamp adapter that has a 10mV/A output. The rubberized over molded housing provides impact and drop resistance in a sleek ergonomic design. ETL listed with CAT III 600-Volt safety rating that provides superior resistance to damage from transient over voltages in demanding settings. The Model MM520 is suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads, temperature probe, pouch case and (3) AAA batteries. 1-year warranty.
Highlights
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- µA current measurement
- Low pass filter (LPF)
- Built-in NCV detector
- 60 Amp clamp adapter input can be used with any adapter that has a 10mV/A output
- Data hold and relative mode
- Minimum/maximum and auto power off
- Low battery indicator
- CAT III 600-Volt safety category
- ETL listed
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions
Product Depth (in.) | 5.25 in |
|---|---|
Product Width (in.) | 2.4 in |
Details
Accuracy Measurement | True-RMS |
|---|---|
Category Rating | III |
Features | Backlit, Data Logging |
Functions Measured | Capacitance, Continuity, Diodes, Frequency, Voltage |
Included | Batteries, Case, Extra Pins/Probes, Test Leads |
Maximum AC Current (A) | 10 |
Maximum AC Voltage | 600 |
Maximum DC Voltage | 600 |
Maximum Frequency (MHz) | 10 |
Maximum Resistance (ohms) | 60M |
Number of Functions | 14 |
Power Source | Battery Operated |
Range | Auto Ranging |
Returnable | 90-Day |
Warranty / Certifications
Certifications and Listings | No Certifications or Listings |
|---|---|
Manufacturer Warranty | 1 Year Warranty |
Questions & Answers
Typical questions asked about products:
- Is the product durable?
- Is the product easy to use?
- What are the dimensions of the product?
Customer Reviews
5 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for professionals and home users, ensuring accurate measurements in demanding settings. | Ideal for electricians needing accurate, auto-ranging measurements with temperature and backlit display. | Suitable for both professionals and home users seeking versatile, safe, and accurate electrical measurements. | Built for demanding professionals, ensuring accurate, safe, and convenient electrical measurements. |
True RMS (TRMS) Measurement | |||
Auto-Ranging | |||
Temperature Measurement | |||
Backlit Display | |||
Measurement Functions | |||
Capacitance, frequency, continuity, diode, voltage | Capacitance, frequency, duty-cycle, diodes | Capacitance, frequency, duty cycle, continuity, diode, NCV | Capacitance, frequency, resistance, voltage, amperage, continuity, diodes |
Related Products
ResidentialPRO Auto-Ranging TrueRMS Digital Multi-Meter, 11 Measuring Functions
Introducing our state-of-the-art digital multi-meter with True RMS technology, providing the most accurate AC readings in the industry. Say goodbye to false readings from "ghost" voltage with the low Z function, ensuring your measurements are always reliable. Our multi-meter also features a built-in LED flashlight, making it convenient for use in low-light situations. Plus, its rugged IP67 waterproof and dust tight housing means it's built to withstand even the toughest of job sites. Safety is always a top priority, which is why our multi-meter is CAT lll 600-Volt safety rated and UL Listed. Trust in our product to provide you with precise and dependable measurements every time.

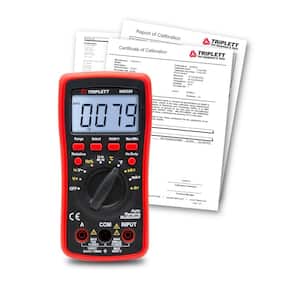

Auto Ranging DMM with Traceability to N. I. S. T
The TRIPLETT MM350-NIST True RMS Auto Ranging Digital Multimeter measures AC/DC Voltage and Current, AC/DC µA Current, Resistance, Temperature, Capacitance, Frequency, Diode and Continuity. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. It features a 4000 count backlit LCD display, Data Hold, Relative mode, Min/Max, Auto power off, and Low battery indicator. With a CAT III 600-Volt safety rating, the MM350 is well suited for a variety of commercial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes Certificate of Traceability to N. I. S. T., test leads, temperature probe and (3 ) AAA batteries. 1-year warranty.

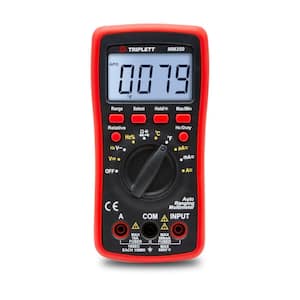

RMS Auto Ranging Digital Multimeter
The TRIPLETT MM350 True RMS Auto Ranging Digital Multi-meter measures AC/DC Voltage and Current, AC/DC µA Current, Resistance, Temperature, Capacitance, Frequency, Diode and Continuity. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. It features a 4000 count backlit LCD display, Data Hold, Relative mode, Minimum/Maximum, Auto power off, and Low battery indicator. With a CAT III 600-Volt safety rating, the MM350 is well suited for a variety of commercial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads, temperature probe and 3 AAA batteries. 1-year warranty.

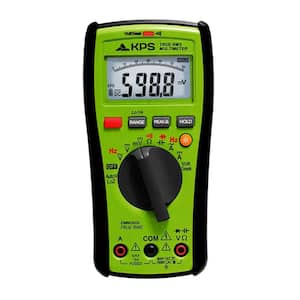

DMM3000 TRMS Multimeter-1000V with NCV, Low-Pass Filter & Temp Probe : Excellent for Field Technicians
