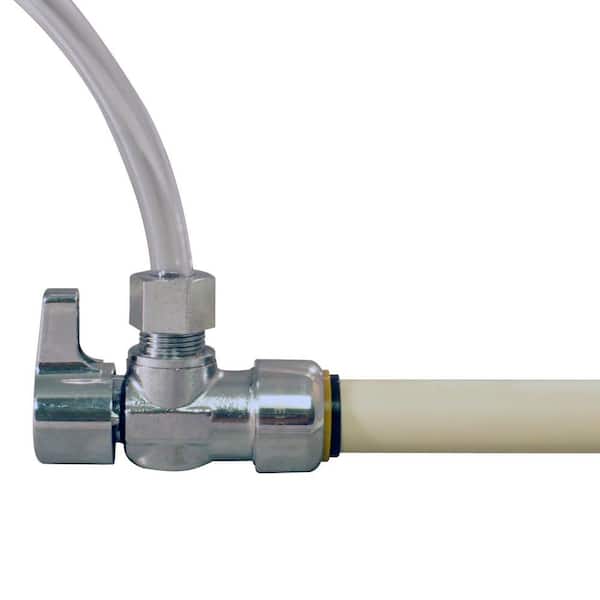

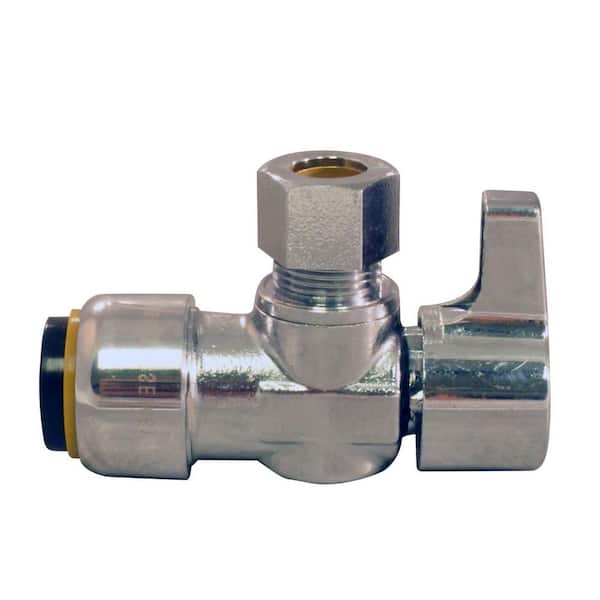

1/2 in. Chrome-Plated Brass Push-to-Connect x 3/8 in. Compression Quarter-Turn Angle Stop Valve

$9.98
  • Push-to-connect design makes for a fast and simple install
  • Simplest way to install supply stops for supply lines
  • Smooth quarter-turn ball valve flow control
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

The Tectite by Apollo 1/2 in. Push-To-Connect x 3/8 in. O.D. Compression Quarter-Turn Angle Stop Valve is designed to control water flow to plumbing fixtures such as toilets and faucets. The Angle Stop Valve is used where the water pipe enters the room to allow for easy shut-off of water flow to the end fixture allowing for maintenance and repair without having to turn water off to the entire home. The 3/8 in. O.D. male compression outlet allows for the integration of supply lines for connection to the end fixture. Tectite by Apollo push-to-connect stop valves are the cleanest and simplest way to gain flow control on copper, CPVC, PE-RT and PEX pipe without the use of tools, solder, open flame or glue. Simply insert the pipe to allow the high-strength stainless steel teeth to grip the pipe securely against the specially designed O-ring. Stop valve removal and reuse is just as simple using a simple demount clip (sold separately). After assembly, fittings may be rotated for simpler installation in tight spaces. All Tectite by Apollo stop valves are approved for use in both potable water and hydronic heating piping systems.

Highlights

  • Constructed of lead free dezincification resistant (DZR) chrome-plated brass for superior reliability
  • Push-to-connect joints require no heat, solder, solvents or tools
  • Push-to-connect design allows for a simple and fast installation on any combination of copper or CPVC pipe
  • Fittings can be rotated after being installed for ease of use in tight spaces
  • Ideal for potable water and hydronic heating applications
  • Listed by IAPMO and listed to ASSE 1061/NSF 82
  • Meets UPC, IPC, and cUPC standard requirements
  • Demount clip allows for fitting removal (included)
  • Approved for behind-the-wall with no access and burial
  • Corrosion resistant for greater longevity
  • Maximum working pressure of 200 psi and maximum temperature of 250 degree F
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 301492476

Model # FSBVA1238C

Store SKU # 1002429539

Additional Resources

Shop All Tectite

Specifications

Dimensions: H 1.59 in, W 1.59 in, D 1.59 in

Dimensions

Inlet Diameter (In.)

1/2

Inlet Size

1/2 In.

Outlet Diameter (In.)

3/8

Product Depth (in.)

1.59 in

Product Height (in.)

1.59 in

Product Length (in.)

1.73 in

Product Width (in.)

1.59 in

Valve Inlet Diameter (in.)

1/2

Details

Application

Potable Water

Color/Finish

Chrome

Color/Finish Family

Chrome

Compatible Pipe Material

Multi-Purpose

Compatible Product

Faucet, Toilet

Connection

PTC x Comp

Features

Adjustable, Corrosion Resistant, Lead Free, Quarter Turn, Removable

Indoor/Outdoor

Indoor

Inlet Fitting End Type

Push to Connect

Material

Brass

Maximum Pressure (PSI)

200

Maximum Working Temperature (F)

250

Outlet Fitting End Type

Compression

Pack Size

1

Product Weight (lb.)

0.26 lb

Returnable

90-Day

Stop Valve Type

Angle

Valve Configuration

Angle

Valve Connection

Push Connect

Valve Type

Stop

Warranty / Certifications

Manufacturer Warranty

5 Years: Must be installed per published installation instructions.

Questions & Answers

7Questions
caret
Q:After installation, should the valve rotate relatively freely on the copper pipe? I have to hold the valve body to turn the valve on and off to prevent it from rotating.
by|Jan 27, 2023
1 Answer
Answer This Question

A:  Yes, it is normal for the fitting to be able to rotate 360° around the copper pipe.

by|Jan 31, 2023
    caret
    Q:After installing this on a PEX pipe for a laundry room sink, there is no water flowing! When I turned on the valve after turning on the water, I did feel a distinct thud, so I think there is water in the line. What is the white tube I see in the image of the stop valve? Is that a tube liner that I needed to take and install first?
    by|Feb 27, 2021
    2 Answers
    Answer This Question

    A:  Is there another valve in the line that may be shut-off? All Tectite push fittings are sold with a white tube liner in each inlet/outlet. If using PEX pipe, keep the white tube liner in and if using copper or CPVC, take the white tube liner out.

    by|Mar 1, 2021
      1 found this answer helpful

      A:  My bad! I was turning the faucet left and right for hot and cold. I had to pull the lever towards me to open the faucet. All good, thank you!

      by|Mar 1, 2021
        caret
        Q:How many times can this push to connect fitting be removed and reinstalled without undue risk of leakage?
        by|Nov 23, 2020
        2 Answers
        Answer This Question

        A:  If you do it correctly with a tool and recut the end of the pipe you should be able to do it as many times as you wish. But if the pipe does not connect or disconnect properly you can damage the connections. Always best to just do it correctly once.

        by|Nov 25, 2020

        A:  As long as the Tectite fitting is removed with a push fitting removal tool or demount clip and the end of the pipe has been squarely cut, you may reuse the push fittings as many times as you would like.

        by|Nov 30, 2020
          caret
          Q:when you rotate the control 1/4 turn are you turning stainless steel or a polycarbonate shut off inside the valve body?
          by|Apr 25, 2020
          1 Answer
          Answer This Question

          A:  Snark, when you rotate the 1/4 turn handle you are turning a chrome-plated brass ball inside of the valve body.

          by|Apr 29, 2020
