Model # HT44B

Internet #202846485

Store SKU #1000027402

Store SO SKU #1000948508

Water Worker 44 Gal. Pressurized Well Tank
0642031613165

Water Worker

44 Gal. Pressurized Well Tank

  • Easy to install
  • Great quality with no leaks
$27965 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Easy to install
  • Great quality with no leaks
The Water Worker 44 Gal. Pressurized Well Tank provides a direct-fit replacement for the majority of installed well tank bases. This durable tank features deep-drawn steel construction, stainless-steel waterway lining and a polypropylene liner that separates water from the steel shell to help prevent taste or odor from being absorbed into the water. This pre-charged tank is designed to maintain its air charge for years to offer easy upkeep.
  • Designed as a direct-fit replacement for the majority of installed well tank bases
  • Constructed of deep-drawn steel for durability
  • Polypropylene-lined steel supports water weight to ensure water never sits in loose-fitting vinyl or rubber bags that can fold, crease and wear
  • NSF certified
  • Polypropylene liner separates water from the steel shell to prevent taste or odor from being absorbed into the water, formed liner fits the steel shell for added durability

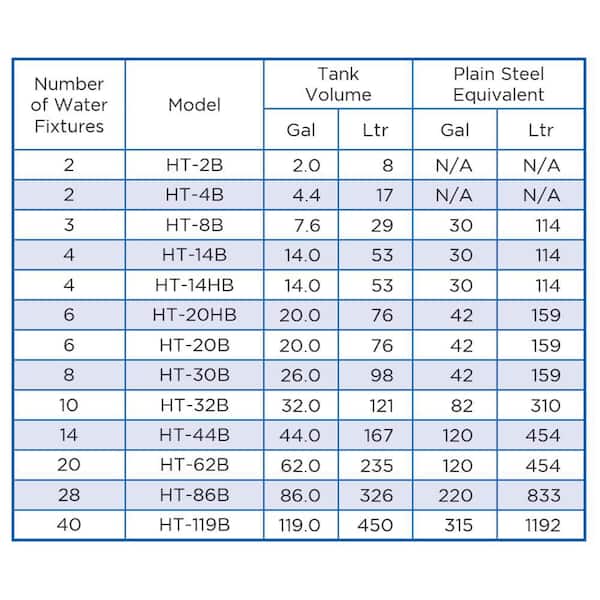

  • Sizing - count the number of water fixtures in and outside the home and multiply that # by 3; fixtures include faucets, spickets, shower heads, dish washer, washing machine, etc. for hot tubs and sprinkler systems add 1 to 2 fixtures for each; there are no disadvantages to having a larger well tank as fewer pump cycles will extend pump life and save money on electricity; tank stores a buffer of water in case of power outage
  • Stainless-steel waterway lining has no plastic to cross-thread, strip or crack
  • Thick diaphragm keeps water separate from pre-charged air and helps to reduce air loss
  • Molded diaphragm offers an ideal fit, sits on top of the water and will not fold, crease or drag against the steel shell
  • 44 Gal. of total volume; plain or galvanized tank equivalent of 120 Gal.
  • Pre-charged to 38 psig; 100 psig maximum working pressure
  • Maintains air charge for years to provide easy upkeep
  • 2-part water-based paint system sprayed over a durable 2-part epoxy primer provides corrosion resistance and safe paint covering
  • 1-1/4 in. NPTF system connection uses malleable iron for dependability
  • Well tanks are not be used in Reverse Osmosis systems
  • Well tanks are not be used for water expansion in thermal (water heater) or hydronic (boiler/solar) systems
  • Accessories shown in alternate image sold separately

Product Overview

  • Easy to install
  • Great quality with no leaks
Model #: HT44B
Sku #: 1000027402
Internet #: 202846485

The Water Worker 44 Gal. Pressurized Well Tank provides a direct-fit replacement for the majority of installed well tank bases. This durable tank features deep-drawn steel construction, stainless-steel waterway lining and a polypropylene liner that separates water from the steel shell to help prevent taste or odor from being absorbed into the water. This pre-charged tank is designed to maintain its air charge for years to offer easy upkeep.

  • Designed as a direct-fit replacement for the majority of installed well tank bases
  • Constructed of deep-drawn steel for durability
  • Polypropylene-lined steel supports water weight to ensure water never sits in loose-fitting vinyl or rubber bags that can fold, crease and wear
  • NSF certified
  • Polypropylene liner separates water from the steel shell to prevent taste or odor from being absorbed into the water, formed liner fits the steel shell for added durability
  • Sizing - count the number of water fixtures in and outside the home and multiply that # by 3; fixtures include faucets, spickets, shower heads, dish washer, washing machine, etc. for hot tubs and sprinkler systems add 1 to 2 fixtures for each; there are no disadvantages to having a larger well tank as fewer pump cycles will extend pump life and save money on electricity; tank stores a buffer of water in case of power outage
  • Stainless-steel waterway lining has no plastic to cross-thread, strip or crack
  • Thick diaphragm keeps water separate from pre-charged air and helps to reduce air loss
  • Molded diaphragm offers an ideal fit, sits on top of the water and will not fold, crease or drag against the steel shell
  • 44 Gal. of total volume; plain or galvanized tank equivalent of 120 Gal.
  • Pre-charged to 38 psig; 100 psig maximum working pressure
  • Maintains air charge for years to provide easy upkeep
  • 2-part water-based paint system sprayed over a durable 2-part epoxy primer provides corrosion resistance and safe paint covering
  • 1-1/4 in. NPTF system connection uses malleable iron for dependability
  • Well tanks are not be used in Reverse Osmosis systems
  • Well tanks are not be used for water expansion in thermal (water heater) or hydronic (boiler/solar) systems
  • Accessories shown in alternate image sold separately

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Customers Also Compared These

Price
$201.56 /each
$279.65 /each
$449.00 /each
$599.99 /each
Name 32 Gal. Pressurized Well Tank 44 Gal. Pressurized Well Tank 86 Gal. Pressurized Well Tank 119 Gal. Pressurized Well Tank
Brand Water Worker Water Worker Water Worker Water Worker
Ratings (194) (144) (154) (67)
Equivalent Capacity (gallons) 82 120 220 315
View Product View Product View Product View Product

Specifications

Dimensions

Equivalent Capacity (gallons)
120
Product Depth (in.)
22
Product Diameter (in.)
22
Product Height (in.)
36
Product Width (in.)
22

Details

Air Volume Control
No
Corrosion Resistant
Yes
Maximum inlet pressure (psi)
100
Mounting Bracket Included
No
Orientation
Vertical
Pipe Size
1 1/4 in.
Pre-Charged
Yes
Pressure Relief Valve
No
Product Weight (lb.)
69lb
Pump Hookup Included
No
Returnable
90-Day
Tank Material
Steel

Warranty / Certifications

Manufacturer Warranty
5 years

Specifications

Dimensions

Equivalent Capacity (gallons)
120
Product Depth (in.)
22
Product Diameter (in.)
22
Product Height (in.)
36
Product Width (in.)
22

Details

Air Volume Control
No
Corrosion Resistant
Yes
Maximum inlet pressure (psi)
100
Mounting Bracket Included
No
Orientation
Vertical
Pipe Size
1 1/4 in.
Pre-Charged
Yes
Pressure Relief Valve
No
Product Weight (lb.)
69lb
Pump Hookup Included
No
Returnable
90-Day
Tank Material
Steel

Warranty / Certifications

Manufacturer Warranty
5 years

Questions & Answers

What do i need to give me more water pressure now.

Asked by: Cory
There could be many reasons why your water pressure is low and the tank is not one of them.. Get someone who is qualified to check out your water system. Now Home Depot, will you please stop the popups. Al W
Answered by: Al
Date published: 2018-01-05

what to set the tank pressure at?

I bought the 44 gallon tank to hook up to my underground sprinkler system. I have a submersible well that is used for my sprinkler system only. I was hoping with the addition of the tank, which I never had before, that I would have a noticeable increase in the water output at the sprinkler heads. I have decreased and increased the tank pressure to see if it would help my pressure troubles. But the adjustments did not make any noticeable difference in my sprinkler pressure. Any ideas what I can do to get more pressure at the sprinkler heads? Thanks.
Asked by: helpo
Buy a bigger set of Pressure points for your water pump that tells your pump how mutch psi to build it comes with 20 psi points take it up to 40 psi and you will see a defferance just hope your glue joiunts on your pipes are good becouse you may blow the pipes apart
Answered by: Shovalhead
Date published: 2017-06-07

HOW DO I KNOW MY TANK IS BAD

MY PUMP BURNED UP IT HAD BEEN KICKING ON AND OFF BRFORESTOPPING, MY BLADDER TANK STILL HAD AIR NO LEEKS BUT WHEN I DRAINED IT THERE WAS ALOT OF WATER HOW MUCH WATER IS SUPOSED TO GO IN TANK? THANK YOU! LEO
Asked by: CRAIG
Top of the tank there is a valve stem you use to put air in, push the needle in and if water spits out the bladder is bad
Answered by: Bob
Date published: 2017-06-03

Does this tank come with the brass fitting in the bottom?

Asked by: Amy

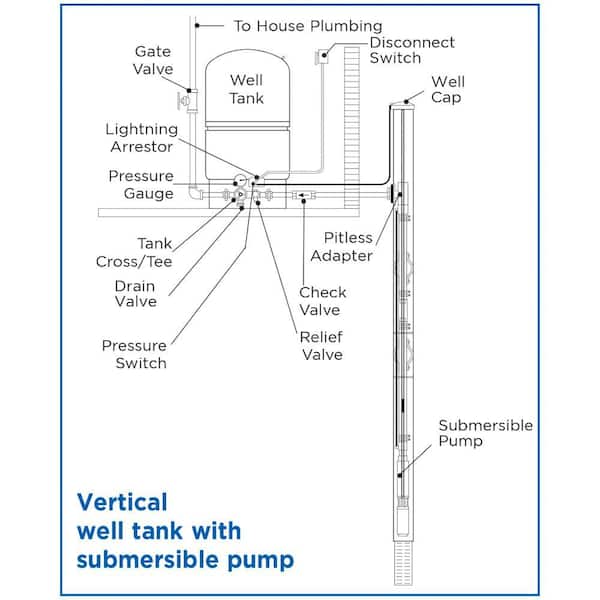

The tank comes with a fitting for a pipe. Normally a pipe or T made specifically for well tanks is screwed into the fitting. From there the pressure regulator, pressure gauge, relief valve and drain sillcock are attached.
Answered by: Grover01
Date published: 2017-09-20
  • y_2018, m_1, d_17, h_13CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.6
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_36
  • loc_, sid_202846485, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 101ms
  • QUESTIONS, PRODUCT

Customer Reviews

44 Gal. Pressurized Well Tank is rated 4.5 out of 5 by 144.
Rated 1 out of 5 by from Amtrol (the manufacturer) has ZERO customer service OR quality control. I bought this and opened... Amtrol (the manufacturer) has ZERO customer service OR quality control. I bought this and opened the undamaged box to find a four inch by two inch by one-half inch deep dent in the new tank. It had to have left the production facility like this. I called them and they said they would replace it, IF I drove the four hour round trip back to the store where I purchased it, with no offer of compensation...What?! Is my time and expense to deal with something they sent out of the plant like this of no consequence?
Date published: 2017-09-21
Rated 4 out of 5 by from The tank has been in use for over a week and it works very well. I would have given it a 5 star r... The tank has been in use for over a week and it works very well. I would have given it a 5 star rating except for this: the dimensions of the tank and the size of the inlet/outlet elbow are not printed on the outside of the box. If they are, both the Home Depot employee and I missed it. I had to go to the Home Depot website to find this information. The instructions were well written and helpful except for the information on Page 1 "Additional Parts - Tank Water Connection Size 1" NPTF". The 44 Ga. tank is actually a 1-1/4" fitting. These are minor things, but it did cause an trip to the hardware store to purchase an adapter. I recommend this product. Judging by the look and feel, it seems very well made.
Date published: 2017-05-23
Rated 4 out of 5 by from Found it in stock at the local store. Went on line to find the location. Be advised that you wi... Found it in stock at the local store. Went on line to find the location. Be advised that you will need a brass tee that will not be found where the tanks are. Look for it on line to see your stores location. You will also need a pressure relief valve. My store had these located where the tanks were. Instructions were simple to use. Installation was simple. Pay particular attention to the section that explains the pressure value of your tank and follow instructions to have tank pressure set 2 lbs. lower than the pump start pressure. This was no problem since I also installed a pressure guage on the brass tee.
Date published: 2017-10-25
Rated 5 out of 5 by from Product arrived at my home via UPS. No damage or dents. No DIY issues with installation. After on... Product arrived at my home via UPS. No damage or dents. No DIY issues with installation. After one week of use so far, it operates as advertised and fully met my expectations. Water Worker is made by the same manufacturer as Well-X-Trol. I'm not sure what the differences are internally, but operationally it performs the same job at a lower price. While Water Worker is warranted for 5 years vs. 7 years for Well-X-Trol, the Well-X-Trol in my previous house was still working fine after 27 years, so I'm expecting a long life beyond the warranty period for the Water Worker as well. I replaced the 18-year old Well-X-Trol in my current house because the bottom skirt and bottom of the tank was all rusted due to sitting directly on the cement floor and the water pipes were not insulated to prevent condensation. The new tank is on a platform 4 inches off the floor.
Date published: 2017-11-28
Rated 5 out of 5 by from This pressure tank very closely matched the defective unit. It was easy to install as a replaceme... This pressure tank very closely matched the defective unit. It was easy to install as a replacement and air pressure was easily adjusted to match my pressure switch settings. I now have more balanced pressure for my house & shop. The price was competative with online units and with the Home Depot 10% veterans discount it was even better. Thanks Home Depot.
Date published: 2017-08-15
Rated 5 out of 5 by from I like that it is squatty so the center of gravity is low for earthquake country. It came with h... I like that it is squatty so the center of gravity is low for earthquake country. It came with high factory pressure and we had to bleed off quite a lot to match our pump off pressure. The instructions were not clear on how to fill the tank with water.
Date published: 2017-07-26
Rated 1 out of 5 by from the 44 gallon WW was purchased end of 2015 to replace a water logged tank. This unit became water... the 44 gallon WW was purchased end of 2015 to replace a water logged tank. This unit became water logged as well just shy of two years...completely disappointed...great for short time, but after that the bicycle tire thin bladder tank will leak!
Date published: 2017-10-25
Rated 4 out of 5 by from It's working fine so far but my local store did... It's working fine so far but my local store did not have one and they couldn't have one shipped over night so u had to drive an hour to get one. Over night shipping should not be offered if you can't have one shipped from a store an hour away
Date published: 2017-12-19
