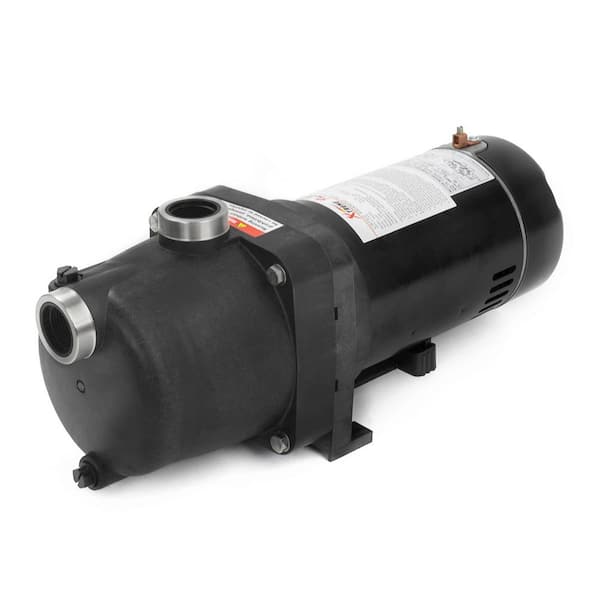

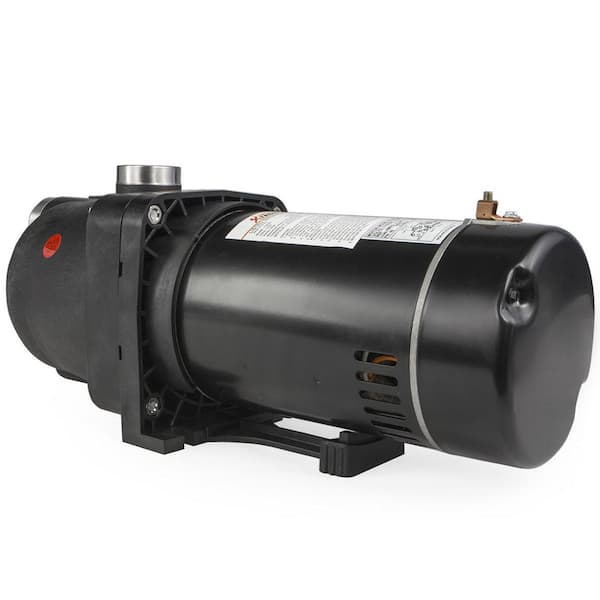

115-Volt/230-Volt Dual Voltage Universal 1 HP Pressure Side In-Ground Swimming Pool Pump

$180.96
$232.00
Save $51.04 (22%)
Apply Now
Pay $155.96 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
icon
Free & Easy Returns In Store or Online
Return this item within 30 days of purchase. Read Return Policy
Product Details

About This Product

This pressure sided pump is ideal for replacing your pressure-sided booster pumps. It is made of strong, corrosion-proof materials for high durability and features improved 1 in. fitting for better water flow as well as optimized efficiency. The Boost pump delivers greater water pressure for more powerful pressure-side cleaning.

Highlights

  • Advanced impeller design cuts electricity use by up to 25%
  • Stainless steel shaft with ceramic seals are built to last
  • Dual voltage 115/230 switchable
  • Inlet internal 1 in. NPT
  • Quieter operation for a relaxing poolside experience
  • Boost pump delivers greater water pressure for more powerful pressure-side cleaning
  • Enclosed Fan Cooled (TEFC) motor runs cooler and quieter
  • Ideal replacement for all pressure-side booster pumps
  • Suitable for all weather seasons
  • Pump is pre-wired to 230-Volt please check your application before usage
  • Power: 1 HP
  • RPM: 3450 maximum temperature: 122°F
  • Voltage: 115-Volt/230 Amp: 11.5/5.7
  • Maximum temperature: 122°F waterproof level: IPX5
  • Inlet internal fitting: 1.25 in. NPT
  • Flow maximum: 22 GPM/ 120 GPH
  • Overall dimension: 18-3/4 in. L x 6-3/4 in. W x 8 in. H
  • Certification: ETL, UL Listed hardware required: yes
  • Return Policy

Product Information

Internet # 317831228

Model # 75050-H

Specifications

Dimensions: H 8 in, W 6.75 in, D 18.75 in

Dimensions

Product Depth (in.)

18.75 in

Product Height (in.)

8 in

Product Width (in.)

6.75 in

Details

Amperage (A)

11.5 A

Cord Length (ft.)

4

Discharge Flow @ 0 ft. (gallons/hour)

1320

Discharge Flow @ 0 ft. (gallons/min)

22

Discharge Flow @ 10 ft. (gallons/hour)

1100

Discharge Flow @ 10 ft. (gallons/min)

18

Features

No Additional Features

Head Pressure (ft.)

139

Housing Material

Metal

Impeller Material

Cast Iron

Included

No Additional Items Included

Inlet Connection

Threaded female

Maximum Discharge Flow (gallons/hour)

1320

Maximum Horsepower (hp)

1

Maximum Pressure (PSI)

109

Maximum Working Temperature (F)

122

Minimum working temperature (F)

32

Outlet Connection

Threaded female

Pack Size

1

Power Type

Electric

Power Type Required

AC

Product Weight (lb.)

19.84 lb

Pump Switch Type

Electronic

Returnable

30-Day

Vertical Lift (ft.)

120

Voltage

230v

Warranty / Certifications

Certifications and Listings

ETL Listed, UL Listed

Manufacturer Warranty

30 Day Limited Manufacturer Warranty for Returns and Exchanges; 60 Day Parts Warranty for Parts Replacements
