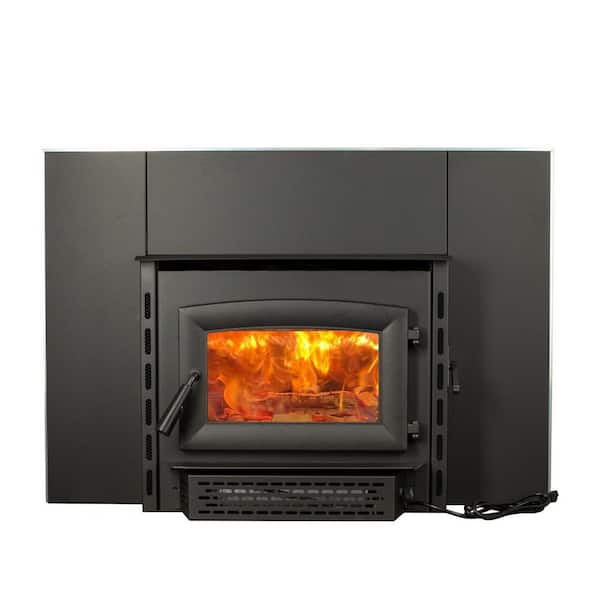

26 in. 1,200 sq. ft. EPA Certified Wood-Burning Fireplace Insert

$1671.18
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
  • Designed to accept logs up to 18 in. L
  • Includes adjustable high-speed blower for optimal use
  • Air wash glass keeps door window clean
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret
Product Details
  • Designed to accept logs up to 18 in. L
  • Includes adjustable high-speed blower for optimal use
  • Air wash glass keeps door window clean
About This Product

The AW1820E from Ashley Hearth Products is an airtight fireplace insert that will greatly improve the efficiency of your fireplace. The AW1820E fireplace insert meets the stringent requirements of the Step 2 EPA 2020 Certification Guidelines. With a heavy cast iron door and a cool touch wood handle along with an air washed ceramic glass that allows a magnificent view of the burning fire, it will be a beautiful addition to your existing hearth. It includes a hearth surround to fully enclose the existing fireplace and is equipped with a spring-loaded automatic adjustment making installation a breeze. The Ashley AW1820E model replaces the previous Vogelzang model TR004 Colonial fireplace insert and the US Stove Company model 2200IE insert.

  • 69,000 BTUs heats up to 1,200 sq. ft. with over 75% efficient heating
  • Installation materials are not included (such as floor protector, chimney connector, thimble, flue)
  • Air wash glass keeps door window clean so you can see the warm glow of the fire
  • Cast iron feed door with large 16.5 in. x 9 in. ceramic glass window
  • Accepts logs up to 18 inches in length
  • Adjustable high speed (150 CFM) blower included
  • Heavy-gauge 3/16 in. reinforced plate steel with firebrick lining
  • Not approved for use in mobile or modular homes
  • Replaces Vogelzang model TR004 and the US Stove Company 2200IE fireplace insert
  • Return Policy
  • California residents
     see Prop 65 WARNINGS
Product ID #: 313268589Internet #: 012685701820Model #: AW1820E
caret

Specifications

Dimensions: H 22.375 in, W 26.5 in, D 20.1875 in

Dimensions

Assembled Depth (in.)20.1875 inAssembled Height (in.)22.375 in
Assembled Width (in.)26.5 inFirebox Depth (in.)10.13
Firebox Height (in.)9.87Firebox Width (in.)20.25
Log Capacity Length (in.)18

Details

Area Heated (sq. ft.)1200 sq ftAssembly RequiredYes
Color FamilyBlackFeaturesAir Wash System, Fire brick lined, Zero Clearance
Heat Output (BTU/hour)69000IncludedBlower
Indoor/OutdoorIndoorMaterialSteel
Product Weight (lb.)305 lbReturnable90-Day
ShapeSquareStyleRustic
Total BTU (Btu)69000

Warranty / Certifications

Certifications and ListingsEPA Approved, UL ListedManufacturer WarrantyLimited Lifetime firebox warranty, 1 Year all other parts, 1 year Electrical parts
caret

Questions & Answers

61Questions
caret
Q:Why can't it be used in mobile homes ?
by|Jan 22, 2024
1 Answer
Answer This Question

A:  This model does not have a dedicated intake hookup where an outside air kit can be attached. This is a requirement for mobile home installations. Also, most mobile home do not have a fireplace that meets the minimum requirements for the installation this model requires.

by|Jan 22, 2024
    caret
    Q:What are the measurements of the fire box
    by|Dec 12, 2023
    1 Answer
    Answer This Question

    A:  The firebox measures 9.87"H x 10.13"D x 20.25"W.

    by|Dec 13, 2023
      caret
      Q:Is the AW1820E Ashley stove capable of burning wood pellets too? Or able to be fitted with something to burn wood pellets?
      by|Dec 3, 2023
      1 Answer
      Answer This Question

      A:  No, you should only burn properly seasoned firewood in this model.

      by|Dec 4, 2023
        caret
        Q:This is zero clearance self contained ? What are clearances for back and sides
        by|Nov 22, 2023
        1 Answer
        Answer This Question

        A:  The minimum fireplace opening should be 23"H x 29"W 14"D.

        by|Nov 27, 2023
          Showing 1-4 of 61
          caret

          Customer Reviews

          3.8 out of 5
          • 3.8 out of 31 reviews
          • 67% recommend this product
          Filter by:
          Showing 1-10 of 31 reviews
          Great unit
          We bought this unit in November 2020; we were Supposed to receive it at the end of December; we got the unit within three weeks faster than expected. It was a bit better than expected, but e made it work. We use it as alternative heating, and it works great. My home is 1800 sq feet. We are able to maintain it between 70-75 degrees.
          by
          Response from USStoveExpertJul 26, 2021
          Thank you. Glad you are satisfied with your purchase! USSC
            • Recommended
            2 found this review helpful
            Great All Around Wood Stove
            This stove is a nice basic solution to warm a large room and/or a reasonable square footage floor. The fire box is average size for a reasonable fire and the unit when installed with the provided surround looks pretty good. The surround assembly is a bit basic but it covers the unit nicely when properly installed. I get good heat with the blower on half speed, the blower is relatively loud at full setting. This is a really great option at this price hence five stars on the review.
            by
            Response from USStoveExpertJul 26, 2021
            Thank you. Glad to hear you are satisfied with your purchase USSC
              • Recommended
              5 found this review helpful
              Great Insert for the Price
              I am giving this thing 5 stars based on what you get for the price. No, this is not the best fire place insert on the market, but it was the best insert for our price range. The install was pretty basic and straight forward. If you feel pretty handy and have a basic understanding of how a fire place works then you can probably handle this DIY project. The biggest issue we had was back drafting when we opened the door. During our first two or three fires it was impossible to open the front door and not allow a TON of smoke into the house. I consulted with a few friends and they said everything looked good to them. I then decided to call their costumer support line, which was very quick, easy, and productive. The lady asked me to look at the flame blanket, which was located inside the unit and on top of the fiber blocks. She said sometimes the fiber blocks bounce to the back and leave more ventilation in the front, near the door, during transportation. She was 100% correct. After moving the fiber blocks to the front of the stove with a small gap in the middle (1/4") and a 1/2" gap in the back the problem was solved. I can now open my stove door without being pummeled with smoke to the face.
              by
                by
                • Verified Purchase
                by
                • Verified Purchase
                Works amazing, it’s better than I expected...
                Works amazing, it’s better than I expected
                by
                • Verified Purchase
                1 found this review helpful
                Smaller then it looks but still a good wood burner...
                Smaller then it looks but still a good wood burner
                by
                  2 found this review helpful
                  Rating provided by a verified purchaser...
                  Rating provided by a verified purchaser
                  by
                    1 found this review helpful
                    It is beautiful, and the fire stays lit perfectly for...
                    It is beautiful, and the fire stays lit perfectly for hours when the door is closed. Easy to install! It doesn't get as hot as I though it would, but maybe I just need to load it with more logs.
                    by
                      2 found this review helpful
                      Rating provided by a verified purchaser...
                      Rating provided by a verified purchaser
                      by
                        1 found this review helpful
