#1 Home Improvement Retailer

Internet # 325602602

Model # SHX78CM5N

Store SKU # 1011510320

Store SO SKU # 1009956902

800 Series 24 in. Stainless Steel Top Control Tall Tub Bar Handle Dishwasher with Stainless Steel Tub, 42 dBA

Save $140.00 (10%)
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
  • Industry’s most advanced clean with Bosch 800 Series PowerControl
  • CrystalDry for the ultimate drying dishwasher, including plastics
  • The Flexible 3rd Rack provides a versatile space for utensils
  • View More Details
Product Details

About This Product

Bosch 800 Series dishwashers now combines advanced cleaning with the ultimate dry. The innovative and versatile PowerControl spray arm takes our PrecisionWash technology to the next level, letting you target your dirtiest dishes for a deeper clean or most delicate dishes with a lighter wash. No matter where you load them, trust every item will receive a deep, powerful clean, with no pre-rinse, pre-soak or handwashing needed. Patented CrystalDry technology then heats your dishwasher up to 176 degrees F, to give dishes, including plastics, the ultimate dry. The Flexible 3rd Rack provides a versatile space for utensils. Get personalized app features like Smart Cycle, hands-free voice control with Amazon Alexa or Google Home and so much more, all when you use Wi-Fi enabled Home Connect.


  • Bosch 800 Series dishwasher touch control panel has been simplified to offer the cycles and options you use most--all at the touch of your fingertips. Additional cycles and options are available through the Home Connect app.

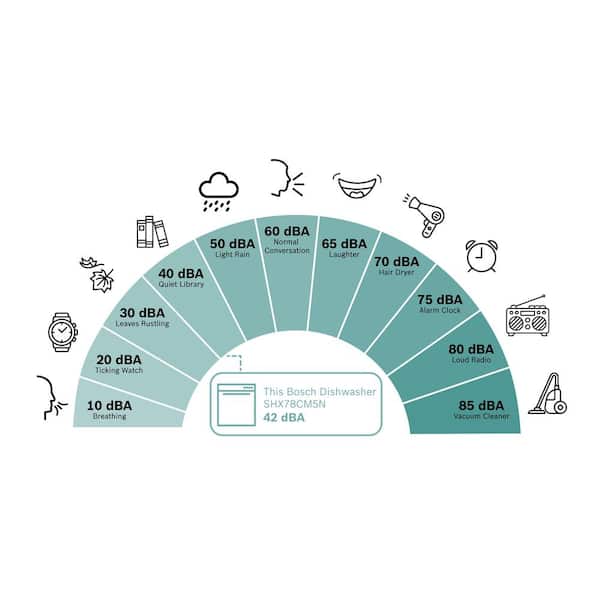

  • A range of legendary sound reducing technologies make this Bosch dishwasher so quiet at just 42 dBA, you can't always tell it's running; infoLight shines a red beam on the floor to indicate when it is running
  • Large interior provides ample space and flexibility for pots, pans, dishes, and more, and the flexible 3rd rack provides additional space for silverware and utensils
  • Offers 5 standard wash cycles, including the following Heavy, Auto, Normal, Speed60, Smart Cycle, and 3 standard options, including Sanitize, Remote Start, and Extra Dry
  • Full stainless steel tub is sleek, durable and long-lasting
  • Precisely engineered detergent tray holds detergent tabs in place for a dedicated spray jet to directly dissolve them, preventing buildup for a deeper clean
  • RackMatic easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below
  • The FlexSpace Tines let you fold down every other tine in one simple step, so it's easier to fit your largest, bulkiest items. It helps to hold pots and pans upright, leaving more room for your other dishes.
  • The Flexible 3rd Rack has expandable wings that easily lower to accommodate more of your deeper items. Meanwhile adjustable tines let you customize the rack's loading space to fit awkward or bulky utensils.
  • PowerControl spray arm enhances PrecisionWash performance to target your dirtiest dishes with a deeper clean, no matter where you load them on the bottom rack. No more scrubbing, pre-rinsing, or hand washing.
  • Sanitize Option eliminates up to 99.9% of bacteria and meets NSF requirements for sanitization
  • The Half Load Option, accessible through Home Connect, allows you to load half of the normal dishes anywhere in the dishwasher to reduce water usage without sacrificing wash performance
  • Enhance your cleaning experience with personalized app features like Smart Cycle, hands-free voice control with Amazon Alexa or Google Home and so much more, all when you use Wi-Fi enabled Home Connect.
  • The Favorite button on the control panel lets you select and save your favorite cycle/option combo that you preset in the Home Connect app
  • AquaStop 24/7 leak protection system features sensors that automatically stop the water intake and activate the drain pump if a possible leak is detected--even if you're not home.
  • Machine care cycle removes grease and limescale build up from the dishwasher's interior when partnered with a cleaning/descaling agent
  • The EasyGlide rack system is redesigned to give you a smooth glide on all three racks-even when it's fully loaded
  • Click here to shop more Bosch Dishwashers
  • Click here to view our Buying Guide to help you find the right Bosch Dishwasher for you
  • Click here to shop for more Bosch Appliances
  • Click here for more information on Electronic Recycling Programs
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 325602602

Model # SHX78CM5N

Store SKU # 1011510320

Store SO SKU #1009956902

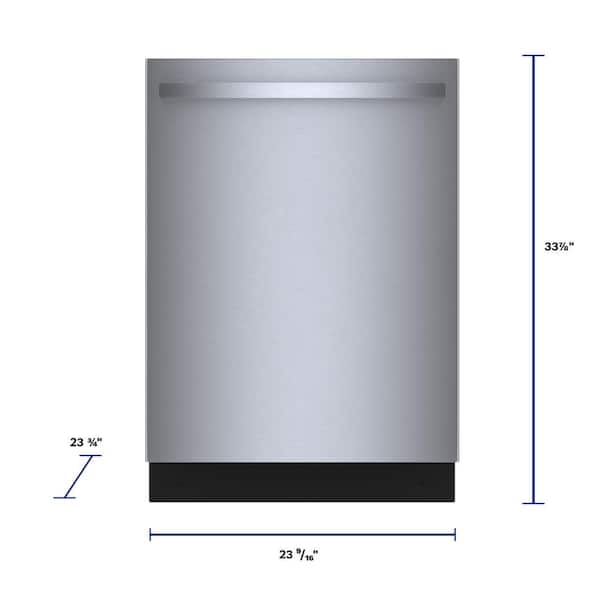

Dimensions: H 33.86 in, W 23.54 in, D 23.7 in



Cut-Out Depth (in.)
24 in
Cut-Out Height (in.)
33.875 in
Cut-Out Width (in.)
24 in
Depth - Door Shut (with Handle) (in.)
2 in
Depth - Door Shut (without Handle) (in.)
23.5 in
Depth With Door Open 90 Degrees (in.)
48.25 in
Dishwasher Size
24 In.
Height - Maximum (in)
35.06 in
Height - Minimum (in)
33.86 in
Product Depth (in.)
23.7 in
Product Height (in.)
33.86 in
Product Width (in.)
23.54 in


Amperage (A)
15 A
Appliance Category
Appliance Series
Bosch 800 Series
Appliance Type
Stainless Steel
Color/Finish Family
Stainless Steel
Single Drawer
Control Location
Top Control
Control Type
Custom Door Panel Ready
Decibel (Sound) Rating
42 dBA
Dishwasher Features
3rd Rack, Automatic Temperature Control, Cycle Status Lights, Fingerprint Resistant, Hidden Controls, Leak Sensor, Movable Tines, Sound Reduction System
Dishwasher Rack Configuration
1st Rack- Adjustable, 1st Rack- Fold Down Tines, 1st Rack- Removable, 1st Rack- Silverware Basket, 2nd Rack- Adjustable, 2nd Rack- Fold Down Tines, 2nd Rack- Removable, 3rd Rack- Removable
Dishwasher Wash Cycles
Auto, Delay Start, Delicate, Half Load, Pots and Pans, Quick Wash, Sanitize, Sensor Wash, Standard Wash
Dry Options
Heated Dry
Energy Consumption (kWh/year)
Energy Efficiency Tier Rating
Not CEE rated
Handle Type
Bar Handle
Hardware Color/Finish
Stainless Steel
Hardware Color/Finish Family
Stainless Steel
Hose Length (ft.)
6.56 ft
Number of Cycles
Number of Place Settings
Power Options
Product Weight (lb.)
96 lb
Rack Material
Remote Access
No Remote Access
Requires Hub?
No Hub Required
Silverware Basket Location
In Rack
Smart Home
Smart Home Enabled
Smart Home Protocol
Sound Rating Range (Decibels)
Steam Function
Without Steam
Tub Material
Stainless Steel Tub
Voice Control Hub Required
No Hub Required for Voice Control
Voltage (V)
120 V
Works With
Alexa, Alexa, Proprietary App

Warranty / Certifications

Certifications and Listings
CSA Listed, Energy Star, NSF Certified, UL Listed
Manufacturer Warranty
One-Year Limited Warranty

Questions & Answers

Q:Do I need an air gap
by|Apr 11, 2024
1 Answer
Answer This Question

A:  Hi Karen, thank you for your question. The SHP78CM5N does not require an air gap as part of it's installation. We would however advise you to please contact a professional installer to confirm if there are any local codes in your area that require such an installation accessory. Thank you and have a great day.

by|Apr 11, 2024
    Q:what is the Size of the Panel i need to order to fit this dishwasher
    by|Apr 4, 2024
    1 Answer
    Answer This Question

    A:  Thank you for your question. As custom panel units are intended to be able to match any unique kitchen cabinet setup, we do not specify a size. Requirements are that the panel be no thicker than 3/4", and weigh between 7 and 24lbs. Thank you!

    by|Apr 5, 2024
      Q:When measuring for a new dishwasher, do I measure the exterior door or the interior opening
      by|Mar 29, 2024
      1 Answer
      Answer This Question

      A:  Hi, thank you for your question. We encourage you to measure the cutout space that your current dishwasher occupies.

      by|Apr 1, 2024
        Q:I have the stainless steel version. The "Preventing material damage" section only recommends what NOT to use to clean the outside of the unit since it's anti-fingerprint. So what can I use to clean the outside? Thanks.
        by|Mar 27, 2024
        1 Answer
        Answer This Question

        A:  Hi Bartha, thank you for your question. To clean the exterior of your dishwasher, we recommend using a damp cloth to wipe the door seals. For stainless steel surfaces, use lukewarm water and mild soap with a soft cloth, wiping in the direction of the steel grain. If you need further assistance, please don't hesitate to reach out to our customer care team at 1-800-944-2904. Thank you for choosing Bosch.

        by|Mar 28, 2024
          Showing 1-4 of 138

          Customer Reviews

          4.6 out of 5

          • 4.6 out of 772 reviews
          • 91% recommend this product
          Filter by:
          Showing 1-10 of 772 reviews
          One day after delivery and installation, the dishwasher doesn't work
          We previously had a Bosh and wanted to stay with Bosh. I wish I hadn't; I was out of town when the dishwasher was installed the following day; my husband turned on the dishwasher, and an error code came up. I emailed my insurance when my husband told me. (the day after installation) they are the ones who ordered it, and it took them a few days to respond to my email. So I missed the one-day replacement. Now I have to get it repaired, not replaced. Since the New dishwasher has never worked Bosh/Home Depot should replace it.
          Response from BoschAppliancesUSAApr 11, 2024
          Hi SandraCM, we apologize this has been your experience, and we appreciate you bringing it to our attention. If service is needed, please click this link for authorized service in your area: https://bit.ly/3fACuUW. If you have additional questions, please call our Customer Support at 800-944-2904 for real-time assistance. We hope this information helps, and thank you for choosing Bosch. BoschAppliancesUSA
            • Recommended
            Amazing dishwasher!
            [This review was collected as part of a promotion.] We recently bought and installed the Bosch 800 series dishwasher to replace an older whirlpool model. When they claim this dishwasher is quiet, it's the real deal! We have an open floor plan and we can't even tell the dishwasher is running when we're sitting on our couch 20 feet away! The top controls are very nice and easy to use. The inside is amazing. A third rack for utensils saves space on the bottom. Lots of movable/collapsible racks for different sizes of dishes and cups. And this thing cleans well and FINALLY our dishes are dry at the end of a cycle. The app and wifi connection was easy to setup. Overall we're in love with the Bosch! We installed it ourselves, directions were super clear and easy to follow.
              • Recommended
              A beautiful but non-functional Bosch 800
              My new Bosch 800 was delivered Feb 24 and didn't work properly from day 1. Lower spray arm didn't rotate/spray water; won’t wash bread crumbs off plates on bottom rack. Going on 4th repair appt with no resolution. So, I continue to handwash dishes and look at my $1400 paperweight while techs damage my kitchen cabinets and floor. Consider another brand, as customer service refuses to honor their “Bosch Promise of Quality” and replace a lemon.
              Response from BoschAppliancesUSAApr 3, 2024
              Hi Mike, thank you for your review. We're sorry to hear about the trouble you've had with your dishwasher. Our team will happily continue to work with you to resolve this. If we may answer any further questions, connect with us at 800-944-2904 or BoschCare@BSHG.com. BoschAppliancesUSA
                2 found this review helpful
                Hopefully worth the extra money
                [This review was collected as part of a promotion.] This Bosch dishwasher is replacing a $800 5 year old whirlpool dishwasher. Lets hope this one will last much longer. So far so good. Works great. The Crystal Dry works amazingly well. No heating element and the dishes come out very hot to touch. As long as there is moisture in the unit it will keep producing heat. Hours later after dishes are put away it's still warm inside. Very neat technology. Love the third rack for silverware. No complaints so far.
                  Bosch dishwasher
                  [This review was collected as part of a promotion.] My new dishwasher cleans the dishes beautifully no matter what we put in it comes out clean and dry thanks to the Crystal Dry
                    • Recommended
                    BOSCH for life
                    [This review was collected as part of a promotion.] This is my third BOSCH diswasher and I could not be more pleased with this product. I love how quiet the 800 series is. Most importantly, this machine does an amazing job thoroughly cleaning our dishes. I never have to worry about additional scrubbing or a rewash cycle. When it comes to dishwashers I will only by BOSCH. 5 Stars - highly recommend!
                      • Recommended
                      Nice and quiet.... let's see how long will last
                      • Verified Purchase
                      4th Bosch for us
                      I'm glad we decided to step up a grade in buying this dishwasher. It cleans wonderfully and is so quiet you couldn't tell it was running if not for the red light. 3rd house and 4th Bosch. Best one ever!
                        • Recommended
                        Bosch 800 series Dishwasher
                        [This review was collected as part of a promotion.] I've had my new Bosch 800 series dishwasher for about a month. It is so quiet, if it didn't have the light, I would not know it is running! I'm still playing with how to load but so far, I can load more plates and large pasta bowls in the lower rack in an orderly way than my previous dishwasher (not a Bosch). I love the ability to increase the wash level in 4 separate areas of the lower rack. The middle rack hold my bowls (3 different sizes) in the most advantageous way both for spacing and getting clean without holding water at the end. I'm learning to really like the ability to set the cycle to start with the app so that it ends around same time I wake up. This allows me to immediately open the door so no odors from sitting all night App is easy to use and I didn't think I would use it!!
                          • Recommended
                          Bosch 800 Series
                          [This review was collected as part of a promotion.] Absolutely love this dishwasher. Innovative, quiet, sleek and stylish!
                            • Recommended
                            Showing 1-10 of 772 reviews

                            What We Offer



                            We offer move or haul away services, and installation on most appliances when you purchase required parts.
                            Installation Requirements

                            The Home Depot

                            Protection Plan

                            Get 24/7 support and our 3-day Service Guarantee
                            Plan Coverage and Details


                            Return Policy

                            You can return your appliance for damages and defects within 48 hours.
                            Return Policy

                            Price Match


                            We will match prices including shipping of any other online competitor.
                            Learn More

                            Delivery and Installation

                            Please ensure the following prior to delivery:

                            • New dishwasher connection kit
                            • Water supply line (shutoff) within 6 ft. of hook up
                            • Electrical outlet within 6 ft. of hook up
                            • The rough cabinet opening must be at least: 24" W X 24" D X 34–1/2" H
                            • Measure your rough cabinet opening
                            • Verify your existing electrical and water connections
                            • Empty and unplug your old dishwasher
