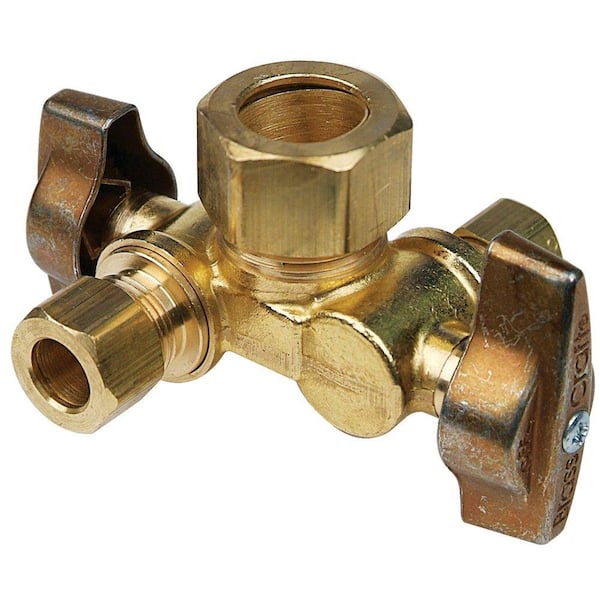

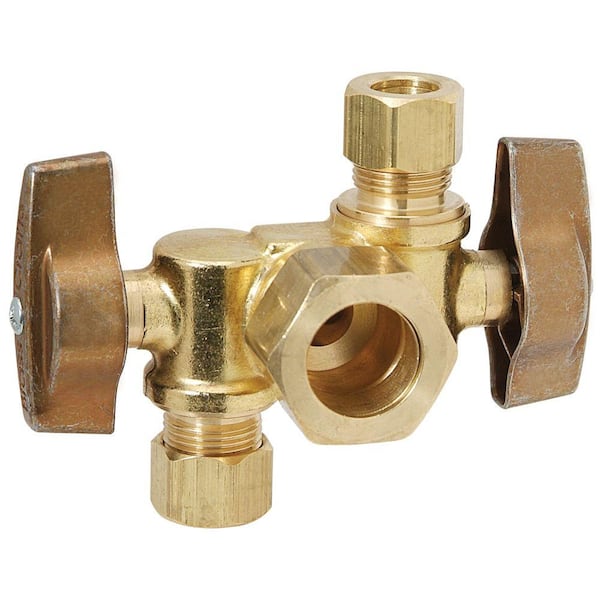

1/2 in. Nominal Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Dual Outlet Dual Shut-Off 1/4 in. Turn Angle Ball Valve

$3330
  • Angle ball valve compatible with copper and PEX
  • Smooth on/off flow control with a quarter-turn 90° handle
  • Brass ball ensures smooth operation without freeze-ups
  • View More Details
Store
0 in stock
Text to Me
How to Get It

Frequently Bought Together

+
+
Price:
$3330

Product Overview

BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 1/4 in. O.D. Compression Dual Outlet, Dual Shut-Off 1/4-Turn Angle Ball Valve controls water flow to household plumbing fixtures. The angle valve is most often used where the water pipe enters the room from the wall. The dual outlet allows 2 independent supply lines to be attached to a single valve. The dual shut-off allows you to turn off the water to one source while working on another. Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply. With a 90 turn of the valve handle, you are able to stop or start the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
  • Compatible with copper and PEX (PEX installations require a stainless steel tube insert)
  • Allows independent flow control to multiple appliances or fixtures
  • Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply
  • Smooth, quarter-turn operation, on/off flow control with a 90 turn of the handle
  • Machined body provides strength, durability and long-lasting performance
  • Brass ball ensures smooth operation without freeze-ups even after long periods without use
  • Rough brass
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Temperature rating: 40 degree F - 180 degree F
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
  • No-lead certified

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Shut-off Valves

1/2 in. Nominal Comp Inlet x 3/8 in. OD  Comp x 3/8 in. OD  Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve
current product
1/2 in. Nominal Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Dual Outlet Dual Shut-Off 1/4 in. Turn Angle Ball Valve
1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve
BrandBrassCraftBrassCraftBrassCraftBrassCraft
Name1/2 in. Nominal Comp Inlet x 3/8 in. OD Comp x 3/8 in. OD Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve1/2 in. Nominal Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Dual Outlet Dual Shut-Off 1/4 in. Turn Angle Ball Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve
Price
$2253
$2494
$3785
$4319
Ratings
(214)
(69)
(3)
(6)
ConnectionComp x Comp x CompComp x Comp x CompComp x Comp x CompComp x Comp x Comp
MaterialBrassBrassBrassBrass
Inlet Diameter (In.)1/21/21/21/2
Outlet Diameter (In.)1/23/83/83/8
Valve ConfigurationAngleAngleAngleAngle
Compatible Pipe MaterialCopperCopperCopperCopper
Inlet Fitting End TypeCompressionCompressionCompressionCompression
Outlet Fitting End TypeCompressionCompressionCompressionCompression
Maximum Working Temperature (F)140140180180
Indoor/OutdoorIndoorIndoorIndoor,OutdoorIndoor,Outdoor
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet 1 Diameter (In.)
3/8
Outlet 2 Diameter (In.)
1/4
Outlet Diameter (In.)
3/8
Product Depth (in.)
3.35 in
Product Height (in.)
1.55 in
Product Length (in.)
3.35 in
Product Width (in.)
2.30 in
Valve Inlet Diameter (in.)
5/8

Details

Application
Potable Water
Color/Finish
Rough Brass
Compatible Pipe Material
Copper
Compatible Product
Ice Maker,Refridgerator,Washing Machine
Connection
Comp x Comp x Comp
Features
Lead Free
Indoor/Outdoor
Indoor
Inlet Fitting End Type
Compression
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
0.414 lb
Returnable
90-Day
Stop Valve Type
Dual Outlet
Valve Configuration
Angle
Valve Connection
Compression
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty
