Internet # 202841974

Model # F403004

Store SKU # 1005775052

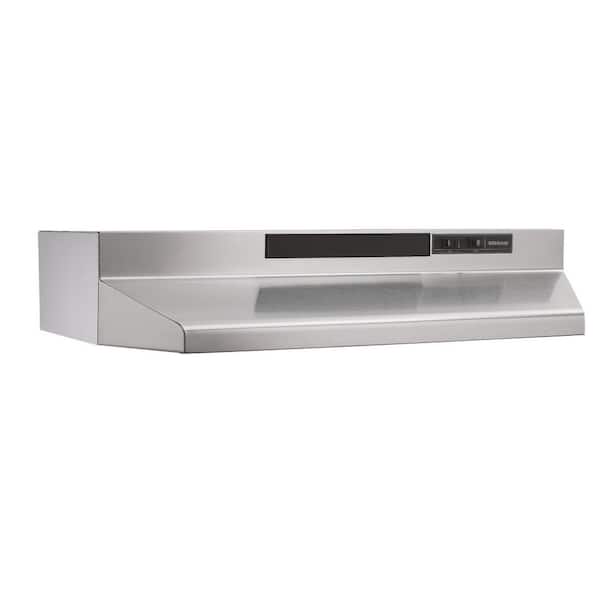

F40000 30 in. 230 Max Blower CFM Convertible Under-Cabinet Range Hood with Light in Stainless Steel

(1819)Questions & Answers (168)
$12900
Apply Now
Pay $104.00 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Broan-NuTone under-cabinet range hood with 230 MAX Blower CFM
  • 30 in. SS and brighten your cooktop with up to a 75 watt bulb
  • Convertible range hood for both ducted and ductless applications
  • View More Details
Store
0 in stock
caret

Product Details

The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood is equipped with a 230 MAX Blower CFM designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top, and control switches for fan speed and light activation
  • Provides installation flexibility with 4-way convertibility to fit virtually all applications
  • Simple to use rocker switches let you adjust the fan speed and the light setting separately
  • Two fan speeds help you tackle a variety of venting jobs
  • 230 MAX Blower CFM quickly removes smoke and cooking odors from the air
  • Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood
  • Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)
  • Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately)
  • Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation (7 in. damper sold separately)
  • Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning
  • One year limited warranty
  • UL listed and HVI 2100 certified
  • For any questions regarding product features, installation, or specifications, please call our Technical Services Dept. at 800-637-1453, Monday-Friday, 8:00 am to 7:00 pm EST
  • For any questions regarding product features, installation, or specifications, please call our Technical Services Dept. at 800-637-1453, Monday-Friday, 8:00 am - 7:00 pm EST.
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
caret

Specifications

Dimensions: H 6 in, W 29.875 in, D 17.5 in

Dimensions

Product Depth (in.)17.5 inProduct Height (in.)6 in
Product Width (in.)29.875 inRange Hood Size (Width)30 in.

Details

Amperage (A)2.5Appliance TypeRange Hood
Color/FinishStainless SteelColor/Finish FamilyStainless Steel
Commercial/ResidentialResidentialControl TypeRocker
Exhaust Vent LocationRear, TopFeaturesDishwasher Safe Metal Mesh Filter, Lighted, Removable Grease Filter(s)
Hardware Color/FinishBlackHardware Color/Finish FamilyBlack
IncludedFan, Filter(s), HardwareIndoor/OutdoorIndoor
Light TypeIncandescentMaximum Air Flow Capacity (CFM)230 CFM
Minimum Air Flow Capacity (CFM)160Mounting TypeUnder Cabinet
Noise Level (Sones)Standard (High)Number of Fan Speeds2
Number of Light Bulbs1Pack Size1
Product Weight (lb.)11.97 lbReturnable90-Day
Vent Install TypeConvertibleVent MaterialOther
Voltage (V)120 VWattage (W)75

Warranty / Certifications

Certifications and ListingsANSI Certified, UL ListedManufacturer WarrantyLimited 1 year
caret

Questions & Answers

168Questions
caret
Q:Does it vent out back and is the extension 3" high and 10" wide centered with hood
by|Aug 9, 2023
1 Answer
Answer This Question

A:  Hi Bobby, Thank you for your question on the F404223 range hood. The 3-1/4" x 10" knock out is either out the top or the back of the range hood. The dimensions can be found here: https://www.broan-nutone.com/en-us/product/rangehoods/f404223 and would be shown on a thumbnail picture along the side of the picture. The specification sheet is found under the Downloads tab on the product page. For further discussion, please contact our Product Support team directly at 888-336-6151.

by|Aug 11, 2023
    caret
    Q:Can this be used as non ducted ??
    by|Aug 1, 2023
    1 Answer
    Answer This Question

    A:  Hi Terry, Thank you for your question on model F404204. Yes, this is a convertible unit and can be installed as non-ducted.

    by|Aug 7, 2023
      caret
      Q:Are the difficult to install.
      by|Jul 20, 2023
      1 Answer
      Answer This Question

      A:  Hi Rosie, Thank you for your question on the F404211 range hood. The installation is relatively straightforward. Should you have any questions or need any help with the installation, please give our Product Expert team a call at 888-336-6151. We are here to help provide assistance with the installation and answer any questions you may have.

      by|Jul 21, 2023
        caret
        Q:I was told my old vent was 12x42. Will this work as a replacement?
        by|Jul 19, 2023
        1 Answer
        Answer This Question

        A:  Hi Cole, Thank you for your question on the model F404211 range hood. This hood is 42" wide, 6" high, and 17-1/2" deep. The top, flat part of the hood that mounts under the cabinet is 12".

        by|Jul 19, 2023
          Showing 1-4 of 168
          caret

          Customer Reviews

          4.5 out of 5
          (1,819)
          • 4.5
            out of 1,819 reviews
          • 92% recommend this product
          Filter by:
          Showing 1-10 of 1,819 reviews
          Apr 12, 2023
          Bulb type PLEASE?
          I'm an associate at Home Depot and a customer wanted to buy the bulb in addition to the fan but the spec sheet and the installation instructions DON"T say what type of bulb to get - yes, 75W but what kind of base? E26? GU24? We don't want to have to open the box in the store just to find this out... Put this on the info page please!
          by
            • Recommended
            Mar 8, 2023
            Was very easy to install and transformed my Kitchen....
            Was very easy to install and transformed my Kitchen.
            by
            • Verified Purchase
            Jun 30, 2022
            nice and new and grease-less! reasonably quite. clean!...
            nice and new and grease-less! reasonably quite. clean!
            by
            • Verified Purchase
            May 13, 2022
            Nothing exceptional about this item. Its function is adequate....
            Nothing exceptional about this item. Its function is adequate. A no frills item Easy to install.
            by
            • Verified Purchase
            Mar 28, 2022
            Very decent fan for the price
            Very decent fan for the price! I had a smiliar model but all in white, which has gotten dirty with time and I didn't want to spend too munch money on a new one! We're super happy with this! Updated the look at a cheap cost!
            by
            Response from VENMAR Technical ServicesJun 3, 2022
            Hello, we are extremely thrilled that you are super happy with your new range hood. We greatly appreciate your feed back.
            Thank you
            • Verified Purchase
            • Recommended
            Jul 19, 2021
            Easy to install and it was perfect for my space
            Easy to install and it was perfect for my space It also look great
            by
            • Verified Purchase
            • Recommended
            Mar 31, 2021
            Decent
            It's decent. Gets the job done. Motor went out after 5 months. Customer Service was fast in sending out a new motor covered under warranty.
            by
            • Verified Purchase
            Mar 6, 2021
            It blows air inward as well as outward. I had to stick a doct tape on the front of it just to ke...
            It blows air inward as well as outward. I had to stick a doct tape on the front of it just to keep the air from blowing inward.
            by
            Response from NuToneCustomerSupportMar 8, 2021
            Hi Moe, Thank you for your feedback on model F403004. We are sorry to hear you had to fabricate a solution, this unit should not recirculate air back into the kitchen. Please call our Technical Support Team at 800-637-1453 so that we can troubleshoot this issue with you.
            • Verified Purchase
            2 found this review helpful
            Jan 14, 2021
            Great fit...
            Great fit
            by
            • Verified Purchase
            1 found this review helpful
            Sep 5, 2020
            Great quality for price
            Really good hood for 100 dollars. It was relatively easy to put up but I recommend having someone around to help. I didn't find the fan to be too loud.
            by
              • Recommended
