Broan QTX Series Very Quiet 110 CFM Ceiling Exhaust Bath Fan with Light and Heater
0026715163892

Broan

QTX Series Very Quiet 110 CFM Ceiling Exhaust Bath Fan with Light and Heater

  • Offers a perfect combination of heat, lighting and ventilation
  • Provides ventilation up to 135 sq. ft.
  • Quiet motor delivers 0.9 sones and powerful air movement
$23689 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

Room Size
Sones Level
CFM
Duct Size
No Cut Installation
Housing Width
Housing Length
  • Offers a perfect combination of heat, lighting and ventilation
  • Provides ventilation up to 135 sq. ft.
  • Quiet motor delivers 0.9 sones and powerful air movement
Achieve total bathroom comfort with the rare combination of ventilation, power heating and versatile lighting. The Broan QTX Series Very Quiet 110 CFM Ceiling Exhaust Bath Fan with Light and Heater provides vigorous air movement quickly eliminating steam and moisture. With an ultra-quiet 0.9 sones of sound output, you will not even notice this bath fan is at work.
  • 110 CFM airflow reduces moisture to help prevent mildew
  • 0.9 sones sound rating for ultra-quiet operation
  • Fits 2 in. x 8 in. ceiling construction
  • Can be mounted in ceilings up to 12/12 pitch
  • Efficiently ventilates bathrooms up to 100 sq. ft. and other rooms up to 135 sq. ft.
  • Uses two 60W incandescent bulbs and a 7W incandescent night-light (bulbs not included)
  • 1500W heater with exclusive PowerHeat design for quiet, high-output performance
  • Fan, light and heater can be wired to operate together or independently
  • 6 in. duct connector with damper
  • White polymeric grille
  • UL listed and HVI-2100 Certified for safety
  • UL listed for use in insulated ceilings (Type I.C.)
  • Requires a dedicated 20 amp circuit (sold separately)
  • 3-year limited manufacturer warranty

Product Overview

  • Offers a perfect combination of heat, lighting and ventilation
  • Provides ventilation up to 135 sq. ft.
  • Quiet motor delivers 0.9 sones and powerful air movement
Model #: QTX110HL
Internet #: 202079310

Achieve total bathroom comfort with the rare combination of ventilation, power heating and versatile lighting. The Broan QTX Series Very Quiet 110 CFM Ceiling Exhaust Bath Fan with Light and Heater provides vigorous air movement quickly eliminating steam and moisture. With an ultra-quiet 0.9 sones of sound output, you will not even notice this bath fan is at work.

  • 110 CFM airflow reduces moisture to help prevent mildew
  • 0.9 sones sound rating for ultra-quiet operation
  • Fits 2 in. x 8 in. ceiling construction
  • Can be mounted in ceilings up to 12/12 pitch
  • Efficiently ventilates bathrooms up to 100 sq. ft. and other rooms up to 135 sq. ft.
  • Uses two 60W incandescent bulbs and a 7W incandescent night-light (bulbs not included)
  • 1500W heater with exclusive PowerHeat design for quiet, high-output performance
  • Fan, light and heater can be wired to operate together or independently
  • 6 in. duct connector with damper
  • White polymeric grille
  • UL listed and HVI-2100 Certified for safety
  • UL listed for use in insulated ceilings (Type I.C.)
  • Requires a dedicated 20 amp circuit (sold separately)
  • 3-year limited manufacturer warranty

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Customers Also Compared These

Price
$228.09 /each
$236.89 /each
$300.65 /each
$303.28 /each
Name WhisperWarm 110 CFM Ceiling Exhaust Bath Fan with Light and Heater QTX Series Very Quiet 110 CFM Ceiling Exhaust Bath Fan with Light and Heater QTXN Series Very Quiet 110 CFM Ceiling Exhaust Fan with Heater, Light Nightlight QTX Series Very Quiet 110 CFM Ceiling Exhaust Fan with Incandescent Light and Heater
Brand Panasonic Broan NuTone
Ratings (160) (41) (31) (42)
Housing Length (in.) 16 17.625 17.625 17.625
Maximum Room Size (sq. ft.) 110 100 100 100
Housing Width (in.) 11.25 11.375 11.325 11.375
Fan Sound Level (Sones) 0.7 0.9 0.9 0.9
Features Heater,Light,Nightlight Heater,Light,Nightlight Heater,Light,Nightlight Heater,Light,Nightlight
Air Volume (CFM) 110 110 110 110
View Product View Product View Product View Product

Specifications

Dimensions

Housing Length (in.)
17.625
Housing Width (in.)
11.375
Maximum Room Size (sq. ft.)
100
Product Height (in.)
8.625
Product Length (in.)
20
Product Width (in.)
23

Details

Air Volume (CFM)
110
Amperage (amps)
14.6
Area Heated (Sq. Ft.)
0
Color Family
White
Duct Compatible Sizes
6 in
Fan Sound Level (Sones)
0.9
Features
Heater,Light,Nightlight
Grill Shape
Rectangle
Housing Material
Galvanized Steel
Included
No Additional Items Included
Installation Type
Ceiling
Light Bulb Base Code
E26
Light Bulb Type Allowed
Incandescent
Light Bulb Type Included
No Bulbs Included
Maximum Light Bulb Wattage (watts)
60
Mount Type
Recessed
Number of Bulbs Required
3
Product Weight (lb.)
24lb
Returnable
90-Day

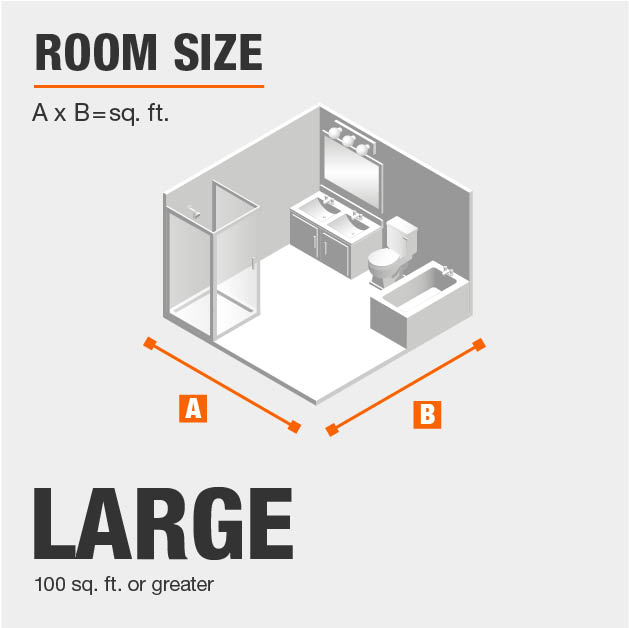

Room Size
Large Room Fan
Voltage (volts)
120
Wattage (watts)
120

Warranty / Certifications

Certifications and Listings
1-UL Listed,HVI Certified
Manufacturer Warranty
Limited 3 year

Specifications

Dimensions

Housing Length (in.)
17.625
Housing Width (in.)
11.375
Maximum Room Size (sq. ft.)
100
Product Height (in.)
8.625
Product Length (in.)
20
Product Width (in.)
23

Details

Air Volume (CFM)
110
Amperage (amps)
14.6
Area Heated (Sq. Ft.)
0
Color Family
White
Duct Compatible Sizes
6 in
Fan Sound Level (Sones)
0.9
Features
Heater,Light,Nightlight
Grill Shape
Rectangle
Housing Material
Galvanized Steel
Included
No Additional Items Included
Installation Type
Ceiling
Light Bulb Base Code
E26
Light Bulb Type Allowed
Incandescent
Light Bulb Type Included
No Bulbs Included
Maximum Light Bulb Wattage (watts)
60
Mount Type
Recessed
Number of Bulbs Required
3
Product Weight (lb.)
24lb
Returnable
90-Day
Room Size
Large Room Fan
Voltage (volts)
120
Wattage (watts)
120

Warranty / Certifications

Certifications and Listings
1-UL Listed,HVI Certified
Manufacturer Warranty
Limited 3 year

Questions & Answers

can i use a compact fl light buld in place of incandescent bulb

Asked by: jcka
Yes. Incandescent, CFL or LED will work fine.
Answered by: chasbhol
Date published: 2016-12-27

How do I arrange installation

Hi! I didn't see an 'request installation' button or similar on the purchase item page, do I get this option when I check out? I want to buy a sealing fan/light/heater for my bathroom, but would need it installed. I also would like to purchase a light for my front porch but would need it installed. It would be great to have both done at the same time. Also, I don't want to call and then not have all the needed parts - do you offer a more full service response? Thanks!
Asked by: Kathanas
I had a qualified electrician install that I know, but any local electrical contract will be able to install.
Answered by: Frankly
Date published: 2017-05-09

How do you change light bulbs? I pulled it down but light is encased in metal. Do you pry plastic...

How do you change light bulbs? I pulled it down but light is encased in metal. Do you pry plastic off? I have an older similar model
Asked by: nutmeg
You have to pop the center shield off gently. Both bulbs will be exposed for changing. No need to pull the fixture down.
Answered by: George
Date published: 2017-05-16

Can i get a replacement cover for this bath fan? The fan itself still works fine but the cover f...

Can i get a replacement cover for this bath fan? The fan itself still works fine but the cover fell off and cracked. Would just like to replace the cover
Asked by: Mary
Hi Mary, I believe it would be best to reach out to the manufacturer, Broan for assistance. I have linked their website below with their contact information page so that you may receive the best details from their specialists. Hope this helps! We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot! http://www.broan.com/customer-technical-service-support
Answered by: THDSupport
Date published: 2017-01-24
