Cabinet Hardware Jig for Installation of Handles and Knobs on Doors and Drawer Fronts

$249.00
Apply Now
Pay $224.00 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Reversible design enables quick drilling with precise results
  • Aircraft-grade aluminum jig with steel bushings for durability
  • Patented tool helps eliminate drilling errors
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret
Product Details
  • Reversible design enables quick drilling with precise results
  • Aircraft-grade aluminum jig with steel bushings for durability
  • Patented tool helps eliminate drilling errors
About This Product

Install cabinet hardware with confidence! For professional installation of handles and knobs on cabinet doors and drawer fronts. An invaluable tool for any cabinet installer or DIY'er. Simply slide aluminum guides and stop along imperial and metric ruler, tighten thumb screws and drill. Reversible design allows for minimal setup and quick drilling with perfect symmetry every time. Patented design utilizes the highest quality materials to ensure repetitive accuracy and durability. All bushings include a free lifetime warranty. Installs handles up to 12 in. CC. For larger handles, optional extension set allows for handles up to 38 in. CC and also on-site shelf pin holes (Item TP-2312 or TP1935). Includes standard 5 mm drill bit (approximate 3/16 in.). Durable light-weight aluminum with case hardened steel bushings. Patented design helps prevent drill errors. Includes blow molded carrying case with stainless steel clasps.

  • Fastest and most accurate hardware tool on the market; easily saves 70% with installation time
  • Saves wasted time making wood templates
  • Durable aircraft quality aluminum
  • Replaceable 5 mm case hardened steel bushings have a lifetime warranty
  • No need to mark or clamp; just align, hold, and drill
  • Reversible for speedy drilling
  • Return Policy
Product ID #: 305895797Internet #: 860102002414Model #: TP-1934

Additional Resources

From the Manufacturer
caret

Specifications

Dimensions: H 2 in, W 12.25 in, D 12.25 in

Dimensions

Product Depth (in.)12.25 inProduct Height (in.)2 in
Product Width (in.)12.25 in

Details

Builders Hardware Product TypeInstallation TemplateFinishAnodized Aluminum
Hardware Color FamilyBlackHardware Finish FamilyNo Finish
MaterialAluminumPackage Quantity1
Returnable90-DayTemplate TypeKnob, Pull

Warranty / Certifications

Manufacturer WarrantyOne Year Limited Warranty
caret

Questions & Answers

5Questions
caret
Q:Is this only for shaker style drawers
by|Mar 6, 2022
4 Answers
Answer This Question

A:  No, I used it for my cabinet doors and drawers that are not shaker. Mine have a beveled edge and it still worked. I also bought the extension, because I have long doors and pantry doors.

by|Mar 7, 2022

    A:  It will work on all cabinet doors and drawers. Very precise.

    by|Mar 19, 2023

      A:  This jig works on all door styles. I am a remodeling contractor and have found this tool to be accurate and very helpful in speeding up the process of installing cabinet hardware

      by|Mar 7, 2022

        A:  No, the newer models work on shaker style drawers, but both old and new work on slab and raised panel drawers.

        by|Mar 7, 2022
          caret
          Q:Should I remove the cabinet door?
          by|Oct 29, 2021
          3 Answers
          Answer This Question

          A:  I did it both ways. It is easier drilling if you take the door off, but mark all your doors before taking them down, it is easy to put the handle in the wrong place.

          by|Mar 7, 2022

            A:  Thank you for your recent inquiry with The Home Depot regarding installation of cabinet hardware. It is person preference. I do recommend making a template as all door/srawers will be uniform using a template. We appreciate your business and look forward to serving you in the future.

            by|Aug 25, 2022

              A:  No, it is not necessary to remove the door, no professionals install hardware this way. It is much faster to place the jig on the door, hold and drill. Drill all doors with them slightly ajar, this way you avoid drilling the wrong side.

              by|Aug 25, 2022
                caret
                Q:What size drill bit does this work for and come with? Most hardware screws are 8/32
                by|Apr 19, 2021
                1 Answer
                Answer This Question

                A:  Drill bit size that is included in the original kit is 5mm or 3/16

                by|Aug 13, 2021
                  caret

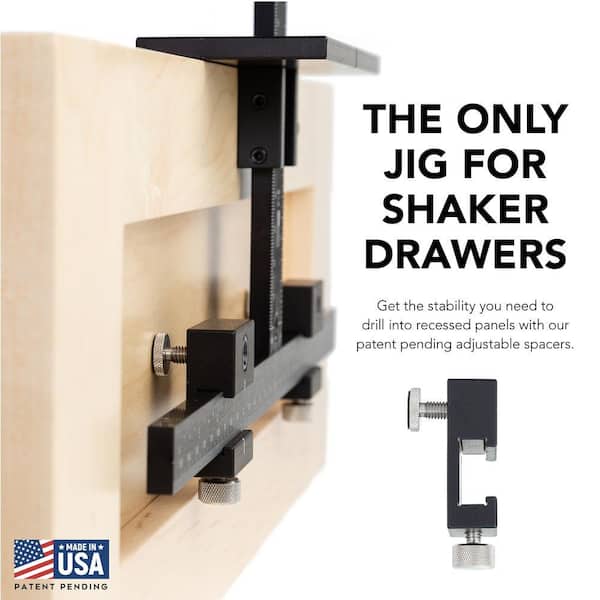

                  Q:We need to install pulls on the RECESSED part of a shaker drawer. Does this tool assembly allow for the guide to stay flat on cabinet edge and the neck of the tool to "go over" the cabinet rail and and allow drill slide guides to become flush against the recessed panel?
                  by|Nov 5, 2020
                  2 Answers
                  Answer This Question

                  A:  Yes this jig is the only one that has recessed drawer front spacers, they are threaded rubber heads the adjust to the depth of the recess for stability when drilling out shaker drawer fronts.

                  by|Aug 25, 2022

                    A:  Yes was shipped on time. Best tool for doing cabinet hardware. Yes you can use the cheap plastic one but if you do hardware often this is a must have.

                    by|Apr 19, 2022
                    Showing 1-4 of 5
                    caret

                    Customer Reviews

                    4.8 out of 5
                    • 4.8 out of 37 reviews
                    • 86% recommend this product
                    Filter by:
                    Showing 1-10 of 37 reviews
                    Nice tolls!
                    The best tools to install the hardware handle its took me 2 hours to install the whole kitchen
                    by
                      • Recommended
                      2 found this review helpful
                      Absolute life saver! I order this after my wife had ordered a cheap 25$ blue plastic template th...
                      Absolute life saver! I order this after my wife had ordered a cheap 25$ blue plastic template that didn't fit our handle layout of roughly 6 inches and also lacked an end stop for doors. We had a lot of cabinets in our kitchen, and with this jig I was able to drill out all of them in under 30 minutes. The last kitchen I did had less handles and took 4 hours to install by hand. What I noticed with this jig instantly was the build quality and adjustability, you just dont see alot of tools like this these days. It took a stressful task and made it a joyful one. If you are on the fence, get it! You'll thank me later :)
                      by
                        • Recommended
                        6 found this review helpful
                        $250 for a tool you can get for $15
                        This is hilarious. Please do not buy this. You buy the same concept tool for $15 online.
                        by
                          by
                          • Verified Purchase
                          by
                          • Verified Purchase
                          by
                          • Verified Purchase
                          Worked perfectly, not sure about the price. I...
                          Worked perfectly, not sure about the price. I guess it was worth it.
                          by
                          • Verified Purchase
                          If you install 3 kitchens it pays for itself in...
                          If you install 3 kitchens it pays for itself in time. Remember to drill just through and finish from the inside of the drawer. Super easy to use. This tool is the first and only
                          by
                          • Verified Purchase
                          1 found this review helpful
                          by
                          • Verified Purchase
                          This tool made it easy to create consistantly accurate holes...
                          This tool made it easy to create consistantly accurate holes for hardware
