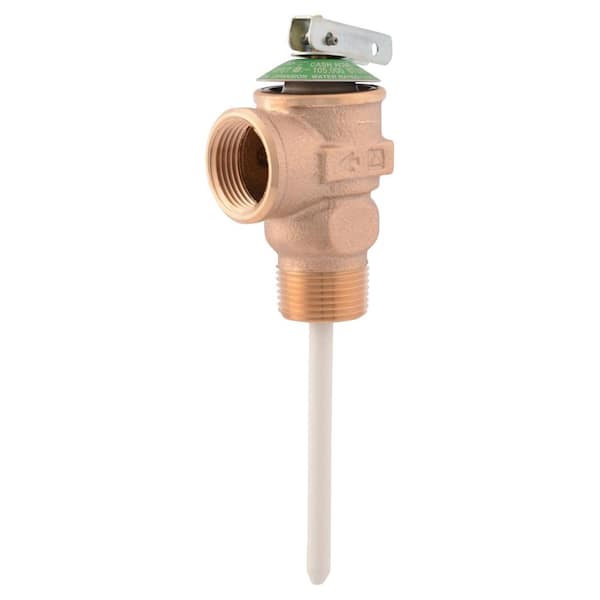

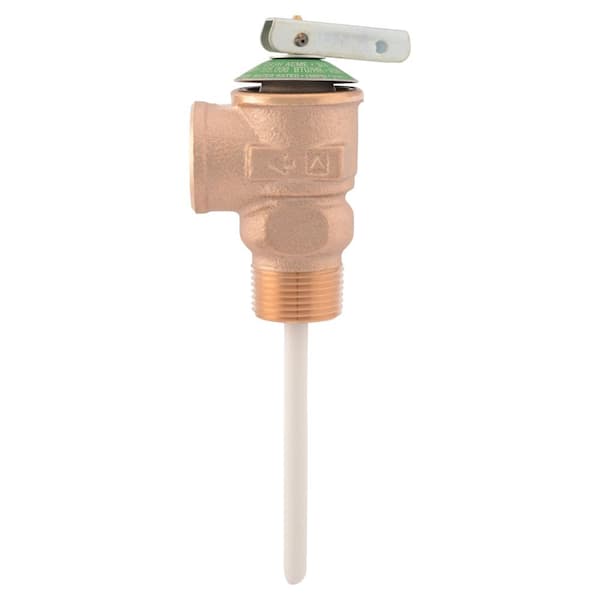

3/4 in. Bronze NCLX Temperature and Pressure Relief Valve with 1-1/4 in. Shank MNPT Inlet x FNPT Outlet

  • Designed to protect hot water heaters and storage tanks
  • Provides effective isolation from mineral deposits and corrosion
  • Lead free DZR brass construction for durability and reliability
  • See More Details

Frequently Bought Together

+
+
Price:
$1422

Product Overview

The Cash Acme NCLX-5 Temperature and Pressure relief valve is designed for protection of Hot Water Heater and Storage tanks. The NCLX-5 incorporates an inert thermal element coating that provides effective isolation from mineral deposits (liming). Cast bronze body with male inlet and female outlet, brass and stainless steel internal parts, silicone seat disc and stainless steel spring. Test lever standard. Temperature relief setting is 210°F (99°C).
  • Provides effective isolation from mineral deposits and galvanic corrosion
  • Completely automatic and reseats after temperature or pressure relief
  • Listed by CSA and ASME
  • Every valve is tested for performance prior to shipping
  • Factory set at 150 PSI
  • Maximum temperature of 210°F
  • Shank length of 1.1876 in.
  • Male inlet and female outlet
  • 4 in. element
  • Forged brass body
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
1.38
Product Height (in.)
6
Product Width (in.)
2

Details

Finish Family
Bronze/Copper Metallic
Material
Bronze
Number in Package
1
Pack Size
1
Product Type
Temperature and Pressures Valve
Product Weight (lb.)
0.5
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242

Questions & Answers

30Questions20Answers

Is this a cash acme 3/4 nclx-5 ser 7?

Asked by Paco January 9, 2021
1
Answer

Hello, The Cash Acme 3/4 in. Bronze NCLX Temperature and Pressure Relief Valve with 1-1/4 in. Shank MNPT Inlet x FNPT Outlet is a (-5). You can't tell from the picture if it is a series 7 because the data plate is not accessible. If you have any more questions you can contact tech support at 877-700-4242. Kind regards,

Part number is incorrect in description. This is the "-A" version and NOT the "-5LX"

Asked by JCooper January 1, 2021
1
Answer

Hello, Thank you for bringing this to our attention. We will make the necessary corrections. If you have any more questions you can contact tech support at 877-700-4242. Kind regards,

need help to purchase the right valve ,ge smart water 2005,model #GE30S0.6AAG serialGE 0605B42318

Asked by Dale September 28, 2020
1
Answer

Hello, Unfortunately, we are not familiar with the specifics of this particular water heater. Cash Acme model # 23576-0150 is set at 150 psi and 210°F with a CSA BTU/hr rating of 105,000 and an ASME BTU/hr rating of 500,000. It will be necessary to contact the water heater's manufacturer to make sure the BTU/hr rating, set pressure, set temperature and size of this valve is adequate for your particular water heater. A spec sheet with dimensions for this valve can be found in the link below. If you have additional questions please don't hesitate to reach out to our technical support department at 877-700-4242. https://www.cashacme.com/wp-content/uploads/2014/08/NCLX_Spec.pdf Best Regards,

See a likely typo in the description (attached image.) I assume this is a cast bronze and not cas...

Asked by homerDIYerSRP September 13, 2020
4
Answers

looks like it's fixed?

Will this replace a NCLX-5S

Asked by Don June 9, 2020
2
Answers

Hello, The Cash Acme NCLX-5 and NCLX-5S T&P valves have the same CSA (105,000 BTU/hr) and ASME (500,000 BTU/hr) ratings so their capacities are the same. Recognized authorities specify that a temperature actuated relief valve be installed in such a manner that the temperature sensing element is in contact with the hot water in the top six inches of the water heater. The NCLX-5S has a slightly longer shank and a slightly shorter element so we recommend contacting the water heater manufacturer to see if this valve's element will sit in the top six inches of water in your particular model of water heater. If you have additional questions regarding Cash Acme products please feel free to contact our technical support department at 877-700-4242. Best Regards,

Will this replace the valve for my Atwood RV ?

Asked by Joe January 24, 2020
2
Answers

It replaced the one on my grey wolf made by Forest River RV. It took under an hour to install

What is the BTU rating for this valve?

Asked by Bo December 18, 2019
4
Answers

I installed it in about 15 min. Worked great.

This is the NCLX-5 but will it work for the 5s?

Asked by Hmm November 11, 2019
1
Answer

Hello, The Cash Acme NCLX-5 and NCLX-5S T&P valves have the same CSA (105,000 BTU/hr) and ASME (500,000 BTU/hr) ratings so their capacities are the same. Recognized authorities specify that a temperature actuated relief valve be installed in such a manner that the temperature sensing element is in contact with the hot water in the top six inches of the water heater. The NCLX-5S has a slightly longer shank and a slightly shorter element so we recommend contacting the water heater manufacturer to see if this valve's element will sit in the top six inches of water in your particular model of water heater. If you have additional questions regarding Cash Acme products please feel free to contact our technical support department at 877-700-4242. Best Regards,

I need to know which pressure relief valve I need for my water heater. My water heater is a Rheem...

Asked by help October 24, 2019
3
Answers

The relief valve should have a ring at the base with the specifications. It never hurts to check the owner's manual for the water heater, available by going on line for the manufacture.

If my original t&p is 1-1/2” will a 2”” work

Asked by Snoopy June 23, 2019
1
Answer

Hello, It is very important that you use a T&P valve that is suitable for your particular model of water heater. Your water heater will call for a T&P relief valve with a specific pressure, relieving capacity and temperature rating. We recommend contacting the manufacturer of the water heater to see what they recommend for your particular unit. If you have additional questions regarding Cash Acme products please feel free to contact our technical support department at 877-700-4242. Regards

3/4 in. Bronze NCLX Temperature and Pressure Relief Valve with 1-1/4 in. Shank MNPT Inlet x FNPT Outlet - page 2

Customer Reviews

  • 4.7
    out of 511 reviews
  • 96% recommend this product
5star-icon392
4star-icon90
3star-icon10
2star-icon4
1star-icon15
Filter by:
Showing 1-10 of 511 reviews
Very easy to install...
Very easy to install
by HomeDepotCustomer
I bought the item today. Just installed one hour ago. I feel so disappointed it is leaking.
I bought the item today. Just installed one hour ago. I feel so disappointed it is leaking.
by Jeff
Response from RWC SupportNov 26, 2019
Hi, Jeff. We are sorry to hear that you are experiencing a leak with the Cash Acme NCLX. In order to help, we need to know where it is leaking. We would be happy to continue to troubleshoot with you and help provide a solution. We encourage you to reach out to our Customer Service Team at 1-877-700-4242 so we can assist further. SharkBiteCashAcme
1 person found this helpful
Swapped a bad pressure relief valve on my water heater and this part seems to be good quality. Ea...
Swapped a bad pressure relief valve on my water heater and this part seems to be good quality. Easy to work with.
by Tony562
Easy to install. Stopped the dripping.
Easy to install. Stopped the dripping.
by KJ
Installed on the water heater and started leaking May 5th 2017. This life expectancy is a lot lo...
Installed on the water heater and started leaking May 5th 2017. This life expectancy is a lot longer than less than 3 months.
by Leaking
Response from SharkBite SupportMay 11, 2017
We apologize for the issue you experienced with your Cash Acem valve. If you are still having trouble or have the fitting that was leaking, please call our customer service line at 1-877-700-4242 and we will be happy to help you with this issue and try to resolve it for you. SharkBiteCashAcme
easy retrofit, buy yourself a good wrench for install, its worth it.
simple install as long as you are aware what you need to do to drain the tank to the pressure relief level. Depending on your install and drainage, you might get some practice working on your PVC skills as well. A few install videos on the web were great to make this an easy install.
by BillT
2 people found this helpful
Reliable
The pressure relief valve has a long life and works according to manufacturer specifications.
by uluzul
2 people found this helpful
Hot Water Heater Pressure Relief Valve
The price was a little for this product, I thought.
by Sman
Worked great. Easy installation, would recommend....
Worked great. Easy installation, would recommend.
by Jimmyoaks
Item worked exactly as expected to replace faulty valve and...
Item worked exactly as expected to replace faulty valve and is still working as expected several months later.
by Tim
