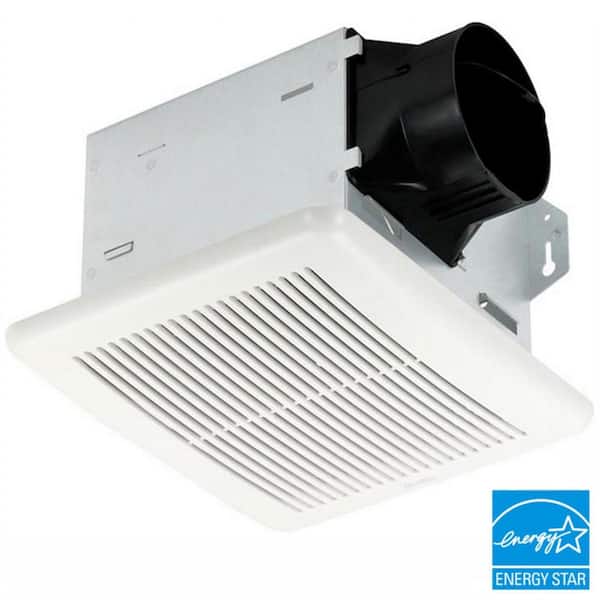

Integrity Series 100 CFM Wall or Ceiling Bathroom Exhaust Fan, Energy Star

$4810
Apply Now
Pay $23.10 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Produces up to 100 CFM airflow and offers ventilation
  • Brushless DC motor ensures smooth and quiet operation
  • Suitable for installing in walls or ceiling
Store
0 in stock
Text to Me
caret

Product Details

Upgrade your bathroom fan with this Delta Breez Integrity Series 100 CFM Wall or Ceiling Bathroom Exhaust Fan. The Energy Star brushless DC motor is engineered to run up to 70,000 hours. With an Airflow rating of 100 CFM and loudness rating of 1.5 sones at 0.1 static pressure, this fan has great performance without being too loud. This unit only uses 17W of energy, so it's an energy-conscious choice for your bathroom project. With features like motor lock protection and a self-compensating motor speed, this fan is a great choice near your tub or shower.
  • Energy Star qualified with innovative brushless DC motor technology and an efficiency rating of 7.6 CFM/W
  • Annual energy cost for 24/7 operation approximately $17.88
  • Brushless DC motor engineered to outlast traditional AC motor fans by 2-1/2 times
  • Motor equipped with thermal cutoff fuse that automatically powers OFF when impeller is locked abnormally for safety
  • Self-compensating motor speed for intended air flow when static pressure is encountered
  • Ceiling mount ventilating fan rated for continuous running
  • Compact housing for easy retrofit and replacement of older bath fans
  • Quiet operation at 1.5 sones or less
  • Power rating of 120 V/60Hz; low power consumption at 17W
  • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring; UL approved for ceiling and wall mount installation
  • Green and amber LED indicator lights show when continuous low speed operation and full speed modes are active respectively
  • Includes one detachable 4 in. duct adapter
  • Click here to learn more about Eco Options and Energy Efficiency
  • Click here to learn more about Eco Options and Energy Efficiency
  • Return Policy

Additional Resources

From the Manufacturer

DIY Projects & Ideas

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.
caret

Specifications

caret

Questions & Answers

118Questions
caret
Q:How quiet is this fan?
by|Jan 22, 2023
0 Answer
Answer This Question
caret
Q:Can fan be mounted in the wall
by|Jan 16, 2023
0 Answer
Answer This Question
caret
Q:My light started flickering after 5 months. I saw one of the other answers. You can't replace just the light. Do I have to throw out and buy a whole new unit?
by|Jan 16, 2023
0 Answer
Answer This Question
caret
Q:I have Integrity Series 80 CFM Fan with Adjustable Humidity Sensor. Can both humidity sensor and fan be wired to the same switch? Will I leave the switch on and let it turn on/off automatically then? Is there a way to force it to be on in this setup?
by|Jan 3, 2023
1 Answer
Answer This Question

A:  No, you need two circuits for the humidity sensor to work.

by|Jan 3, 2023
    Showing 1-4 of 118
    caret

    Customer Reviews

    4.5 out of 5
    (453)
    • 4.5
      out of 453 reviews
    • 84%recommend this product
    Filter by:
    Showing 1-10 of 453 reviews
    I replaced a 25yr old bathroom fan for this one. I can tell you it is super quite! Also, does it ...
    I replaced a 25yr old bathroom fan for this one. I can tell you it is super quite! Also, does it move it air! The final test was taking a long hot shower after the install and the mirror didn’t have a single bit of fog! Install was simple and I love that it saves on energy, compared to the old one. If you’re thinking about a new bath fan... get this one. (Go 80cfm or more)
    by
      • Recommended
      4 found this review helpful
      Was delivered pretty quick. Fairly easy to install. I had to access the attic to install but it...
      Was delivered pretty quick. Fairly easy to install. I had to access the attic to install but it was pretty straight forward. I like how quiet it operates. Sound was one of my biggest factors when buying and this unit did not disappoint. The additional light in the bathroom near the shower is a plus as well. I would definitely recommend this to anyone lookin for a quiet bathroom fan.
      by
      • Verified Purchase
      • Recommended
      2 found this review helpful
      Good fan at very reasonable price. Very quiet...though it...
      Good fan at very reasonable price. Very quiet...though it does take a second or two to spin up. I replaced two builder's grade units in my bathroom--one above the shower and one in toilet closet. Measured it with a sound app on my iPhone at only 47 decibels.
      by
      • Verified Purchase
      4 found this review helpful
      8x8 bathroom and 80 CFM should be plenty for 64 square feet. I see very little to no difference ...
      8x8 bathroom and 80 CFM should be plenty for 64 square feet. I see very little to no difference from the contractor grade 50 CFM I replaced. I will likely return it.
      by
      Response from THD-CSSep 29, 2020
      Dear Valued Home Depot Customer,Thank you Tommy, we appreciate you taking the time to share. We're sorry to hear that you're not satisfied with your purchase. We want to ensure the best possible experience with your purchase, and we would love for you to reach out to us directly so that we can have the opportunity to assist you further. Please, contact us at 1+(888) 979-9889.
      • Verified Purchase
      2 found this review helpful
      The construction and durability of the fan is very good. Even the plastic parts seem adequately ...
      The construction and durability of the fan is very good. Even the plastic parts seem adequately sturdy. The hardest part of the installation was connecting the fan to a new exhaust duct. Prior homeowners had no exhaust duct work, so I had to buy new duct work and extensions and a cap so that the bathroom vent could direct the air upward and outward instead of just blowing into the attic and insulation. After pre-assembly of the duct work (which took quite a bit of time), attachment to the fan was relatively quick and easy using Nashua foil tape. Attachment of the wiring was a little hard, trying to hold the fan body unit up while trying to connect the wires but I eventually overcame and completed the task. It was noted that there were no wire connectors provided. Thankfully, I already had some in my home tackle. I drilled three hole into the joist and connected the fan body to the joist with long screws (also not provided but I had some good wood screws that did the trick). The inner electrical connection was easy via a provided plug-in. The light kit was equally easy with a wired plug-in and spring-wired connectors for the lighting fixture itself, enabling easy push up and into place to complete the project. I love this fan because: 1. The fan does a great job of drawing steam and odors out of the bathroom with very little sound. The sones on this unit are very low. 2. The light is bright and awesome. It really helps brighten the bathroom allowing folks in the shower to see better. I wholeheartedly recommend this fan.
      by
      • Verified Purchase
      • Recommended
      10 found this review helpful
      Smart Exhaust Fan
      I'm a weekend diy kind of guy. Our old fan wasn't exhausting the moisture anymore so I picked up one of these. Key points Same footprint as my older fan unit (hole size) Doesn't sound like a broken electric fan Mostly quiet, has a slight humming at 1.0 sone. Bluetooth speaker Took about 1hr to install. The install was easy. Watch the Delta install video and reused the wood screws from the old fan. Took a bit of time to maneuver the unit in the hole. The exhaust vent works really well. Before the mirror would be 100% fogged up during winter season. Now I only get the very top corner. I'm extremely happy with this purchase, I purchased another one for the second bathroom. Best part, I 3D printed a Google Home Mini mount and replaced the small Bluetooth speaker.
      by
        • Recommended
        5 found this review helpful
        Easy to setup. I replaced an old NuTone circular housing fan with this fan. Most of my work in pa...
        Easy to setup. I replaced an old NuTone circular housing fan with this fan. Most of my work in patching the big circular hole in the ceiling since most of the new exhaust fans come in square/rectangle housing. Only challenge is that you have to use a small length screw driver, about 7 inches in length (width of the housing) while driving the housing screws into the wood. Such less room within the housing makes driving the screw a bit of a task. I presume this would be challenge with driving screws with any housing if mounting from the sides. There is no need to have access to the attic for side installation. Alternatively an angled drill machine should be helpful.
        by
        • Verified Purchase
        • Recommended
        2 found this review helpful
        Works great! Fan is super quiet and Bluetooth speaker plays music very clearly. No problems with ...
        Works great! Fan is super quiet and Bluetooth speaker plays music very clearly. No problems with installation.
        by
        • Verified Purchase
        • Recommended
        1 found this review helpful
        This bath fan replaced our old fan that stopped working in our master bath. I figured if I had to...
        This bath fan replaced our old fan that stopped working in our master bath. I figured if I had to be pulling things out of my ceiling, then I wanted an upgrade, so went with one that is more quiet and has a speaker. So far this works great. It keeps mirrors clear and humidity off our walls during showers. It is quieter than our previous fan, which had the same CFM rating. It is quiet, but loud enough that you can tell when it is on and also has a small and inconspicuous blue light to let you know the speaker is active. The speaker is loud enough to hear music while I am drying my hair or showering, but the fan doesn't take up larger space than our standard small hole because of the fan. I am happy with the overall purchase. The only reason I give it 4 instead of 5 stars is that I feel like the price tag for this fan (and bath fans in general) is a little high.
        by
        • Verified Purchase
        • Recommended
        1 found this review helpful
        I receiver the DELTA BREEZ 100 CFM INTEGRITY BATHROOM EXHAUST FAN WITH EDGE-LIT DIMMABLE LED LIGH...
        I receiver the DELTA BREEZ 100 CFM INTEGRITY BATHROOM EXHAUST FAN WITH EDGE-LIT DIMMABLE LED LIGHT, WHITE. I had the fan put in by a contractor, I usually do my own work but have a knee problem. The fan was easy to install it took the man about 1 1/2 hours to do it. The results are great, I can not believe how quiet the fan is and still move a lot of air. The light is brighter than the old two bulb light, but not glaring. I'm very happy with the light/fan.
        by
        • Recommended
        9 found this review helpful
        Showing 1-10 of 453 reviews

        Frequently Bought Together

        ++
        Price:
        $4810

        Compare Similar Bath Fans

        current product
        Integrity Series 100 CFM Wall or Ceiling Bathroom Exhaust Fan, Energy Star
        Slim Series 50 CFM Wall or Ceiling Bathroom Exhaust Fan, Energy StarFlex Series 110 CFM Ceiling Roomside Installation Bathroom Exhaust FanGreenBuilder Series 80 CFM Wall or Ceiling Bathroom Exhaust Fan, Energy Star
        BrandDelta BreezDelta BreezBroan-NuToneDelta Breez
        NameIntegrity Series 100 CFM Wall or Ceiling Bathroom Exhaust Fan, Energy StarSlim Series 50 CFM Wall or Ceiling Bathroom Exhaust Fan, Energy StarFlex Series 110 CFM Ceiling Roomside Installation Bathroom Exhaust FanGreenBuilder Series 80 CFM Wall or Ceiling Bathroom Exhaust Fan, Energy Star
        Price
        $4810
        $5557
        $7301
        $8508
        Ratings
        (450)
        (749)
        (76)
        (941)
        Air Volume (CFM)1005011080
        Fan Sound Level (Sones)1.51.03.00.8
        Housing Width (in.)7.257.5108
        Housing Length (in.)7.57.259.258.25
        Maximum Room Size (sq. ft.)1005010080
        FeaturesNo Additional FeaturesNo Additional FeaturesRoomside InstallationNo Additional Features
        Installation TypeCeiling,WallCeiling,WallCeiling,WallCeiling,Wall
        Grill ShapeSquareSquareRectangleSquare
        Mount TypeFlush Mount,Semi-Flush MountFlush Mount,Semi-Flush MountFlush MountFlush Mount,Semi-Flush Mount
        View ProductView ProductView ProductView Product
