Internet #206479432

Model #ITG80

Integrity Series 80 CFM Wall or Ceiling Bathroom Exhaust Fan, ENERGY STAR

  • Easy to Install - Roomside / No-Cut Installation
  • Flush Mount Design with a 5.75 in. Housing Depth
  • Operates quietly and backed with 3 Year Warranty
  • See More Details

Frequently Bought Together

+
+
Price:
$3841

Product Overview

The Delta Breez Integrity ITG80 ventilation fan is the perfect combination of power, quality and performance at an economical price. Air flow of 80 CFM with loudness rating of 1.3 Sones. Features a DC brushless fan motor for superior reliability and efficiency, paired with EXTREMELY low power consumption. Tested for 70,000 hour continuous operation up to 8 years of reliability. The fan operates at 9.5-Watt with an efficiency rating of 8.5 CFM per Watt. Soft Start technology softly and quietly ramps the Brushless DC motor to top speed reducing bearing wear and prolonging fan life. Easy to install; in fact a smaller size than most similar performance rated fans on the market. ENERGY STAR qualified, HVI certified, UL and cUL certified, and can be used to comply with ASHRAE 62.2 (local and whole building intermittent operation). HVI-Certification promises our fans are independently tested and rated to ensure they deliver on promised performance. Suitable for rooms up to 80 sq. ft. Perfect for small power rooms, laundry rooms and the home office.
  • ENERGY STAR qualified with innovative brushless DC motor technology and an efficiency rating of 8.5 CFM/Watt
  • Annual energy cost for 24/7 operation is approximately $9.98 (Based on U.S. average retail electricity and HVI testing labs. Actual results may vary)
  • The cutting-edge, long-lasting brushless DC motor is engineered to run continuously, outlasting traditional AC motor fans by 2½ times (Minimum 70,000 continuous hours)
  • Built-in soft start function to increase bearings’ life, motor equipped with thermal cutoff fuse and automatically powers OFF when impeller is locked abnormally for safety
  • Self-compensating motor speed for intended air flow when static pressure is encountered
  • Ceiling mount ventilating fan rated for Continuous Running
  • Compact housing for easy retrofit and replacement of older bath fans, attractive grille complements any decor
  • Quiet operation at 1.3 Sones or less
  • Power rating of 120 Volts/60Hz, Low power consumption at 10 Watts
  • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring, UL approved for ceiling and wall mount installation
  • Green and amber LED indicator lights show when continuous low speed operation and full speed modes are active respectively

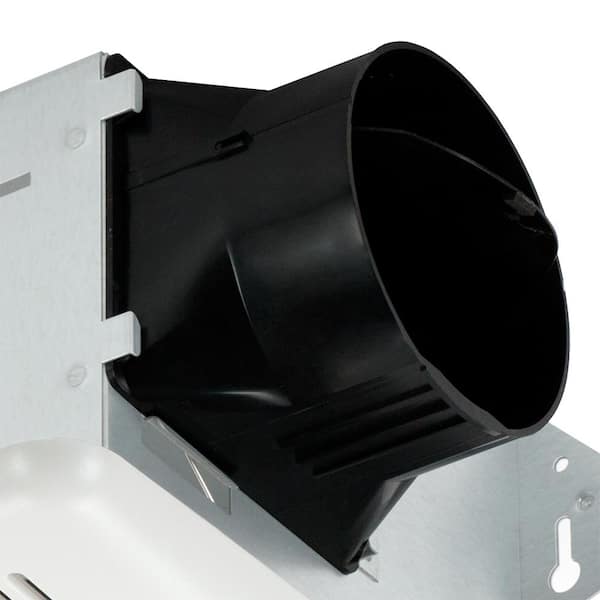

  • Included: (1x) Detachable 4 in. Duct Adapter
  • Click here to learn more about Eco Options and Energy Efficiency

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Bath Fans

current product
Integrity Series 80 CFM Wall or Ceiling Bathroom Exhaust Fan, ENERGY STAR
Slim Series 80 CFM Ceiling or Wall Bathroom Exhaust Fan, ENERGY STARSlim Series 70 CFM Wall or Ceiling Bathroom Exhaust Fan with Humidity Sensor, ENERGY STARIntegrity Series 80 CFM Ceiling Bathroom Exhaust Fan with Dimmable LED Light, ENERGY STAR
BrandDelta BreezDelta BreezDelta BreezDelta Breez
NameIntegrity Series 80 CFM Wall or Ceiling Bathroom Exhaust Fan, ENERGY STARSlim Series 80 CFM Ceiling or Wall Bathroom Exhaust Fan, ENERGY STARSlim Series 70 CFM Wall or Ceiling Bathroom Exhaust Fan with Humidity Sensor, ENERGY STARIntegrity Series 80 CFM Ceiling Bathroom Exhaust Fan with Dimmable LED Light, ENERGY STAR
Price
$3841
$5780
$6699
$8157
Ratings
(342)
(649)
(649)
(342)
Air Volume (CFM)80807080
Fan Sound Level (Sones)1.30.72.01.3
Housing Width (in.)7.2510.57.57.25
Housing Length (in.)7.511.257.257.5
Maximum Room Size (sq. ft.)80807080
FeaturesNo Additional FeaturesNo Additional FeaturesHumidity SensingLight
Installation TypeCeiling,WallCeiling,WallCeiling,WallCeiling,Wall
Grill ShapeRectangleSquareSquareSquare
IncludedHardwareHardwareHardwareHardware,Light Bulb
Mount TypeFlush Mount,Semi-Flush MountFlush Mount,Semi-Flush MountFlush Mount,Semi-Flush MountFlush Mount,Semi-Flush Mount
View ProductView ProductView ProductView Product

Specifications

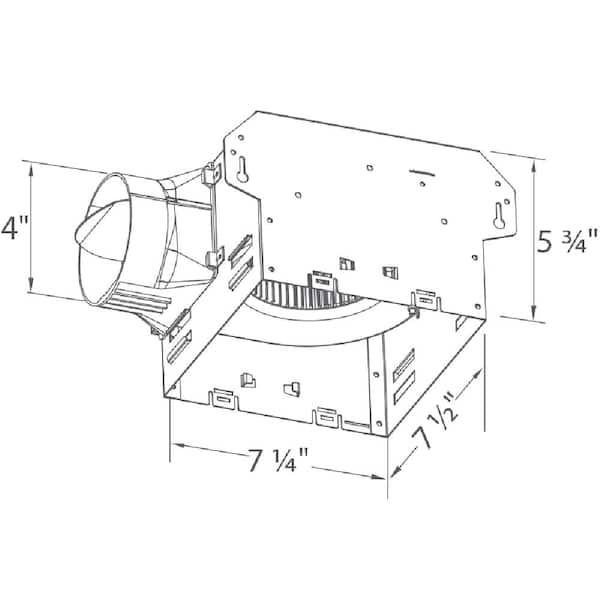

Dimensions

Housing Length (in.)
7.5
Housing Width (in.)
7.25
Product Height (in.)
5.75
Product Length (in.)
9.375
Product Width (in.)
7.25

Details

Air Volume (CFM)
80
Amperage (amps)
0.2
Color/Finish
White
Duct Compatible Sizes
4 in
Fan Sound Level (Sones)
1.3
Features
No Additional Features
Grill Shape
Rectangle
Housing Material
Galvanized Steel
Included
Hardware
Installation Type
Ceiling,Wall
Maximum Room Size (sq. ft.)
80
Mount Type
Flush Mount,Semi-Flush Mount
Product Weight (lb.)
6.00
Returnable
180-Day
Room Size
Medium Room Fan
Voltage (volts)
120
Wattage (watts)
10

Warranty / Certifications

Certifications and Listings
Energy Star,UL Certified,cUL Listed
Manufacturer Warranty
3 Year Limited Warranty

Questions & Answers

82Questions43Answers

Can you install a light switch and fan switch or does the light and fan have to be on together?

Asked by CC January 10, 2019
5
Answers

I installed a switch to control the light and a second switch to control the fan.

Can this be used in the shower cieling?

Asked by Thunder October 30, 2017
5
Answers

I hope so because I installed it in the shower stall ceiling.

Is this suitable to hang in shower ceiling area

Asked by Lea August 24, 2019
5
Answers

You should ask an electrician that. I do not think it would be a good idea

Can this fan be installed without access through the ceiling?

Asked by Joanne July 10, 2017
4
Answers

It was not possible for me. Maybe if you have a flexible bit extender, otherwise you have to screw it into the stud using the two side pieces that extend out with screw holes in them. Also, make sure the cover is flush with the ceiling before you decide where to screw it in. I had to unscrew and adjust it because the tabs that are supposed to guide you make it so the cover is not flush with the ceiling.

Is this fan to be used on a separate switch? I currently have a unit that the light and fan have ...

Asked by Streinsix August 23, 2017
4
Answers

This is wired to be controlled either by one switch or two. One of the wires will be labeled for the light, just hook that one to the hot wire for the separate switch. Wire all the ground (bare copper or green) and neutral (white) wires together. This will give you the control for both switches.

I bought model ITG80H, no speakers or light, but wiring diagram seems to show it needs 2 switches...

Asked by Phil August 9, 2018
4
Answers

Just finished the install. There are multiple ways to wire this fan, depending on how many switches one has/wants to install. In my case, I want the fan to function solely in humidistat mode and have no switches. The fan is hard wired directly to power using the black/white wire pair. I taped off the blue/white wire pair. The blue LED is always on, indicating humidistat mode and the fan comes on based on the setting of the Relative Humidity (RH) switch at 50, 60, 70 or 80 % RH. The CFM switch is set to 0, meaning that the fan does NOT run all the time. Had to call Delta to confirm this. Their instructions are lacking. Nice and quiet.

Can this be installed above shower/tub ceiling?

Asked by Nora August 23, 2019
4
Answers

Yes, I would connect to a GFCI protected circuit.

Can a brighter LED light be installed if I do not find the 13 watt bright enough?

Asked by Joann August 28, 2018
4
Answers

The light is very bright. We have a dimmer for the light.

what bulb is used ? can you change the bulb to a custom bulb?

Asked by Brandon November 27, 2019
4
Answers

It does not have a bulb, at least not a standard bulb. It uses an LED panel made specifically for this unit. I believe that it can be replaced. The expected life span is several years.

Can i use a single wall switch to operate the light and fan together. Or does this unit require t...

Asked by JB September 8, 2019
4
Answers

the system is designed to work with 2 switches. Doing it different may be possible. You need to ask an electrician to be safe.

Integrity Series 80 CFM Wall or Ceiling Bathroom Exhaust Fan, ENERGY STAR - page 2

Customer Reviews

  • 342 Customer Reviews
  • 4.5 out of 5 stars overall
87% of customers recommended.
Overall Ratings
5star-icon(232)
4star-icon(69)
3star-icon(19)
2star-icon(9)
1star-icon(13)
Sort By:
Good fan at very reasonable price. Very quiet...though it...
Good fan at very reasonable price. Very quiet...though it does take a second or two to spin up. I replaced two builder's grade units in my bathroom--one above the shower and one in toilet closet. Measured it with a sound app on my iPhone at only 47 decibels.
Was this helpful?
1
0
8x8 bathroom and 80 CFM should be plenty for 64 square feet. I see very little to no difference ...
8x8 bathroom and 80 CFM should be plenty for 64 square feet. I see very little to no difference from the contractor grade 50 CFM I replaced. I will likely return it.
Was this helpful?
1
0
Response from THD-CSSeptember 29, 2020
Dear Valued Home Depot Customer,Thank you Tommy, we appreciate you taking the time to share. We're sorry to hear that you're not satisfied with your purchase. We want to ensure the best possible experience with your purchase, and we would love for you to reach out to us directly so that we can have the opportunity to assist you further. Please, contact us at 1+(888) 979-9889.
The construction and durability of the fan is very good. Even the plastic parts seem adequately ...
The construction and durability of the fan is very good. Even the plastic parts seem adequately sturdy. The hardest part of the installation was connecting the fan to a new exhaust duct. Prior homeowners had no exhaust duct work, so I had to buy new duct work and extensions and a cap so that the bathroom vent could direct the air upward and outward instead of just blowing into the attic and insulation. After pre-assembly of the duct work (which took quite a bit of time), attachment to the fan was relatively quick and easy using Nashua foil tape. Attachment of the wiring was a little hard, trying to hold the fan body unit up while trying to connect the wires but I eventually overcame and completed the task. It was noted that there were no wire connectors provided. Thankfully, I already had some in my home tackle. I drilled three hole into the joist and connected the fan body to the joist with long screws (also not provided but I had some good wood screws that did the trick). The inner electrical connection was easy via a provided plug-in. The light kit was equally easy with a wired plug-in and spring-wired connectors for the lighting fixture itself, enabling easy push up and into place to complete the project. I love this fan because: 1. The fan does a great job of drawing steam and odors out of the bathroom with very little sound. The sones on this unit are very low. 2. The light is bright and awesome. It really helps brighten the bathroom allowing folks in the shower to see better. I wholeheartedly recommend this fan.
Was this helpful?
5
0
Smart Exhaust Fan
Quality :
5
Value :
5
I'm a weekend diy kind of guy. Our old fan wasn't exhausting the moisture anymore so I picked up one of these. Key points Same footprint as my older fan unit (hole size) Doesn't sound like a broken electric fan Mostly quiet, has a slight humming at 1.0 sone. Bluetooth speaker Took about 1hr to install. The install was easy. Watch the Delta install video and reused the wood screws from the old fan. Took a bit of time to maneuver the unit in the hole. The exhaust vent works really well. Before the mirror would be 100% fogged up during winter season. Now I only get the very top corner. I'm extremely happy with this purchase, I purchased another one for the second bathroom. Best part, I 3D printed a Google Home Mini mount and replaced the small Bluetooth speaker.
Was this helpful?
3
0
Easy to setup. I replaced an old NuTone circular housing fan with this fan. Most of my work in pa...
Easy to setup. I replaced an old NuTone circular housing fan with this fan. Most of my work in patching the big circular hole in the ceiling since most of the new exhaust fans come in square/rectangle housing. Only challenge is that you have to use a small length screw driver, about 7 inches in length (width of the housing) while driving the housing screws into the wood. Such less room within the housing makes driving the screw a bit of a task. I presume this would be challenge with driving screws with any housing if mounting from the sides. There is no need to have access to the attic for side installation. Alternatively an angled drill machine should be helpful.
Was this helpful?
1
0
Works great! Fan is super quiet and Bluetooth speaker plays music very clearly. No problems with ...
Works great! Fan is super quiet and Bluetooth speaker plays music very clearly. No problems with installation.
Was this helpful?
1
0
This bath fan replaced our old fan that stopped working in our master bath. I figured if I had to...
This bath fan replaced our old fan that stopped working in our master bath. I figured if I had to be pulling things out of my ceiling, then I wanted an upgrade, so went with one that is more quiet and has a speaker. So far this works great. It keeps mirrors clear and humidity off our walls during showers. It is quieter than our previous fan, which had the same CFM rating. It is quiet, but loud enough that you can tell when it is on and also has a small and inconspicuous blue light to let you know the speaker is active. The speaker is loud enough to hear music while I am drying my hair or showering, but the fan doesn't take up larger space than our standard small hole because of the fan. I am happy with the overall purchase. The only reason I give it 4 instead of 5 stars is that I feel like the price tag for this fan (and bath fans in general) is a little high.
Was this helpful?
1
0
Williamstown, NJ
I receiver the DELTA BREEZ 100 CFM INTEGRITY BATHROOM EXHAUST FAN WITH EDGE-LIT DIMMABLE LED LIGH...
Seeds Program Review
(What's this)
I receiver the DELTA BREEZ 100 CFM INTEGRITY BATHROOM EXHAUST FAN WITH EDGE-LIT DIMMABLE LED LIGHT, WHITE. I had the fan put in by a contractor, I usually do my own work but have a knee problem. The fan was easy to install it took the man about 1 1/2 hours to do it. The results are great, I can not believe how quiet the fan is and still move a lot of air. The light is brighter than the old two bulb light, but not glaring. I'm very happy with the light/fan.
Was this helpful?
6
0
I took a picture of the back side of the light so you can see the genius of the design. This fan ...
Quality :
5
Seeds Program Review
(What's this)
I took a picture of the back side of the light so you can see the genius of the design. This fan doesn't have any of the usual big ugly grills, and it's able to use a huge LED light because of that. The plastic housing/bezel creates an air space around the light that the fan uses as the input. It's able to clear the steam and smells out of our master bathroom with ease, I would guess the room is 10x6. At 1.5 it's fairly quiet and doesn't bother use, and it can exhaust 100 CFM. That means it can replace all the air in our bathroom in under 5 minutes!
Was this helpful?
5
0
When we received this ceiling fan for our bathroom the first impression we had was how big the li...
Quality :
4
Seeds Program Review
(What's this)
When we received this ceiling fan for our bathroom the first impression we had was how big the light area is almost 12" by 12" It is an LED flat panel with edge lit dimmable lighting that is equivalent to a 60-Watt incandescent bulb . However a dimmer switch is not included and the directions do not say what kind of dimmer switch to purchase. The fan has to be mounted in the ceiling as most of these are, but it doesn't set flush against the ceiling because of the gap needed to provide an area for the air to flow through. The directions are very straight forward, but they don't include what is required to actually cut a hole in the ceiling for the exhaust components to fit into. Because of its weight it has to be mounted between two ceiling joist beams to hold it up. It does come with a 3-year limited warranty.
Was this helpful?
1
0
