EZ Handrail 1.9 in. Aluminum Round ADA Handrail White Wall Bracket
0815973010228

EZ Handrail

1.9 in. Aluminum Round ADA Handrail White Wall Bracket

$1844 /each

Overview

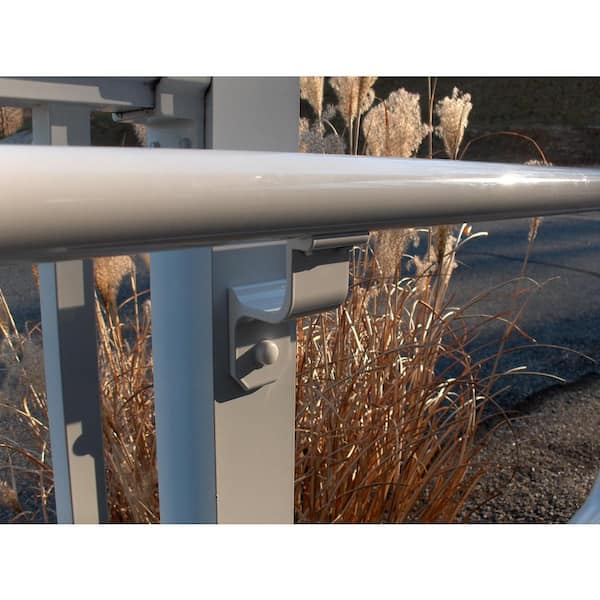

The EZ ADA 1.9 in. Round Handrail Wall Bracket is a heavy duty aluminum bracket for mounting EZ ADA Round Handrails to any type of wall or post at any angle. Additionally, the three fastener mounting system secures the bracket for weight loads exceeding 450 lbs. The bracket's edges are smoothed for easy use of the handrail.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The EZ ADA 1.9 in. Round Handrail Wall Bracket is a heavy duty aluminum bracket for mounting EZ ADA Round Handrails to any type of wall or post at any angle. Additionally, the three fastener mounting system secures the bracket for weight loads exceeding 450 lbs. The bracket's edges are smoothed for easy use of the handrail.
  • Meets 2010 ADA standards for accessible design
  • 100% Aluminum alloy for superior strength
  • Engineered for use with all EZ ADA handrails and components
  • Low maintenance powder coat finish
  • Includes Fasteners For Installing To Wood 1 – 9/16 Bolt Cap 1 – 5/16 x 2 ½” Lag Screw 2 – 1” SMS Stainless

Product Overview

Model #: EZA200-W
Internet #: 202988226

The EZ ADA 1.9 in. Round Handrail Wall Bracket is a heavy duty aluminum bracket for mounting EZ ADA Round Handrails to any type of wall or post at any angle. Additionally, the three fastener mounting system secures the bracket for weight loads exceeding 450 lbs. The bracket's edges are smoothed for easy use of the handrail.

  • Meets 2010 ADA standards for accessible design
  • 100% Aluminum alloy for superior strength
  • Engineered for use with all EZ ADA handrails and components
  • Low maintenance powder coat finish
  • Includes Fasteners For Installing To Wood 1 – 9/16 Bolt Cap 1 – 5/16 x 2 ½” Lag Screw 2 – 1” SMS Stainless

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
3
Product Height (in.)
5
Product Width (in.)
2

Details

Color Family
White
Color/Finish
White
Features
Paintable
Interior/Exterior
Interior/Exterior
Material
Aluminum
Returnable
90-Day
Stair Part Type
Fitting

Specifications

Dimensions

Product Depth (in.)
3
Product Height (in.)
5
Product Width (in.)
2

Details

Color Family
White
Color/Finish
White
Features
Paintable
Interior/Exterior
Interior/Exterior
Material
Aluminum
Returnable
90-Day
Stair Part Type
Fitting

Questions & Answers

what is the weight capacity of each bracket

what is the weight capacity of each bracket
Asked by: mike
Hi Mike. The weight capacity is dependent on the fastener, but as someone else graciously answered, it is 350+ lbs minimum and averages 450 lbs. Thank you for your question. And thank you community for your assistance, it is always greatly appreciated! Dan Hall (EZ Handrail Dev. Team)
Answered by: Dan H.
Date published: 2017-11-28

We did not get fasteners for the top of handrail that should be connected to the wall bracket when two holes are drilled. Are they sold separately ?

What is the specification for those?
Asked by: Albertina
My kit had two fasteners. There is no top bracket, it is only supported from the bottom of the rail tubing.
Answered by: inkyd62
Date published: 2017-01-24

What is the offset distance from flat which attaches to the the upright pole to the centerline of the 1.9 inch handrail?

Asked by: BW437
2 1/2 inches; I just measured it.
Answered by: DaveS
Date published: 2016-08-05
  • y_2018, m_1, d_18, h_6CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.6
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_3
  • loc_, sid_202988226, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 94ms
  • QUESTIONS, PRODUCT

Customer Reviews

1.9 in. Aluminum Round ADA Handrail White Wall Bracket is rated 4.7 out of 5 by 6.
Rated 5 out of 5 by from I added this bracket to my EZ Handrail for additional... I added this bracket to my EZ Handrail for additional support. The bracket is well made and did provide the extra support I needed. It was a perfect match to the EZ Handrail and easy to install.
Date published: 2017-11-03
Rated 4 out of 5 by from 4 Star Review Rating provided by a verified purchaser
Date published: 2018-01-10
Rated 4 out of 5 by from Installed 6' rail in elderly bathroom, 2 brackets come in the box. I recommend a third bracket if... Installed 6' rail in elderly bathroom, 2 brackets come in the box. I recommend a third bracket if installing in wood stud wall & occupants are heavy or will put a lot of load on rail when using.
Date published: 2017-01-24
Rated 5 out of 5 by from High quality brackets - work well with the rest of the system High quality brackets; just like the rest of the EZ Handrail system. The only hardware that EZ Handrail did not include for my simple project (two posts, two post base covers, two of these brackets, a single round rail, and two end caps) were the 5/16 X 3 3/4 bolts and associated nuts and washers necessary to cross-bolt these brackets to the posts. Actually, you will most likely use 4 inch long bolts like I did, because that is what you will be able to find. You definitely want 5/16 rather than 1/4 bolts here, because that size matches the holes in these brackets. Depending on the angle of your stair (if you are using it on a stair), you can offset the holes in the posts from the centerline of the post so that the mounting surface of the bracket does not project past the edges of the post.
Date published: 2014-07-26
Rated 5 out of 5 by from Quality Product The Ez Handrail is a quality product and worth the expense.
Date published: 2016-02-24
Rated 5 out of 5 by from quality product the railing system is well made,easy to install,will last a long time
Date published: 2015-09-01
