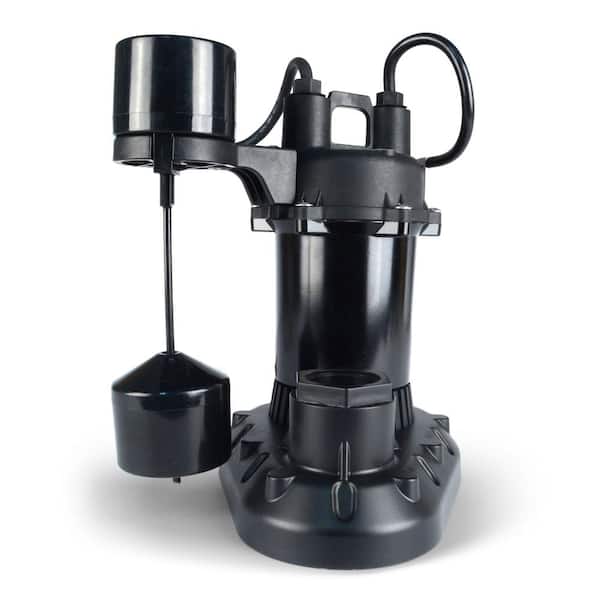

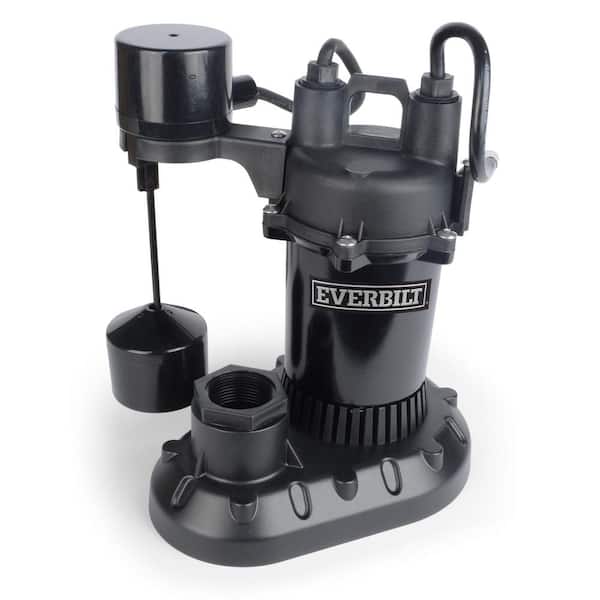

1/4 HP Aluminum Sump Pump with Vertical Switch

  • Efficient PSC motor with thermal overload protection for safety
  • Vertical float switch facilitates automatic operation
  • Semi-open impeller allows passage of 3/8 in. solids
$ 104 98
Loading Options

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Efficient PSC motor with thermal overload protection for safety
  • Vertical float switch facilitates automatic operation
  • Semi-open impeller allows passage of 3/8 in. solids
The Everbilt 1/4 HP submersible sump pump is built with an aluminum motor housing for efficient motor cooling. The pump is available with a vertical float switch requiring an 11 in. to 18 in. minimum diameter wide sump basin. The motor is built with thermal overload protection. The pump comes with a 1-year limited warranty.
  • Aluminum motor housing for efficient motor cooling
  • Continuous duty, efficient 115-Volt PSC motor for lower carbon footprint; higher efficiency using less energy to operate
  • 8.25 ft. cord length
  • Submersible for quiet operation
  • 1-1/2 in. FNPT discharge
  • Semi-open thermoplastic impeller passes 3/8 in. solids
  • Pumps up to 2000 GPH at 10 ft., outperforms the competition
  • How to Replace A Sump Pump
  • Shop All Everbilt Sump Pumps Here
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

  • Efficient PSC motor with thermal overload protection for safety
  • Vertical float switch facilitates automatic operation
  • Semi-open impeller allows passage of 3/8 in. solids
Model #: HDPS25V
Sku #: 1004118355
Internet #: 308300785

The Everbilt 1/4 HP submersible sump pump is built with an aluminum motor housing for efficient motor cooling. The pump is available with a vertical float switch requiring an 11 in. to 18 in. minimum diameter wide sump basin. The motor is built with thermal overload protection. The pump comes with a 1-year limited warranty.

  • Aluminum motor housing for efficient motor cooling
  • Continuous duty, efficient 115-Volt PSC motor for lower carbon footprint; higher efficiency using less energy to operate
  • 8.25 ft. cord length
  • Submersible for quiet operation
  • 1-1/2 in. FNPT discharge
  • Semi-open thermoplastic impeller passes 3/8 in. solids
  • Pumps up to 2000 GPH at 10 ft., outperforms the competition
  • How to Replace A Sump Pump
  • Shop All Everbilt Sump Pumps Here
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Exclusive
Exclusive
Exclusive
Exclusive
Brand Everbilt Everbilt Everbilt Everbilt
Name 1/4 HP Aluminum Sump Pump with Tethered Switch 1/4 HP Aluminum Sump Pump with Vertical Switch 1/2 HP Submersible Aluminum Sump Pump with Tethered Switch 3/4 HP Pro Snap Action Sump Pump
Price
$96.00
$104.98
$149.00
$217.00
Ratings (137) (103) (137) (57)
Voltage 115v 115v 115v 115v
Discharge Flow @ 0 ft. (gallons/hour) 2400 2400 2820 6000
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
8.66 in
Product Height (in.)
10.63 in
Product Width (in.)
8.66 in
Switch-Off Height (in.)
1.38
Switch-On Height (in.)
4.72

Details

Amperage (amps)
15
Cord Length (ft.)
8.25
Discharge Flow @ 0 ft. (gallons/hour)
2400
Discharge Flow @ 0 ft. (gallons/min)
40
Discharge Flow @ 10 ft. (gallons/hour)
1980
Discharge Flow @ 10 ft. (gallons/min)
33
Discharge Flow @ 15 ft. (gallons/min)
28
Features
Bottom/End Suction,Non-Clogging,Self-Priming,Solids Handling,Submersible,Thermal Overload Protection
Housing Material
Aluminum
Impeller Material
Plastic
Maximum Horsepower (hp)
0.25
Maximum Pressure (psi)
8.66
Maximum Working Temperature (F)
100
Minimum Sump Basin Diameter
11 to 14
Minimum working temperature (F)
35
Outlet Diameter Connection (in.)
1-1/2 FPT
Power Type Required
AC
Product Weight (lb.)
8.6 lb
Pump Switch Type
Vertical
Returnable
180-Day
Vertical Lift (ft.)
20
Voltage
115v

Warranty / Certifications

Certifications and Listings
CSA Certified
Manufacturer Warranty
1 year

Specifications

Dimensions

Product Depth (in.)
8.66 in
Product Height (in.)
10.63 in
Product Width (in.)
8.66 in
Switch-Off Height (in.)
1.38
Switch-On Height (in.)
4.72

Details

Amperage (amps)
15
Cord Length (ft.)
8.25
Discharge Flow @ 0 ft. (gallons/hour)
2400
Discharge Flow @ 0 ft. (gallons/min)
40
Discharge Flow @ 10 ft. (gallons/hour)
1980
Discharge Flow @ 10 ft. (gallons/min)
33
Discharge Flow @ 15 ft. (gallons/min)
28
Features
Bottom/End Suction,Non-Clogging,Self-Priming,Solids Handling,Submersible,Thermal Overload Protection
Housing Material
Aluminum
Impeller Material
Plastic
Maximum Horsepower (hp)
0.25
Maximum Pressure (psi)
8.66
Maximum Working Temperature (F)
100
Minimum Sump Basin Diameter
11 to 14
Minimum working temperature (F)
35
Outlet Diameter Connection (in.)
1-1/2 FPT
Power Type Required
AC
Product Weight (lb.)
8.6 lb
Pump Switch Type
Vertical
Returnable
180-Day
Vertical Lift (ft.)
20
Voltage
115v

Warranty / Certifications

Certifications and Listings
CSA Certified
Manufacturer Warranty
1 year

Questions & Answers

can you adjust the switch on height?

can you adjust the switch on height?
Asked by: dan
Yes, the nut that controls the height is easily accessible. May take a few attempts to get it right.
Answered by: Handy
Date published: 2020-05-06

The float is not moving up when the bucket is full. I Have to manually lift the float even though theres no obstructions

Where’s the problem and how to get it fixed?
Asked by: AdamEve
AdamEve, Sorry to read about your situation. Without additional details on the situation it is hard to discuss what the issue could be. The best thing to do would be to contact our experts at 844-883-1872 to speak with us directly and we can help find the solution. Thanks.
Answered by: Everbilt Customer Service
Date published: 2020-07-14

Can this pump be ran without the float?

Asked by: Rt
The float is designed to turn the pump on and off. It is not recommended to ever run this pump without the switch. Thanks.
Answered by: Everbilt Customer Service
Date published: 2020-06-10

What is the depth it drains to?

Asked by: Carter
Carter, The pump switch is designed to shutoff the pump around 2" of depth of water.
Answered by: Everbilt Customer Service
Date published: 2020-05-27
