3/10 HP Pre-Plumbed Sump Pump System

$29900
Apply Now
$undefined.00 /mo* suggested payments with months* financingApply Now
  • Helps to pump wastewater to a sewer or wastewater system
  • Includes durable cast-iron Everbilt HDS30 3/10 HP sump pump
  • Features a water-tight inlet hub with clamp for secure connection
  • See More Details
Store
0 in stock
Text to Me

Frequently Bought Together

Exclusive
+
+
Price:
$29900

Product Overview

EVERBILT Brand Banner
This is a Sump Pump pump.
This pump is made of Cast-Iron material.
This pumps dimensions are 22.50 in. Depth x 25.44 in. Height x 22.50 in. Width.
The discharge flow rate of this pump @ 0 ft. is 53 GPM.
This pump has a horsepower of 1/3 hp.
This pumps voltage is 115v.

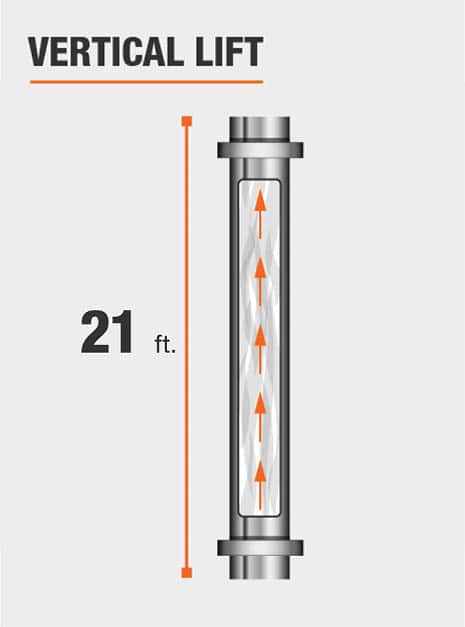

This pump has a vertical lift of 21 feet.
The warranty on this pump is 1 Year.
Illustrations may vary from actual product.
The Everbilt Pre-Plumbed Sump Basin System is ideal for basement installations, pumping below grade drainage and grey water. The system collects and pumps wastewater to a sewer or an on-site wastewater system. The system comes pre-plumbed and ready to install; no internal plumbing is required. The system features an injection molded structural foam polyethylene basin and cover that provides superior structural toughness and reliability. It includes the Everbilt Model HDS30, 3/10 HP Cast Iron Sump Pump. This Pre-Plumbed System also includes the Everbilt Inline Sump Check Valve and a water-tight molded 4 in. inlet hub.
  • Features an 18 in. x 24 in., 22.5 Gal., heavy duty sump basin with a water-tight snap-in molded inlet hub
  • Comes with the Everbilt HDS30 3/10 HP cast iron sump pump
  • Heavy duty structural foam injection molded basin cover features a clear view removable inspection plate, the sump DrainTrap cover drain, 1-1/4 in., 1-1/2 in. or 2 discharge flange, 2 or 3 threaded vent flanges, reusable, molded PVC cover seal and 8-bolts for a gas and odor tight seal
  • System pumps up to 3,160 GPH
  • Ultra-quiet Everbilt inline sump pump check valve
  • Molded inlet hub comes with a stainless steel clamp for securing the inlet pipe
  • Shop All Everbilt Sump Pumps Here

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

3/10 HP Pre-Plumbed Sump Pump System

Compare Similar Submersible Sump Pumps

92072 1/3 HP Pre-Assembled Submersible Remote Sink Drain Pump System
current product
Exclusive3/10 HP Pre-Plumbed Sump Pump System
CSP-Series 1/3 HP Submersible Crawl Space Sump Pump KitCSP-Series 1/2 HP Submersible Crawl Space Sump Pump Kit
BrandSuperior PumpEverbiltLiberty PumpsLiberty Pumps
Name92072 1/3 HP Pre-Assembled Submersible Remote Sink Drain Pump System3/10 HP Pre-Plumbed Sump Pump SystemCSP-Series 1/3 HP Submersible Crawl Space Sump Pump KitCSP-Series 1/2 HP Submersible Crawl Space Sump Pump Kit
Price
$25423
$29900
$31656
$36086
Ratings
(80)
(28)
(16)
(16)
Discharge Flow @ 0 ft. (gallons/hour)2880316027003060
Housing MaterialThermoplasticCast-IronAluminumAluminum
Impeller MaterialThermoplastic impellerPlasticVortex style impellerVortex style impeller
Voltage120v115v115v115v
Maximum Pressure (psi)10000
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
22.50 in
Product Height (in.)
25.44 in
Product Width (in.)
22.50 in
Switch-Off Height (in.)
3.25
Switch-On Height (in.)
7.5

Details

Amperage (amps)
6.5
Cord Length (ft.)
10
Discharge Flow @ 0 ft. (gallons/hour)
3160
Discharge Flow @ 0 ft. (gallons/min)
53
Discharge Flow @ 10 ft. (gallons/hour)
2150
Discharge Flow @ 10 ft. (gallons/min)
36
Discharge Flow @ 15 ft. (gallons/min)
25
Features
Submersible,Thermal Overload Protection
Housing Material
Cast-Iron
Impeller Material
Plastic
Maximum Horsepower (hp)
1/3
Maximum Pressure (psi)
0
Maximum Working Temperature (F)
104
Minimum Sump Basin Diameter
18 or More
Minimum working temperature (F)
33
Outlet Diameter Connection (in.)
1-1/2 FPT
Pack Size
1
Power Type Required
AC
Product Weight (lb.)
47 lb
Pump Switch Type
Vertical
Pump Switch Type
Vertical
Returnable
90-Day
Vertical Lift (ft.)
21
Voltage
115v

Warranty / Certifications

Manufacturer Warranty
Warranted to the original consumer purchaser to be free from defects in material and workmanship for a period of one year from the date of purchase.
