Aluminum Heat Plate for Grid Module or Staple-Up Systems

$1.99
  • Built using recycled aluminum makes it eco-friendly and safe
  • Heat plate features 1/2 in. or 5/8 in. PEX tubing for flexibility
  • Compatible with floor-heating grid modules
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret
Product Details
  • Built using recycled aluminum makes it eco-friendly and safe
  • Heat plate features 1/2 in. or 5/8 in. PEX tubing for flexibility
  • Compatible with floor-heating grid modules
About This Product

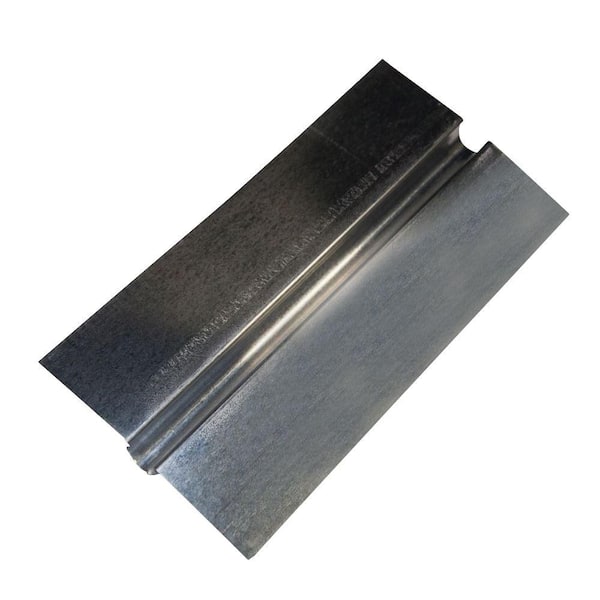

Aluminum Heat Plate 11 in. long x 6 in. wide. Perfect for heat distribution in staple up radiant floor applications and should also be used with floor heat grid modules. The heat plate will accommodate 1/2 in. or 5/8 in. PEX tubing.

  • Excellent way to transfer heat when used with either 1/2 in. or 5/8 in. PEX tubing
  • Made of recycled aluminum
  • Easy to install
  • Reduces energy cost
  • Increases comfort
  • Convenient for use in staple up systems
  • Heat plate dimensions are 11 in. x 6 in. x 3/4 in. H
  • Return Policy
Product ID #: 205613792Internet #: 852744004208Model #: FH 100

Additional Resources

Shop All FloorHeat
caret

Specifications

Product Width (in.): 6 in

Dimensions

Product Width (in.)6 in

Details

Product Weight (lb.)0.2 lbReturnable90-Day

Warranty / Certifications

Manufacturer WarrantyThree year warranty.
caret

Questions & Answers

14Questions
caret
Q:Is this good for 3/4 pex tubing
by|Dec 3, 2023
1 Answer
Answer This Question

A:  No it's not.

by|Dec 5, 2023
    caret
    Q:How far apart do you place the plates
    by|Sep 7, 2023
    1 Answer
    Answer This Question

    A:  Andres, they can be placed 2-3 inches apart. It is important that they do not touch or overlap, and this can cause a clicking noise.

    by|Sep 7, 2023
      caret
      Q:I can't get 1/2" T50 staples to penetrate the heat plate. I tried an Arrow T50X TacMate Heavy Duty Staple Gun, and then a Stanley TRE550Z Electric Stapler on both the min and max settings. Almost every single staple crumples against the plate, or only penetrates halfway through. What am I doing wrong? Frustrated and about to return the heat plates.
      by|Mar 11, 2020
      3 Answers
      Answer This Question

      A:  Use a pneumatic staple gun. It's not the fault of the heat plates.

      by|Mar 11, 2020

        A:  Update: Solved the problem with Arrow BN1810 5/8" brad nails in the Stanley Electric Stapler. Works like a charm.

        by|Sep 4, 2023
          1 found this answer helpful

          A:  Jester, Most people use a pneumatic staple gun. These are available for rent in many rental businesses. The staples are more narrow and slightly rounded so they drive in better. I hope that this helps.

          by|Mar 11, 2020
            caret
            Q:what is the thickness of the Aluminum Heat Plate?
            by|Aug 23, 2019
            1 Answer
            Answer This Question

            A:  Jim, the aluminum is 1/32" thick.

            by|Aug 23, 2019
              Showing 1-4 of 14
              caret

              Customer Reviews

              4.2 out of 5
              • 4.2 out of 12 reviews
              • 75% recommend this product
              Filter by:
              Showing 1-10 of 12 reviews
              Markedly improved efficiency
              Using these great transfer plates noticeably increased the efficiency of my radiant heat system, as installed in the basement up under the floor for my renovation in a 70 year old house. Excellent product!!!
              by
              • Verified Purchase
              • Recommended
              by
                Expensive for the product and smaller than advertised....
                Expensive for the product and smaller than advertised.
                by
                  It will do what it's intended to do....
                  It will do what it's intended to do.
                  by
                  • Verified Purchase
                  Worked as expected for radiant heat. Shorter plates helped in...
                  Worked as expected for radiant heat. Shorter plates helped in right truss spaces.
                  by
                  • Verified Purchase
                  One size does not fit all. There is no heat...
                  One size does not fit all. There is no heat transfer if pex isn’t touching the alumium!
                  by
                  • Verified Purchase
                  Nice thickness, "Delta" shape holds the PEX nicely! ...
                  Nice thickness, "Delta" shape holds the PEX nicely!
                  by
                  • Verified Purchase
                  Very small by comparison to others. Required more of the...
                  Very small by comparison to others. Required more of the product and thus an increase in overall project cost.
                  by
                  Response from Gary-Floor HeatJan 6, 2018
                  Daniel, Check the gauge of the other heat plates some are much thinner and offer less heat transfer so the initial additional cost may well be offset by energy savings over time Also the smaller plates allow for easier installation, and do not require trimming in most applications. There are pros and cons to the longer heat plates.
                  • Verified Purchase
                  1 found this review helpful
                  Perfect for my project, easy to work with and best...
                  Perfect for my project, easy to work with and best price on the web.
                  by
                  • Verified Purchase
                  Worked well....... I read other reviews which wished that the sheets came in longer sections. For...
                  Worked well....... I read other reviews which wished that the sheets came in longer sections. For me, the 11" length worked very well, because I had to work around wires, pipes, etc. I used about a 6"-10" gap between individual plates. I used these heat plates after the plastic clips that were used originally, failed....possible due to heat fatigue? I installed them used a staple gun, and heavy duty staples did NOT work as well as normal staples. as they did not penetrate the metal (perhaps due to thickness of staples?). When I needed smaller sections, I cut the metal with a hacksaw or tin snips. if you need to make such a cut, after cutting, I'd recommend using pliers to bend the cut edge away from where the radiant heat tubing will be, just to be sure that any sharp or rough edge won't affect the tubing during or after installation. I saw immediate, and significant improvement......
                  by
                  • Verified Purchase
                  • Recommended
                  3 found this review helpful
