Internet #206798478

Model # VIR09HP230V1AK

0813919027309

GREE Discontinued

Vireo 9,000 BTU 3/4 Ton Ductless Mini Split Air Conditioner and Heat Pump Kit - 208-230V/60Hz

  • Energy-efficient 23 SEER 9,600 BTU cooling and 12,000 BTU heating
  • Whisper-quiet operation for rooms up to 450 sq. ft.
  • Room temp sensing digital thermostat with included remote control
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Energy-efficient 23 SEER 9,600 BTU cooling and 12,000 BTU heating
  • Whisper-quiet operation for rooms up to 450 sq. ft.
  • Room temp sensing digital thermostat with included remote control
The ENERGY STAR-compliant Vireo line brings dramatic new performance and style to every room. Never before has it been so easy to maintain constant indoor comfort, no matter the outdoor conditions. Vireo has you covered with a multitude of features that help you live well and stay comfortable, all controlled easily – either with the wireless infrared remote controller or optional Wired Tether controller. With the advanced I FEEL mode, Vireo senses the temperature surrounding the remote controller, then adjusts air flow and temperature accordingly to create maximum comfort in all the right places. In heating mode, the system guards against bothersome chills with its intelligent pre-heating feature which delays the fan until the coil has warmed up to keep it from blowing cold air into the room. With four different fan speeds for maximum comfort and whisper quiet operation, you won’t even notice how hard Vireo is working to keep you comfortable.

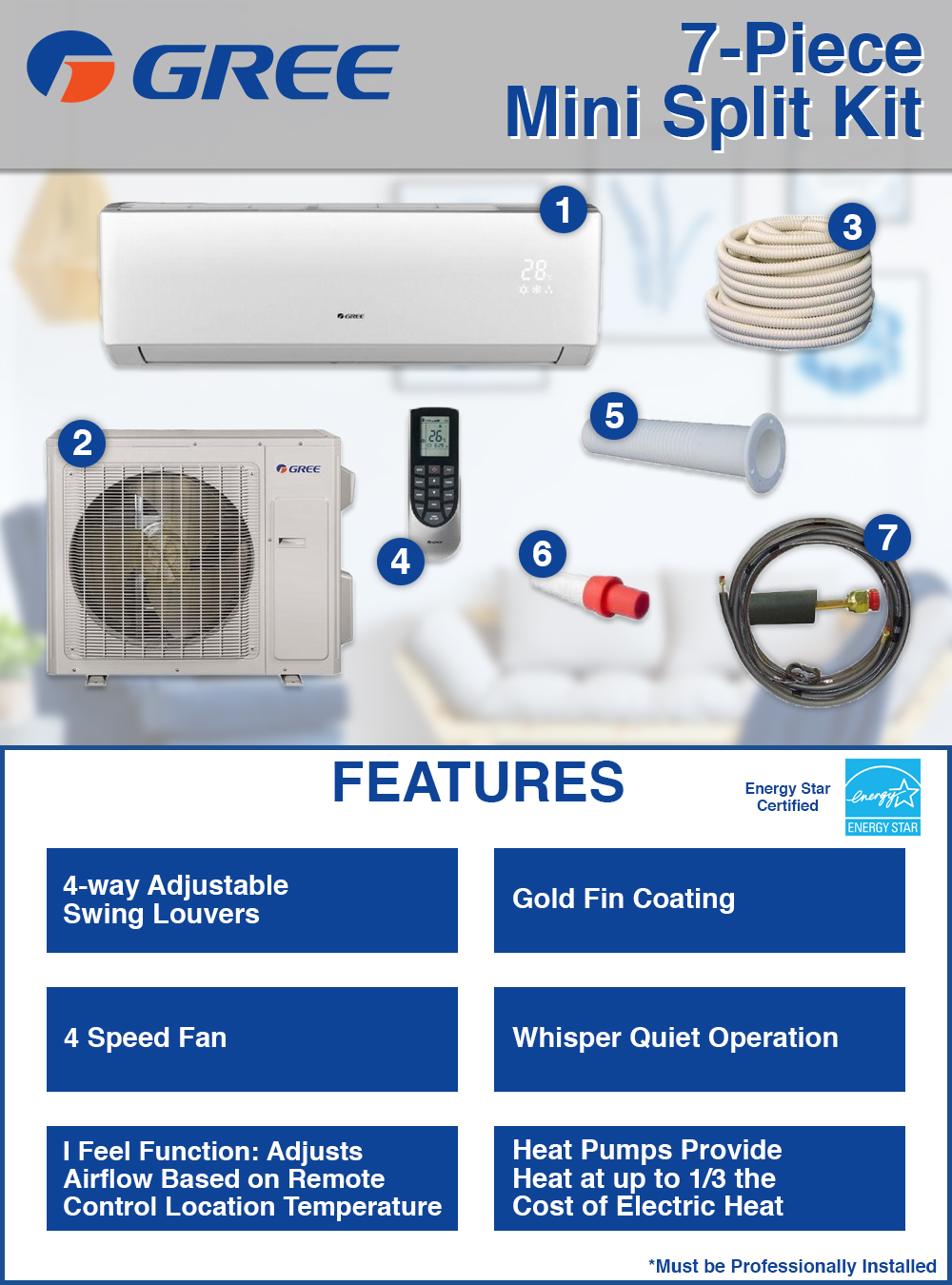

  • Complete system: includes indoor wall unit, outdoor compressor unit, 15 ft. insulated line set, 20 ft. drain line, drain line adapter, wall sleeve, and remote control
  • Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, function, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide and manufactures warranty statement for more details
  • 9,000 BTU cooling and 11,000 BTU heating for powerful temperature control
  • 4 speed fan for maximum comfort
  • Designed for whisper quiet operation with indoor sound levels as low as 26 dB for peaceful comfort
  • Slim compact design hangs inconspicuously on the wall and mixes well with most interior designs
  • 4-way adjustable swing louvers can direct the airflow anywhere it is needed in the room
  • Gold fin condenser coating to prevent rust and extend the life of the unit
  • Automatically returns to last operating mode after a power failure
  • ENERGY STAR certified for energy efficient operation
  • Click here to learn more about Eco Options and Energy Efficiency



  • Which type of air conditioner is best for your home?
  • Find out more about installation:


  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

  • Energy-efficient 23 SEER 9,600 BTU cooling and 12,000 BTU heating
  • Whisper-quiet operation for rooms up to 450 sq. ft.
  • Room temp sensing digital thermostat with included remote control
Model #: VIR09HP230V1AK
Internet #: 206798478

The ENERGY STAR-compliant Vireo line brings dramatic new performance and style to every room. Never before has it been so easy to maintain constant indoor comfort, no matter the outdoor conditions. Vireo has you covered with a multitude of features that help you live well and stay comfortable, all controlled easily – either with the wireless infrared remote controller or optional Wired Tether controller. With the advanced I FEEL mode, Vireo senses the temperature surrounding the remote controller, then adjusts air flow and temperature accordingly to create maximum comfort in all the right places. In heating mode, the system guards against bothersome chills with its intelligent pre-heating feature which delays the fan until the coil has warmed up to keep it from blowing cold air into the room. With four different fan speeds for maximum comfort and whisper quiet operation, you won’t even notice how hard Vireo is working to keep you comfortable.

  • Complete system: includes indoor wall unit, outdoor compressor unit, 15 ft. insulated line set, 20 ft. drain line, drain line adapter, wall sleeve, and remote control
  • Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, function, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide and manufactures warranty statement for more details
  • 9,000 BTU cooling and 11,000 BTU heating for powerful temperature control
  • 4 speed fan for maximum comfort
  • Designed for whisper quiet operation with indoor sound levels as low as 26 dB for peaceful comfort
  • Slim compact design hangs inconspicuously on the wall and mixes well with most interior designs
  • 4-way adjustable swing louvers can direct the airflow anywhere it is needed in the room
  • Gold fin condenser coating to prevent rust and extend the life of the unit
  • Automatically returns to last operating mode after a power failure
  • ENERGY STAR certified for energy efficient operation
  • Click here to learn more about Eco Options and Energy Efficiency



  • Which type of air conditioner is best for your home?
  • Find out more about installation:


  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
  • Energy-efficient 23 SEER 9,600 BTU cooling and 12,000 BTU heating
  • Whisper-quiet operation for rooms up to 450 sq. ft.
  • Room temp sensing digital thermostat with included remote control
The ENERGY STAR-compliant Vireo line brings dramatic new performance and style to every room. Never before has it been so easy to maintain constant indoor comfort, no matter the outdoor conditions. Vireo has you covered with a multitude of features that help you live well and stay comfortable, all controlled easily – either with the wireless infrared remote controller or optional Wired Tether controller. With the advanced I FEEL mode, Vireo senses the temperature surrounding the remote controller, then adjusts air flow and temperature accordingly to create maximum comfort in all the right places. In heating mode, the system guards against bothersome chills with its intelligent pre-heating feature which delays the fan until the coil has warmed up to keep it from blowing cold air into the room. With four different fan speeds for maximum comfort and whisper quiet operation, you won’t even notice how hard Vireo is working to keep you comfortable.
  • Complete system: includes indoor wall unit, outdoor compressor unit, 15 ft. insulated line set, 20 ft. drain line, drain line adapter, wall sleeve, and remote control
  • Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, function, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide and manufactures warranty statement for more details
  • 9,000 BTU cooling and 11,000 BTU heating for powerful temperature control
  • 4 speed fan for maximum comfort
  • Designed for whisper quiet operation with indoor sound levels as low as 26 dB for peaceful comfort
  • Slim compact design hangs inconspicuously on the wall and mixes well with most interior designs
  • 4-way adjustable swing louvers can direct the airflow anywhere it is needed in the room
  • Gold fin condenser coating to prevent rust and extend the life of the unit
  • Automatically returns to last operating mode after a power failure
  • ENERGY STAR certified for energy efficient operation
  • Click here to learn more about Eco Options and Energy Efficiency



  • Which type of air conditioner is best for your home?
  • Find out more about installation:


  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

  • Energy-efficient 23 SEER 9,600 BTU cooling and 12,000 BTU heating
  • Whisper-quiet operation for rooms up to 450 sq. ft.
  • Room temp sensing digital thermostat with included remote control
Model #: VIR09HP230V1AK
Internet #: 206798478

The ENERGY STAR-compliant Vireo line brings dramatic new performance and style to every room. Never before has it been so easy to maintain constant indoor comfort, no matter the outdoor conditions. Vireo has you covered with a multitude of features that help you live well and stay comfortable, all controlled easily – either with the wireless infrared remote controller or optional Wired Tether controller. With the advanced I FEEL mode, Vireo senses the temperature surrounding the remote controller, then adjusts air flow and temperature accordingly to create maximum comfort in all the right places. In heating mode, the system guards against bothersome chills with its intelligent pre-heating feature which delays the fan until the coil has warmed up to keep it from blowing cold air into the room. With four different fan speeds for maximum comfort and whisper quiet operation, you won’t even notice how hard Vireo is working to keep you comfortable.

  • Complete system: includes indoor wall unit, outdoor compressor unit, 15 ft. insulated line set, 20 ft. drain line, drain line adapter, wall sleeve, and remote control
  • Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, function, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide and manufactures warranty statement for more details
  • 9,000 BTU cooling and 11,000 BTU heating for powerful temperature control
  • 4 speed fan for maximum comfort
  • Designed for whisper quiet operation with indoor sound levels as low as 26 dB for peaceful comfort
  • Slim compact design hangs inconspicuously on the wall and mixes well with most interior designs
  • 4-way adjustable swing louvers can direct the airflow anywhere it is needed in the room
  • Gold fin condenser coating to prevent rust and extend the life of the unit
  • Automatically returns to last operating mode after a power failure
  • ENERGY STAR certified for energy efficient operation
  • Click here to learn more about Eco Options and Energy Efficiency



  • Which type of air conditioner is best for your home?
  • Find out more about installation:


  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Ramsond GREE MRCOOL GREE
Name 9,500 BTU (3/4 Ton) Ductless (Duct Free) Mini Split Air Conditioner and Heat Pump - 110V/60Hz Vireo 9,000 BTU 3/4 Ton Ductless Mini Split Air Conditioner and Heat Pump Kit - 208-230V/60Hz Oasis ENERGY STAR 9,000 BTU 3/4 Ton Ductless Mini-Split Air Conditioner and Heat Pump - 230V/60Hz Vireo 12200 BTU Ductless Mini Split Air Conditioner and Heat Pump Kit - 115Volt
Price
Was $992.99
$923.48 /set
Save $69.51 (7%)
$1,049.00
$1,082.00 /bundle
$1,099.00
Ratings (46) (6) (1) (12)
View Product View Product View Product View Product

Specifications

Dimensions

Air handler depth (in.)
8.2
Air handler height (in.)
11.4
Air handler width (in.)
33.3
Condenser depth (in.)
12.6
Condenser height (in.)
21.3
Condenser width (in.)
33.4

Details

Air Conditioner Product Type
Mini Split Unit
Air direction/circulation
4-way
Air handler weight (lb.)
22
Amperage (amps)
6
BTU Cooling Rating
9000 BTU
BTU Cooling Rating
9600
BTU Heat Rating
9000 BTU
BTU Heat Rating
12000
Color
Bisque
Color Family
Beige/bisque
Color/Finish
White
Condenser weight (lb.)
78
Coverage Area (sq. ft.)
450
Decibel (Sound) Rating
34 dBA
Decibel Rating
34 dBA
Filter Type
Mesh
Hub Required
No hub connection available
Included
Heater,Remote Control,Self-diagnostic tools
Mini Split Features
Filter light reminder,Overload protection,Sleep setting,Timer
Minimum Outdoor Temperature (F)
-4
Mount Location
Wall Mount
Number of Fan Speeds
4 or More
Number of cool settings
27
Power Options
Hardwired
Remote Access
No Remote Access
Requires Hub?
No Hub Required
Returnable
90-Day
Voice Control Hub Required
No Voice Control
Voltage (v)
230v
Voltage (volts)
230
Wattage (watts)
1270
Works With
No additional compatibility
Zone Capacity
Single Zone

Warranty / Certifications

Certifications and Listings
ETL Listed
Manufacturer Warranty
All parts are warranted for a period of five (5) years to the original registered end-user with proof of proper installation. The compressor is warranted for a period of 5 (5) years to the original registered end-user with proof of proper installation.
Seasonal Energy Efficiency Ratio (SEER)
23

Specifications

Dimensions

Air handler depth (in.)
8.2
Air handler height (in.)
11.4
Air handler width (in.)
33.3
Condenser depth (in.)
12.6
Condenser height (in.)
21.3
Condenser width (in.)
33.4

Details

Air Conditioner Product Type
Mini Split Unit
Air direction/circulation
4-way
Air handler weight (lb.)
22
Amperage (amps)
6
BTU Cooling Rating
9000 BTU
BTU Cooling Rating
9600
BTU Heat Rating
9000 BTU
BTU Heat Rating
12000
Color
Bisque
Color Family
Beige/bisque
Color/Finish
White
Condenser weight (lb.)
78
Coverage Area (sq. ft.)
450
Decibel (Sound) Rating
34 dBA
Decibel Rating
34 dBA
Filter Type
Mesh
Hub Required
No hub connection available
Included
Heater,Remote Control,Self-diagnostic tools
Mini Split Features
Filter light reminder,Overload protection,Sleep setting,Timer
Minimum Outdoor Temperature (F)
-4
Mount Location
Wall Mount
Number of Fan Speeds
4 or More
Number of cool settings
27
Power Options
Hardwired
Remote Access
No Remote Access
Requires Hub?
No Hub Required
Returnable
90-Day
Voice Control Hub Required
No Voice Control
Voltage (v)
230v
Voltage (volts)
230
Wattage (watts)
1270
Works With
No additional compatibility
Zone Capacity
Single Zone

Warranty / Certifications

Certifications and Listings
ETL Listed
Manufacturer Warranty
All parts are warranted for a period of five (5) years to the original registered end-user with proof of proper installation. The compressor is warranted for a period of 5 (5) years to the original registered end-user with proof of proper installation.
Seasonal Energy Efficiency Ratio (SEER)
23

Questions & Answers

How big an area does this cover? I want to put it in my garage.

Asked by: Gina
Using mine in my garage. Only have insulated doors for now. Works well for short term use when Now that there is a new foam spray that doesn’t bow drywall and the holes can be drilled from drywall side not outside I plan on doing that next year so I Can run it constant to balance the temps of my CBC mill. Of course garage size matters. If you have a standard 3 car or larger out will need a larger and likely dual unit or for a tad bit more than this by the 4’x4’ swamp cooler.
Answered by: Brandon
Date published: 2019-08-05

The specs call out 208/230 volt is there any problems with hooking up to normal house power 1 ph. 240 volt.

208 volt is typical 3 ph commercial voltage and house power could be over 230volt. Is that with in the warranty specs/approval
Asked by: Dan
No. Most electrical systems allow for a 10 volt range. No exception for this unit. If your worried about cost. I run my 100k CNBC mill rated for 230 at 246 - 253 cause my power sucks. Yes my mill is 3 phase but that is generated by a rotary phase converter which doesn’t balance the power no lower the voltag. Just size your breaker over by 5 amps at min as starting the compressor and fan will draw a bit more than the rated power for 1-3 seconds.
Answered by: Brandon
Date published: 2019-08-05

How many seer is this unit

Asked by: Jmizzel
The Vireo 36 is rated at 18 SEER. A general specifications document is listed on the Home Depot webpages where SEER and other efficiency information can be found.
Answered by: CRL
Date published: 2017-06-17

Does it also have dehumidifier mode?

Asked by: Paul
Actually, the Gree - Vireo model provides a "Dry" mode function that adjusts indoor unit fan speed for high humidity situations. This is referenced on page 9 and described on page 12 of the owners or maintenance manual listed on the web page.
Answered by: CRL
Date published: 2018-04-30
